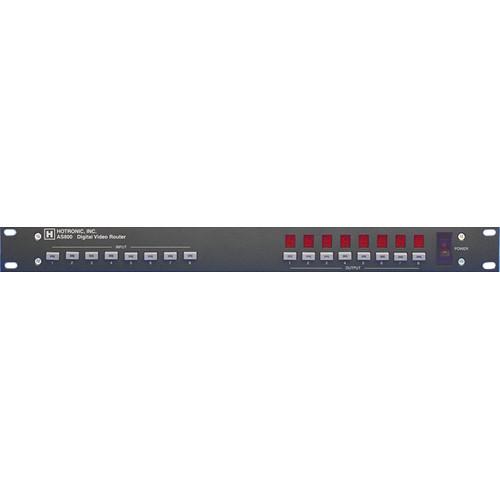

User Manual for Hotronic AS801 Digital Video Router Click to enlarge the picture
Contents of the user manual for the Hotronic AS801 Digital Video Router
- Product category: Routers & Switchers Hotronic
- Brand: Hotronic
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Hotronic Routers & Switchers
|
User manual for the Hotronic AS801 Digital Video Router contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Hotronic product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Hotronic user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Hotronic product will considerably shorten its lifespan!
|
Product description The Hotronic AS801 Digital Video Router (8 x 8) offers advanced HD/SD digital video switching with 8 inputs and 8 outputs. The 1RU accepts either HD or SD input or HD/SD (mixed), and is compatible with SMPTE 292M/295M (HD/SD). With dedicated access buttons for each input and output, the router allows adjustment-free operation. In addition, the unit comes with an easy-to-read display and is operational up to 1.5GBps. Automatic cable equalization offers protection against digital signal loss and maintains a constant output signal level. The optional RS-485 dedicated channel remote control allows routing of output channels from locations away from the main unit. -
- HD/SD serial digital video matrix router with 8 BNC inputs and 8 BNC outputs in 1RU
- Accepts either HD/SD or mixed HD/SD input
- Compatible with SMPTE 292M/295M (HD/SD)
- Dedicated access buttons for each input as well as output
- Adjustment-free operation
- Easy-to-read display
- Operational up to 1.5GBps
- Automatic cable equalization offers protection against digital signal loss and maintains a constant output signal level
- Optional RS-485 dedicated channel remote control for multi-location use
- Automatically recognizes and accepts both NTSC/PAL serial digital video
In the Box Hotronic AS801 Digital Video Router (8 x 8) 1 Year Parts, 90 Day Labor Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Hotronic AS801 Digital Video Router in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHotronic AS801 Specs | Video Resolution | 10-bit | | Video Input | BNC x8 | | Video Output | BNC x8 | | Jitter | Less than .2 UI | | Power Consumption | <50W | | Operating Temperature | 50 - 104°F (10 - 40°C) | | Dimensions (WxHxD) | 19 x 1.8 x 11" (483 x 46 x 279mm) | | Weight | 12-15 lbs (5.4-6.8kg) |
