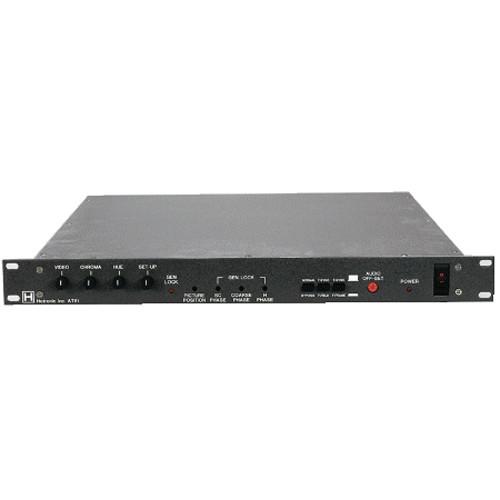

Product description The AT-61 is a frame synchronizer offering processing amplifier adjustments and 10-Bit Quantization. Accepting composite video signals this unit will stabilize most video sources. - Quantization
- This unit utilizes 10 Bit quantiztion for low noise signal passage.
- Digital Comb Filter
- This electronic filter stabilizes video signal and ensures accurate chroma rendition.
- Blanking
- The AT-61 offers more than general timing adjustments; horizontal and vertical blanking can be adjusted to match requirements of high end broadcast and post production studios.
- Genlock
- This device offers the ability to reference to studio timing.
- Rackmountable
- Designed to fit into standard studio rack space without extraneous equipment.
In the Box Hotronic AT-61 10 Bit Frame Sync, Proc-Amp, Composite Video, Genlock, Rackmountable Power Cord 1 Year 90 Day Labor Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Hotronic AT-61 10 Bit Frame Sync, Proc-Amp, Composite Video, Genlock, Rackmountable in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHotronic AT61 Specs | Input | Composite Video, NTSC @ 75 ohms, on a BNC connector
Genlock Reference, looping, NTSC @ 75 ohms, on a BNC connector | | Output | Composite Video, NTSC @ 75 ohms, on a BNC connector | | Video Bandwidth | 6 MHz | | Differential Gain | 1% | | Differential Phase | 1° | | Video Signal-to-Noise Ratio | 60 dB | | Control | Front Panel:
Video Level
Chroma Level
Hue Phase
Set-Up Level
Picture Position
Sub Carrier Phase
Horizontal Phase
Strobe
Bypass | | Power Source | 120 VAC @ 60 Hz | | Dimensions (WxDxH) | 19 x 17 x 1.75"
48.26 x 43.18 x 4.45cm | | Weight | 12 lbs
5.44 kg |
