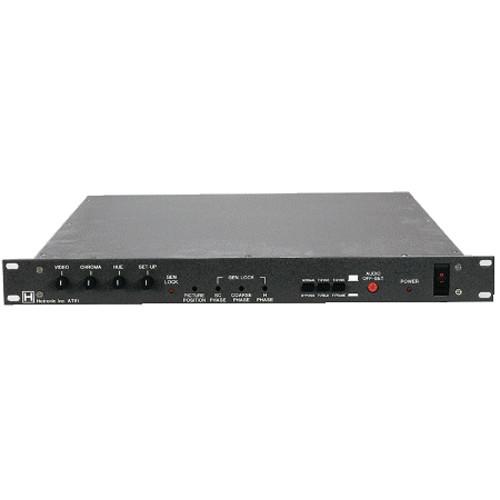

User Manual for Hotronic AT-61AU 10 Bit Frame Sync with Freeze and Audio Delay, Proc-Amp, Genlock, Composite Video, Balanced Audio, Rackmountable Click to enlarge the picture
Contents of the user manual for the Hotronic AT-61AU 10 Bit Frame Sync
- Product category: Video & Audio Processing Hotronic
- Brand: Hotronic
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Hotronic Video & Audio Processing
|
User manual for the Hotronic AT-61AU 10 Bit Frame Sync contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Hotronic product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Hotronic user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Hotronic product will considerably shorten its lifespan!
|
Product description The AT-61AU is a frame synchronizer offering processing amplifier adjustments ,10-Bit Quantization, Freeze and Audio Delay. Accepting composite video signals this unit will stabilize most video sources. - Quantization
- This unit utilizes 10 Bit quantiztion for low noise signal passage.
- Digital Comb Filter
- This electronic filter stabilizes video signal and ensures accurate chroma rendition.
- Blanking
- The AT-61 offers more than general timing adjustments; horizontal and vertical blanking can be adjusted to match requirements of high end broadcast and post production studios.
- Genlock
- This device offers the ability to reference to studio timing.
- Freeze
- This version of the AT-61 has the ability to Freeze a Frame or Field.
- Audio Delay
- This version of the AT-61 has the ability to match audio to video by offering an audio delay.
- Rackmountable
- Designed to fit into standard studio rack space without extraneous equipment.
In the Box Hotronic AT-61AU 10 Bit Frame Sync with Freeze and Audio Delay, Proc-Amp, Genlock, Composite Video, Balanced Audio, Rackmountable Power Cord 1 Year 90 Day Labor Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Hotronic AT-61AU 10 Bit Frame Sync with Freeze and Audio Delay, Proc-Amp, Genlock, Composite Video, Balanced Audio, Rackmountable in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHotronic AT61-AU Specs | Input | Composite Video, NTSC @ 75 ohms, on a BNC connector
Genlock Reference, looping, NTSC @ 75 ohms, on a BNC connector
Balanced Stereo Audio, on two XLR connectors | | Output | Composite Video, NTSC @ 75 ohms, on a BNC connector
Balanced Stereo Audio, on two XLR connectors | | Video Bandwidth | 6 MHz | | Differential Gain | 1% | | Differential Phase | 1° | | Video Signal-to-Noise Ratio | 60 dB | | Control | Front Panel:
Video Level
Chroma Level
Hue Phase
Set-Up Level
Picture Position
Sub Carrier Phase
Horizontal Phase
Strobe
Bypass
Freeze | | Power Source | 120 VAC @ 60 Hz | | Dimensions (WxDxH) | 19 x 17 x 1.75"
48.26 x 43.18 x 4.45cm | | Weight | 12 lbs
5.44 kg |
