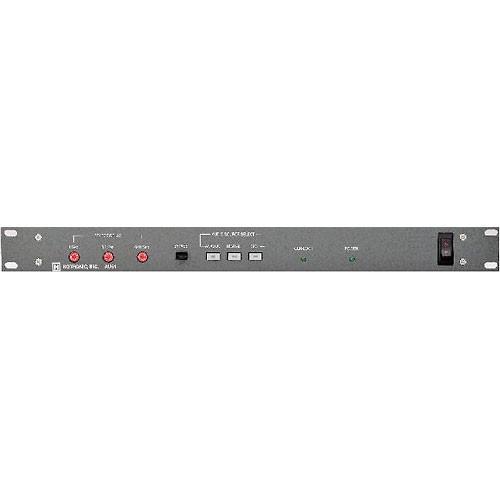

User Manual for Hotronic AU51D Broadcast Audio Delay Click to enlarge the picture
Contents of the user manual for the Hotronic AU51D Broadcast Audio Delay
- Product category: Broadcast Processors Hotronic
- Brand: Hotronic
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Hotronic Broadcast Processors
|
User manual for the Hotronic AU51D Broadcast Audio Delay contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Hotronic product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Hotronic user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Hotronic product will considerably shorten its lifespan!
|
Product description The AU51D Broadcast Audio Delay from Hotronic is a 20-bit device used to delay broadcast audio for synchronization to processed video. When activated, it can be used to delay programming up to 9.9 seconds for NTSC and PAL applications. This model works with digital and analog audio simultaneously and is a digital to analog converter or vice versa. In addition, it accepts sampling frequencies of 33.1, 44.1, or 48 kHz, which gives the AU51D the flexibility to deal with the increasing variety of today's digital audio formats. - Multiple Television Systems
- This unit can provide broadcast audio delay to work with NTSC or PAL television system.
- Frame Delay
- This device can delay audio to match up to 9.9 seconds of video.
- Bypass
- Independent bypass relays provide a fail-safe, hard-wired bypass in case of power loss.
- Digital Audio
- This unit will delay analog or digital audio and convert digital to analog audio.
In the Box Hotronic AU51D Broadcast Audio Delay Power Cord Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Hotronic AU51D Broadcast Audio Delay in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHotronic AU51D Specs | Sampling Frequency | 33.1, 44.1, and 48 kHz (can be synchronized to NTSC or PAL video) | | Quantization | 20-bit/sample | | Frequency Response | 20 Hz to 20 kHz ±0.5 dB | | Distortion | < 0.02% (with 30 kHz filter on) | | Cross Talk | > -80 dB | | Head Room | 20 dB | | Signal to Noise Ratio | > 80 dB | | Operating Level | +8, +4, or 0 dBu selectable | | Maximum Delay | 9.99 seconds / 210 ms | | Analog Inputs | 3-pin XLR connectors accept +8, +4, or 0 dBu | | Digital Inputs | XLR connectors
BNC (SDI) | | Analog Outputs | +8, +4, or 0 dBu selectable | | Digital Outputs | 3-pin XLR connectors (AES/EBU format) | | Synchronizing Capability | Analog NTSC or PAL, 1 V p-p 75-Ohm BNC | | Other Features | Digital/analog audio delay and converter | | Power | 110 or 220 VAC 50/60 Hz, 25 W | | Ambient Temperature | 50 to 104°F / 10 to 40°C | | Dimensions (W x H x D) | 19.00 x 1.75 x 17.00" / 48.26 x 4.45 x 43.18 cm | | | | Package Weight | 8.05 lb | | Box Dimensions (LxWxH) | 22.4 x 17.8 x 5.4" |
