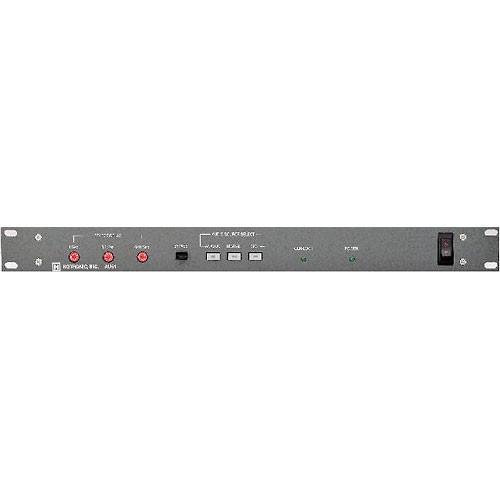

User Manual for Hotronic AU51DEM Broadcast Audio Delay - AES EBU, Balanced Stereo Audio XLR, 9.9 Second Delay, NTSC PAL, SDI, Embedded Audio Click to enlarge the picture
Contents of the user manual for the Hotronic AU51DEM Broadcast Audio Delay -
- Product category: Video & Audio Delays Hotronic
- Brand: Hotronic
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Hotronic Video & Audio Delays
|
User manual for the Hotronic AU51DEM Broadcast Audio Delay - contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Hotronic product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Hotronic user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Hotronic product will considerably shorten its lifespan!
|
Product description The Hotronic AU51DEM 20 Bit Broadcast Audio Delay is a device used to delay broadcast audio for synchronization to processed video. When activated this unit will delay programming up to 9.9 seconds NTSC, PAL. This model works with Digital and Analog audio and embedded audio in SDI. - Multiple Television Systems
- This unit can provide broadcast audio delay to work with NTSC or PAL television system.
- Frame Delay
- This device can delay audio to match up to 9.9 seconds of video.
- Bypass
- Independent bypass relays provide a fail safe, hard-wired bypass in case of power loss.
- Digital Audio
- This unit will delay analog or digital audio and also convert digital to analog audio.
- Embedded Audio
- This model offers an SDI input with embedded audio, the embedded audio can be delayed and output through the digital audio outputs.
In the Box Hotronic AU51DEM Broadcast Audio Delay - AES/EBU, Balanced Stereo Audio XLR, 9.9 Second Delay, NTSC PAL, SDI, Embedded Audio Power Cord 1 Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Hotronic AU51DEM Broadcast Audio Delay - AES EBU, Balanced Stereo Audio XLR, 9.9 Second Delay, NTSC PAL, SDI, Embedded Audio in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHotronic AU51D-EM Specs | Input | Balanced Stereo Audio, on 2 XLR connectors
Video Sync, on BNC connectors
AES/EBU Digital Audio, on XLR connectors
SDI with Embedded Audio, on a BNC connector | | Output | Balanced Stereo Audio, on 2 XLR connectors | | THD & Noise | 0.02% | | Delay Range | Up to 9.9 seconds of video time | | Control | Front Panel:
Peak Adjust
Bypass
Delay Adjust
Analog, Digital or embedded | | Power Source | 120-240 VAC @ 50/60 Hz | | Dimensions (WxDxH) | 19 x 17 x 1.75"
48.26 x 43.1 x 4.45cm | | Weight | 10 lbs
4.5 kg |
