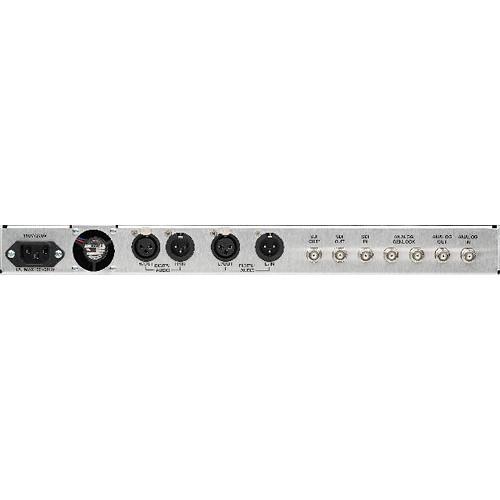

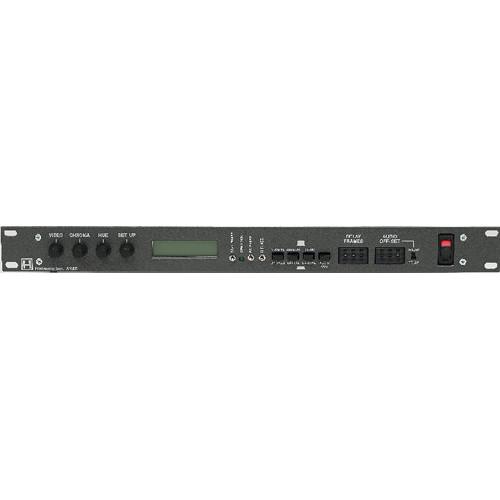

User Manual for Hotronic Audio Video Delay with Analog Head Click to enlarge the picture
Contents of the user manual for the Hotronic Audio Video Delay with Analog
- Product category: Video & Audio Delays Hotronic
- Brand: Hotronic
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Hotronic Video & Audio Delays
 |
User manual for the Hotronic Audio Video Delay with Analog contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Hotronic product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Hotronic user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Hotronic product will considerably shorten its lifespan!
|
Product description The Hotronics Audio/Video Delay with Analog Head (Up to 7 Seconds) supports composite NTSC or PAL signals. It accepts SDI or analog video/audio input and outputs SDI or analog video/audio signals. Supporting a 10 bit composite output, the Audio/Video Delay has a constant SC/H phase.
Frame synchronizer function of the AY86-A/VD-7 Audio/Video Delay (Up to 7 Seconds) distinguishes the data bits enabling them to be extracted for decoding or retransmission. The AY86-A/VD-7 Audio/Video Delay (Up to 7 Seconds) accepts 10 or 8 bit video and 16 - 24 bit audio, and manages 2 pairs of stereo audio signals. - Supports composite NTSC or PAL signals
- Accepts SDI or analog video/audio input and gives SDI or analog video/audio output
- Supports a 10 bit composite output
- Frame synchronizer function of the AY86-A/VD-7 Audio/Video Delay (Up to 7 Seconds) distinguishes the data bits enabling them to be extracted for decoding or retransmission
- Accepts 10 or 8 bit video and 16 - 24 bit audio
- Manages 2 pairs of stereo audio signals
In the Box Hotronic Audio/Video Delay with Analog Head (Up to 7 Seconds) 1 Year Parts 90 Days Labor Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Hotronic Audio Video Delay with Analog Head in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHotronic AY86 Specs | Video Signal | 10 bit | | Sampling Rate | Video sampling rate: 27 MHz | | Correction Rate | More than 1 frame memory | | Signal to Noise Ratio | 60 dB (p-p signal to rms noise)
Differential gain less than 1%
Differential phase less than 1%
K factor less than 1% | | Frequency Response | 6 MHz | | Audio | Audio resolution
16, 20, 24 bit
Audio Sampling
33.1 KHz, 44.1KHz, 48KHz
Max. Audio Delay off-set
up to 20 seconds
Audio Head Room
20 dB | | Genlock | Gen Lock Range: +/-5us | | Video Input | SDI, composite | | Video Output | SDI, composite | | Digital Video Output | SMPTE 259M (D1) | | Genlock Input | NTSC or PAL | | Audio Input | 33.1, 44.1, 48KHz digital | | Audio Output | AES/EBU format | | Power Consumption | Less than 30W | | Operating Temperature | 50 - 104°F (10 - 40°C) | | Dimensions (WxHxD) | 19 x 1.8 x 17" (483 x 46 x 432mm) | | Weight | Approx. 15 lbs (6.8 kg) |
