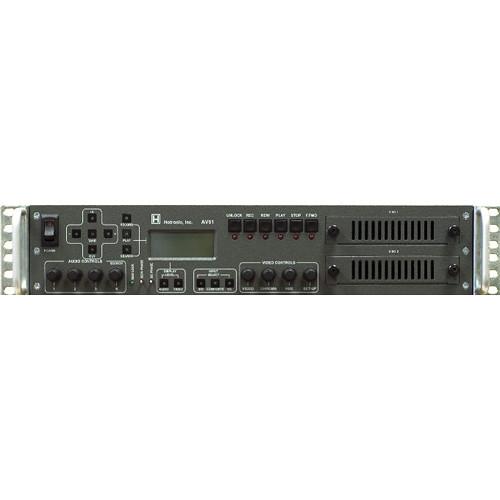

Product description The Hotronic AV61 Digital Video Recorder / Player is an uncompressed embedded SDI recorder offering simultaneous record and playback using 20 minute, 80 minute, 5 hour, or 10 hour media. It offers Composite, Y/C I/O and 2-channel analog audio (XLR) I/O. It also accepts tape input with a time-base error and provides high-quality results since there is no compression quality loss and audio distortion. The AV61 Recorder / Player provides random access to files and is compatible with VIR, VIT, and Telex. It is equipped with features such as a clip segment playback with high-quality performance and a synchronized output being ensured through the digital color encoder / decoder and the built-in time code generator. Video and chroma levels, chroma phase, and setup can be adjusted via controls provided on the digital proc amp. The AV61 is also equipped with an audio level control and LCD monitor to show the time code, pro amp, and audio levels. - Uncompressed embedded SDI recorder
- Simultaneously record and playback using 20 minute, 80 minute, 5 hour, or 10 hour media
- Removable or interchangeable recording media with DC-power recorder
- Input / Output
- Composite, Y/C I/O
- 2-channel analog audio (XLR) I/O
- Accepts tape input with time-base error
- No compression quality loss / audio distortion
- Provides random access to files
- Compatible with VIR (Vertical Interval Reference), VIT, and Telex
- Built-in digital color encoder / decoder and time code generator
- NTSC / PAL DVD master copy archive
- Controls available on the digital proc amp
- Video level - ±3 dB
- Chroma level - ±3 dB
- Chroma phase - ±15
- Setup - ±15 IRE
- Digital audio level control
- ±12 dBu / 4-channels
- Time code / Video pro amp / Audio level LCD monitor
- Remote control RS-422 and GPI
- Upgradeable to other AV61 models
In the Box Hotronic AV61 Digital Video Recorder / Player 1-Year Parts, 90-Day Labor Warranty rebvfwzeuwdrtzywcc Table of Contents
|
Upload User Manual
Have you got an user manual for the Hotronic AV61 Digital Video Recorder Player in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHotronic AV61 Specs | Digital I/O | (SDI/AES/EBU/ I/O)
Resolution:
24 bit video SMPTE259M
24 bit audio AES/EBU
Recording Time:
From 20 minutes to 10 hours
Residual Jitter:
Less than 600ps
Digital Proc Amp:
Video level more than +/-3db
Chroma level more than +/-3db
Chroma phase more than +/-15
Set-up more than +/-15IRE
Legalizer:
Built-in
Digital Video I/O:
SDI (BNC)
Optional Embedded Signal (BNC)
Digital Audio Level Control:
+/-12dbu; 4 channels
Digital Audio Input, accepts:
33.1 KHz
44.1 KHz
48 KHz
Digital Audio Output:
AES/EBU (XLR) 96 KHz | | Analog I/O | Video Input:
NTSC or PAL with or without time base error
Composite BNC or Y/C connector
Bandwidth:
flat to 6 MHz
Differential Gain:
Less than 1%
Differential Phase:
Less than 1 degree
Signal to Noise Ratio:
58db (p-p signal to RMS noise)
K Factor:
(2T) 1%
Gen-Lock Range:
NTSC or PAL
More than 3 microseconds
Audio I/O:
XLR 2 channel
Resolution:
24bit
Signal to Noise Ratio:
more than 80db
Distortion:
0.01% (with 30 KHz filter on)
Head Room:
20db
Bandwidth:
20Hz to 20 KHz +/-0.5db | | Power Consumption | <100W | | Operating Temperature | 50 - 104°F (10 - 40°C) | | Dimensions (WxHxD) | 19 x 3.5 x 18" (483 x 89 x 457mm) | | Weight | 20-25 lbs (9.1-11.3kg) |
