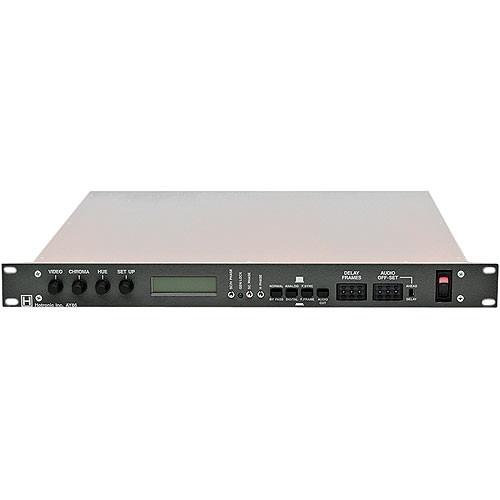

Product description The AY-86 is a Video Frame Synchronizer accepting and outputting SDI digital video signals. It offers Proc-Amp functions and Genlock capabilities. - SDI
- This frame synchronizer specializes in SDI signal processing for the user's upgrade to digital.
- Genlock
- A looping genlock offers the user the ability to reference to studio timing.
- Proc-Amp
- Front panel adjustments offer full proc-amp control.
- Rackmountable
- This device fits into exsisting studio rack spaces without extraneous equipment.
In the Box Hotronic AY-86 Video Frame Synchronizer, Proc-Amp, SDI I/O, Genlock, Rackmountable Power Cord 1 Year Parts, 90 Day Labor Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Hotronic AY-86 Video Frame Synchronizer, Proc-Amp, SDI I O, Genlock, Rackmountable in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHotronic AY86 Specs | Input | SDI Digital Video, SMPTE 259M, on a BNC connector
Genlock, NTSC, on a BNC connector | | Output | SDI Digital Video, SMPTE 259M, on a BNC connector
Genlock, Loop Out, NTSC, on a BNC connector | | Video Bandwidth | 6 MHz | | Differential Gain | 1% | | Differential Phase | 1° | | Video Signal-to-Noise Ratio | 60 dB | | Control | Front Panel Potentiometer:
Video Level
Chroma Level
Hue Phase
Set Up LevelPush Button:
BypassSwitch:
Power | | Power Source | 120 VAC 60 Hz | | Dimensions (WxDxH) | 19 x 17 x 1.75"
48.26 x 43.18 x 4.45cm | | Weight | 13.5 lbs
6.1 kg |
