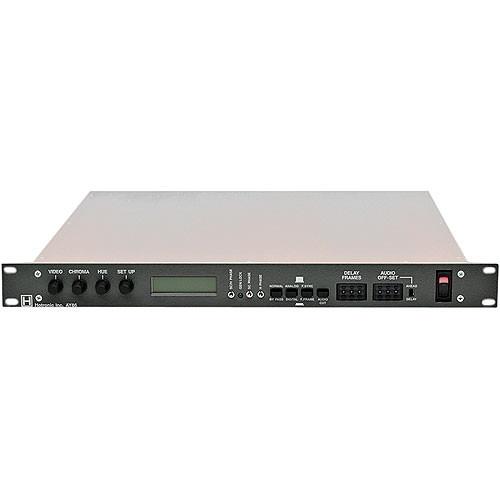

User Manual for Hotronic AY86AH Video Frame Sync Video Audio Delay - Proc Amp, SDI, Composite, Balanced Audio, Rackmountable Click to enlarge the picture
Contents of the user manual for the Hotronic AY86AH Video Frame Sync Video
- Product category: Video & Audio Processing Hotronic
- Brand: Hotronic
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Hotronic Video & Audio Processing
|
User manual for the Hotronic AY86AH Video Frame Sync Video contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Hotronic product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Hotronic user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Hotronic product will considerably shorten its lifespan!
|
Product description The Hotronic AY86AH is a video frame synchronizer video/audio delay accepting and outputting composite and SDI digital video signals with and analog audio processing. It offers proc-amp functions and genlock capabilities. - SDI
- This frame synchronizer specializes in SDI signal processing for the user's upgrade to digital.
- Genlock
- A looping genlock offers the user the ability to reference to studio timing.
- Proc-Amp
- Front panel adjustments offer full proc-amp control.
- Analog Audio/Video Delay
- This unit accepts analog video and audio signals offering delay so the user can match the audio to the video in specific applications.
- Rackmountable
- This device fits into existing studio rack spaces without extraneous equipment.
In the Box Hotronic AY86AH Video Frame Sync Video / Audio Delay - Proc Amp, SDI, Composite, Balanced Audio, Rackmountable Power Cord 1 Year Parts, 90 Day Labor Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Hotronic AY86AH Video Frame Sync Video Audio Delay - Proc Amp, SDI, Composite, Balanced Audio, Rackmountable in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHotronic AY86-AH Specs | Input | SDI Digital Video, SMPTE 259M, on a BNC connector
Composite Video, on a BNC connector
Balanced Stereo Analog Audio, on XLR connectors
Genlock, NTSC, on a BNC connector | | Output | SDI Digital Video, SMPTE 259M, on a BNC connector
Composite Video, on a BNC connector
Balanced Stereo Analog Audio, on XLR connectors
Genlock, NTSC, on a BNC connector | | Video Bandwidth | 6 MHz | | Differential Gain | 1% | | Differential Phase | 1° | | Video Signal-to-Noise Ratio | 60 dB | | Audio Delay | 7 second increments up to 21 seconds | | Control | Front Panel Potentiometer:
Video Level
Chroma Level
Hue Phase
Set Up LevelPush Button:
Bypass
Video/Audio Offset
Counter:
Video/Audio Offset
Switch:
Power | | Power Source | 120 VAC 60 Hz | | Dimensions (WxDxH) | 19 x 17 x 1.75"
48.26 x 43.18 x 4.45cm | | Weight | 13.5 lbs
6.1 kg | | | | Package Weight | 12.35 lb | | Box Dimensions (LxWxH) | 25.2 x 22.2 x 5.8" |
