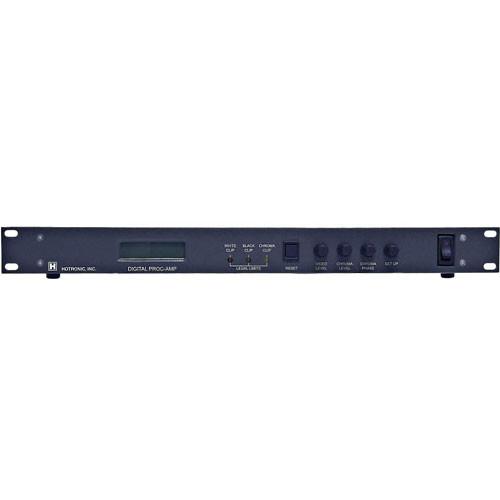

User Manual for Hotronic PROCAMPRM Video Processor - Composite, Y C , Rackmount Click to enlarge the picture
Contents of the user manual for the Hotronic PROCAMPRM Video Processor - Composite,
- Product category: Video & Audio Processing Hotronic
- Brand: Hotronic
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Hotronic Video & Audio Processing
|
User manual for the Hotronic PROCAMPRM Video Processor - Composite, contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Hotronic product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Hotronic user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Hotronic product will considerably shorten its lifespan!
|
Product description The Hotronics PROCAMPRM is a video processor that features composite and Y/C inputs and outputs. The Proc-Amp rebuilds the video signal allowing the user to adjust color and phase parameters while keeping the signal transparent without quantizing noise. - Processing
- The Proc-Amp features the basic processing controls for color, video, black and phase.
- Advantage
- This device uses analog approaches to process the video signal while using advanced digital approaches to generate new sync and color burst.
- Built In
- A black clipper control is built in, keeping the black level from squashing.
- Automatic
- When a signal is not present at the input this unit outputs a true NTSC black burst.
- Rackmount
- This model was designed to fit into standard studio rack spaces.
In the Box Hotronic PROCAMPRM Video Processor - Composite, Y/C (S-Video), Rackmount Power Cord 1 Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Hotronic PROCAMPRM Video Processor - Composite, Y C , Rackmount in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHotronic PROC AMP-RM Specs | Input | Composite Video, 1 Vpp @ 75 ohms, on a BNC connector
Y/C (S-Video), Y: 1 Vpp C: 0.3 Vpp @ 75 ohms, on a 4-Pin connector | | Output | Composite Video, 1 Vpp @ 75 ohms, on a BNC connector
Y/C (S-Video), Y: 1 Vpp C: 0.3 Vpp @ 75 ohms, on a 4-Pin connector | | Video Bandwidth | 6 MHz | | Differential Gain | 1% | | Differential Phase | 1° | | Video Signal-to-Noise Ratio | 60 dB | | Control | Front Panel Potentiometers:Color
Video Gain
Contrast
Chroma Phase
Set Up | | Power Source | 115 VAC @ 60 Hz | | Dimensions (WxDxH) | 19 x 6.4 x 1.75"
48.26 x 16.3 x 4.45cm | | Weight | 5 lbs
2.3 kg | | | | Package Weight | 6.6 lb | | Box Dimensions (LxWxH) | 22.25 x 17.25 x 4.6" |
