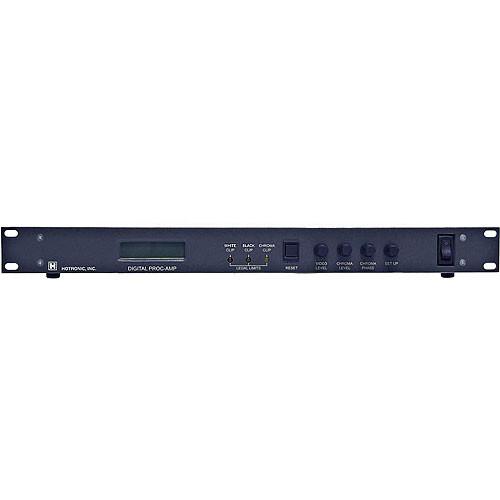

User Manual for Hotronic SDIPROCAMPQ Processing Amplifier for SDI - Rackmount Click to enlarge the picture
Contents of the user manual for the Hotronic SDIPROCAMPQ Processing Amplifier for SDI
- Product category: Video & Audio Processing Hotronic
- Brand: Hotronic
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Hotronic Video & Audio Processing
|
User manual for the Hotronic SDIPROCAMPQ Processing Amplifier for SDI contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Hotronic product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Hotronic user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Hotronic product will considerably shorten its lifespan!
|
Product description The Hotronics SDIPROCAMPQ is a processing amplifier for video specifically designed for SDI video. It accepts an SDI video signal and is able to process Video, Chroma and Set-Up levels. - LCD Display
- A front panel LCD display gives the user access to the settings.
- Desktop Design
- This device comes with rubber feet for desktop use and a wedge shape for easy control access and LCD readability.
- Dual Output
- Two outputs are available for double access or technical monitoring.
In the Box Hotronic SDIPROCAMPQ Processing Amplifier for SDI - Rackmount AC Power Adapter 1 Year Warranty, 90 Day Labor Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Hotronic SDIPROCAMPQ Processing Amplifier for SDI - Rackmount in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHotronic SDI PROCAMP-RM Specs | Input | SDI Digital Video, SMPTE 259, on a BNC connector | | Output | SDI Digital Video x2, SMPTE 259, on a BNC connector | | Jitter | 600 ps | | Control | Front Panel Potentiometers:
Video Level
Chroma Level
Chroma Phase
Set-Up | | Power Source | 5 VDC from an AC Power Adapter | | Dimensions (WxDxH) | 19 x 6 x 1.75"
48.26 x 15.2 x 4.45cm | | Weight | 3 lbs
1.4 kg |
