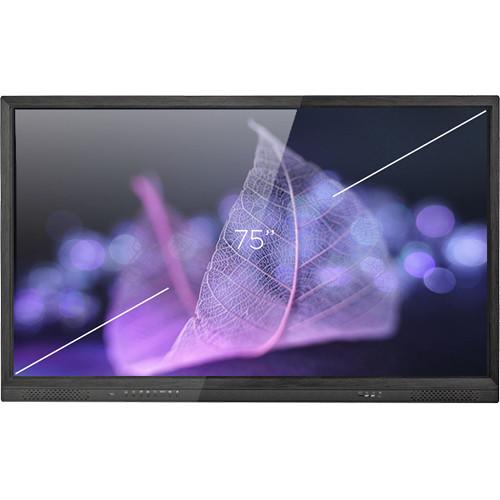

User Manual for HoverCam CenterStage 10 Series 75" 4K Interactive Anti-Glare Flat Panel Display Click to enlarge the picture
Contents of the user manual for the HoverCam CenterStage 10 Series 75" 4K
- Product category: Commercial Monitors HoverCam
- Brand: HoverCam
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for HoverCam Commercial Monitors
|
User manual for the HoverCam CenterStage 10 Series 75" 4K contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any HoverCam product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official HoverCam user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a HoverCam product will considerably shorten its lifespan!
|
Product description The 75" CenterStage 10 Series Flat Panel from HoverCam is a UHD 4K interactive flat panel that supports a resolution of 3840 x 2160. This panel has 10-point multi-touch IR input points as well as shatter-resistant glass. It features 10W integrated speakers, anti-glare, and is VESA 600 x 400mm compliant. This panel comes with a built-in Android operating system including web browsing and white-boarding. It includes a remote control, a power cable, and a touch pen. - You can pair the CenterStage with the HoverCam Pilot via HoverCast interactive display port for maximum interoperability
UPC: 857548004478 In the Box HoverCam CenterStage 10 Series 75" 4K Interactive Anti-Glare Flat Panel Display Remote Control Power Cable Touch Pen Limited 1-Year Warranty Specification PDF 561.9kbaxqzcwbvwvzxtrceayedzwtwyrevf Table of Contents
|
Upload User Manual
Have you got an user manual for the HoverCam CenterStage 10 Series 75" 4K Interactive Anti-Glare Flat Panel Display in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHoverCam HCCS7510-AG Specs | | | LCD Size | 75" / 190.5 cm | | Backlighting | LED | | Resolution | 3840 x 2160 | | Brightness | 350 cd/m2 (typ.) | | Contrast Ratio (Typical) | 4000:1 | | Response Time (Typical) | 9.5 ms | | Pixel Pitch | 0.1436 x 0.4296 mm | | Scan Speed | 30 Hz | | Viewable Area | 25.45 x 36.41" / 64.65 x 92.47 cm | | Colors | 16.7 billion (8-bit) | | Integrated Speakers & Output | 10 W | | | | Voltage | 100-240 V, 50/60 Hz | | Wattage | Maximum: 450 W
Standby: Up to 1 W | | | | Inputs and Outputs | 3 x HDMI in, input
1 x VGA in
1 x PC audio in
1 x component RCA in
1 x RJ45 LAN
1 x composite AV port, input/output
1 x SPDIF audio
1 x TV, input
1 x TV, microphone
1 x auxiliary input
1 x coaxial audio
1 x TV audio
1 x RS-232, remote input/output
2 x media USB
2 x PC USB
2 x touch USB
1 x SD card slot | | | | Operating System Version | Android 5.1 | | CPU | ARM A53 | | GPU | Mali-450 | | RAM | 2 GB DDR3 | | ROM | 8 GB | | Lifetime | 50,000 hours | | | | Input Method | Finger or touch pen | | Input | 10-point multi-touch IR | | Accuracy | ±1 mm | | Response Time | Up to 10 ms | | Response Area | 0.2" / 5 mm minimum | | Glass Thickness | 0.16" / 4 mm, shatter-resistant | | Transmission | Glass: Up to 92% | | Scan Speed | 30 Hz | | Viewing Angle (H x V) | 178 x 178° | | | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Storage Temperature | 14 to 140°F / -10 to 60°C | | Operating Humidity | 20 to 80% RH noncondensing | | Storage Humidity | 10 to 60% RH noncondensing | | | | Frame Width | Top/Bottom/Left/Right: 2.0, 2.5, 2.0, 2.0" / 50, 63, 50, 50 mm | | VESA | 4-M8 screw, 600 x 400 mm | | Dimensions | 77.4 x 3.4 x 45.8" / 196.5 x 8.8 x 116.4 cm | | Weight | 180.7 lb / 82.0 kg, approximately |
