User Manual for HoverCam Pilot 3 Wireless Digital Podium Click to enlarge the picture
Contents of the user manual for the HoverCam Pilot 3 Wireless Digital Podium
- Product category: Lecterns & Podiums HoverCam
- Brand: HoverCam
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for HoverCam Lecterns & Podiums
 |
User manual for the HoverCam Pilot 3 Wireless Digital Podium contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any HoverCam product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official HoverCam user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a HoverCam product will considerably shorten its lifespan!
|

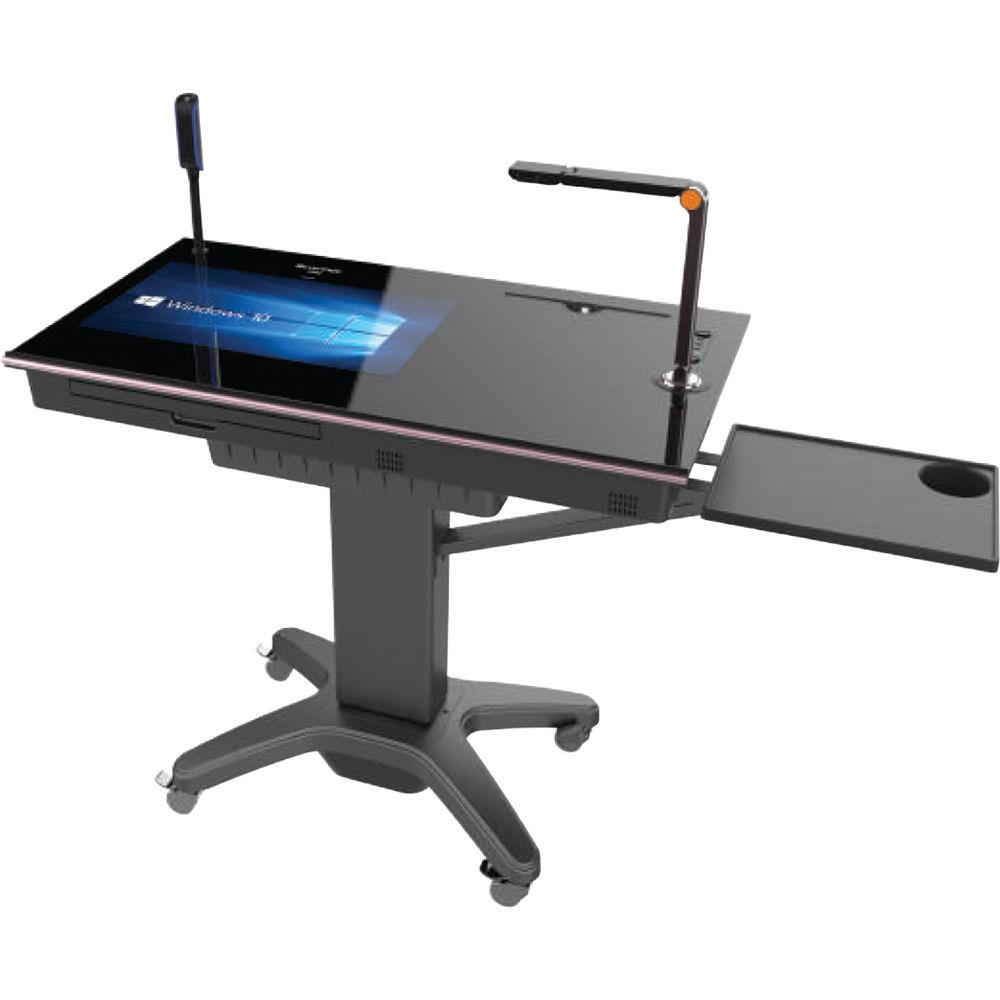

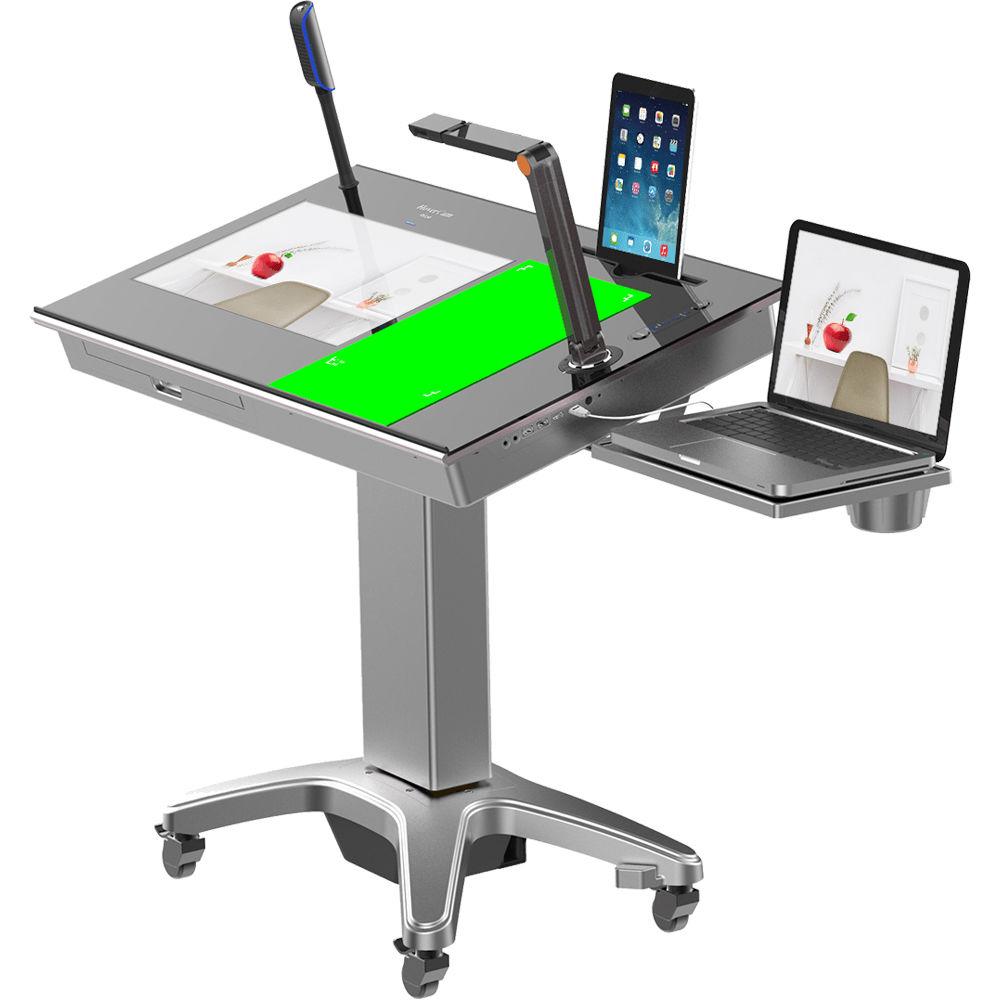

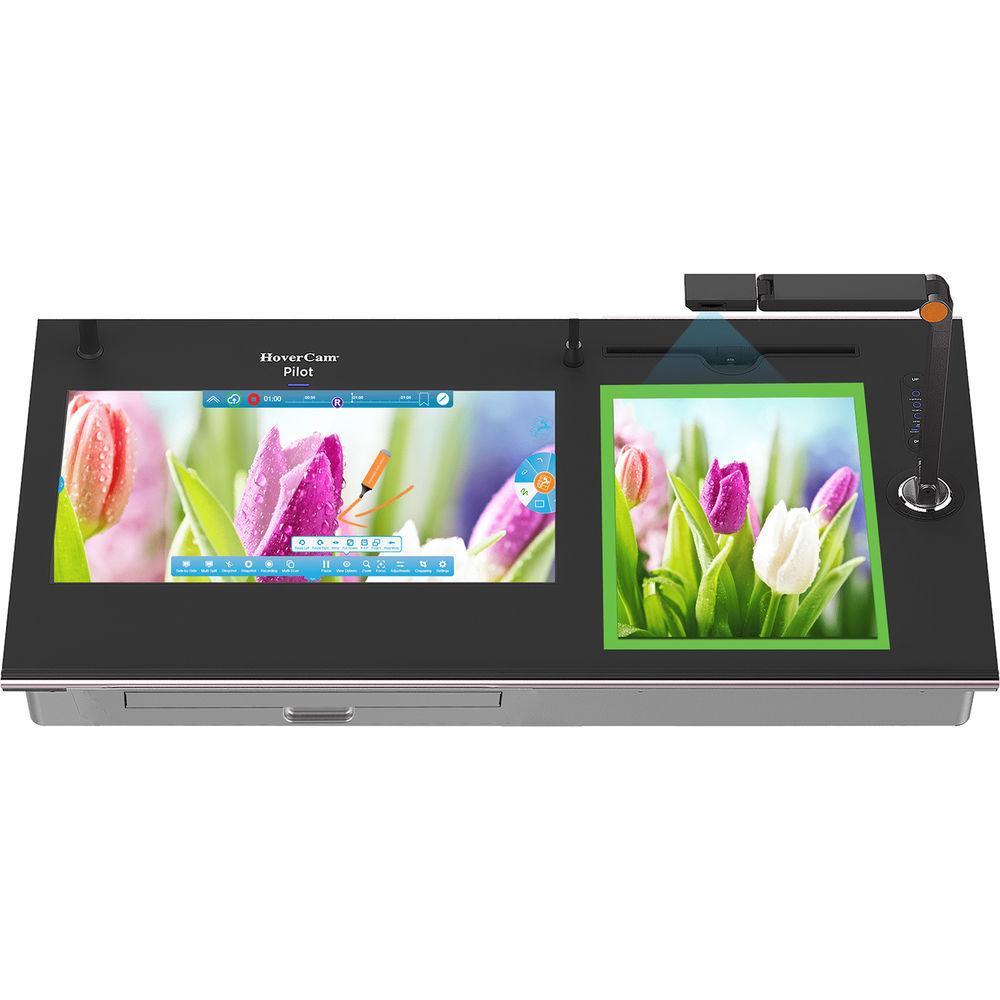

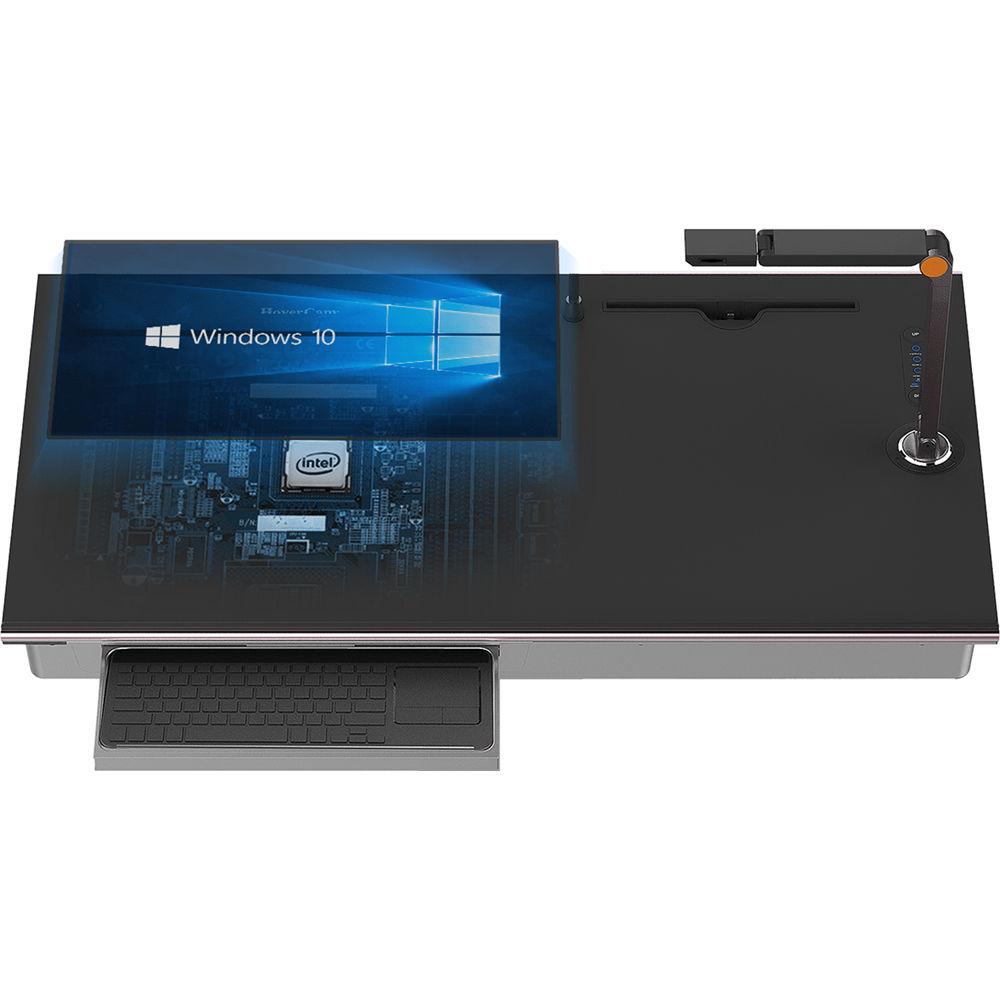

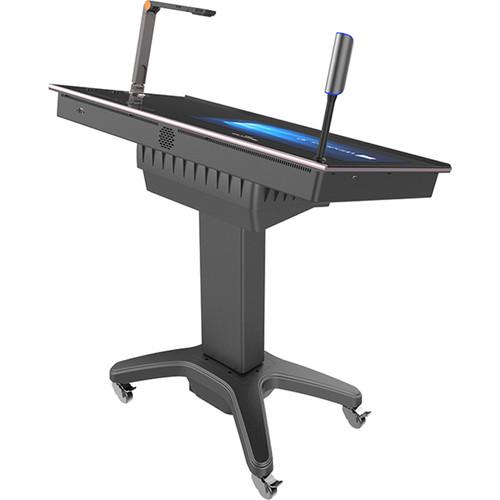

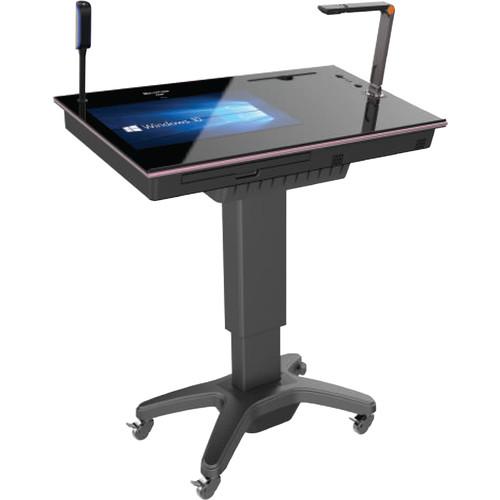

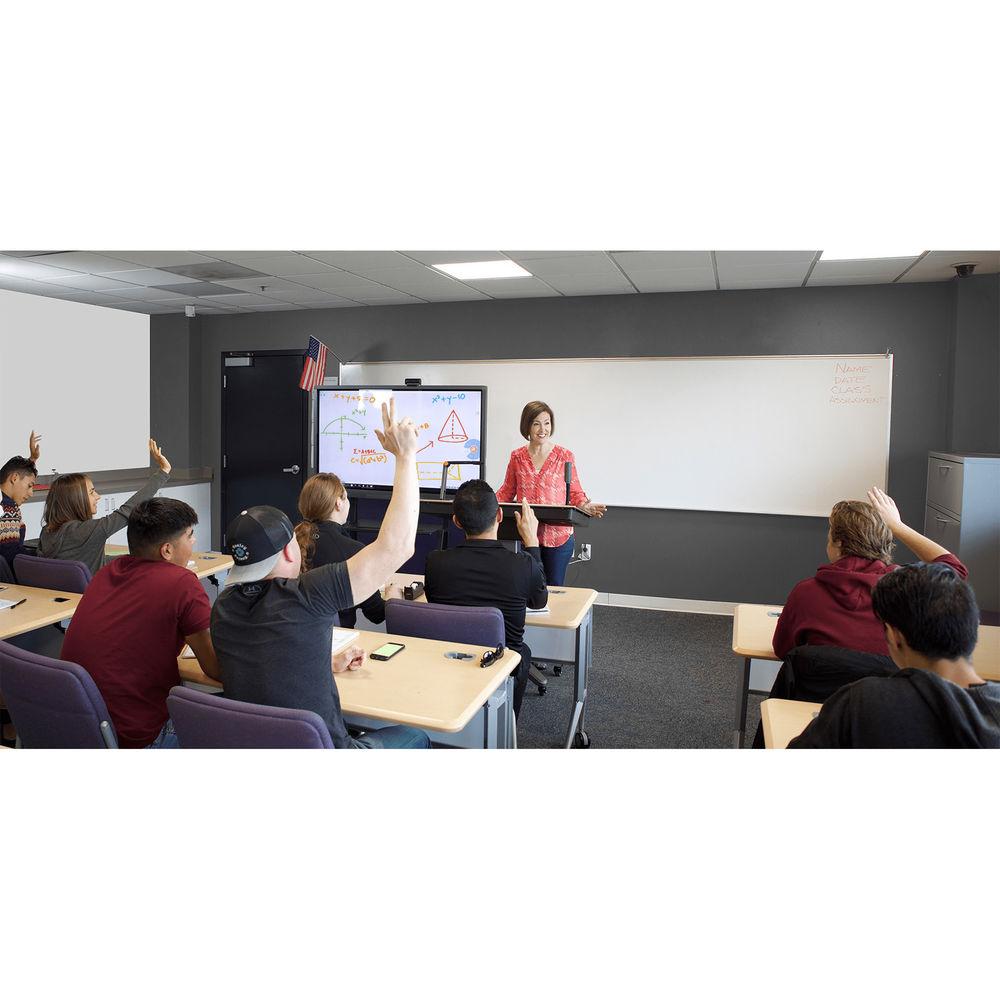

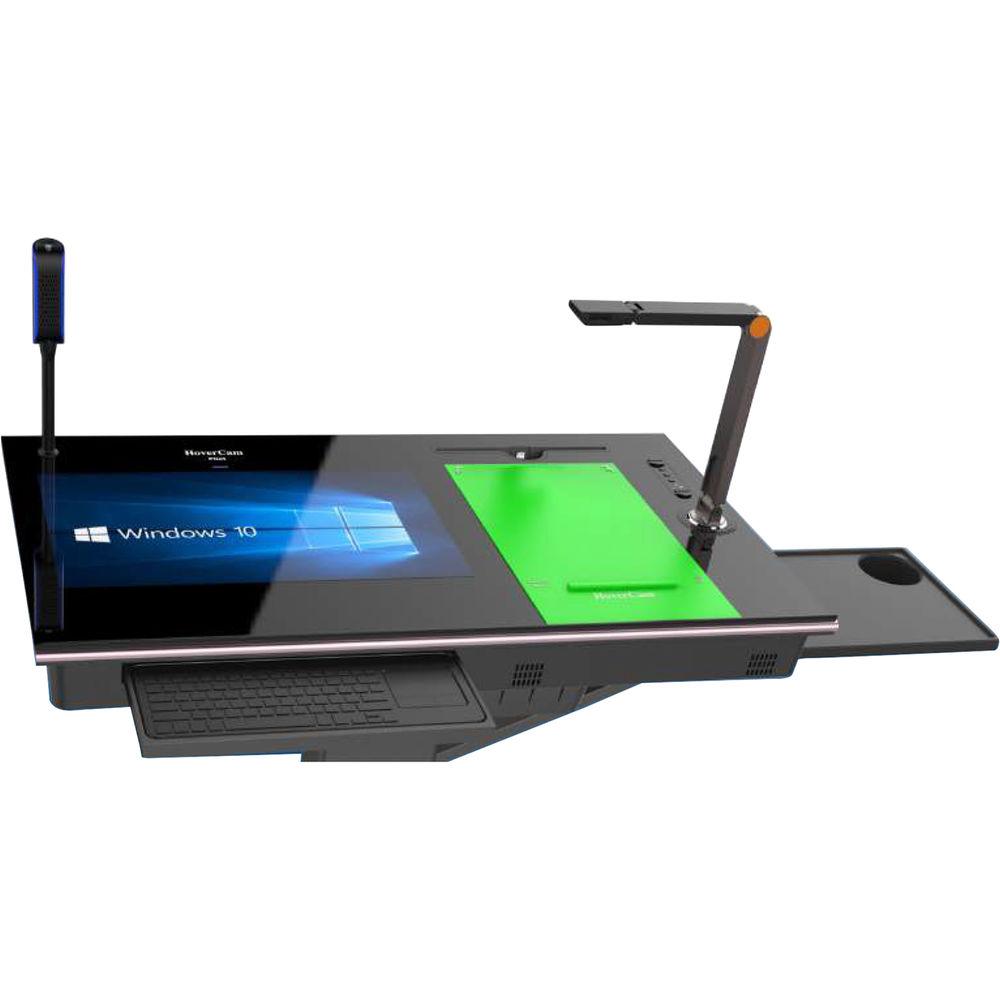

Product description Write on the board without turning your back to the students with the Pilot 3 Wireless Digital Podium from HoverCam. The podium has an embedded Windows PC with a 21" HD touchscreen that you can mirror to your PC, Mac, iPad, tablet, mobile device, or connect to any external drive. It also features a 13MP document camera with noise-reduction microphone and two 3W speakers.
HoverCast wireless HDMI beams computer image, annotations, and audio to an interactive flat panel, projector, or TV. Bidirectional wireless USB touch technology mirrors annotations from interactive display to the Pilot. Furthermore, KnoteSter software suite enables annotation and lesson recording. UPC: 857548004454 In the Box HoverCam Pilot 3 Wireless Digital Podium HoverCast Wireless HDMI Receiver USB Flash Drive with Pilot Drivers Laptop Tray Mounting Hardware 2 x Allen Wrenches Limited 1-Year Warranty Specification PDF 320.3kb Table of Contents
|
Upload User Manual
Have you got an user manual for the HoverCam Pilot 3 Wireless Digital Podium in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

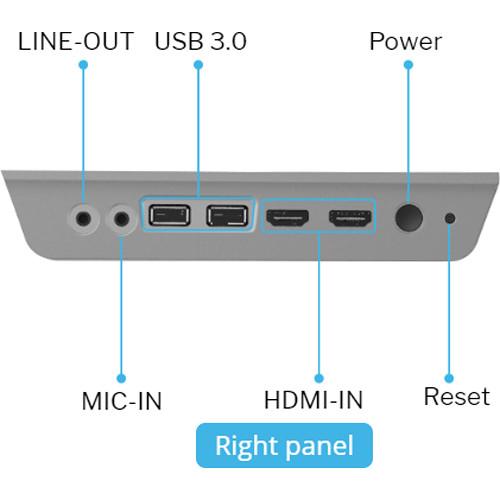

Technical parametersHoverCam HCP3 Pilot 3 Specs | Display | 21" LCD with 10-point multi-touch | | Resolution | 1920 x 1080 HD | | Processor | Intel Core i5 | | Memory | 8 | | Hard Drive | 500 GB HDD | | Display Adapters | Intel HD Graphics 4600 | | Network | 1 x RJ45, 10/100/1000 Mb | | Wireless Network Interface | Wi-Fi module, supports 801.11 B/G/N | | Bluetooth | 4.0 | | Operating System | Microsoft Windows 10 64-bit (license not included) | | Connectors | 2 x HDMI input

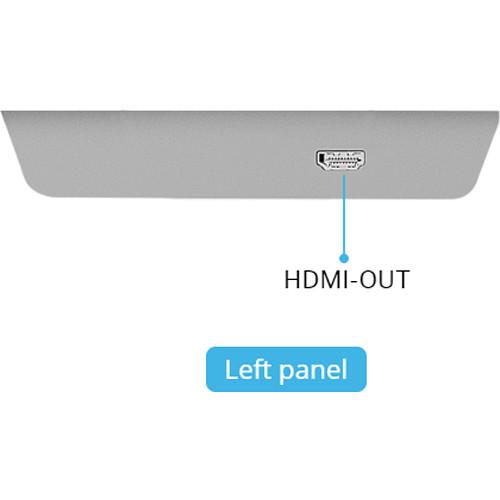

1 x HDMI output
1 x iOS Apple Lightening connector
2 x USB 3.0 type-A
1 x 1/8" / 3.5mm microphone input
1 x 1/8" / 3.5mm aux/headphone/line output | | Built-In Speakers | 2 x 3 W | | Wireless Connectivity | HoverCast Wireless HDMI transmitter: 1 x built-in (60 GHz)
HoverCast Wireless HDMI receiver: 1 x clamps onto CenterStage IFP
HoverCast Connectivity: 1 x HDMI output, 1 x USB touch, power input | | Camera | Sensor: 13 MP BSI CMOS | | Image Resolution | 4224 x 3156 (13 MP) | | Frame Rate | 4K at 30 fps, 1080p at 60 fps, 720p at 120 fps | | Camera Lens | High-precision 5-element lens, f2.0 | | Camera Zoom | Total 480x zoom (6x ASR zoom, 8x digital, 10x mechanical) | | Scan Size | A3, A4, 11 x 17", US letter, and legal | | Viewing Area | 13 x 21" / 33.0 x 53.3 cm | | Microphone | Built-in with noise reduction | | Illumination | 4 x Ultra-bright LEDs | | Software | Flex 11: Document camera software for lesson recording, video display, and snapshots
KnoteSter: Desktop annotation, whiteboarding, and lesson recording
HDMI Viewer: Wired device mirroring and annotation via HDMI or Lightning port
Reflector 2: Wireless device mirroring | | Control Panel | Power On/Off, input source selection, podium height adjustment up/down | | Height Adjustment | 20 to 40" / 50.8 to 101.6 cm | | Certifications | FCC, CE, RoHS | | Color | Black | | Power Supply | 100 to 240 VAC, 50/60 Hz | | Dimensions | 36 x 20 x 37" / 91.4 x 50.8 x 94.0 cm | | Weight | 75 lb / 34 kg |
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 17 owners. Add your rating and experience with the product.
