User Manual for HoverCam Ultra 8 Document Camera Click to enlarge the picture
Contents of the user manual for the HoverCam Ultra 8 Document Camera
- Product category: Video Presenters & Document Cameras HoverCam
- Brand: HoverCam
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for HoverCam Video Presenters & Document Cameras
 |
User manual for the HoverCam Ultra 8 Document Camera contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any HoverCam product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official HoverCam user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a HoverCam product will considerably shorten its lifespan!
|

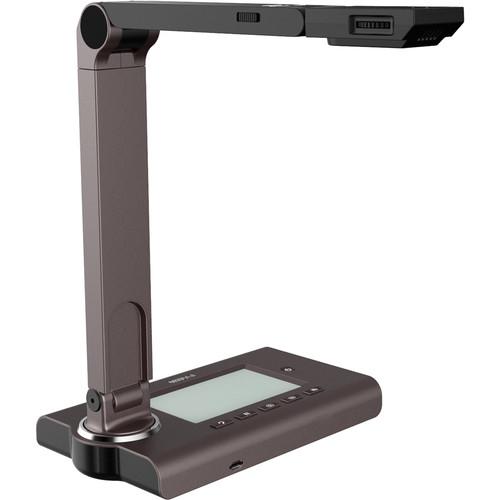

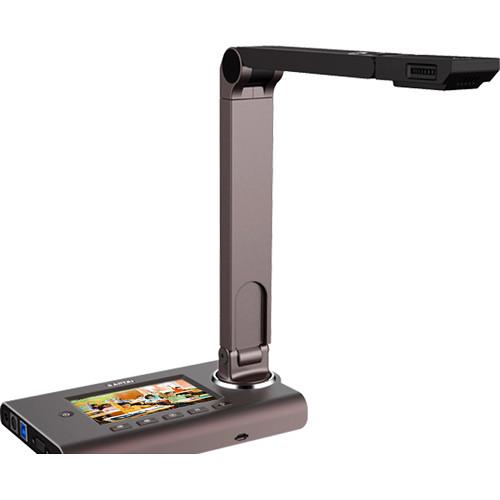

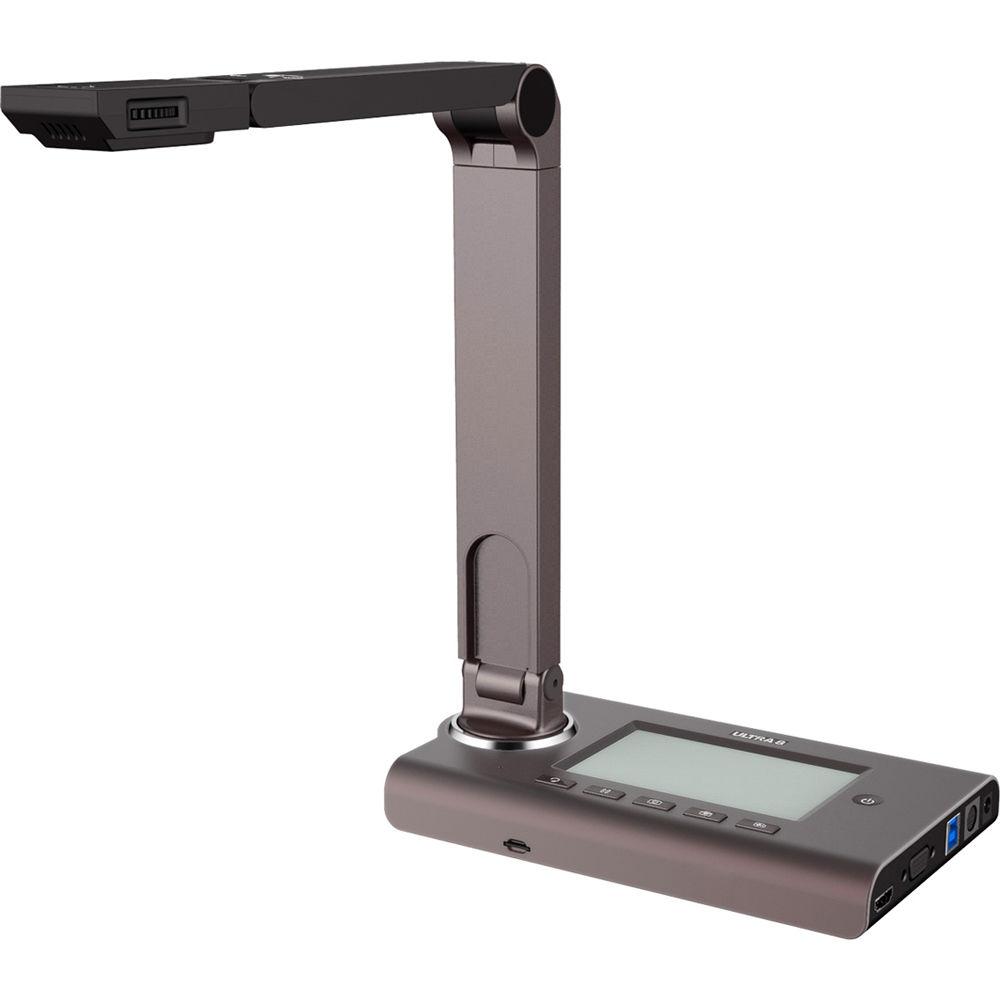

Product description The HoverCam Ultra 8 is a compact document camera that allows you to present images, graphs, documents, and various other material to an audience, and to record your presentation so you can post it on YouTube, TeacherTube, or other venue if you'd like.
The Ultra 8 features an adjustable 8MP camera head that can be rotated to capture your document in a live view, as a high-resolution image, or as a Full HD video, all the while showing the captured image on a display in real-time.
The Ultra 8 offers multiple output options for connecting to a display. You get HDMI, VGA, USB 3, and USB 2 connectors, and can connect to HDTVs, projectors, and interactive whiteboards.
It also features an LCD viewing monitor that shows exactly what your audience sees on the output display, so you don't have to turn and look at that display. The LCD also has touchscreen controls, such as zoom, record, and focus, providing for a simple and easy navigation and control experience.
If you choose to record everything as a video file, you can turn the camera head towards you to incorporate yourself in the presentation, or likewise turn it towards others in attendance or anyone or anything else in sight. You can also zoom in on an image by up to 320 times, meaning you can enlarge the tiniest details on images.
Furthermore, 4 built-in LEDs illuminate the image to make its details better visible, and a built-in microphone captures your narration or any other sound heard during the presentation. The mic is also designed with built-in noise reduction, so it will provide more professional-sounding audio.
In addition, you can add annotations, effects, and filters to the presentation. The majority of the features and effects are accessible via the included Flex 10 software (Windows), which in most cases goes hand-in-hand with the Ultra 8 and allows you to do a lot with it. Among the available features you'll find Picture-in-Picture and Mask, which provide for highly enhanced and interactive presentations.
Everything image or video you record can be stored to a microSD card (an 8GB card is included) or directly to your computer.
The Ultra 8 can be used on your desktop or securely mounted to a podium, lectern, or AV cart. - Key Features
-
- 8MP camera with 2" minimum focal distance
- HDMI, VGA, USB 3, and USB 2 output display connectors
- LCD preview monitor with touchscreen controls, such as zoom, record, and focus
- Auto-focus, auto-focus lock, select region focus
- Up to 3264 x 2448 still image resolution
- Full HD 1080p video resolution
- Up to 320x zoom (4x ASR, 8x interpolated digital, 10x mechanical zoom)
- Built-in microphone with noise reduction
- 4 x built-in, ultra-bright LEDs
- SD card slot (8GB microSD card included)
- Includes Flex 10 software that allows for annotations, masks, Picture-in-Picture, and more
- RS232C serial control interface
- Flex 10 PC Software
-
- Compatible with Windows 7 and above
- Record hundreds of hours of no-lag HD video (.avi, .mov, .mp4, .mjpg) and image files (.png, .jpg, .pdf, .bmp, .tiff, .jpeg2000) direct to your hard drive over a USB cable connection
- Select any region on screen to record
- Annotate live video when recording with Freehand, Text, Highlighter, Answer Mask, and Shapes annotation tools
- Drag-and-drop any image or video into MS office or IWB software
- Share live video on SMARTBoard, Promethean, eBeam, Mimio, TWAIN Driver
- 360° image rotation
- Controls include auto white balance, brightness, contrast, saturation, and freeze frame
- Live Adaptive Sensor Resolution (ASR) zoom
- MSI installer included for network installation
- Full file management, importing and exporting of files, stack/collate multiple files into PDF or TIFF
- Display and/or record Picture-in-Picture (PIP) from a second video camera
- Document scanning
- Cropping and timer enables quick batch scanning
- Take snapshots at user specified time intervals or by user movement and save as PDF or TIFF
- Use as a USB 3.0 webcam and for collaborative work with Skype, WebEx, Zoom, and GoToMeeting (through screen sharing)
UPC: 857548004287 In the Box HoverCam Ultra 8 Document Camera Remote Control USB 3.0 Cable AC Adapter HDMI Cable DVD with Software Glare-Reducing Mat 8GB microSD Card 2 x AAA Batteries Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the HoverCam Ultra 8 Document Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHoverCam Ultra 8 Specs | | | Sensor | 1/3.2" CMOS | | Sensor Resolution | 8 MP | | Zoom | 8x (Digital)
10x (Optical) | | Aperture | f/2.0 | | Frame Rate | 1920 x 1080 @ 60 fps | | Output Resolution | 3264 x 2448 | | Optical Design | 5 Elements | | | | Capture Area | 13 x 21" / 33 x 53.3 cm | | Video Connections | 1 x HD15 VGA Output
1 x HDMI Output | | I/O Connections | 1 x USB 2.0
1 x USB 3.1 Gen 1 | | Media Card Slots | microSD | | | | Built-In LED Lighting | 4 | | Built-In Mic | Yes | | Screen Size | 4.3" | | Built-In Screen Resolution | 480 x 272 | | Focus Modes | Auto | | | | Operating System Support | Windows | | Supported File Formats | AVI | | Supported Video Compression | MJPEG, YUV | | | | Certifications | CE, FCC, RoHS, as per Manufacturer | | Dimensions | 10.2 x 3.0 x 4.7" / 26.0 x 7.6 x 12.0 cm (Folded)
8.3 x 17.5 x 4.7" / 21.0 x 45.0 x 12.0 cm (In-Use) | | Weight | 2.2 lb / 1 kg | | | | Package Weight | 4.45 lb | | Box Dimensions (LxWxH) | 15.8 x 6.7 x 3.6" |
