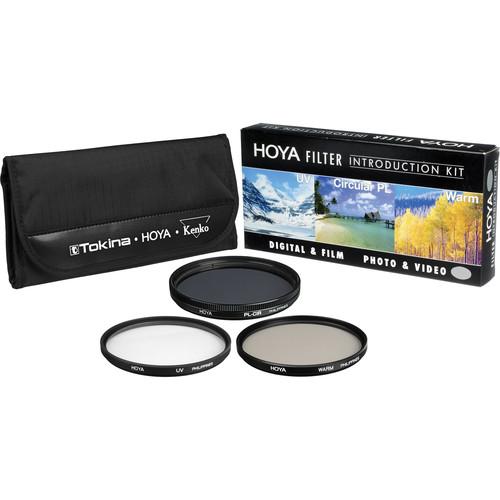

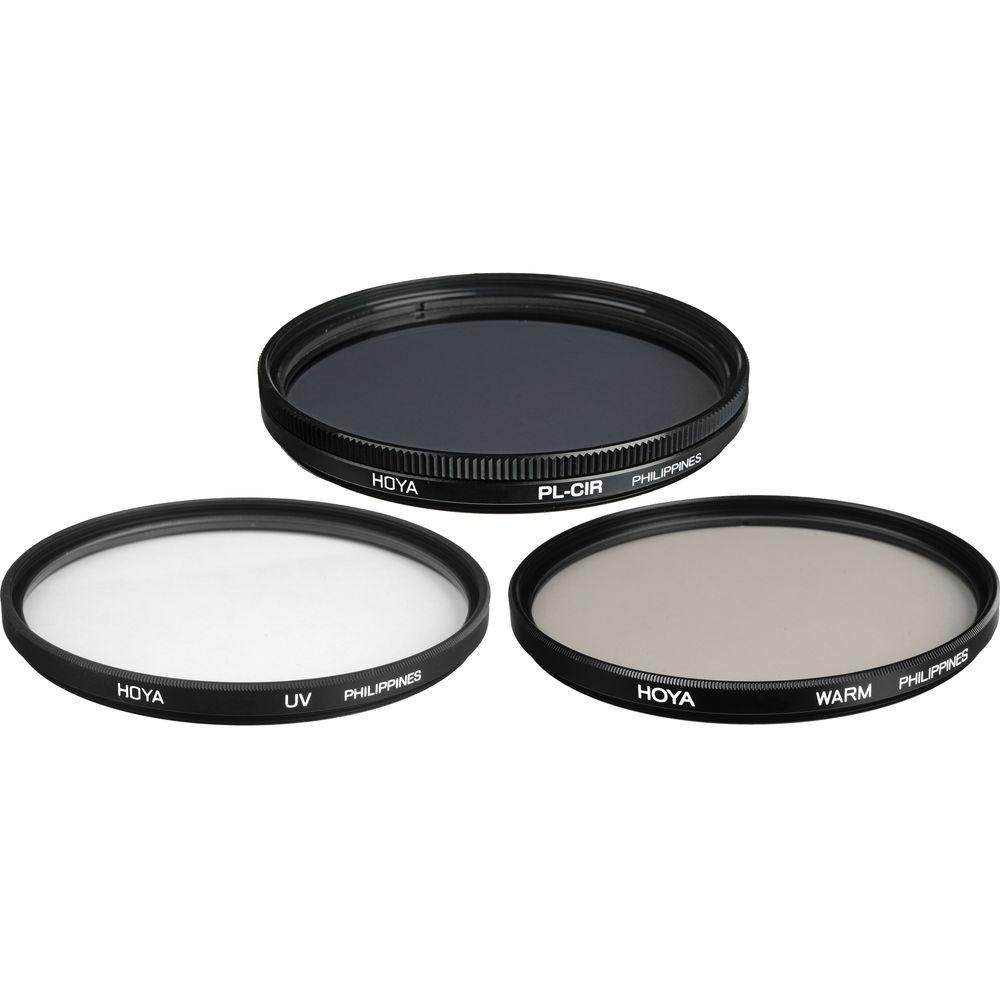

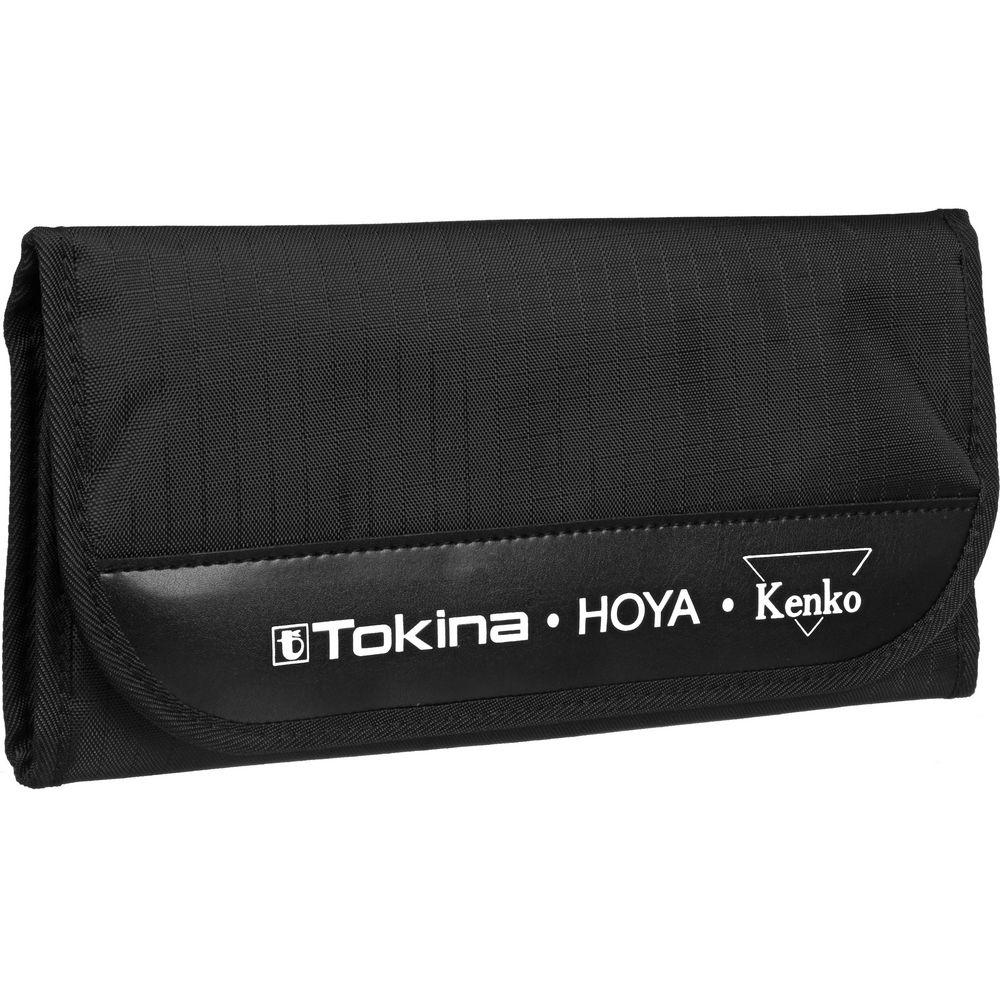

Product description The Hoya 30mm Introductory Filter Kit includes a 30mm UV Filter, a 30mm Circular Polarizer Filter, and a 30mm 81A Color Conversion Filter. Each filter in this kit fits a lens with 30mm front filter threads and can provide one of three of the most widely applied enhancements to your imagery. Additionally, these filters are constructed from optical glass within an aluminum-alloy frame, which protect the front element of a lens from scratches, bumps, or impacts. A filter pouch that can accommodate all three filters is included for storage and transport.
The Hoya 30mm UV Filter is a general use, clear filter designed to absorb ultraviolet light and reduce the bluish cast of daylight. Aside from the reduction of unwanted blue casts, no additional coloration or contrast is created, and adjustments to exposure are not required while using this filter. To prevent internal ghosting and reflections while providing approximately 96% light transmission, each glass surface includes one layer of anti-reflection coating.
This UV filter is also useful as a general protective filter to leave on lenses at all times. Such filters help to reduce dust and moisture from reaching your front lens element and provide additional protection in case of drops or situations where scratching could occur.
The Hoya 30mm Circular Polarizer Filter helps to reduce reflections and glare by filtering out light that has become polarized due to reflection from a non-metallic surface. The light from the sun naturally becomes partially polarized due to reflecting off electrons in air molecules, causing the light to scatter into what appears as haze. A polarizing filter arranges, and filters, this directionally polarized light perpendicularly to the reflected light, allowing for the absorption of much of this light. This results in a noticeable reduction of glare and reflections from non-metallic surfaces and an increase in the saturation of skies and foliage.
A circular polarizer only differs from a linear polarizer in that it contains a quarter wave plane in addition to the linear polarizing filter. The addition of this quarter wave plane is to circularly polarize the linearly polarized light for the use of auto focus and exposure functions. Due to how the light is broken down and filtered with a linear polarizer, auto focus and exposure accuracy become skewed during use. When the light becomes circularly polarized, it permits the use of these functions.
This circular polarizer filter is uncoated and has approximately 96% average light transmission.
The Hoya 30mm 81A Color Conversion Filter can be applied to create a warm cast over an entire image. This effect can be obtained under daylight when this filter is used on a film camera system with daylight film installed, or on a digital camera system with its daylight white balance setting selected. This filter's overall coloration corresponds to an ability to reduce 3400K color temperatures to 3200K, which reflects a mired shift value of +18 that can be applied to other starting color temperatures as well. The greater the color temperatures they can potentially reduce to 3200K, light balancing or color conversion filters are considered to be progressively stronger in their effect when used to add warmth to a daylight image. - Hoya 30mm UV Filter
-
- Absorbs UV light and reduces bluish cast of daylight
- Does not require adjustments to exposure while in use
- Single coated to prevent internal ghosting and reflections while providing approximately 96% light transmission
- Creates no additional coloration or contrast
- General protection filter reduces dust, moisture, and scratches from reaching lens elements
- Hoya 30mm Circular Polarizer Filter
-
- Helps to reduce reflections and glare by filtering out light that has become polarized due to reflection from a non-metallic surface
- Polarizing filters arrange, and filter, directionally polarized light perpendicularly to the reflected light, allowing for the absorption of much of the light
- Clears up haze in distant landscapes and provides more saturated, vivid colors
- Strongest effect when used at a 90° angle from the sun
- Circular polarizers are ideal for use with digital cameras and autofocus lenses where a linear polarizer will often disrupt auto exposure and focus features
- Non-coated
- Approximately 96% average light transmission
- 3 to 4x filter factor reduces exposure by 1.6 to 2 stops
- Hoya 30mm 81A Color Conversion Filter
-
- Can add a warming cast to an entire image under daylight when used on a film camera system with daylight film installed, or on a digital camera system with its daylight white balance setting selected
- Provides a mired shift value of +18
- Reduces 3400K color temperature to 3200K
- 1.4x filter factor reduces exposure by 0.5 stop
- Single coated to prevent internal ghosting and reflections
UPC: 024066050038 In the Box Hoya 30mm Introductory Filter Kit UV Filter Circular Polarizing Filter 81A Color Conversion Filter Filter Pouch Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Hoya 30mm Introductory Filter Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHoya GIK30GB Specs | Type | UV Filter: UV/Haze
Circular Polarizing Filter: Circular Polarizer
81A Color Conversion Filter: Color Conversion/Correction Filter | | Size | UV Filter: 30 mm
Circular Polarizing Filter:30 mm
81A Color Conversion Filter:30 mm | | Filter Factor | UV Filter: 1 (0 stop)
Circular Polarizing Filter: 3 to 4 (1.6 to 2 stops)
81A Color Conversion Filter: 1.4 (0.5 stop) | | Multi-Coated | UV Filter: No
Circular Polarizing Filter: No
81A Color Conversion Filter: No | | Effect | UV Filter: Absorbs UV rays and reduces bluish cast from daylight
Circular Polarizing Filter: Eliminates reflections and haze and improves color and tonal saturation
81A Color Conversion Filter: Adds warmth to entire image when used under daylight on a film camera system with daylight film installed, or on a digital camera system with its daylight white balance setting selected | | Construction | Optical glass | | Front Filter Thread Size | 30 mm | | Front Lens Cap Size | 30 mm | | | | Package Weight | 0.45 lb | | Box Dimensions (LxWxH) | 9.4 x 4.5 x 1.4" |
