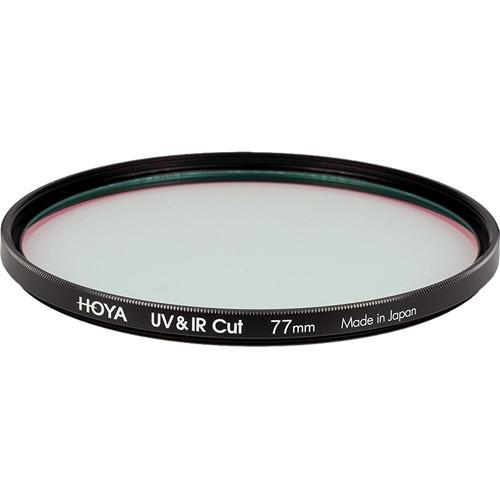

User Manual for Hoya 77mm UV and IR Cut Filter Click to enlarge the picture
Contents of the user manual for the Hoya 77mm UV and IR Cut
- Product category: IR Control Hoya
- Brand: Hoya
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Hoya IR Control
|
User manual for the Hoya 77mm UV and IR Cut contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Hoya product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Hoya user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Hoya product will considerably shorten its lifespan!
|
Product description The 77 mm UV and IR Cut Filter from Hoya is a lens filter that, when attached to your lens, permits only the visible spectrum of light rays to enter the camera and get captured by the sensor. It blocks out both the higher frequency ultraviolet rays, and lower frequency infrared light rays. This is important to digital photographers because the CCD and CMOS sensors found in our cameras are extremely susceptible to catching UV and IR rays just outside the visible spectrum that have a very negative impact on image quality.
The filter offers even greater versatility than is already found in a combination UV-IR filter due to its front and rear threads. They permit stackable standard-size filters to be attached, giving you even more filter effect options, while also accommodating a standard lens cap as well.
Another benefit to using the UV-IR filter is that it can also reduce the effects of atmospheric haze to a greater degree than would be found with a standard UV filter. This means that sharper images with more depth and finer, richer color gradations are possible when utilizing the filter's effects in your photography. This combination filter is a very convenient option for those who seek a clearer and sharper image when captured outdoors, while getting the benefits of two filters in one. - More so than a traditional UV filter, this combination filter cuts through atmospheric haze to a greater degree than you would otherwise find
- When using color CCD or CMOS camera sensors, which are extremely susceptible to UV and IR rays, this combination filter can produce greater accuracy of color in digital images than is found with traditional IR filters
- Cut to transmit only those light rays that fall within the visible spectrum of light, this UV-IR filter blocks both ultraviolet rays found below 390 nm, as well as infrared rays above 700 nm
- Low-profile, rigid aluminum filter ring provides support and is compatible with stackable standard filters for a greater combination of effects
UPC: 024066054432 In the Box Hoya 77mm UV and IR Cut Filter 1-Year Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Hoya 77mm UV and IR Cut Filter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHoya A-77UVIR Specs | Circular Size | 77 mm | | Front Accessory Thread / Bayonet | 77 mm | | Filter Material | Glass | | Ring Material | Aluminum | | | | Package Weight | 0.22 lb | | Box Dimensions (LxWxH) | 4.0 x 4.0 x 0.9" |
Rating98% users recommend this product to others. And what about you?
This product has already been rated by 30 owners. Add your rating and experience with the product.
