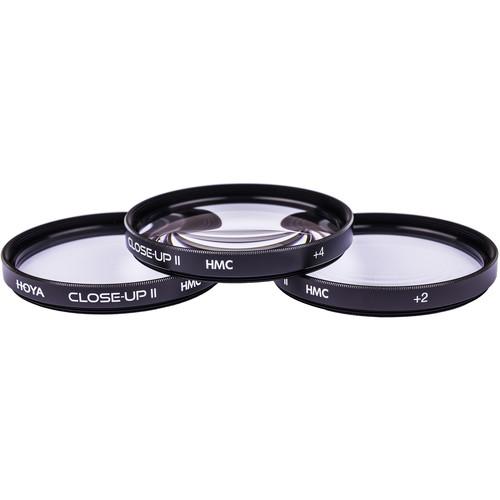

User Manual for Hoya 82mm HMC Close-Up Filter Set II Click to enlarge the picture
Contents of the user manual for the Hoya 82mm HMC Close-Up Filter Set
- Product category: Close-up Lens Filters Hoya
- Brand: Hoya
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Hoya Close-up Lens Filters
 |
User manual for the Hoya 82mm HMC Close-Up Filter Set contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Hoya product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Hoya user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Hoya product will considerably shorten its lifespan!
|
Product description This Hoya 82mm HMC Close-Up Filter Set II offers the ability to achieve macro-like results with camera lenses that have 82mm front filter threads. A close-up filter is a magnifier that optically decreases the focal length of a camera lens placed behind it. This effect lessens the minimum focus distance between the camera lens and a subject. Magnification can then be obtained by decreasing the distance between the subject and the combined camera lens and close-up filter.

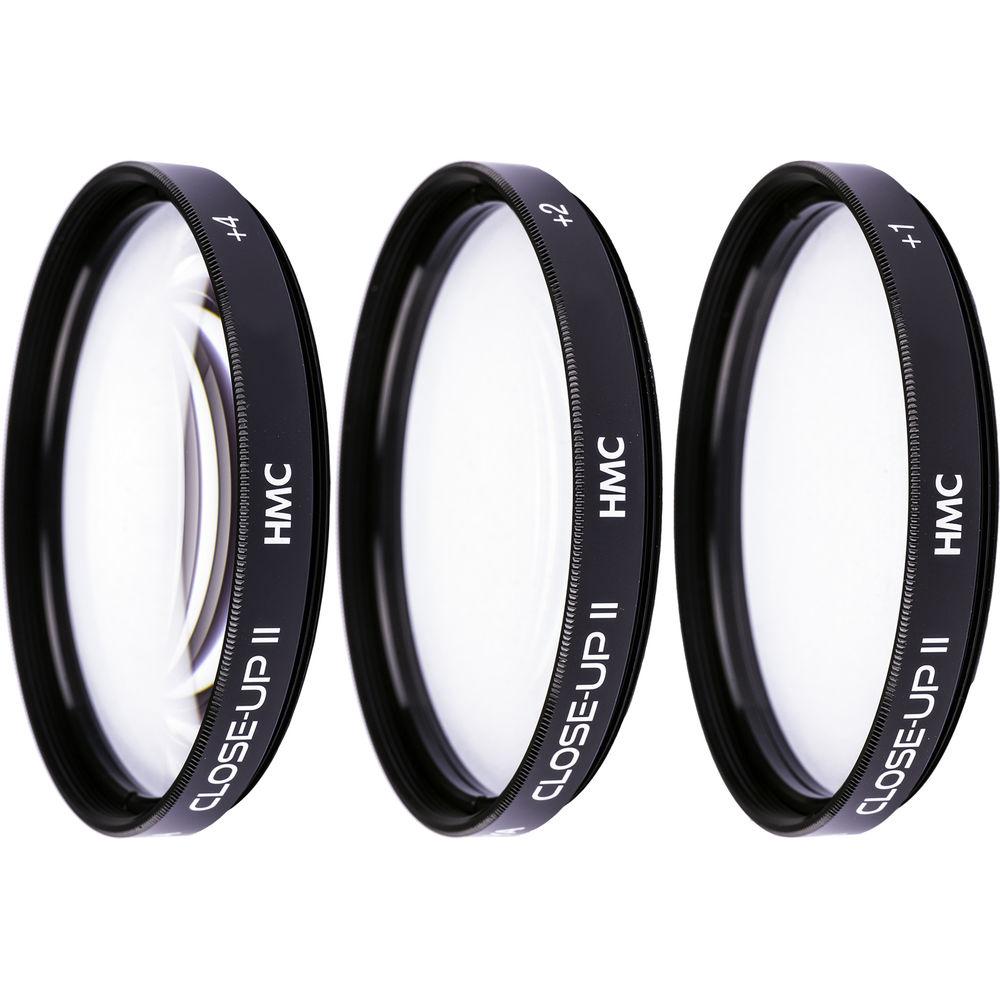

The magnifying power of a close-up filter is indicated by its diopter strength. A close-up filter with a higher diopter number provides more relative magnification and can be combined with other close-up filters to increase, or fine-tune the macro effect. These close-up filters have diopter strengths of +1, +2, and +4.
Each surface of the filters in this Hoya HMC Close-Up Filter Set II is constructed from optical glass which includes three layers of anti-reflection coatings that offer improved clarity as well as more effective prevention of internal ghosting and reflections. These close-up filters each provide approximately 97% average light transmission and feature an aluminum-alloy filter ring for durability while remaining lightweight. - Offers macro-like results for camera lenses that have a 82mm front filter threads
- +1, +2, and +4 strengths can be combined to vary and modify the desired close-up effect
- Constructed from optical glass with three layers of anti-reflection coatings that offer improved clarity as well as more effective prevention of internal ghosting and reflections
- Approximately 97% average light transmission
- Aluminum-alloy filter ring for durability while remaining lightweight

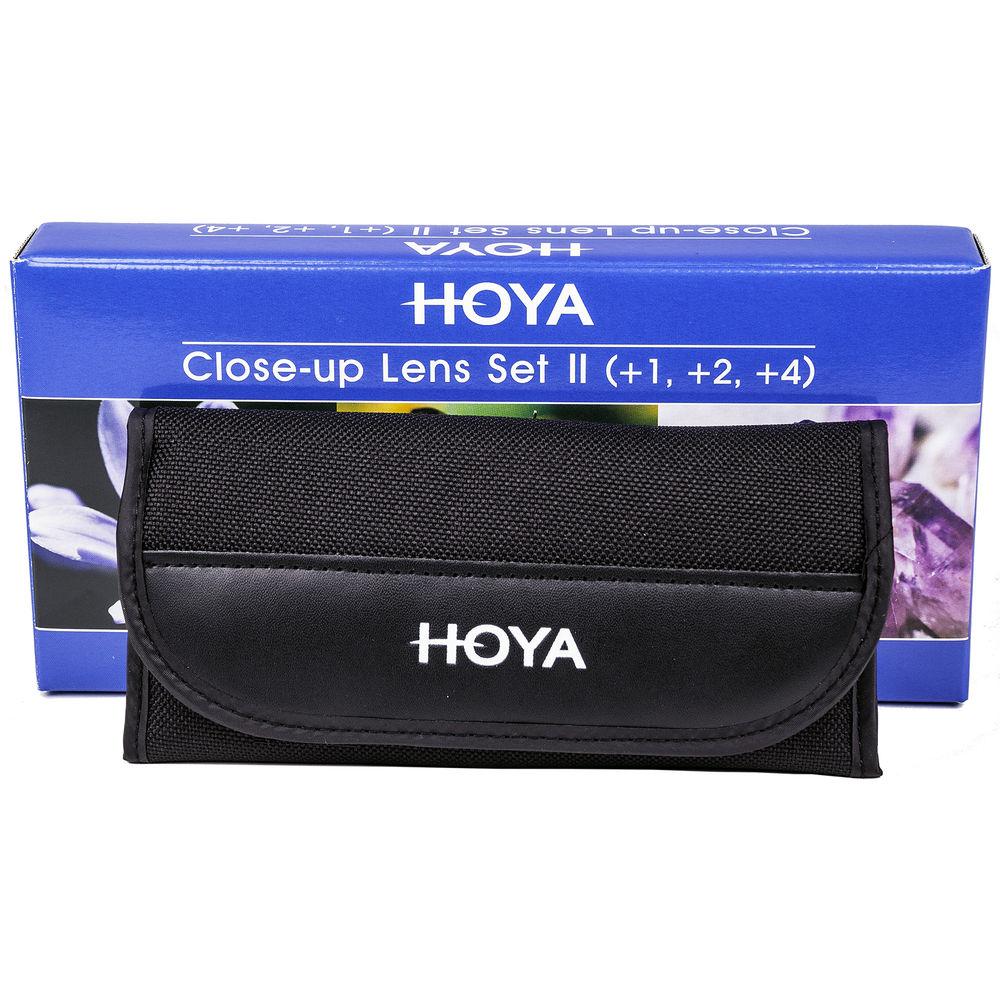

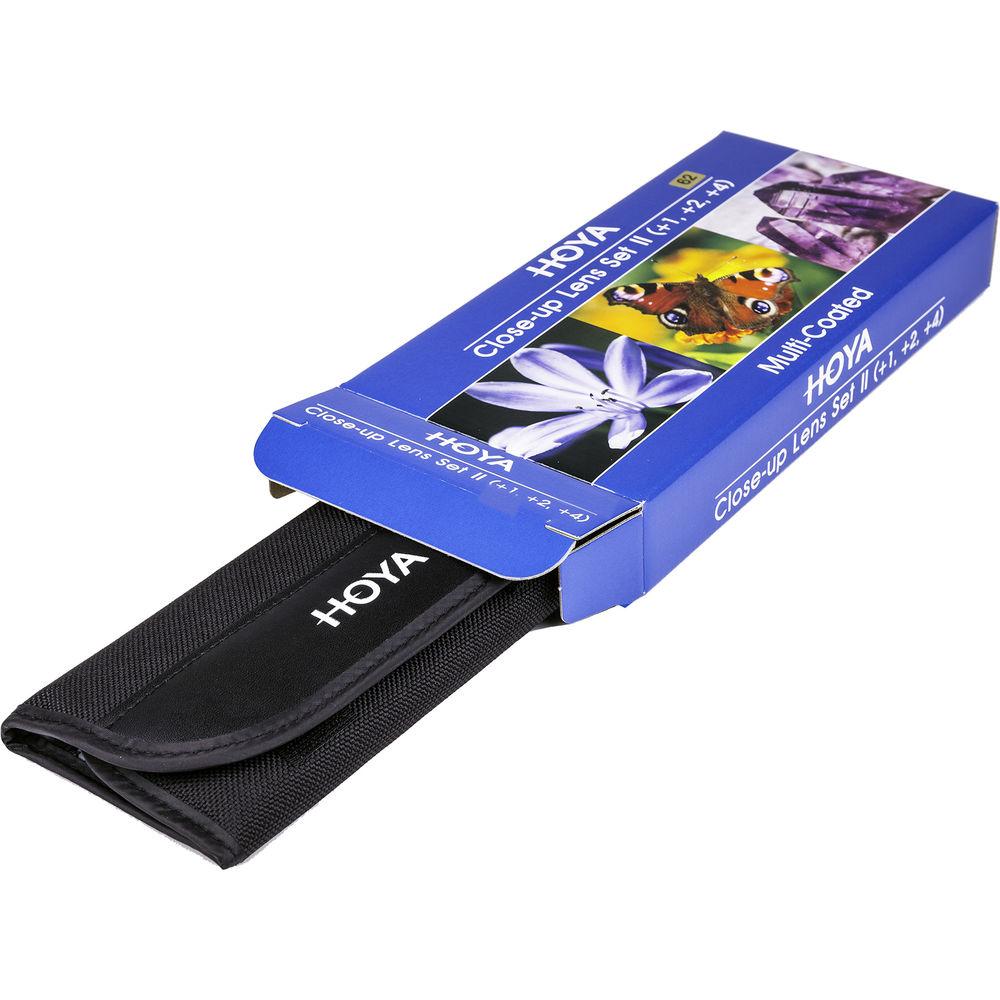

- Filter pouch included for storage and transport
UPC: 024066064158 In the Box Hoya 82mm HMC Close-Up Filter Set II (+1, +2, and +4) Filter Pouch Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Hoya 82mm HMC Close-Up Filter Set II in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHoya A-82CUS-II Specs | Type | Close-up filter kit | | Size | 82 mm | | Dioptric Strength | +1
+2
+4 | | Multi-Coated | Yes | | Effect | Decreases minimum focus distance on a camera lens | | Construction | Optical glass | | Front Filter Thread Size | 82 mm | | Front Lens Cap Size | 82 mm | | | | Package Weight | 1.05 lb | | Box Dimensions (LxWxH) | 9.5 x 4.7 x 1.5" |
