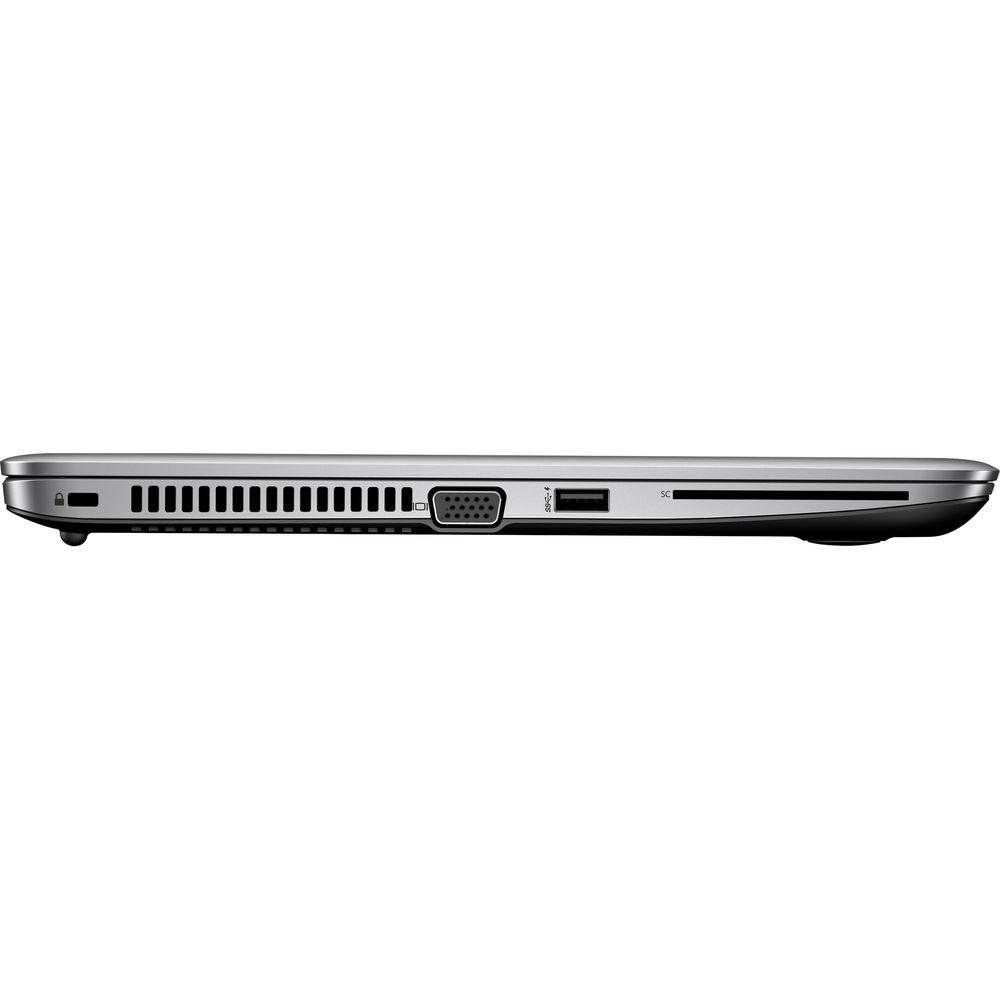

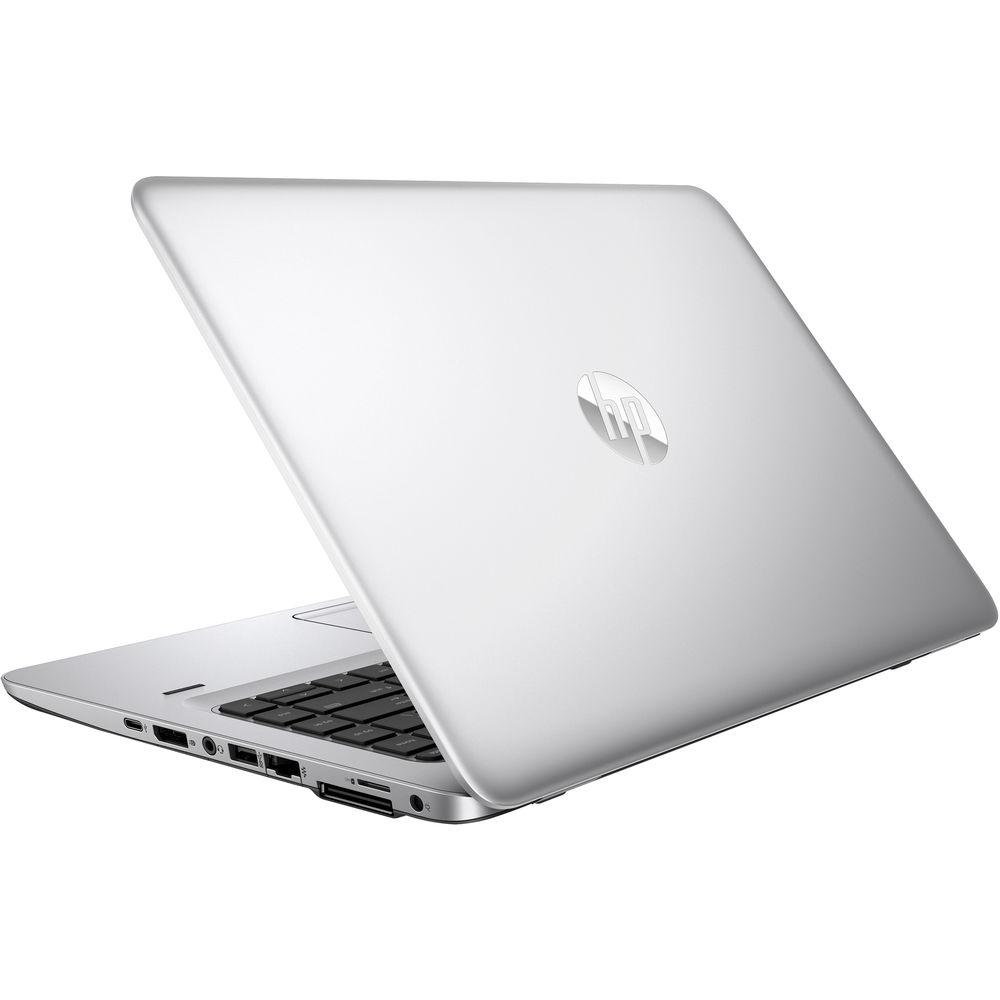

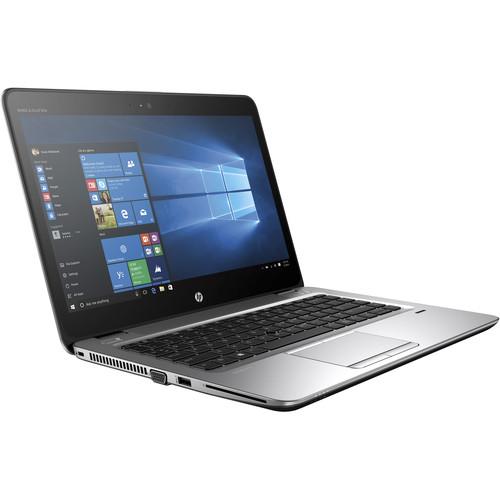

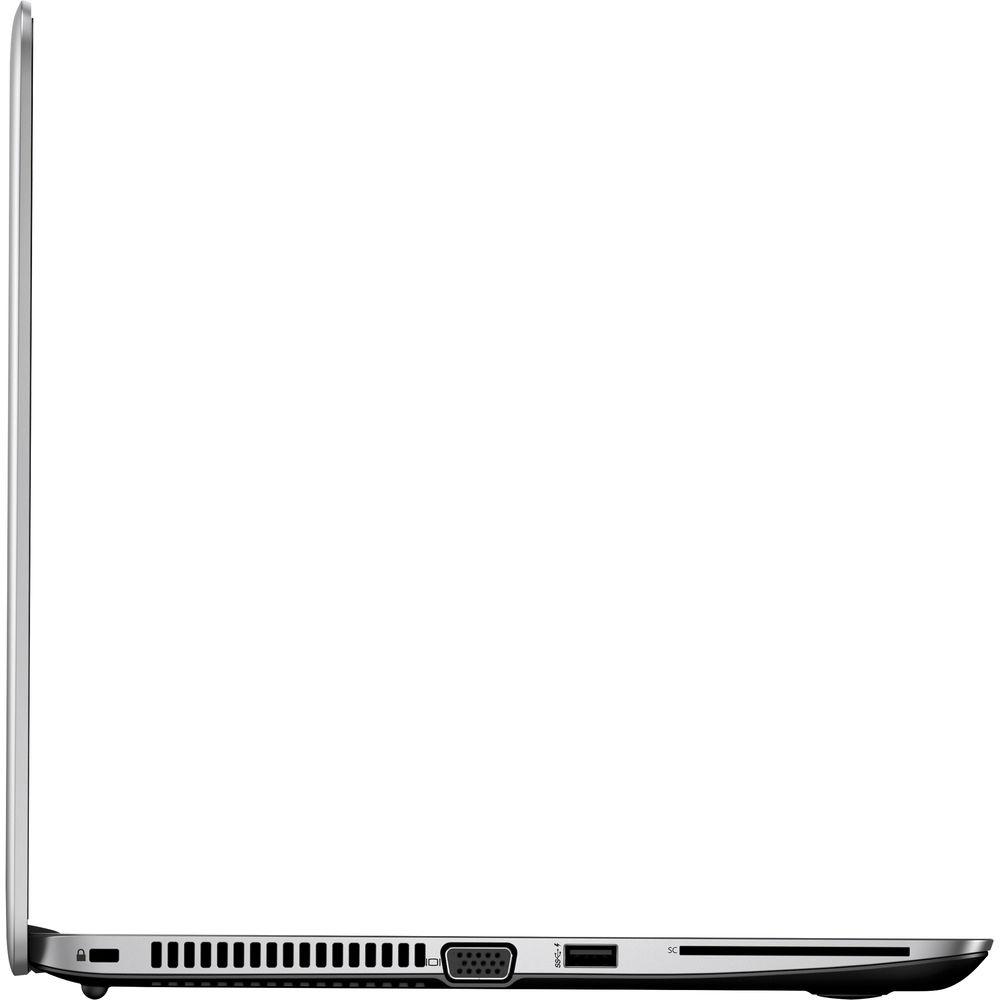

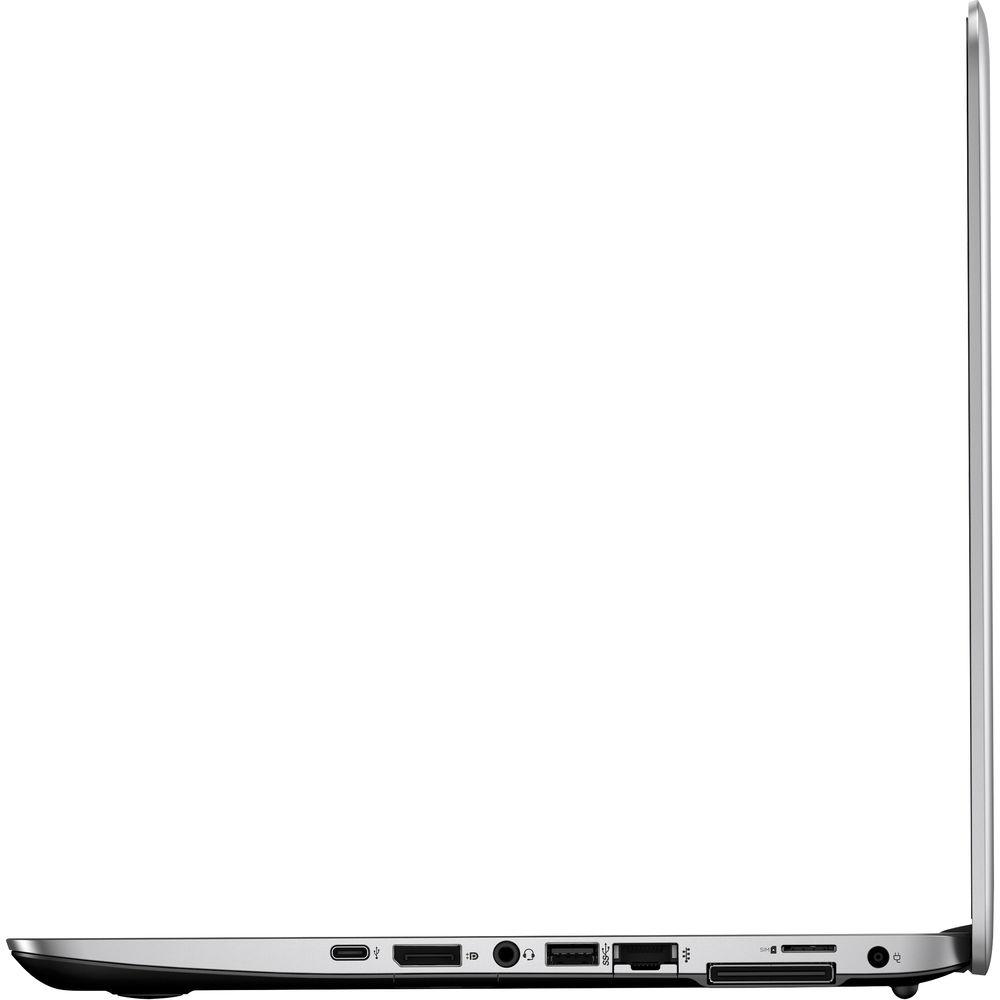

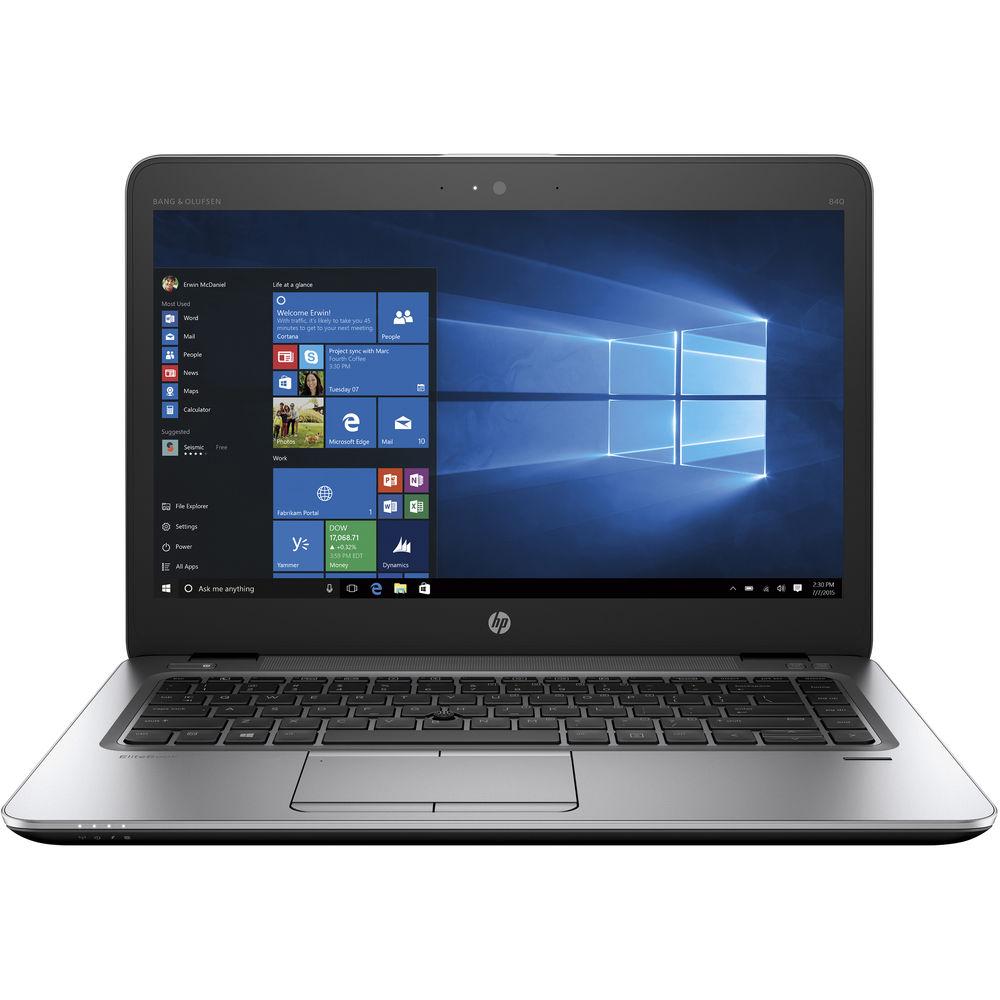

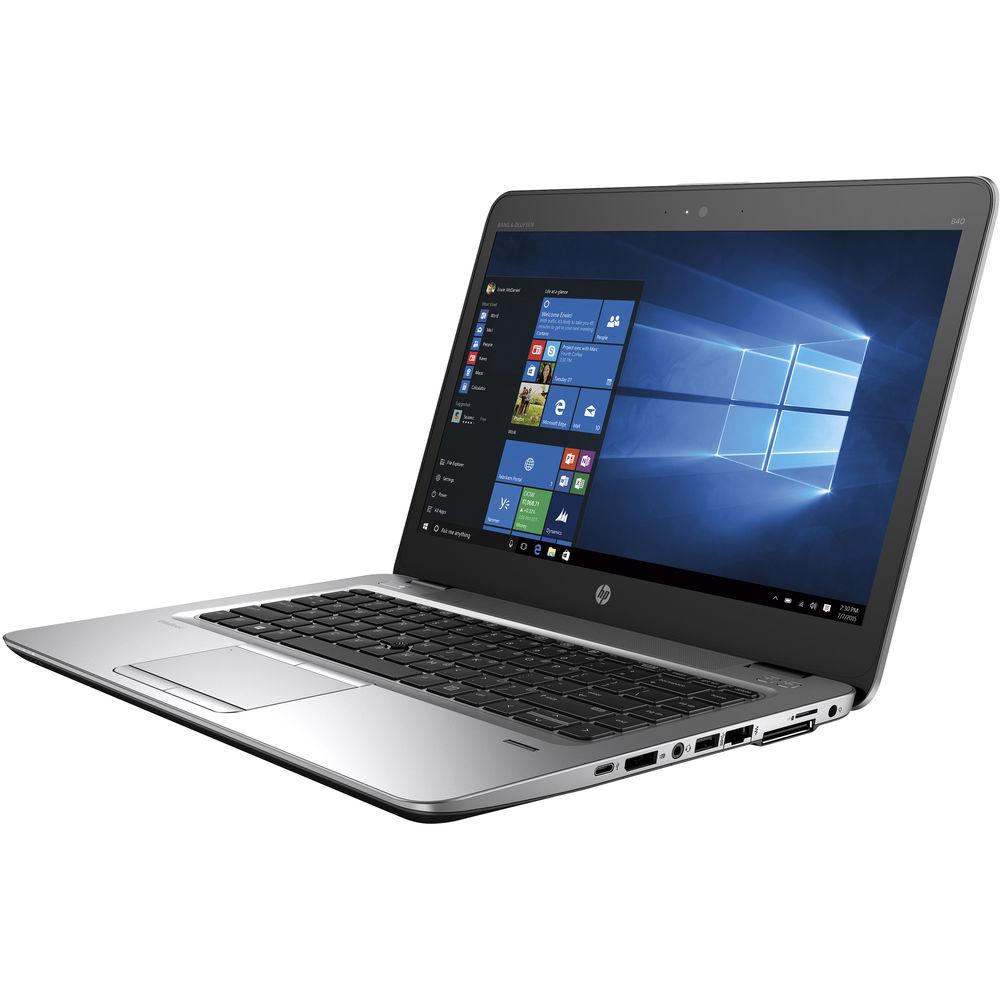

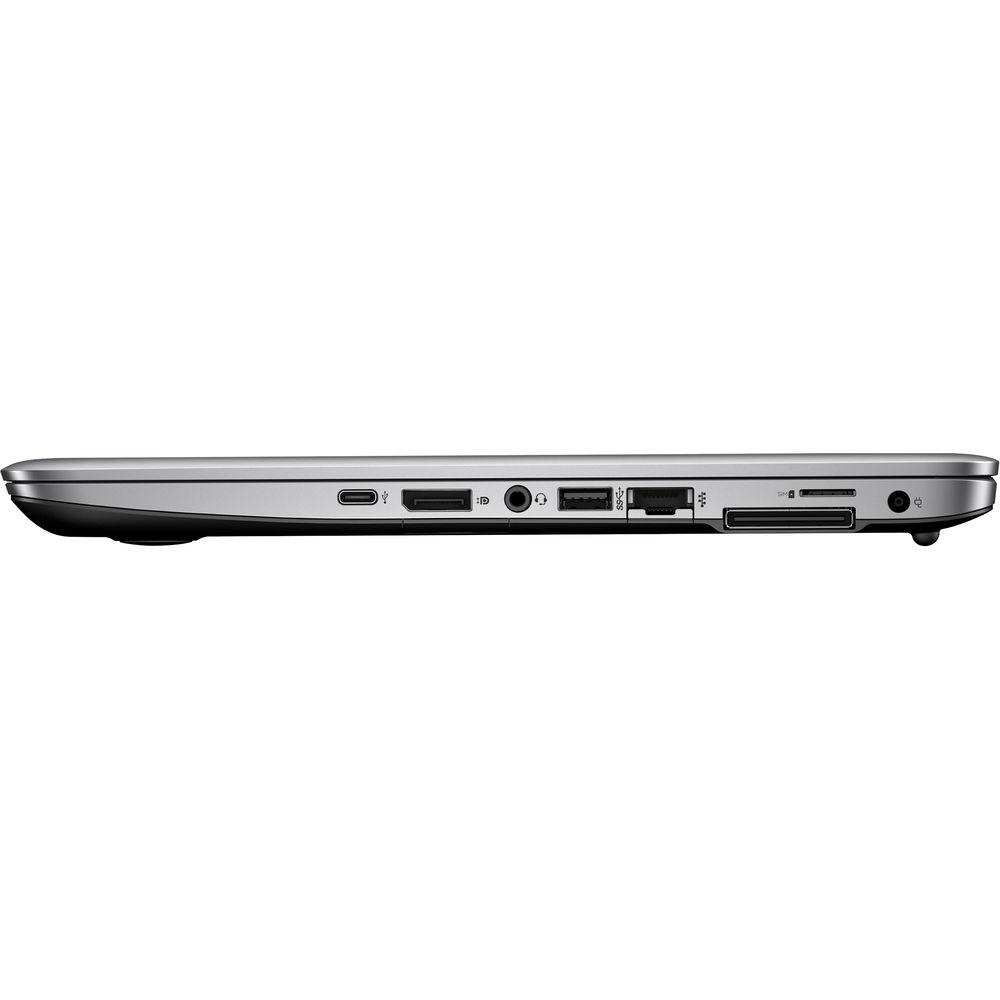

User Manual for HP 14" EliteBook 840 G3 Laptop Click to enlarge the picture
Contents of the user manual for the HP 14" EliteBook 840 G3 Laptop
- Product category: Notebooks HP
- Brand: HP
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for HP Notebooks
 |
User manual for the HP 14" EliteBook 840 G3 Laptop contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any HP product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official HP user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a HP product will considerably shorten its lifespan!
|
Product description The 14" EliteBook 840 G3 Laptop from HP is an enterprise-grade notebook designed with the security and technology to keep you safe and productive in and out of the office. This system is powered by a 2.6 GHz Intel Core i7-6600U Dual-Core processor which allows you to run multiple applications simultaneously. If you need more power, the system can be overclocked to 3.4 GHz using Intel Turbo Boost 2.0 technology. The 8GB of 2133 MHz DDR4 RAM, which comes in a 1x8GB configuration, helps to ensure smooth multitasking and also allows the computer to quickly access frequently-used files and programs. If you need more RAM, this system accepts up to 32GB, using one 16GB module in each of the 260-pin SO-DIMM slots.
The 14" UWVA anti-glare IPS display features a QHD 2560 x 1440 native resolution that is equipped with LED-backlighting, a 16:9 aspect ratio, 340 cd/m2 brightness, a 600:1 typical contrast ratio, a refresh rate of 60 Hz, 210 ppi, a response time of 25 μs, and viewing angles of 85° in all directions. Integrated Intel HD Graphics 520 delivers a sharp, clear picture, and you'll be able to output video to an external display at resolutions up to 4096 x 2160 @ 60 Hz using the DisplayPort 1.2 output and 1920 x 1200 @ 60 Hz using the VGA output.
For long-term storage of your files, this system is equipped with a 512GB M.2 2280 SATA III TLC SSD that features read speeds of up to 540 MB/s and write speeds of up to 500 MB/s. Additional internal storage can be added to the empty 2.5" / 7mm drive bay, and if you want to add external storage, optical drives, memory card readers, printers, and more, the EliteBook 840 G3 offers one USB 3.0 Type-C port and two USB 3.0 Type-A ports, one of which doubles as a charging port. Gigabit Ethernet and 802.11ac dual-band Wi-Fi are built-in for wired and wireless networking and Bluetooth 4.2 technology will also allow you to connect additional compatible peripherals wirelessly. There is also an SD/SDHC/SDXC card reader, 720p webcam, dual-array microphones, stereo speakers with Bang & Olufsen HD audio, a smart card reader, an external micro SIM slot (3FF), and NFC.
The EliteBook 840 G3 includes a 65W Smart AC adapter that operates using 90-265 VAC at 47-63 Hz and an HP 3-cell / 46Wh Lithium-ion polymer battery that can last for up to 13.5 hours and provide up to 223 hours of standby time before recharging is required. While the installed operating system is Windows 7 Professional (64-bit), a Windows 10 Professional (64-bit) license is also included, as is Windows 7 Professional (32-bit) and Windows 7 Professional (64-bit) recovery media. General Features - Supports up to Three Independent Displays
- Using the optional HP Ultraslim Docking Station, up to three independent displays are supported.
- Strong Security
- Equipped with a TMP module for security, the HP Elite also features HP Sure Start with dynamic protection, which checks your BIOS every fifteen minutes to detect attacks and corruption and then self-heals the BIOS automatically.
- Bang & Olufsen Speakers
- The HP Elitebook is built with Bang & Olufsen speakers that, when combined with HP's noise reduction software, provide a rich audio experience for work and entertainment.
- 802.11ac Wi-Fi & Bluetooth 4.2
- Enjoy streaming music and movies wirelessly with 802.11ac Wi-Fi. This Wi-Fi standard provides you with faster speeds compared to its predecessors so that you can download large files quickly. With Bluetooth 4.2 technology, you can pair compatible wireless peripherals and free up USB ports for other devices.
- Windows 7 Pro + Windows 10 Pro License
- This system is pre-installed with Windows 7 Professional software and also comes with a license and media for Windows 10 Pro software. You may use only one version of the Windows software at a time. Switching between versions will require you to uninstall one version and install the other version. You must back up all data (files, photos, etc.) before uninstalling and installing operating systems to avoid loss of your data.
In the Box HP 14" EliteBook 840 G3 Laptop 65W Smart AC Adapter Power Cord 3-cell / 46Wh Lithium-ion Polymer Battery Windows 7 Pro (32-bit) Recovery Media Windows 7 Pro (64-bit) Recovery Media Windows 10 Pro (64-bit) License Limited 3-Year Parts & Labor Warranty Guides & Manuals More from Manufacturer Table of Contents
|
Upload User Manual
Have you got an user manual for the HP 14" EliteBook 840 G3 Laptop in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Download User ManualThe user manual for the HP 14" EliteBook 840 G3 Laptop can be downloaded in PDF format at the link stated below.
Technical parametersHP 840 G3 Specs | | | Processor | Intel Core i7-6600U Dual-Core | | Base Clock Speed | 2.6 GHz | | Maximum Boost Speed | 3.4 GHz | | Total Installed Memory | 8 GB | | Maximum Memory Capacity | 32 GB | | Memory Type | DDR4 SDRAM | | Memory Speed | 2133 MHz | | Available Memory Slots | 1 | | Memory Slot Type | 260-Pin SO-DIMM | | Graphics Type | Integrated | | GPU | Intel HD Graphics 520 | | | | Panel Type | IPS | | Size | 14" | | Aspect Ratio | 16:9 | | Resolution | 2560 x 1440 | | Touchscreen | None | | Finish | Matte | | Maximum Brightness | 340 cd/m2 | | Viewing Angle (H x V) | 85 x 85° | | Response Time | 25 ms | | External Resolution | Up to 4096 x 2160 | | | | Available Slots | 1 x 2.5" (7 mm) | | Total Installed Capacity | 512 GB | | Solid State Storage | 1 x 512 GB M.2 SATA | | Optical Drive | None | | | | Ports | 1 x USB 3.1 Gen 1 Type-C
2 x USB 3.1 Gen 1 Type-A
1 x Docking Connector | | Display | 1 x DisplayPort 1.2
1 x VGA | | Audio | 2 x Integrated Speaker
2 x Integrated Microphone
1 x 1/8" (3.5 mm) Headphone/Microphone Combo Jack | | Expansion Slots | 1 x Smart Card | | Media Card Slots | SD/SDHC/SDXC | | SIM Card Size | 1 x Micro | | | | Network | 1 x 10/100/1000 Mb/s Gigabit Ethernet (RJ45) | | Wi-Fi | Wi-Fi 5 (802.11ac); Dual-Band (2.4 & 5 GHz) | | Bluetooth | Bluetooth 4.2 | | NFC | Yes | | Webcam | User-Facing: 720p | | | | Battery Chemistry | Lithium-Ion Polymer (LiPo) | | Watt Hours / Type | 46 Wh | | Cells | 3 | | Maximum Runtime | 13.5 Hours | | Power Requirements | 90-265 VAC, 47-63 Hz | | Power Supply | x 65 W | | | | Operating System | Windows 7 Professional (64-Bit) | | Security | Kensington Lock Slot, Accepts 3rd Party Security Lock Devices, Infineon TPM Software Professional Package | | Keyboard | Standard Notebook Keyboard | | Pointing Device | TouchPad | | Dimensions (W x H x D) | 13.3 x 0.8 x 9.3" / 33.8 x 2.0 x 23.6 cm | | Weight | 3.27 lb / 1.48 kg approximately | | | | Package Weight | 5.3 lb | | Box Dimensions (LxWxH) | 18.5 x 11.4 x 3.1" |
