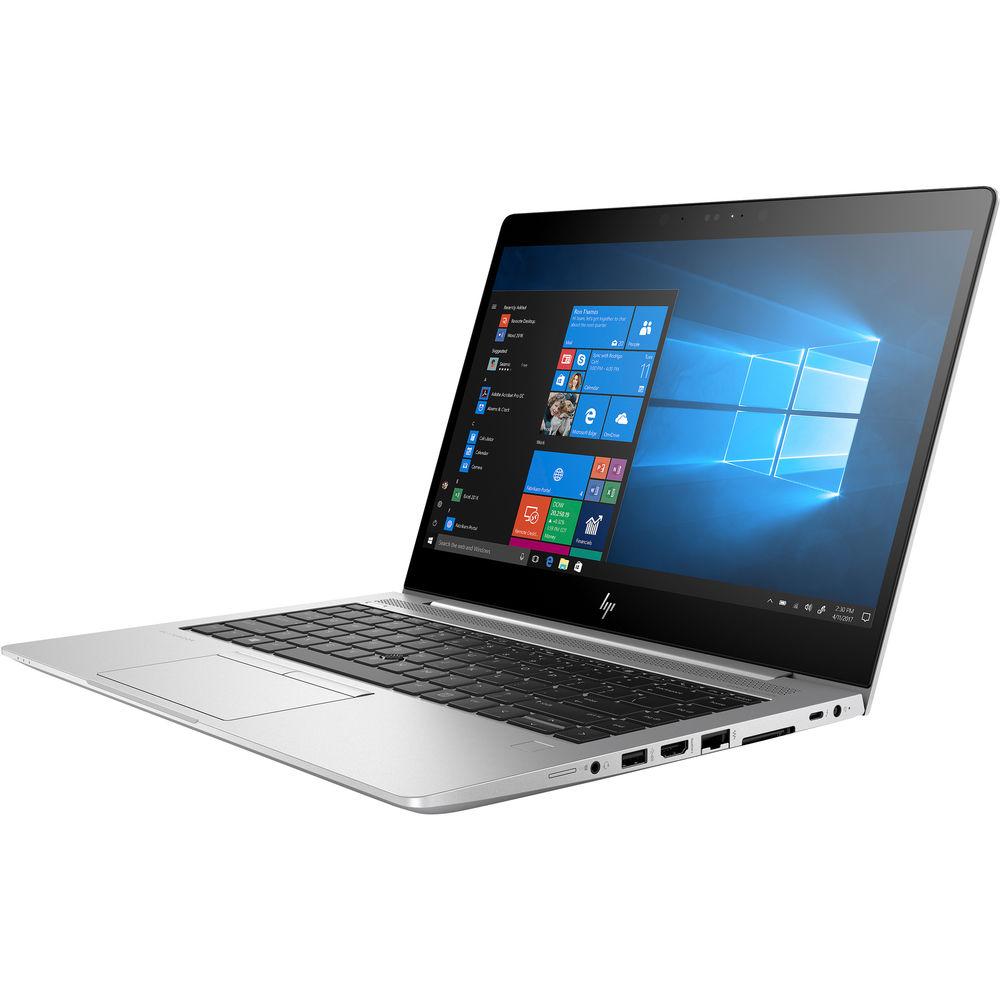

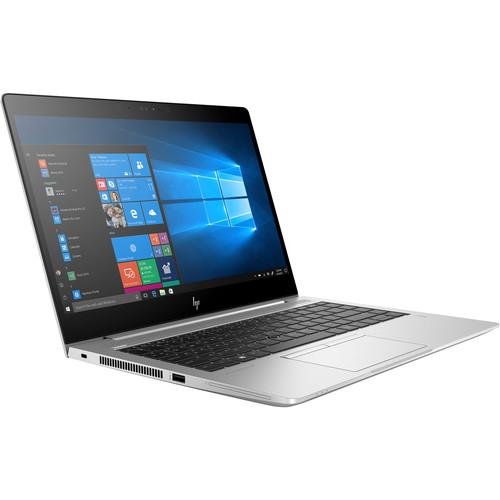

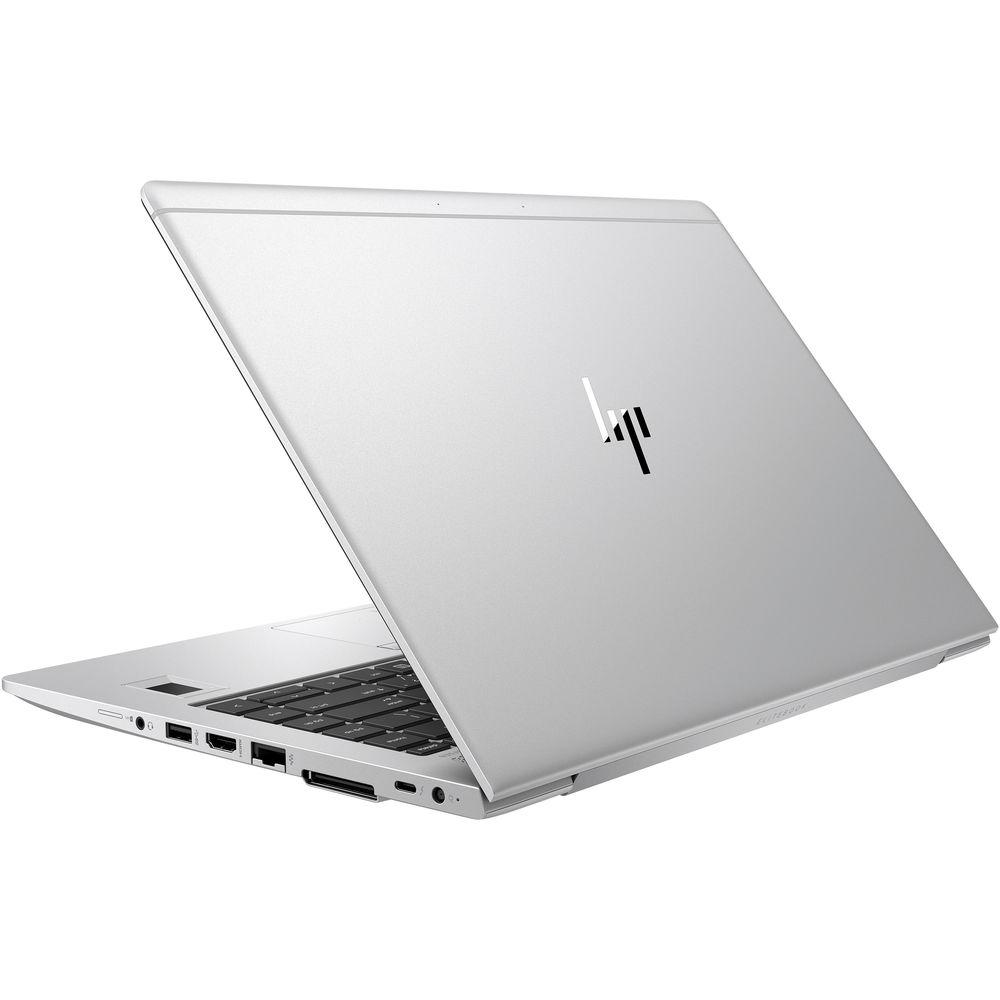

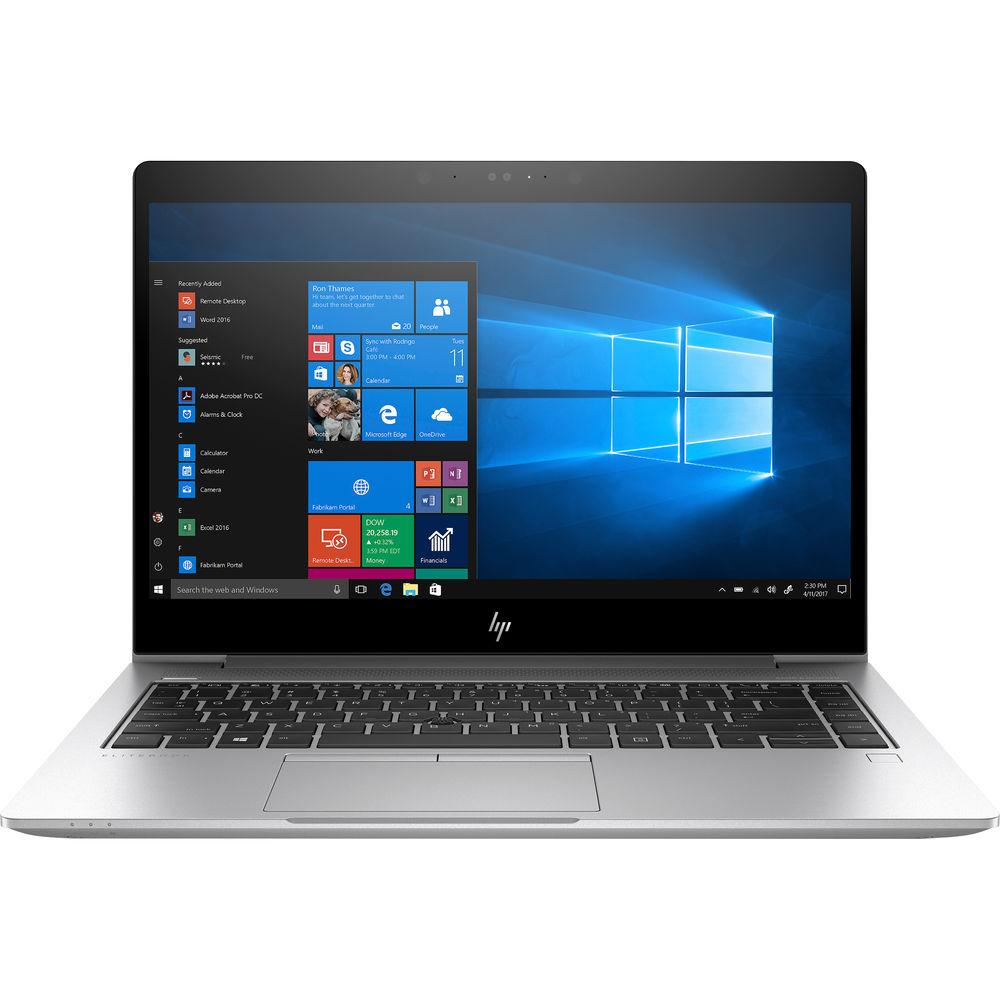

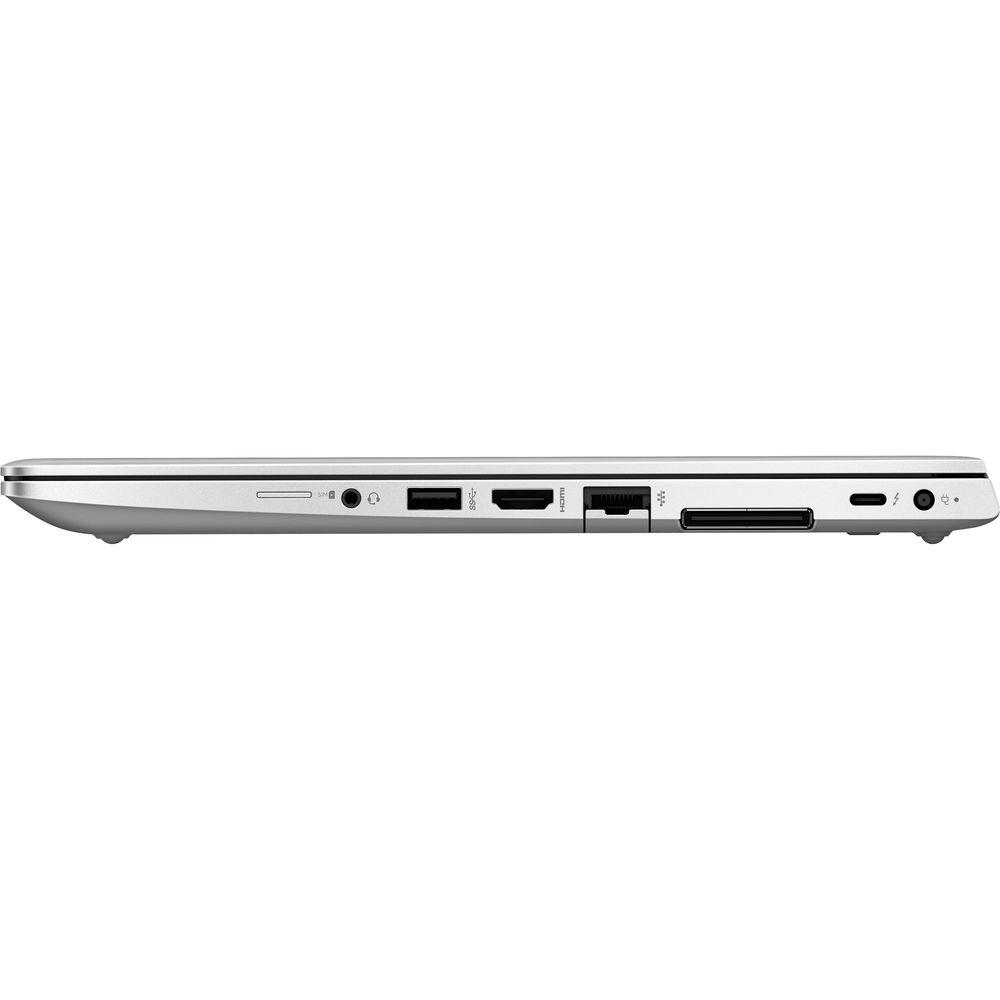

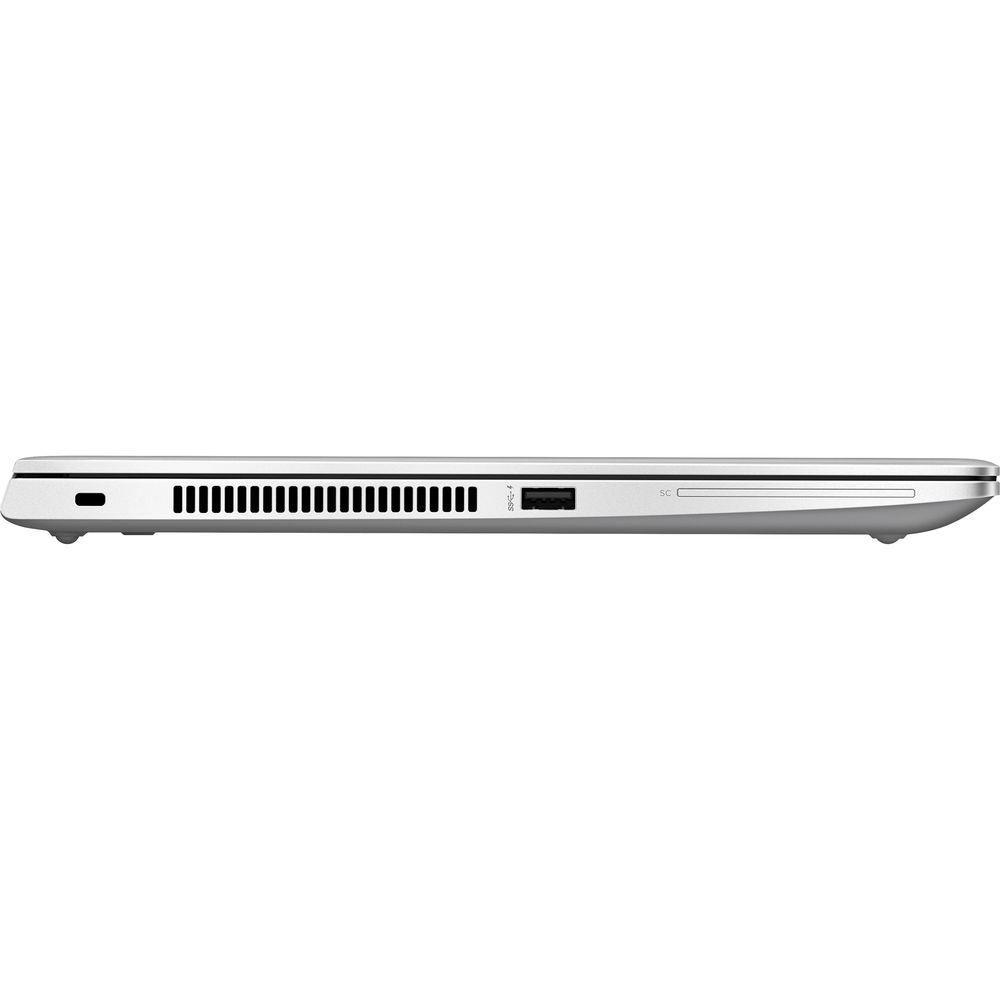

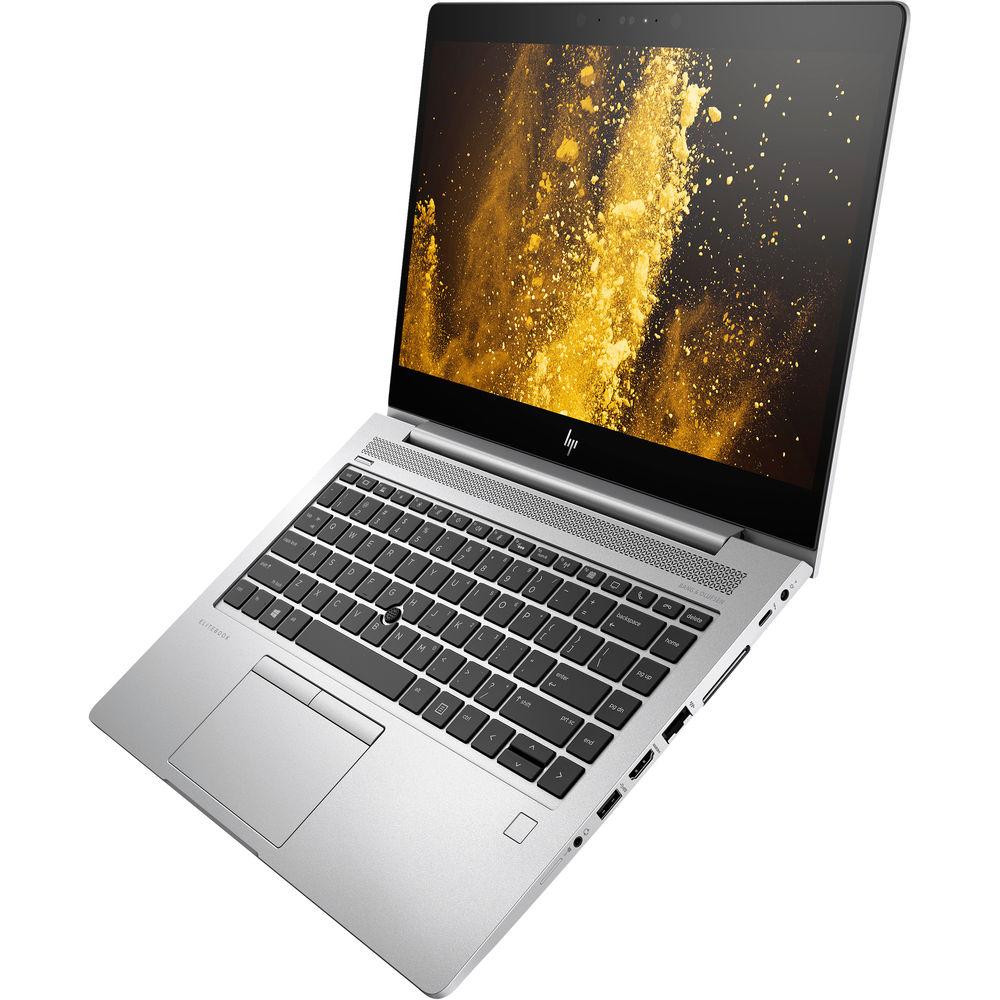

User Manual for HP 14" EliteBook 840 G5 Laptop Click to enlarge the picture
Contents of the user manual for the HP 14" EliteBook 840 G5 Laptop
- Product category: Notebooks HP
- Brand: HP
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for HP Notebooks
 |
User manual for the HP 14" EliteBook 840 G5 Laptop contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any HP product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official HP user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a HP product will considerably shorten its lifespan!
|
Product description Work Laptopsrbzvttvbsautvzvsvfxarrwrzdq Designed with modern professionals in mind, the 14" EliteBook 840 G5 Notebook from HP is secure, manageable, and offers powerful collaboration tools, allowing users to be productive whether they are at the office or on-the-go. This system is powered by a 1.6 GHz Intel Core i5-8250U Quad-Core processor which allows you to run multiple applications simultaneously. If you need more power, the system can be overclocked to 3.4 GHz using Intel Turbo Boost 2.0 technology. The 8GB of 2400 MHz DDR4 RAM, which comes in a 1 x 8GB configuration, helps to ensure smooth multitasking and also allows the computer to quickly access frequently used files and programs. If you need more RAM, this system accepts up to 32GB, using one 16GB module in each of the 260-pin SO-DIMM slots.
The 14" UWVA Anti-Glare IPS display features a Full HD 1920 x 1080 native resolution that is equipped with LED-backlighting, a 16:9 aspect ratio, 220 cd/m2 brightness, a 600:1 contrast ratio, a refresh rate of 60 Hz, and viewing angles of 85/85/85/85°. Integrated Intel UHD Graphics 620 delivers a sharp, clear picture, and you'll be able to output video to an external display at resolutions up to 4K @ 24 Hz using the HDMI 1.4b output.
For storage of your files, a 256GB NVMe PCIe M.2 SSD offers quick access to your data. If you want to add external storage drives or other peripherals, the EliteBook 840 G5 features one 40 Gb/s Thunderbolt 3 port and two 5 Gb/s USB 3.1 Gen 1 Type-A ports, one of which doubles as a charging port, and a docking connector. Gigabit Ethernet and Wi-Fi 5 (802.11ac) are built-in for wired and wireless networking and Bluetooth 4.2 technology will allow you to connect additional compatible peripherals. Other integrated features include a 720p webcam, multi-array microphones, and stereo speakers with Bang & Olufsen HD audio.
The 14" EliteBook 840 G5 Laptop includes a 65W Smart AC adapter and an HP 3-cell / 50Wh lithium-ion polymer long-life battery that supports fast charging of up to 50% in 30 minutes and lasts for up to 14 hours before recharging is required. The installed operating system is Windows 10 Pro (64-bit) and also included is recovery media. UPC: 193808584985 In the Box HP 14" EliteBook 840 G5 Laptop HP Smart 65W External AC Power Adapter Windows 10 Recovery Media Limited 1-Year Parts & Labor Warranty Guides & Manuals Table of Contents
|
Upload User Manual
Have you got an user manual for the HP 14" EliteBook 840 G5 Laptop in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Download User ManualThe user manual for the HP 14" EliteBook 840 G5 Laptop can be downloaded in PDF format at the link stated below.
Technical parametersHP 840 G5 Specs | Operating System | Windows 10 Pro (64-Bit) | | | | CPU | 1.6 GHz Intel Core i5-8250U Quad-Core | | Maximum Boost Speed | 3.4 GHz | | L3 Cache | 6 MB | | Memory Type | 2400 MHz DDR4 | | Total Installed Memory | 8 GB | | Memory Configuration | 1 x 8 GB (User-Replaceable) | | Maximum Memory Capacity | 32 GB | | Memory Slot Type | 260-Pin SO-DIMM | | Available Memory Slots | 1 | | Graphics Type | Integrated | | GPU | Intel UHD Graphics 620 | | | | Panel Type | IPS | | Size | 14" | | Aspect Ratio | 16:9 | | Resolution | 1920 x 1080 | | Touchscreen | No | | Finish | Matte | | Maximum Brightness | 220 cd/m2 | | Color Gamut | 67% sRGB | | Refresh Rate | 60 Hz | | Contrast Ratio | 600:1 | | Viewing Angle (H x V) | 170 x 170° | | | | SSD Slots | 1 x M.2 2280 SATA / PCIe (In Use) | | Total Installed Capacity | 256 GB | | Solid State Storage | 1 x 256 GB M.2 NVMe PCIe | | Optical Drive | None | | | | Ports | 2 x USB Type-A (USB 3.1 Gen 1) | | USB Type-C Ports | 1 x Thunderbolt 3 | | Display | 1 x HDMI 1.4b | | Audio | 1 x 1/8" / 3.5 mm Headphone/Microphone Input/Output | | Built-In Speakers | 2 | | Built-In Microphones | 3 | | Media Card Slots | None | | | | Ethernet | 1 x RJ45 (Gigabit) | | Wi-Fi | Wi-Fi 5 (802.11ac); Dual-Band (2.4 & 5 GHz) | | MU-MIMO Support | 2 x 2 | | Bluetooth | 4.2 | | GPS | None | | NFC | No | | Webcam | User-Facing: 720p | | | | Battery Chemistry | Lithium-Ion Polymer (LiPo) | | Watt Hours / Type | 50 Wh Non-Removable | | Cells | 3 | | Output Voltage | 11.55 VDC | | Maximum Runtime | 14 Hours | | | | Keyboard | Notebook Keyboard with Backlight | | Pointing Device | TouchPad | | | | Security | Infineon TPM Software Professional Package | | Power Supply | 65 W | | AC Input Power | 115 to 230 VAC, 50 / 60 Hz at 1.7 A | | Operating Temperature | 32 to 95°F / 0 to 35°C | | Operating Humidity | 10 to 90% | | Dimensions | 12.8 x 9.2 x 0.7" / 32.51 x 23.37 x 1.78 cm | | Weight | 3.3 lb / 1.5 kg |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 14 owners. Add your rating and experience with the product.
