User Manual for HP 14" mT21 Mobile Thin Client Notebook Click to enlarge the picture
Contents of the user manual for the HP 14" mT21 Mobile Thin Client
- Product category: Terminal & Thin Clients HP
- Brand: HP
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for HP Terminal & Thin Clients
 |
User manual for the HP 14" mT21 Mobile Thin Client contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any HP product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official HP user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a HP product will considerably shorten its lifespan!
|

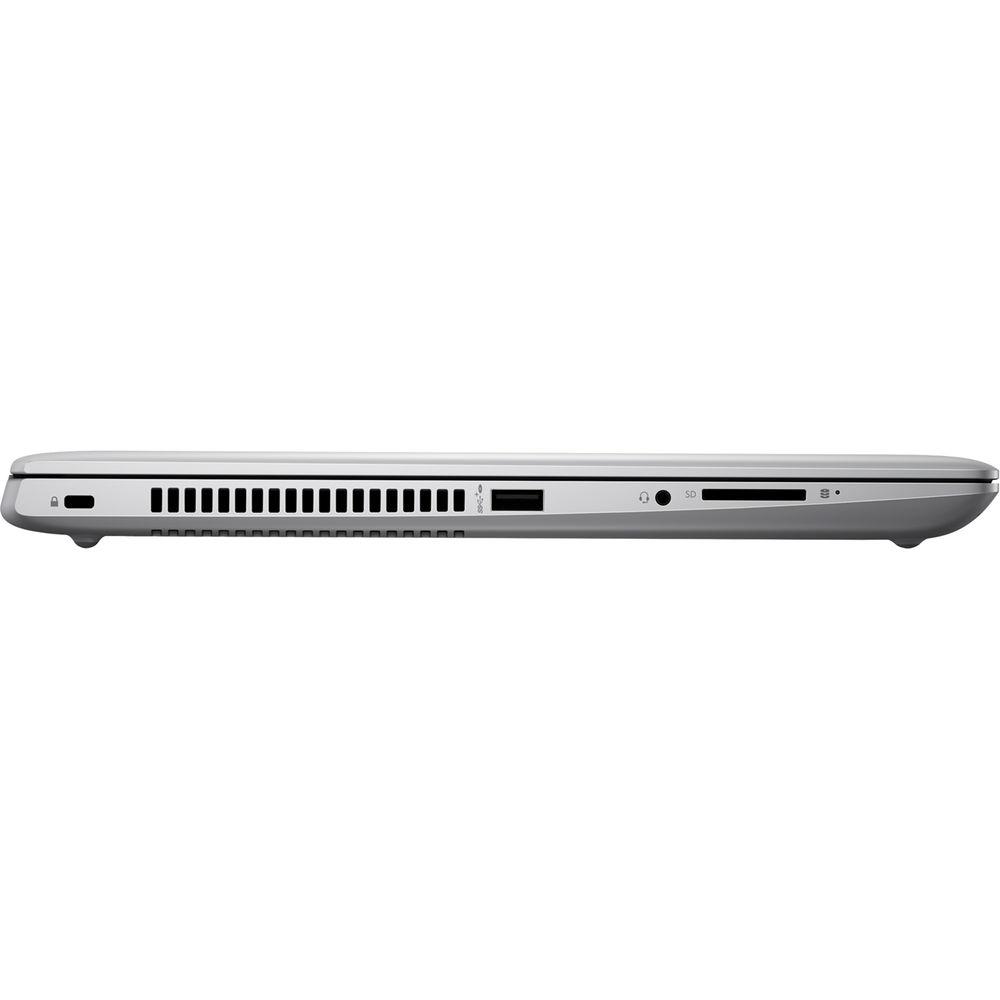

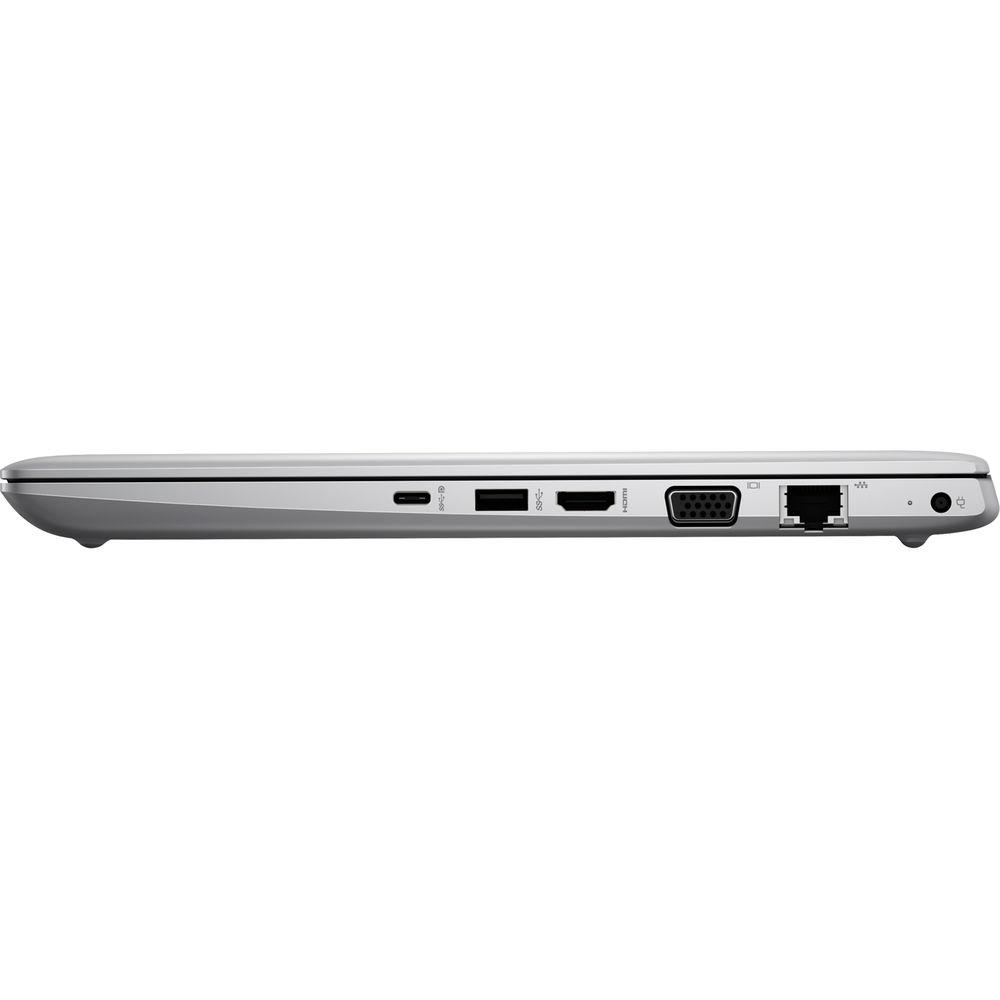

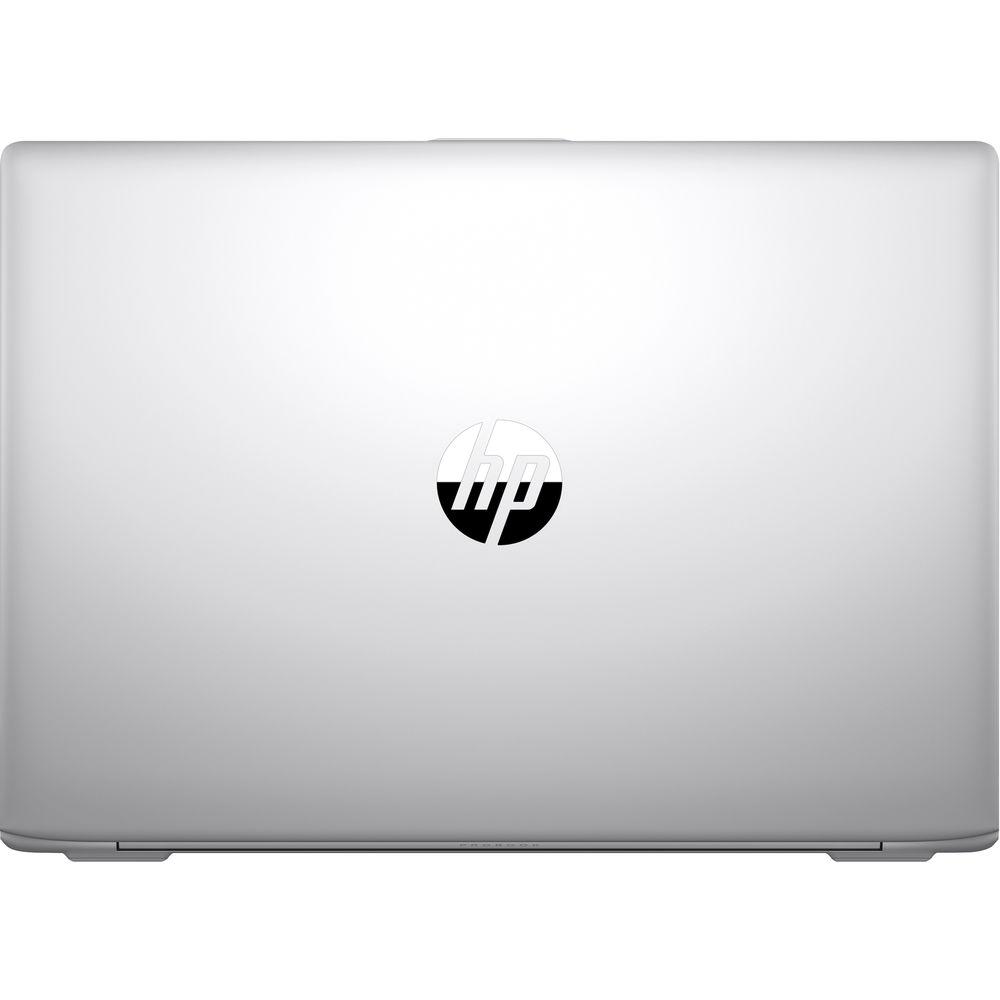

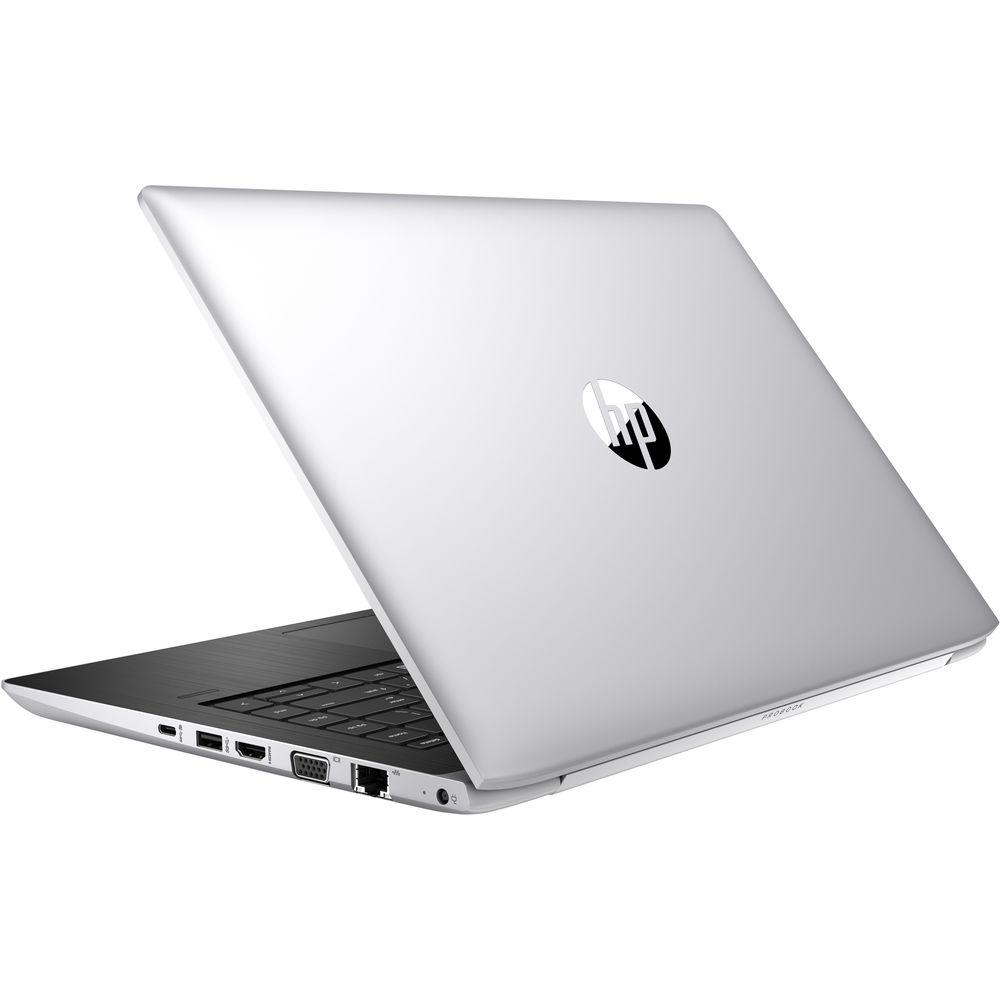

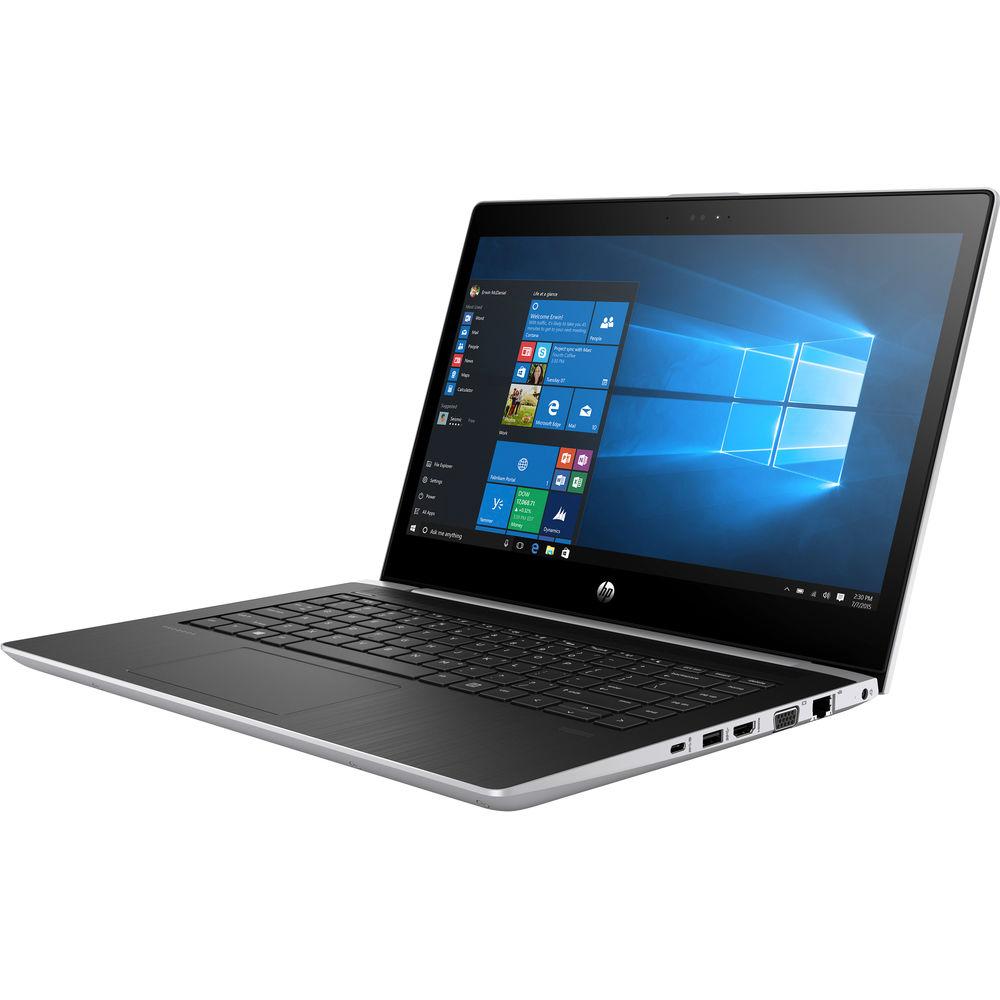

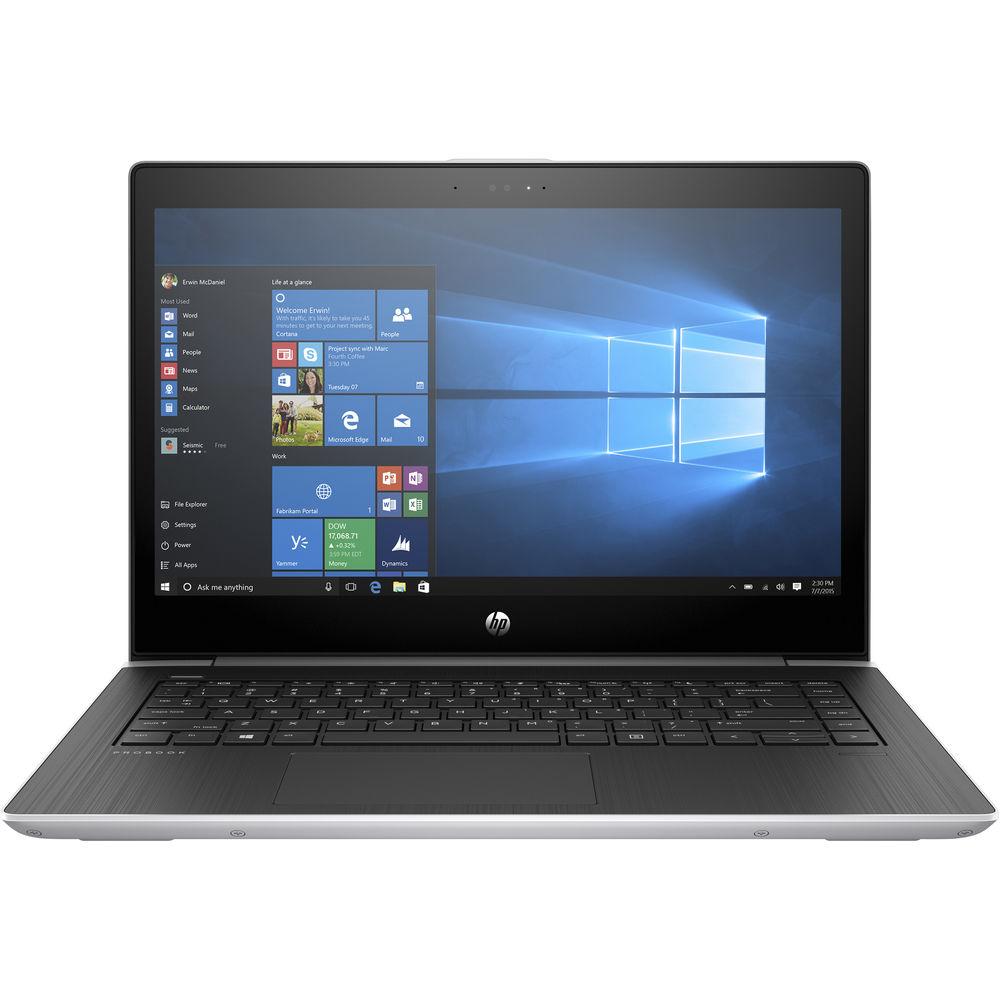

Product description The 14" mT21 Mobile Thin Client Notebook from HP is designed to handle robust workloads right out of the box. It is powered by a 1.8 GHz Intel Celeron 3865U dual-core processor and has 4GB of 2400 MHz DDR4 RAM to help ensure uninterrupted performance and smooth multitasking. For storage of your files, 128GB of M.2 SATA TLC SSD offers quick access to your data.
HP's 14" LED-backlit anti-glare SVA display outputs a resolution of 1366 x 768 and features an integrated Intel HD graphics chip for crisp visuals. This laptop also has built-in VGA and HDMI outputs that transfers your sharp images and supports a wide range of compatible monitors. If you wish to expand your mT21, the system features one USB 3.1 Type-C and two USB 3.1 Gen 1 Type-A ports. For connecting to the internet, the mT21 utilizes 802.11a/b/g/n Wi-Fi and an integrated Gigabit Ethernet controller.
Connect peripheral devices like keyboards, mice, and headphones wirelessly via Bluetooth 4.2 while freeing up your USB ports. Interact with multimedia content for work or play with the mT21's 720p webcam, 3.5mm headphone jack, and stereo speakers. Furthermore, the HP mT21 Thin Client comes with Windows 10 IoT Enterprise pre-installed and is ENERGY STAR certified. - Durable Design
- The HP mT41 Mobile Thin Client is built to protect your important files with a rugged MIL-STD 810G design fit for the mobile professional.
- Security
- Help ensure data security by keeping it off the local device, and get added protection from the mT41's integrated TPM 2.0 chipset and its included Windows Defender software, which helps shield against unauthorized updates and viruses.
- HP-Specific Software
- Improve your end user experience with a plethora of pre-installed HP applications:
- HP Device Manager Agent
- HP Easy Shell
- HP Velocity
- HP USB Port Manager
- HP ThinUpdate
- HP True Graphics
- HP Write Manager
- HP Hotkey Filter (via add-on)
- HP BIOS Config Utility (BCU) (via add-on)
- Windows 10 IoT Enterprise
- Feel right at home and make life easier for IT administrators with Windows 10 IoT Enterprise for Thin Clients, which is optimized for internet usage, security, and cloud storage. Like other Windows operating systems, Windows 10 IoT Enterprise supports Microsoft Office 365 for seamless file access, as well as driver compatibility for your everyday peripherals.
UPC: 192018238695 In the Box HP 14" mT21 Mobile Thin Client Notebook Smart AC Adapter Power Cord Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the HP 14" mT21 Mobile Thin Client Notebook in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHP mt21 Mobile Thin Client Specs | Operating System | Windows 10 IoT Enterprise | | | | CPU | 1.8 GHz Intel Celeron3865U Dual-Core | | Memory Type | 2400 MHz DDR4 | | Total Installed Memory | 4 GB | | Memory Configuration | 1 x 4 GB (User-Replaceable)
1 x 4 GB (Onboard) | | Maximum Memory Capacity | 8 GB | | Memory Slot Type | 200-Pin SO-DIMM | | Available Memory Slots | 1 | | Graphics Type | Integrated | | | | Panel Type | TN | | Size | 14" | | Aspect Ratio | 16:9 | | Resolution | 1366 x 768 | | Maximum Brightness | 220 cd/m2 | | Viewing Angle (H x V) | 85 x 85° | | | | Total Drive Bays | None | | Total Installed Capacity | 128 GB | | Solid State Storage | 1 x 128 GB M.2 SATA | | PCI Expansion | 1 x PCIe Minicard | | Optical Drive | None | | | | Ports | 2 x USB Type-A (USB 3.1 Gen 1) | | USB Type-C Ports | 1 x USB 3.1 Gen 1 | | Display | 1 x VGA
1 x HDMI 1.4 | | Audio | 1 x 1/8" / 3.5 mm Headphone/Microphone Input/Output | | Built-In Speakers | Yes | | Built-In Microphones | Yes | | Media Card Slots | 1 x SDXC | | | | Ethernet | 1 x RJ45 (Gigabit) | | Wi-Fi | Wi-Fi 4 (802.11n); Dual-Band (2.4 & 5 GHz) | | Bluetooth | 4.2 | | NFC | No | | | | Security | BIOS Booting | | Dimensions | 13.2 x 9.4 x 0.8" / 33.5 x 23.9 x 2 cm | | Weight | 3.6 lb / 1.6 kg |
