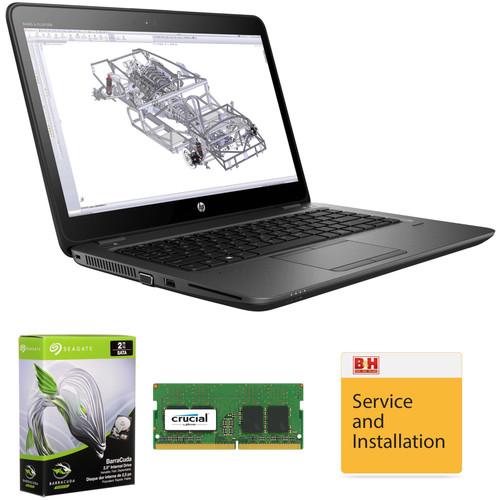

HP 14" ZBook 14u G4 Custom

User Manual for HP 14" ZBook 14u G4 Custom Mobile Workstation

• Product category: Notebooks HP
• Brand: HP
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for HP Notebooks

Product description

• HP 14" ZBook 14u G4 Mobile Workstation Thin at 0.87" and weighing 3.61 lb, the 14" ZBook 14u G4 Mobile Workstation from HP delivers a high level of power and graphics capability in a compact design, allowing users to take workstation-class power with them virtually anywhere. This system is powered by a 2.5 GHz Intel Core i5-7200U Dual-Core processor which allows you to run multiple applications simultaneously. If you need more power, the system can be overclocked to 3.1 GHz using Intel Turbo Boost 2.0 technology. The 8GB of 2133 MHz DDR4 RAM comes in a 1 x 8GB configuration helps to ensure smooth multitasking and also allows the computer to quickly access frequently-used files and programs. Using a 16GB module in each of the two 260-pin SO-DIMM slots, the system's memory can be upgraded to 32GB.

  The 14" SVA TN anti-glare eDP display features a Full HD 1920 x 1080 native resolution, LED-backlighting, a 16:9 aspect ratio, 300 cd/m² brightness, a 300:1 typical contrast ratio, a refresh rate of 60 Hz, 157 ppi, and viewing angles of 45/45/25/35° The AMD FirePro W4190M graphics card has 2GB of discrete GDDR5 memory and delivers a sharp, clear picture. You'll also be able to output video to an external display at resolutions up to 3840 x 2160 using the system's DisplayPort 1.2 and VGA outputs.

  For long-term storage of your files, this ZBook 14u G4 is equipped with a 256GB NVMe PCIe M.2 TLC SSD, as well as an empty 2.5" / 7mm SATA III drive bay for additional internal storage. If you want to add external storage, optical drives, memory card readers, and more, the ZBook 14u G4 offers one USB 3.0 Type-C port and two USB 3.0 Type-A ports, one of which doubles as a charging port. Gigabit Ethernet and 802.11ac dual-band Wi-Fi are built-in for wired and wireless networking, and Bluetooth 4.2 technology will also allow you to connect additional compatible peripherals. So that content from memory cards may be accessed, a built-in SD/SDHC/SDXC card reader supports UHS-II flash media and lets users download content from their digital camera. Other integrated features include a 720p webcam, dual-array microphones, stereo speakers with Bang & Olufsen HD audio, a smart card reader, a SIM module slot, and Near Field Communications (NFC).

  The ZBook 14u G4 includes a 65W Slim Smart AC adapter that operates using 90-265 VAC at 47-63 Hz and an HP Long Life 3-cell / 51Wh lithium-ion polymer battery that supports HP Fast Charge and can last for up to 10 hours before recharging is required. The installed operating system is Windows 10 Professional (64-bit) and protection is provided by a limited 3-year parts and labor warranty.

  General Features

  USB 3.0 Type-A & Type-C Ports
  • This ZBook 14u G4 features one USB 3.0 Type-C port and two USB 3.0 Type-A ports that will allow you to connect external peripherals such as additional storage, optical drives, printers, memory card readers, and more. One of the USB 3.0 Type-A ports also doubles as an always-on charging port for compatible USB devices.
  Gigabit Ethernet & 802.11ac Wi-Fi
  • The system uses a Gigabit Ethernet controller for Internet access when connected to a router, modem, or network switch. It also features Intel Dual Band Wireless-AC 8265 which is compatible with 802.11a/b/g/n/ac Wi-Fi so that users may access network connectivity using wireless technology.
  Bluetooth 4.2
  • Additional compatible peripherals, such as mice, keyboards, headsets, and more may be paired using Bluetooth 4.2 technology.
  Up to 32GB Memory
  • While this system natively includes 8GB of 2133 MHz DDR4 RAM in a 1 x 8GB configuration, it can be upgraded to a maximum of 32GB when 16GB memory modules are used in each of the system's 260-pin SO-DIMM slots.
  Storage Expansion
  • If you want to expand your system's internal storage, there is one free 2.5" / 7 mm drive bay.
  External Displays
  • Users may output video to an external display using either the DisplayPort 1.2 or VGA outputs. DisplayPort 1.2 is compatible with Multi-Stream Transport technology and supports resolutions up to Ultra HD 3840 x 2160 @ 60 Hz and color depths of 24/30-bit, as well as resolutions of WUXGA 1920 x 1200 @ 120 Hz and color depths of 24/30-bit. The VGA port supports resolutions up to 1920 x 1200 @ 60 Hz and lower resolutions up to 75 Hz.
  Multi-stream Transport (MST)
  • Multi-Stream Transport (MST) is a DisplayPort 1.2 feature that allows daisy chaining of DisplayPort 1.2 monitors (requires monitor with DisplayPort 1.2 MST capability), or the use of DisplayPort 1.2 hubs with MST to achieve a maximum of 3 active displays.
  Smart Card Reader
  • The integrated smart card reader is compatible with ISO 7816 compliant smart cards with PC/SC interface support.

  Windows 10

  Start Menu
  • After its hiatus in Windows 8, the Start Menu has returned. Utilizing a combination of the traditional menu system and Windows 8's Live Tiles, the improved Start Menu gives you more information at a glance, showing notification information alongside your applications and other pinned items.
  Cortana
  • Microsoft's digital personal assistant, Cortana can answer your questions with information gleaned from both your device and the internet at large. You can type or even talk with her, if your system has a microphone. Using her Notebook, Cortana keeps track of your needs and wants, and she learns over time to improve her information gathering skills.
  Microsoft Edge
  • After nearly 20 years, Microsoft has finally replaced its Internet Explorer web browser. With Microsoft Edge, users can write directly on web pages and share notes with friends and colleagues. It also improves the online reading experience by adding a distraction-free mode and read-it-later functionality. Edge also has built-in Cortana integration; you can have her help you find a restaurant, make a reservation, and pull up directions without leaving your browser.
  Windows Store
  • For Windows 10, Microsoft has unified the Windows Store. Now, apps for PCs, tablets, and phones will all be accessible from one place. And with support for Universal Apps, one version of an app can work across all your compatible devices automatically.
  Windows Continuum
  • Windows 10 was designed for a variety of screen sizes and input styles, and with its Continuum feature, it automatically adapts to fit your needs. A Windows 10 tablet on its own requires a touch-centric approach, but attaching a mouse and keyboard will shift everything to a more traditional interface. You can even attach an external monitor to your Windows 10 phone for a near-desktop experience. But it's not just the operating system; Windows Universal Apps take advantage of Continuum as well.
  Xbox on Windows 10
  • Gaming is a big focus of Windows 10. Xbox integration allows for PC players to match up against Xbox One players on supported games, and if you have an Xbox One, you can even stream compatible titles to your PC. Native support for recording with the new Game DVR feature makes it easy to capture and share your gameplay. The new DirectX12 takes better advantage of multi-core processors, giving games a performance boost, even on older hardware. Windows 10 also features native support for virtual reality headsets, such as the Oculus Rift.
  Windows 10 Pro
  • The Pro version of Windows 10 includes all of the features of Windows 10 Home plus many designed specifically for businesses users, including Hyper-V virtualization, BitLocker disk encryption, and remote desktop access. Devices will also be able to join domains and the Azure Active Directory, and they can even access a specialized version of the Windows Store featuring custom, company-specific applications.
  UPC: 191628574155
• Seagate 2TB BarraCuda 5400 rpm SATA 2.5" Internal HDD Designed for systems with a smaller form factor and a 2.5" / 7mm drive bay, the 2TB BarraCuda 5400 rpm SATA 2.5" Internal HDD from Seagate offers a storage capacity of up to 2TB using a SATA III 6 Gb/s interface, a rotational speed of 5400 rpm, and a 128MB cache, all of which help to ensure uninterrupted data transfers with a sustained data transfer rate of up to 140 MB/s. This drive also features high levels of reliability, with 1 in 10¹⁴ non-recoverable read errors per bits read, 600,000 load/unload cycles, QuietStep Ramp Load technology, and Multi-Tier Caching technology. Protection is provided by a limited 2-year warranty.

  General Features

  Thin and Light
  • Up to 2TB of storage in a drive with a height of 7mm, allowing for thin laptops and smaller form factor systems to be upgraded
  Fast Data Transfer Rates
  • Data transfer rates of up to 140 MB/s allow snappy file transfers

  Best-Fit Applications

  • Laptops
  • Mobile storage
  • External storage systems
  • All-in-one PCs
  • Slim desktop PCs

  Special Features

  • Multi-Tier Caching Technology
  • Halogen Free
  • RoHS Compliance
  UPC: 763649117682
• Crucial 8GB DDR4 2400 MHz SO-DIMM Memory Module Upgrade the memory in your compatible system using the 8GB DDR4 2400 MHz SO-DIMM Memory Module from Crucial. This single memory module features a capacity of 8GB, a clock speed of 2400 MHz (PC4-19200), a 260-pin SO-DIMM form factor, operates using 1.2V, and has a CAS latency of 17. Additionally, this RAM is not buffered and does not support ECC technology. Adding more memory to your system will help boost its capabilities, including improving system performance and application responsiveness. Start-up times will be improved with fewer delays during routine operations, and more programs will be able to run simultaneously with easier switching between them. This memory is protected by a limited lifetime warranty.

  General Features

  • Helps increase bandwidth, reduce power consumption, and extend battery life
  • Faster burst access speeds for improved sequential data throughput
  UPC: 649528776334
• Photo Video Computer Component Upgrade Installation Select Computer Component Upgrade Installation while purchasing your computer and will install computer components for you. The installation is done by a certified technician from the 's Computer Service Center. The technician will install your computer components in compliance with the original manufacturer's warranty. This will ensure that your computer and its components are still covered after installation. Note: This service does not include software installation.
  Certified Technician
  • The installation will be done by a certified technician. The technician will adhere to the original manufacturer's warranty to ensure that all computer components are installed safely and without voiding the warranty.
  Expert Testing
  • The technician will also test the computer to ensure all installed components are working correctly.

• Seagate - 2TB BarraCuda 5400 rpm SATA 2.5" Internal HDD

• Crucial - 8GB DDR4 2400 MHz SO-DIMM Memory Module

• B&H Photo Video - Computer Component Upgrade Installation artffuqystuvdceufbyvdtbf

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• HP 14" ZBook 14u G4 Mobile Workstation

  Operating System

  Windows 10 Pro (64-Bit)

  CPU	2.5 GHz Intel Core i5-7200U Dual-Core
  Maximum Boost Speed	3.1 GHz
  Memory Type	2133 MHz DDR4
  Total Installed Memory	8 GB
  Memory Configuration	1 x 8 GB (User-Replaceable)
  Maximum Memory Capacity	32 GB
  Memory Slot Type	260-Pin SO-DIMM
  Available Memory Slots	1
  Graphics Type	Dedicated
  GPU	AMD FirePro W4190M with 2 GB GDDR5 VRAM

  Panel Type	TN
  Size	14"
  Aspect Ratio	16:9
  Resolution	1920 x 1080
  Touchscreen	None
  Finish	Matte
  Maximum Brightness	300 cd/m2
  Refresh Rate	60 Hz
  Adaptive Sync Technology	None
  Viewing Angle (H x V)	90 x 60°

  2.5" Slots	1 x 7 mm (Available)
  Total Installed Capacity	256 GB
  Solid State Storage	1 x 256 GB M.2 NVMe PCIe
  Expansion Slots	1 x Smart Card
  Optical Drive	None

  Ports	2 x USB Type-A (USB 3.1 Gen 1) 1 x Docking Connector
  USB Type-C Ports	1 x USB 3.1 Gen 1
  Display	1 x DisplayPort 1.2 1 x VGA
  Audio	1 x 1/8" / 3.5 mm Headphone/Microphone Input/Output
  Built-In Speakers	2
  Built-In Microphones	2
  Media Card Slots	1 x SDXC

  Ethernet	1 x RJ45 (Gigabit)
  Wi-Fi	Wi-Fi 5 (802.11ac); Dual-Band (2.4 & 5 GHz)
  Bluetooth	4.2
  GPS	None
  NFC	Yes
  Webcam	User-Facing: 720p

  Battery Chemistry	Lithium-Ion Polymer (LiPo)
  Watt Hours / Type	51 Wh
  Cells	3
  Output Voltage	11.55 VDC
  Maximum Runtime	10 Hours

  Keyboard	Notebook Keyboard with Backlight
  Pointing Device	TouchPad

  Security	Kensington Lock Slot, Accepts 3rd Party Security Lock Devices, Infineon TPM Software Professional Package, Fingerprint Reader
  Power Supply	65 W
  AC Input Power	90 to 265 VAC, 50 / 60 Hz
  Dimensions	13.3 x 0.9 x 9.3" / 33.8 x 2.3 x 23.6 cm
  Weight	3.6 lb / 1.6 kg

  Box Dimensions (LxWxH)	17.6 x 12.1 x 2.7"

• Seagate 2TB BarraCuda 5400 rpm SATA 2.5" Internal HDD

  Capacity	2 TB
  Bytes per Sector	Logical: 512 Physical: 4096

  Interface	SATA III 6 Gb/s
  Data Transfer Rate	Up to 140 MB/s
  Cache	128 MB
  Spindle Speed	5400

  Load/Unload Cycles	600,000
  Head-Rest Method	QuietStep Ramp Load
  Non-Recoverable Read Errors per Bits Read	1 per 1014

  Startup Current (+5 V)	1.0 A
  Read/Write Power, Average	Read: 1.7 W Write: 1.8 W
  Idle Power, Average	0.5 W

  Operating Temperature	32 to 140°F / 0 to 60°C
  Non-Operating Temperature	-40 to 158°F / -40 to 70°C
  Shock, Operating, 2 ms	400 Gs
  Shock, Non-Operating: 1 ms	1000 Gs
  Acoustics, Idle, Typical	2.2 bels
  Acoustics, Seek, Typical	2.4 bels

  Dimensions	0.276 x 2.75 x 3.951" / 7.01 x 69.85 x 100.355 mm
  Weight	0.198 lb / 0.09 kg

  Box Dimensions (LxWxH)	6.3 x 4.7 x 1.8"

• Crucial 8GB DDR4 2400 MHz SO-DIMM Memory Module

  Capacity	8 GB
  Kit Configuration	1 x 8 GB
  Speed	PC4-19200 (2400 MHz)
  Memory Type	DDR4
  DIMM Type	260-Pin SO-DIMM
  Buffered/Registered	No
  Error Correction (ECC)	Non-ECC
  Voltage	1.2 V
  CAS Latency	CL17
  Memory Rank	Single Rank

  Box Dimensions (LxWxH)	6.4 x 1.7 x 0.5"

• Photo Video Computer Component Upgrade Installation

  Box Dimensions (LxWxH)	1.0 x 1.0 x 1.0"
