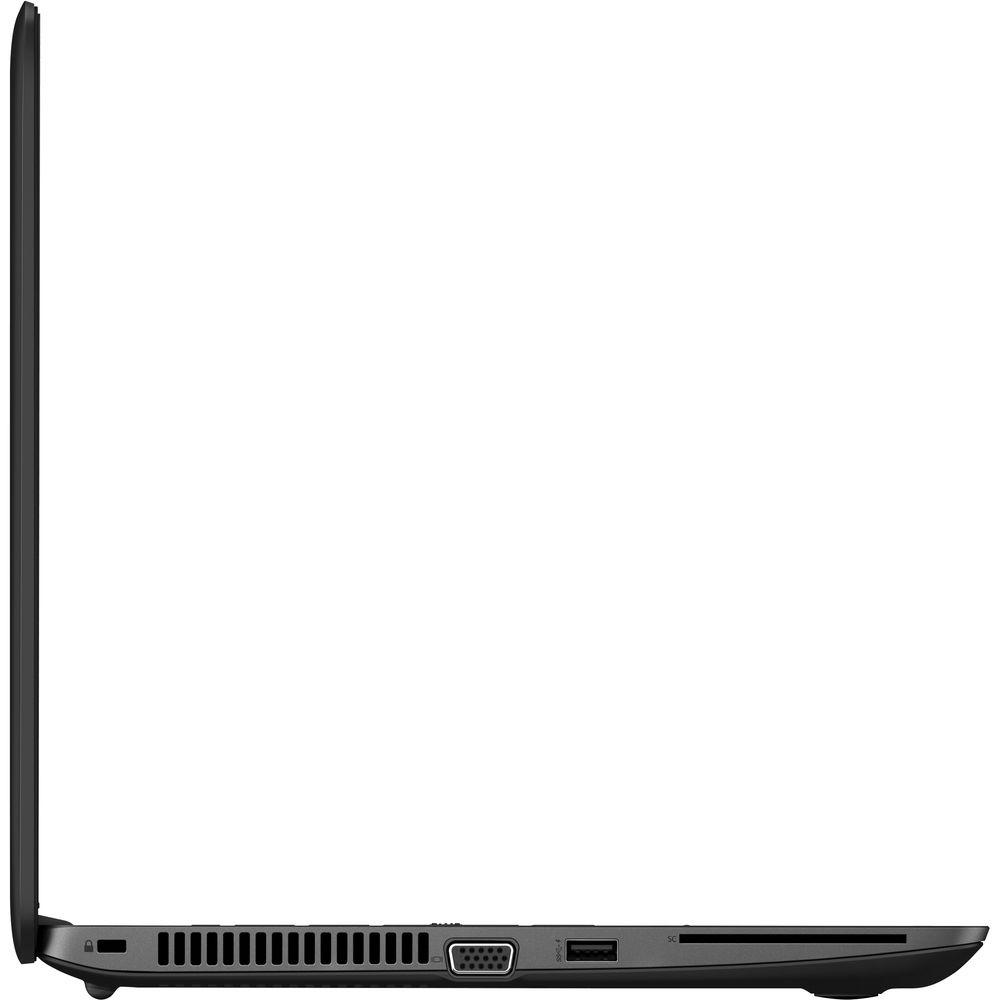

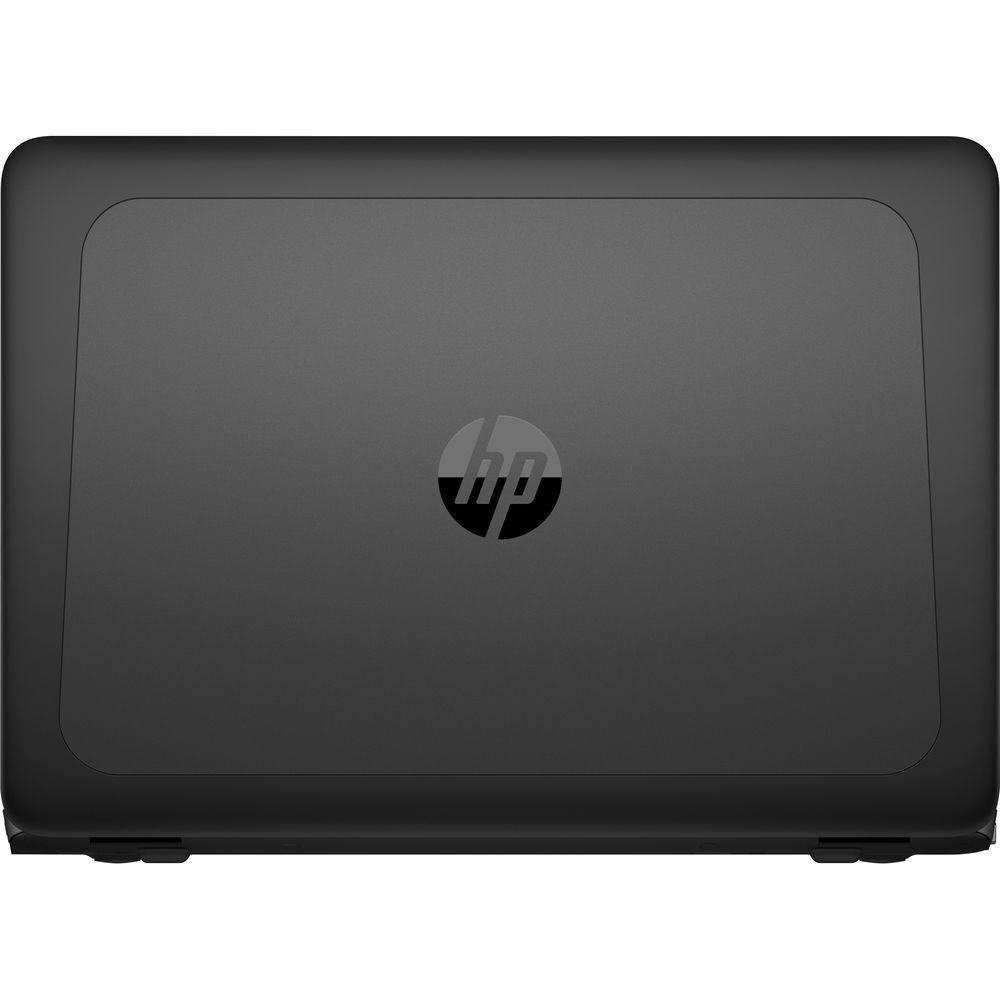

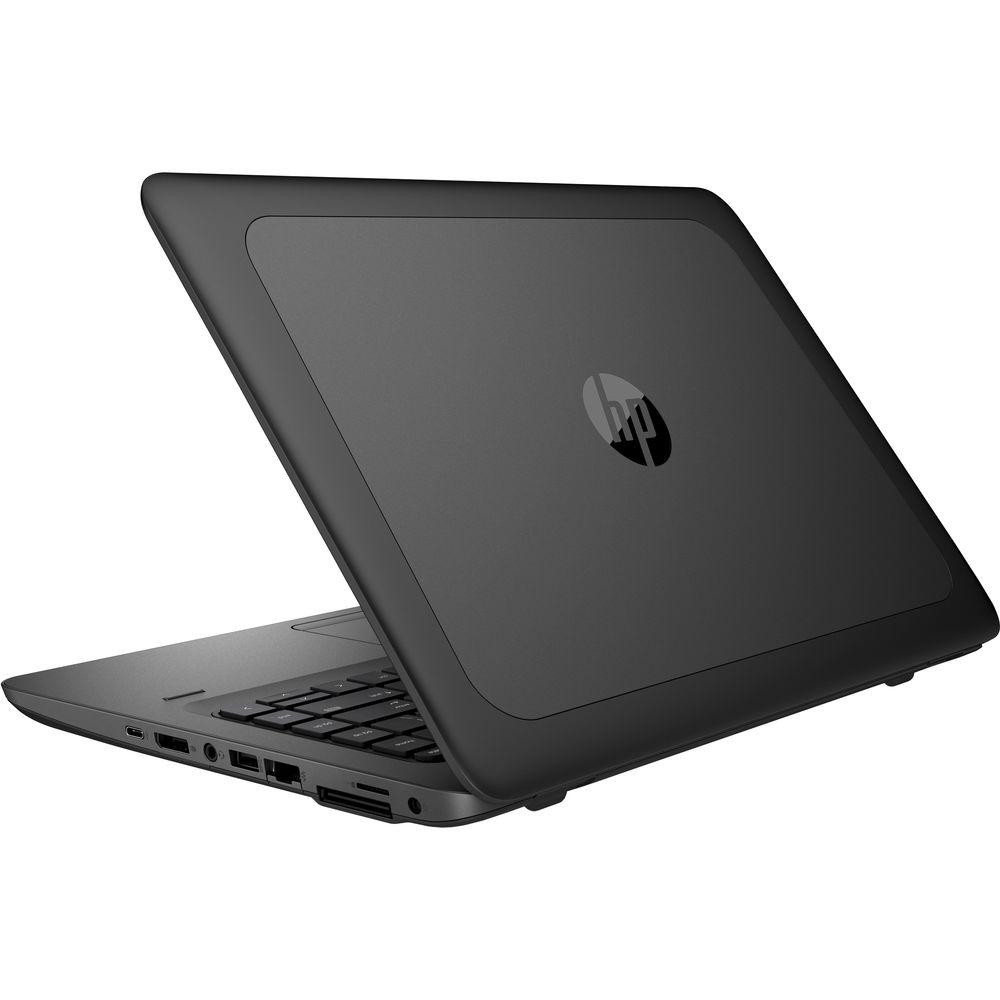

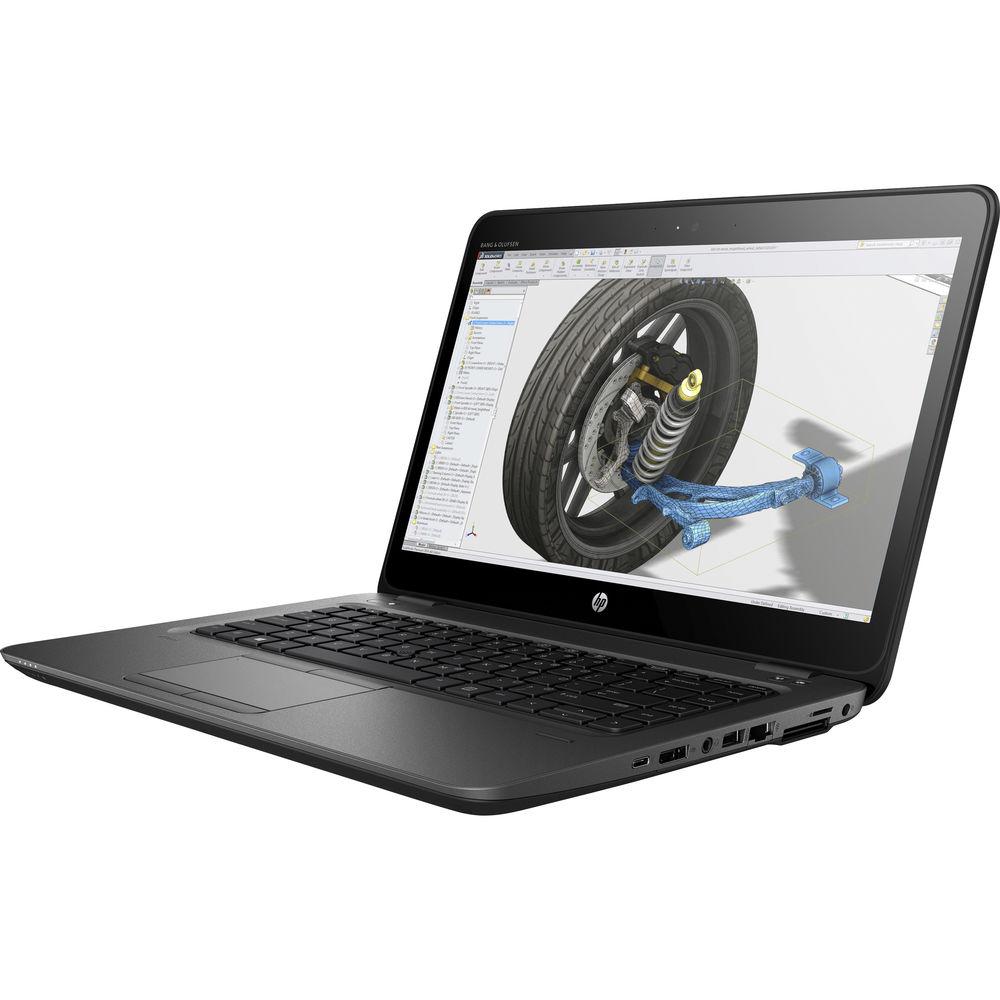

User Manual for HP 14" ZBook 14u G4 Mobile Workstation Click to enlarge the picture
Contents of the user manual for the HP 14" ZBook 14u G4 Mobile
- Product category: Notebooks HP
- Brand: HP
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for HP Notebooks
 |
User manual for the HP 14" ZBook 14u G4 Mobile contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any HP product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official HP user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a HP product will considerably shorten its lifespan!
|

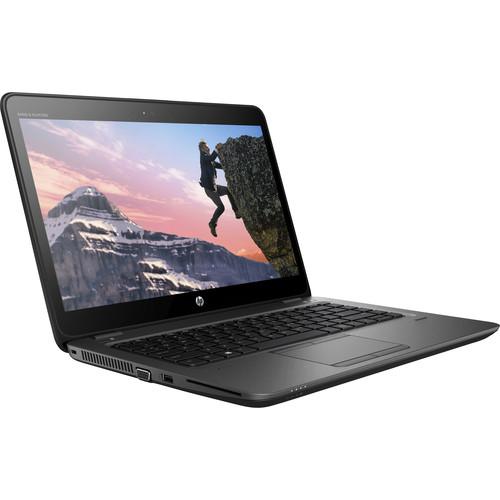

Product description Thin at 0.87" and weighing 3.61 pounds, the 14" ZBook 14u G4 Mobile Workstation from HP delivers a high level of power and graphics capability in a compact design, allowing users to take workstation-class power with them virtually anywhere. This system is powered by a 2.5 GHz Intel Core i5-7200U Dual-Core processor, which allows you to run multiple applications simultaneously. If you need more power, the system can be overclocked to 3.1 GHz using Intel Turbo Boost 2.0 technology. The 8GB of 2133 MHz DDR4 RAM comes in a 1 x 8GB configuration and helps to ensure smooth multitasking and also allows the computer to quickly access frequently used files and programs. Using a 16GB module in each of the two 260-pin SO-DIMM slots, the system's memory can be upgraded to 32GB.

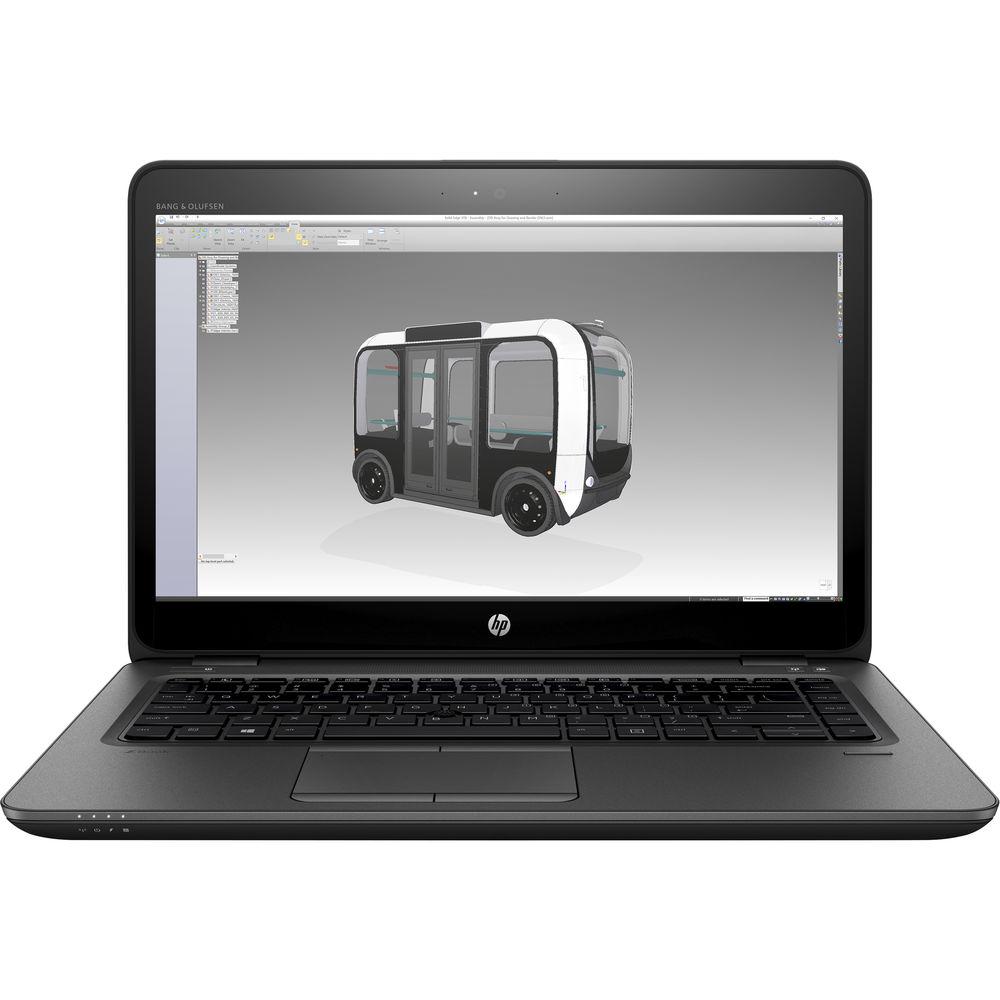

The 14" SVA anti-glare display features a Full HD 1920 x 1080 native resolution, LED-backlighting, a 16:9 aspect ratio, 300 cd/m2 brightness, a 300:1 typical contrast ratio, a refresh rate of 60 Hz, 157 ppi, and viewing angles of 45/45/25/35°. The AMD FirePro W4190M graphics card has 2GB of discrete GDDR5 memory and delivers a sharp, clear picture. You'll also be able to output video to an external display at resolutions up to 3840 x 2160 using the system's DisplayPort 1.2 and VGA outputs.
For storage of your files, this ZBook 14u G4 is equipped with a 256GB Z Turbo Drive G2 SSD, as well as an empty 2.5" / 7mm SATA III drive bay for additional internal storage. If you want to add external storage, optical drives, memory card readers, and more, the ZBook 14u G4 offers one USB 3.1 Gen 1 Type-C port and two USB 3.1 Gen 1 Type-A ports, one of which doubles as a charging port. Gigabit Ethernet and 802.11ac dual-band Wi-Fi are built-in for wired and wireless networking, and Bluetooth 4.2 technology will also allow you to connect additional compatible peripherals. So that content from memory cards may be accessed, a built-in SD/SDHC/SDXC card reader supports UHS-II flash media and lets users download content from their digital camera. Other integrated features include a 720p webcam, dual-array microphones, stereo speakers with Bang & Olufsen HD audio, a smart card reader, a SIM module slot, and Near Field Communications (NFC).
The ZBook 14u G4 includes an HP UltraSlim Docking Station, a 65W Slim Smart AC adapter that operates using 90-265 VAC at 47-63 Hz, and an HP Long Life 3-cell / 51Wh lithium-ion polymer battery that supports HP Fast Charge and can last for up to 10 hours before recharging is required. The installed operating system is Windows 10 Professional (64-bit) and protection is provided by a limited 3-year parts and labor warranty. General Features - USB 3.1 Gen 1 Type-A & Type-C Ports

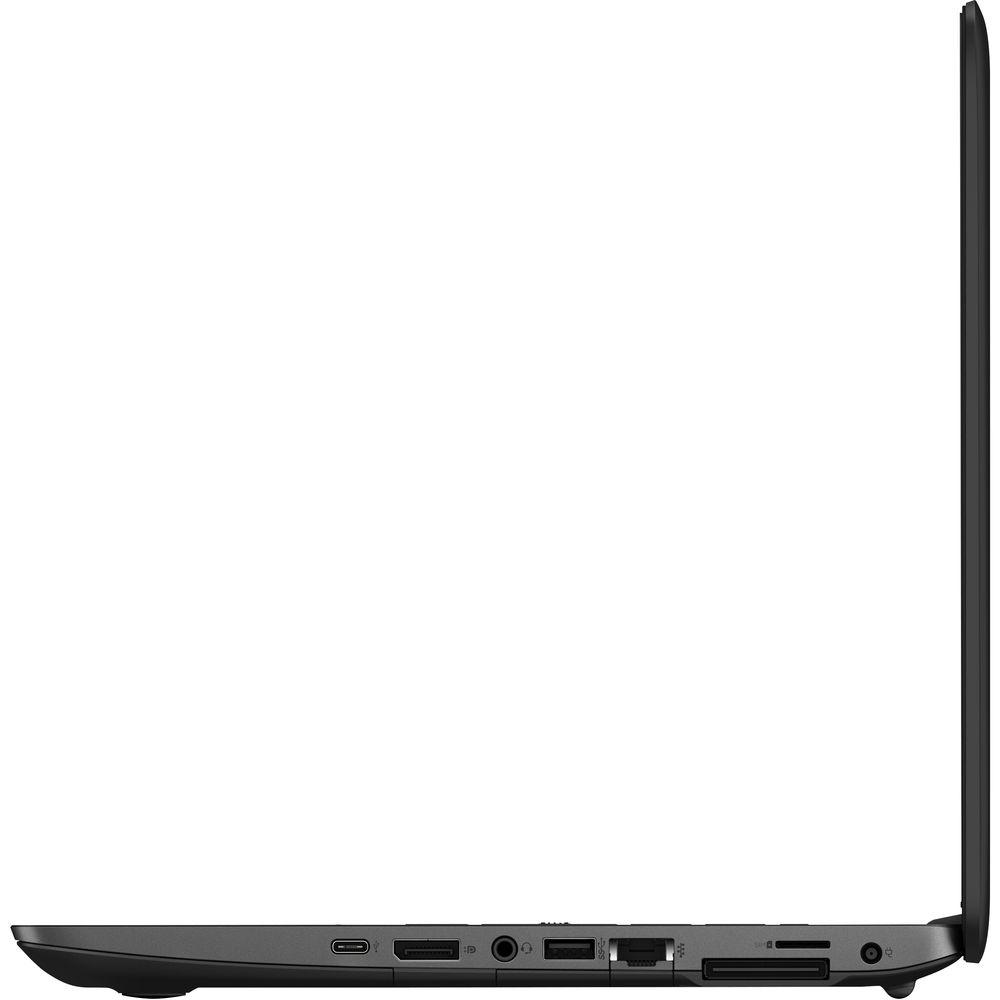

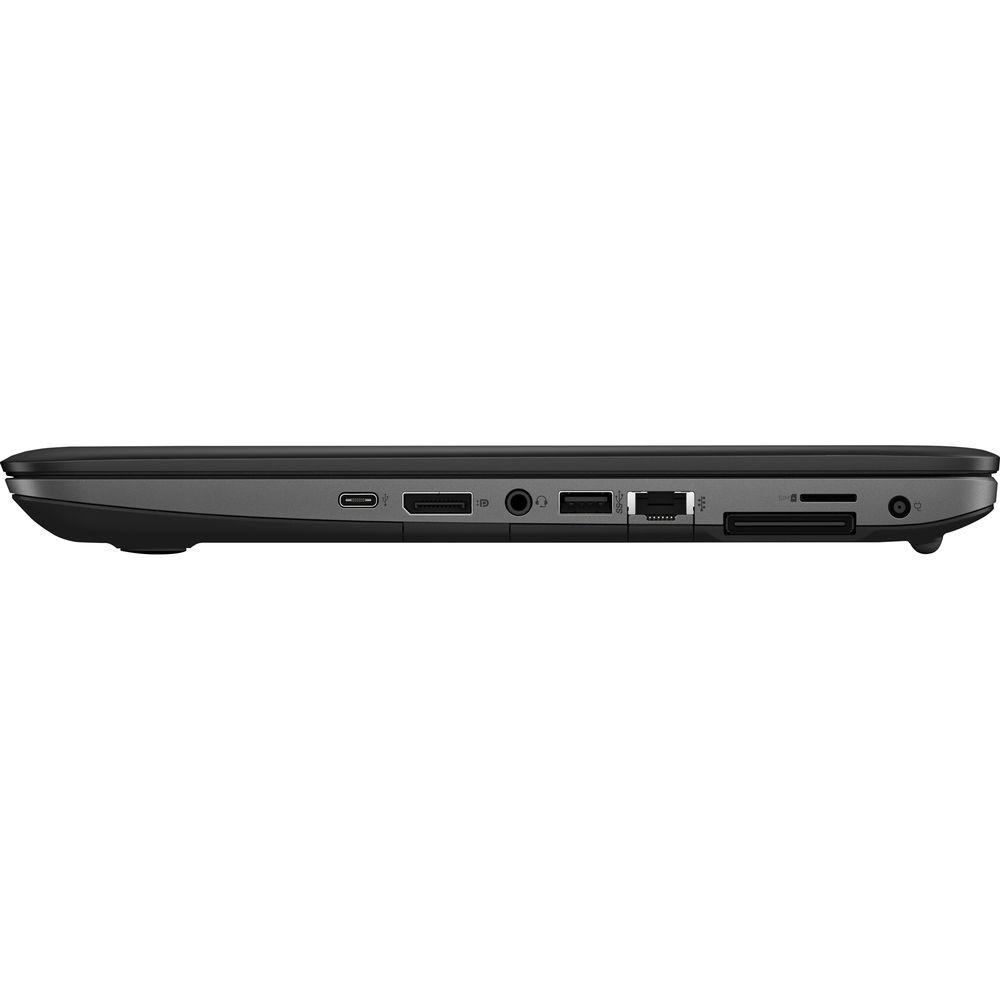

- This ZBook 14u G4 features one USB 3.1 Gen 1 Type-C port and two USB 3.1 Gen 1 Type-A ports that will allow you to connect external peripherals such as additional storage, optical drives, printers, memory card readers, and more. One of the USB 3.0 Type-A ports also doubles as an always-on charging port for compatible USB devices.
- Gigabit Ethernet & 802.11ac Wi-Fi
- The system uses a Gigabit Ethernet controller for Internet access when connected to a router, modem, or network switch. It also features Intel Dual Band Wireless-AC 8265 which is compatible with 802.11a/b/g/n/ac Wi-Fi so that users may access network connectivity using wireless technology.
- Bluetooth 4.2
- Additional compatible peripherals, such as mice, keyboards, headsets, and more may be paired using Bluetooth 4.2 technology.
- Up to 32GB Memory
- While this system natively includes 8GB of 2133 MHz DDR4 RAM in a 1 x 8GB configuration, it can be upgraded to a maximum of 32GB when 16GB memory modules are used in each of the system's 260-pin SO-DIMM slots.
- Storage Expansion
- If you want to expand your system's internal storage, there is one free 2.5" / 7 mm drive bay.
- External Displays

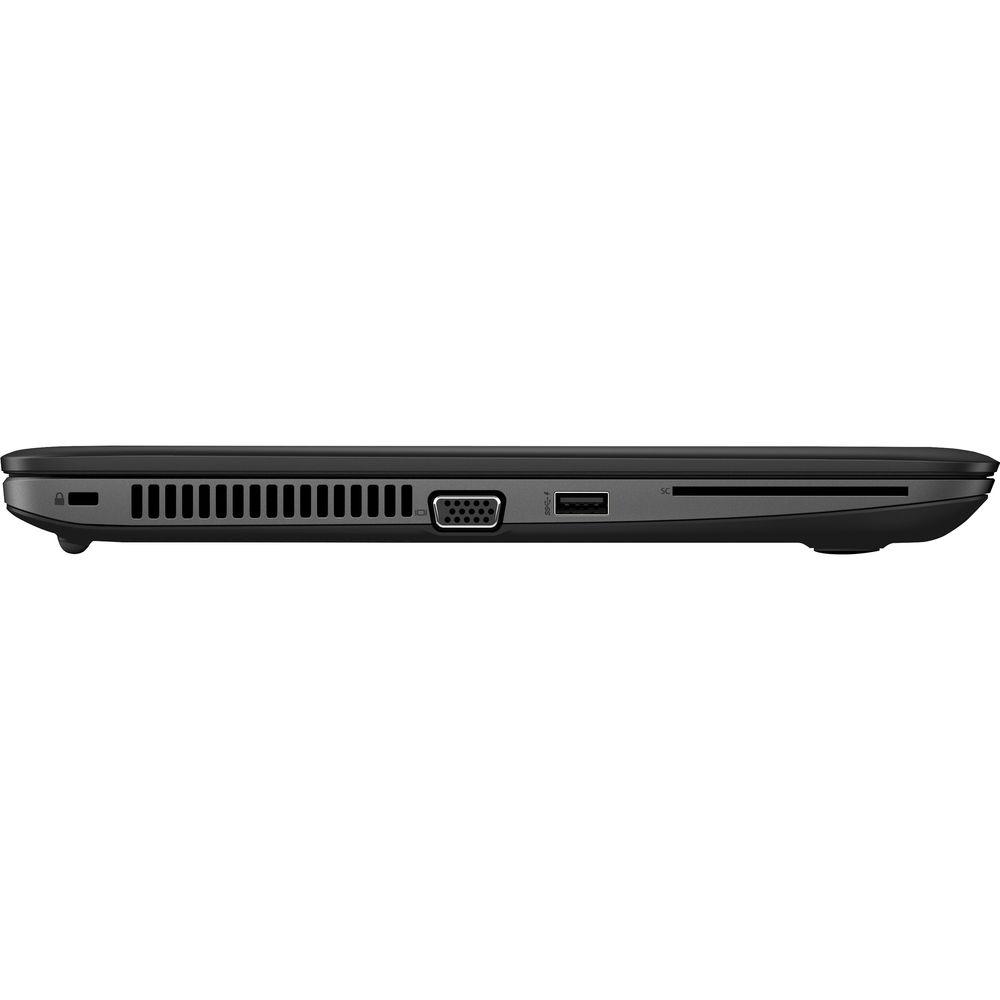

- Users may output video to an external display using either the DisplayPort 1.2 or VGA output. DisplayPort 1.2 is compatible with Multi-Stream Transport technology and supports resolutions up to Ultra HD 3840 x 2160 @ 60 Hz and color depths of 24/30-bit, as well as resolutions of WUXGA 1920 x 1200 @ 120 Hz and color depths of 24/30-bit. The VGA port supports resolutions up to 1920 x 1200 @ 60 Hz and lower resolutions up to 75 Hz.
- Multi-Stream Transport (MST)
- Multi-Stream Transport (MST) is a DisplayPort 1.2 feature that allows daisy chaining of DisplayPort 1.2 monitors (requires monitor with DisplayPort 1.2 MST capability), or the use of DisplayPort 1.2 hubs with MST to achieve a maximum of 3 active displays.
- Smart Card Reader
- The integrated smart card reader is compatible with ISO 7816 compliant smart cards with PC/SC interface support.
Windows 10 - Start Menu
- After its hiatus in Windows 8, the Start Menu has returned. Utilizing a combination of the traditional menu system and Windows 8's Live Tiles, the improved Start Menu gives you more information at a glance, showing notification information alongside your applications and other pinned items.
- Cortana
- Microsoft's digital personal assistant, Cortana can answer your questions with information gleaned from both your device and the internet at large. You can type or even talk with her, if your system has a microphone. Using her Notebook, Cortana keeps track of your needs and wants, and she learns over time to improve her information gathering skills.
- Microsoft Edge
- After nearly 20 years, Microsoft has finally replaced its Internet Explorer web browser. With Microsoft Edge, users can write directly on web pages and share notes with friends and colleagues. It also improves the online reading experience by adding a distraction-free mode and read-it-later functionality. Edge also has built-in Cortana integration; you can have her help you find a restaurant, make a reservation, and pull up directions without leaving your browser.
- Windows Store
- For Windows 10, Microsoft has unified the Windows Store. Now, apps for PCs, tablets, and phones will all be accessible from one place. And with support for Universal Apps, one version of an app can work across all your compatible devices automatically.
- Windows Continuum
- Windows 10 was designed for a variety of screen sizes and input styles, and with its Continuum feature, it automatically adapts to fit your needs. A Windows 10 tablet on its own requires a touch-centric approach, but attaching a mouse and keyboard will shift everything to a more traditional interface. You can even attach an external monitor to your Windows 10 phone for a near-desktop experience. But it's not just the operating system; Windows Universal Apps take advantage of Continuum as well.
- Xbox on Windows 10
- Gaming is a big focus of Windows 10. Xbox integration allows for PC players to match up against Xbox One players on supported games, and if you have an Xbox One, you can even stream compatible titles to your PC. Native support for recording with the new Game DVR feature makes it easy to capture and share your gameplay. The new DirectX12 takes better advantage of multi-core processors, giving games a performance boost, even on older hardware. Windows 10 also features native support for virtual reality headsets, such as the Oculus Rift.
- Windows 10 Pro
- The Pro version of Windows 10 includes all of the features of Windows 10 Home plus many designed specifically for businesses users, including Hyper-V virtualization, BitLocker disk encryption, and remote desktop access. Devices will also be able to join domains and the Azure Active Directory, and they can even access a specialized version of the Windows Store featuring custom, company-specific applications.
In the Box HP 14" ZBook 14u G4 Mobile Workstation UltraSlim Docking Station 65W Slim Smart AC Adapter Power Cord 3-cell / 51Wh Long Life Lithium-ion Polymer Battery Recovery Media Limited 3-Year Parts & Labor Warranty More from Manufacturer Table of Contents
|
Upload User Manual
Have you got an user manual for the HP 14" ZBook 14u G4 Mobile Workstation in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHP Zbook 14u G4 Specs | | | Processor | Intel Core i5-7200U Dual-Core | | Base Clock Speed | 2.5 GHz | | Maximum Boost Speed | 3.1 GHz | | Total Installed Memory | 8 GB | | Maximum Memory Capacity | 32 GB | | Memory Type | DDR4 SDRAM | | Memory Speed | 2133 MHz | | Available Memory Slots | 1 | | Memory Slot Type | 260-Pin SO-DIMM | | Graphics Type | Dedicated | | GPU | AMD FirePro W4190M with 2 GB GDDR5 VRAM | | | | Panel Type | LCD | | Size | 14" | | Aspect Ratio | 16:9 | | Resolution | 1920 x 1080 | | Touchscreen | None | | Finish | Matte | | Maximum Brightness | 300 cd/m2 | | Viewing Angle (H x V) | 90 x 60° | | External Resolution | Up to 3840 x 2160 | | | | Available Slots | 1 x 2.5" (7 mm) | | Total Installed Capacity | 256 GB | | Solid State Storage | 1 x 256 GB M.2 NVMe PCIe | | Optical Drive | None | | | | Ports | 1 x USB 3.1 Gen 1 Type-C
2 x USB 3.1 Gen 1 Type-A
1 x Docking Connector | | Display | 1 x DisplayPort 1.2
1 x VGA | | Audio | 2 x Integrated Speaker
2 x Integrated Microphone
1 x 1/8" (3.5 mm) Headphone/Microphone Combo Jack | | Expansion Slots | 1 x Smart Card | | Media Card Slots | SD/SDHC/SDXC | | | | Network | 1 x 10/100/1000 Mb/s Gigabit Ethernet (RJ45) | | Modem | None | | Wi-Fi | Wi-Fi 5 (802.11ac); Dual-Band (2.4 & 5 GHz) | | Bluetooth | Bluetooth 4.2 | | Mobile Broadband | None | | GPS | None | | NFC | Yes | | Webcam | User-Facing: 720p | | | | Battery Chemistry | Lithium-Ion Polymer (LiPo) | | Watt Hours / Type | 51 Wh | | Cells | 3 | | Output Voltage | 11.55 VDC | | Maximum Runtime | 10 Hours | | Power Requirements | 90-265 VAC, 47-63 Hz | | Power Supply | x 65 W | | | | Operating System | Windows 10 Pro (64-Bit) | | Security | Kensington Lock Slot, Accepts 3rd Party Security Lock Devices, Infineon TPM Software Professional Package, Fingerprint Reader | | Keyboard | Standard Notebook Keyboard (Backlight) | | Pointing Device | TouchPad | | Dimensions (W x H x D) | 13.3 x 0.9 x 9.3" / 337.8 x 22.9 x 236.2 mm | | Weight | 3.61 lb / 1.64 kg (Starting weight) | | | | Package Weight | 9.3 lb | | Box Dimensions (LxWxH) | 16.8 x 12.0 x 6.6" |
