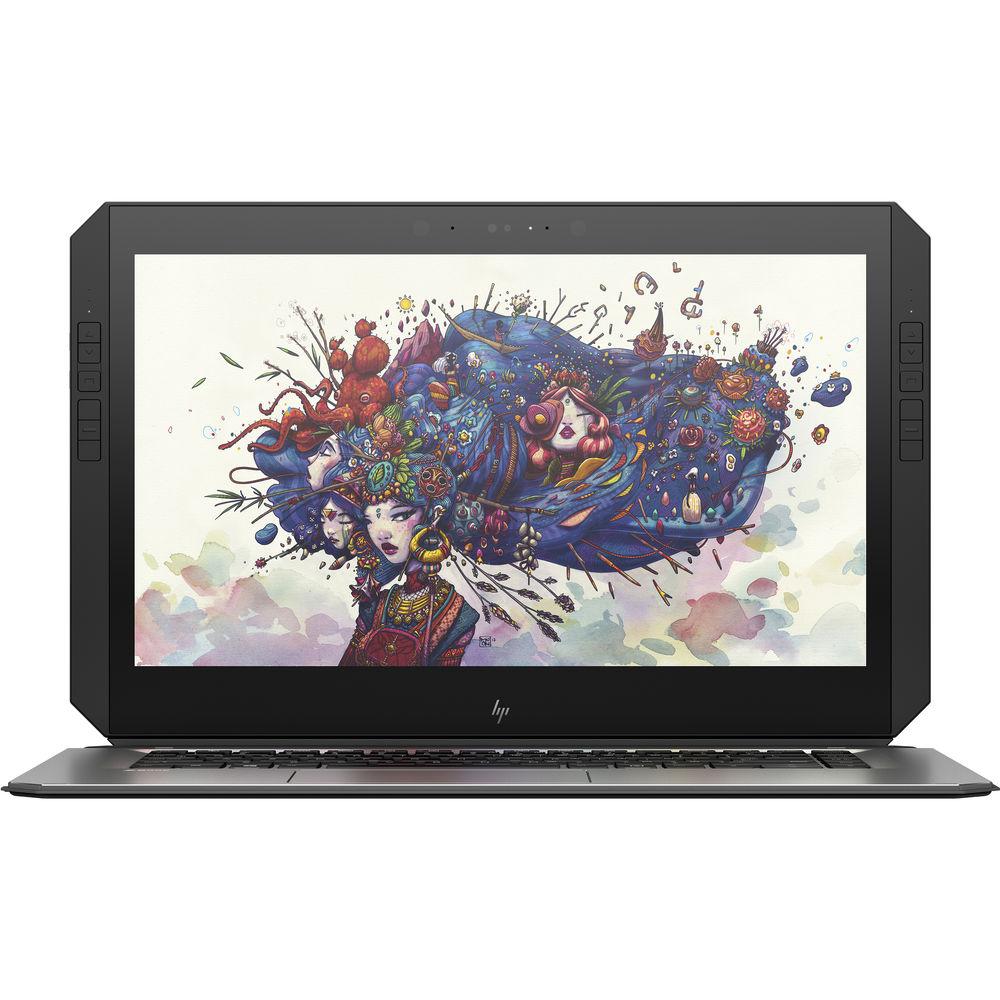

User Manual for HP 14" ZBook x2 G4 Multi-Touch 2-in-1 Mobile Workstation Click to enlarge the picture
Contents of the user manual for the HP 14" ZBook x2 G4 Multi-Touch
- Product category: Mobile Workstations HP
- Brand: HP
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for HP Mobile Workstations
 |
User manual for the HP 14" ZBook x2 G4 Multi-Touch contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any HP product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official HP user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a HP product will considerably shorten its lifespan!
|
Product description Work Laptops HP Graphic Power Shines with HP ZBook x2 Read More With powerful performance and versatility to push applications like Adobe and Autodesk to the limit, the 14" ZBook x2 G4 Multi-Touch 2-in-1 Mobile Workstation from HP helps turn your vision into reality. Thanks to the flexibility of a backlit Bluetooth keyboard, you can switch from laptop to tablet mode at a moment's notice, while six HP Quick Keys provide shortcuts for your favorite apps. Even when detached, the keyboard stays active, and an included ZBook x2 pen, which requires no power source, enables precise control through 4096 levels of pressure sensitivity, low latency, and tilt support.
This ZBook x2 features a 10-bit (8+2 FRC) 14" UWVA IPS anti-glare display with a UHD 4K 3840 x 2160 screen resolution, support for up to 1 billion colors, LED backlighting, a 16:9 aspect ratio, 300 cd/m2 brightness, a 300:1 typical contrast ratio, a refresh rate of 60 Hz, 283 ppi, and viewing angles of 85/85/85/85°. The display also features multi-touch functionality, allowing you to utilize the touch gestures and functions in Windows 10 Pro to further improve accessibility and productivity. The dedicated NVIDIA Quadro M620 graphics card has 2GB of discrete GDDR5 RAM and delivers a sharp, clear picture. You'll be able to output video to an external display at resolutions up to 5120 x 2880 using the system's HDMI 1.4 and dual Thunderbolt 3 ports, the latter of which supports DisplayPort 1.2.
This system is powered by a 1.6 GHz Intel Core i5-8250U Quad-Core processor, which allows you to run multiple applications simultaneously. If you need more power, the system can be overclocked to 3.4 GHz using Intel Turbo Boost 2.0 technology. The 8GB of 2133 MHz DDR4 RAM helps to ensure smooth multitasking and also allows the computer to quickly access frequently used files and programs. For storage of your files, this ZBook x2 is equipped with a 128GB SATA III M.2 SSD.
If you want to add external storage, optical drives, memory card readers, and more, the ZBook x2 offers two 40 Gb/s Thunderbolt 3 ports that also support 10 Gb/s USB 3.1 Gen 2 Type-C. There is also one 5 Gb/s USB 3.1 Gen 1 Type-A port that doubles as a charging port. 802.11ac dual-band Wi-Fi and NFC are built-in for wireless networking, and Bluetooth 4.2 technology will also allow you to connect additional compatible peripherals. Content from memory cards may be accessed via a built-in SD/SDHC/SDXC card reader and other integrated features include a user-facing 720p IR webcam for face authentication with Windows Hello, a rear facing webcam that supports 8MP stills and 1080p / 30 fps video, dual-array microphones, stereo speakers with Bang & Olufsen HD audio, and a smart card reader.
HP's ZBook x2 G4 includes a 90W AC adapter that supports HP Fast Charge and operates using 90-265 VAC at 47-63 Hz, plus an HP Long Life 4-cell / 70Wh lithium-ion polymer prismatic battery that lasts for around 10 hours before recharging is required, and typically recharges in 3-5 hours. The installed operating system is Windows 10 Pro (64-Bit) and also included is recovery media and an Elite Services card. General Features - Power for Creativity
- Work with high resolution files and switch between applications like Adobe Photoshop and Illustrator. Create effortlessly with a 1.6 GHz Intel Core i5-8250U Quad-Core processor, 8GB of 2133 MHz DDR4 RAM, and dedicated NVIDIA Quadro M620 graphics with 2GB of GDDR4 memory.
- Multiple Modes & Versatility

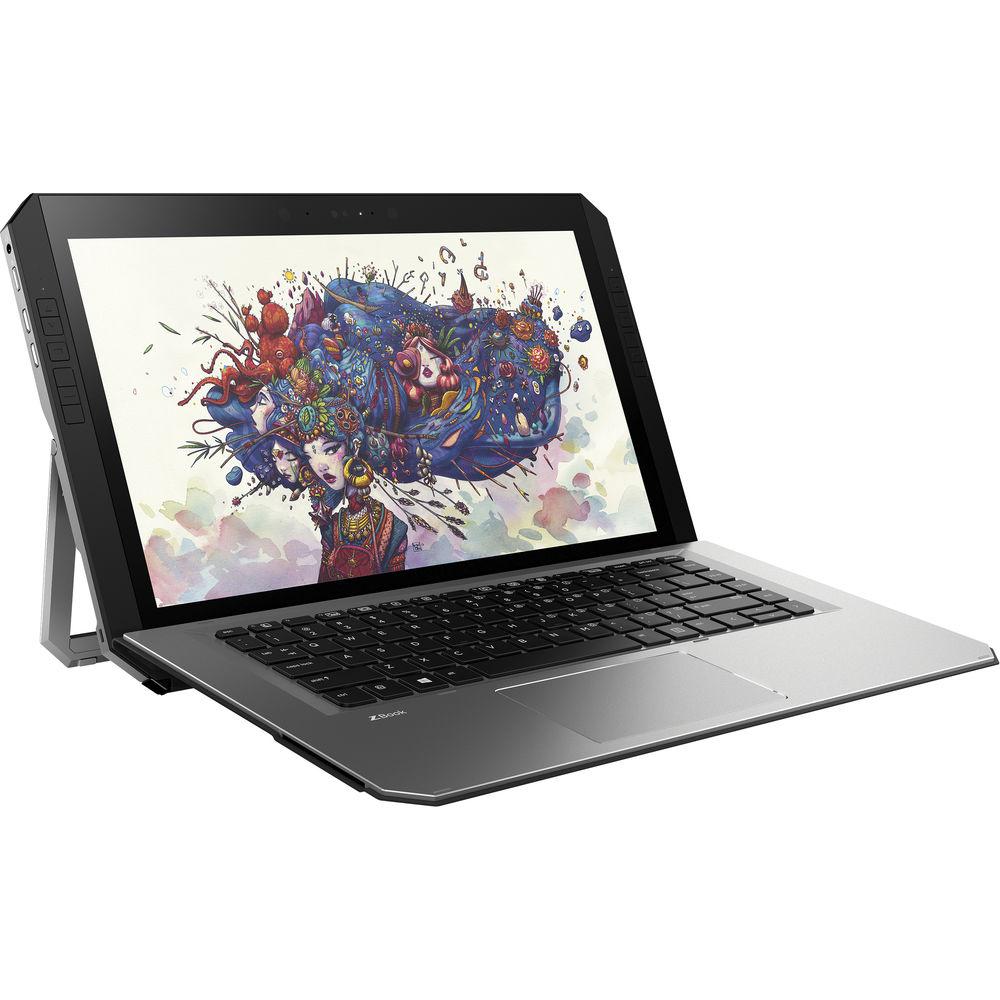

- With the flexibility of a detachable Bluetooth keyboard, you can go from laptop to tablet whenever inspiration strikes. Plus, customizable HP Quick Keys provide 18 time-saving shortcuts for your favorite Adobe apps.
- Make Every Stroke Count

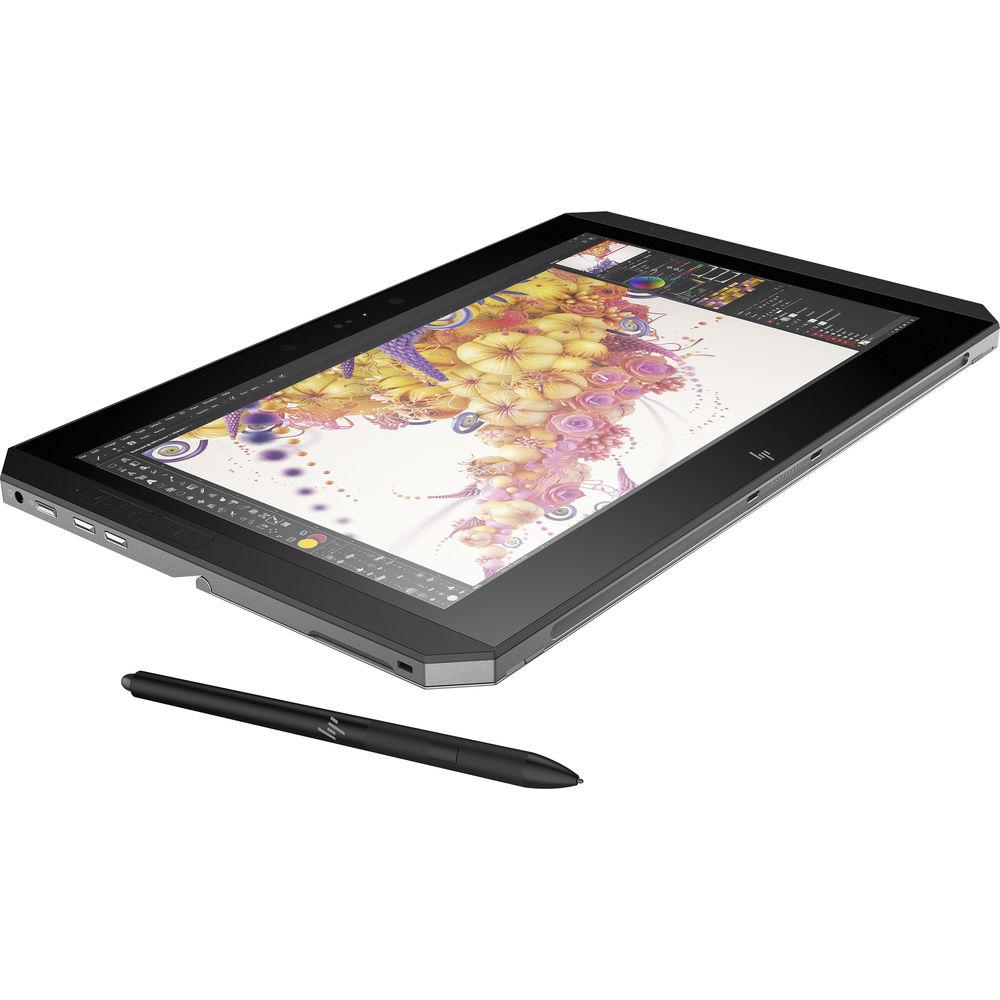

- Create without interruption using an included ZBook x2 pen that never needs to be charged. It responds instantly to the nuances of your hand with 4096 pressure sensitive levels and natural tilt capabilities.
- Thunderbolt 3
- Thunderbolt 3 is a hardware interface that utilizes the reversible USB Type-C connector. Doubling the speed of its predecessor, Thunderbolt 3 features a maximum throughput of 40 Gb/s when used with compatible devices. The connector also transmits data via USB 3.1 at up to 10 Gb/s, and dual-bandwidth DisplayPort 1.2 allows you to connect up to two 4K displays simultaneously. Additionally, you can daisy chain up to six devices from a single Thunderbolt 3 port.
- USB 3.1 Gen 1 Type-A Port
- This ZBook x2 features a USB 3.1 Gen 1 Type-A port that will allow you to connect external peripherals such as additional storage, optical drives, printers, memory card readers, and more. This port also doubles as an always-on charging port for compatible USB devices.
- Up to 32GB Memory
- While this system natively includes 8GB of RAM in a 2 x 4GB configuration, it can be upgraded to a maximum of 32GB when 16GB memory modules are used in each of the system's two 260-pin SO-DIMM slots
- 802.11ac Wi-Fi
- The system features Intel Dual Band Wireless-AC 8265, which is compatible with 802.11a/b/g/n/ac Wi-Fi so that users may access network connectivity using wireless technology
- Bluetooth 4.2
- Additional compatible peripherals, such as mice, keyboards, headsets, and more may be paired using Bluetooth 4.2 technology
- 720p User-Facing Camera with IR (Near-Infrared Imaging)
-
- Microsoft Hello Certification: Microsoft face authentication in Windows 10 is an enterprise-grade identity verification mechanism
- Microsoft Skype for Business Certified
- HD format (widescreen 16:9)
- Supports videoconferencing and still image capture
- High-quality fixed focus lens
- Video capture at various resolutions up to 1280 x 720 (720p) and up to 30 fps
- M-JPEG compression supports higher frame rates for video capture and videoconferencing
- Improved low light sensitivity
- Improved dynamic range
- 8MP / 1080p World-Facing Camera
-
- Supports videoconferencing and still image capture
- High-quality auto-focus lens
- Still capture at various resolutions up to 8MP (4:3)
- Video capture at various resolutions up to 1920 x 1080 (1080p) and up to 30 fps
- M-JPEG compression supports higher frame rates for video capture and videoconferencing
- Improved low light sensitivity
- Improved dynamic range
- Near-Field Communication (NFC)
- Near-field communication (NFC) is a set of communication protocols that enable two electronic devices, one of which is usually a portable device such as a smartphone, to establish communication by bringing them within 1.6" of each other. NFC devices are used in contactless payment systems, similar to those used in credit cards and electronic ticket smartcards, and allow mobile payment to replace/supplement these systems. NFC is used for social networking, as well as for sharing contacts, photos, videos, or files. NFC-enabled devices can also act as electronic identity documents and keycards. NFC offers a low-speed connection with simple setup that can be used to bootstrap more capable wireless connections.
- DisplayPort 1.2 Features Supported on Thunderbolt 3 Ports
-
- Legacy displays (HDMI, DVI, VGA) may be attached to the Thunderbolt 3 port with the use of a certified dongle
- DisplayPort monitors capable of supporting DisplayPort 1.2 may be directly attached to the Thunderbolt 3 port to achieve HBR2 with the use a dongle
- Thunderbolt 3 enabled monitors may be directly attached to the Thunderbolt 3 port to achieve HBR2 and MST
- DisplayPort 1.2 MST feature ("daisy-chain" feature) is supported through the Thunderbolt 3 port on Thunderbolt 3 enabled devices or DisplayPort 1.2 monitors (requires monitor with DisplayPort 1.2 MST capability) with the use of a dongle
- Up to 2 streams (eight lanes) of DisplayPort 1.2 are supported over a single Thunderbolt 3 port. Up to two 4K displays with 24/30-bit color depth at 60 Hz or one 5K display supported over a single Thunderbolt 3 port (requires an Intel certified Thunderbolt cable)
- DisplayPort 1.2 w/MST (Multi-stream Transport): Supports resolutions up to Full 4K, 24/30-bit color depth at 60 Hz, and WUXGA (1920 x 1200) monitors, 24/30-bit color depth at 120 Hz
- Multi-Display Support
- The ZBook x2 supports multiple displays in several configurations. Using Thunderbolt 3 and the ZBook Dock, up to five independent displays are supported, which include the internal panel plus four external displays. When using just Thunderbolt 3 and no ZBook Dock, up to three independent displays are supported (internal panel and two independent displays) and when using Thunderbolt 3 with DisplayPort 1.2 Multi-stream Transport (MST) and no ZBook Dock, up to five active displays are supported.
Windows 10 - Start Menu
- After its hiatus in Windows 8, the Start Menu has returned. Utilizing a combination of the traditional menu system and Windows 8's Live Tiles, the improved Start Menu gives you more information at a glance, showing notification information alongside your applications and other pinned items.
- Cortana
- Microsoft's digital personal assistant, Cortana can answer your questions with information gleaned from both your device and the internet at large. You can type or even talk with her, if your system has a microphone. Using her Notebook, Cortana keeps track of your needs and wants, and she learns over time to improve her information gathering skills.
- Microsoft Edge
- After nearly 20 years, Microsoft has finally replaced its Internet Explorer web browser. With Microsoft Edge, users can write directly on web pages and share notes with friends and colleagues. It also improves the online reading experience by adding a distraction-free mode and read-it-later functionality. Edge also has built-in Cortana integration; you can have her help you find a restaurant, make a reservation, and pull up directions without leaving your browser.
- Windows Store
- For Windows 10, Microsoft has unified the Windows Store. Now, apps for PCs, tablets, and phones will all be accessible from one place. And with support for Universal Apps, one version of an app can work across all your compatible devices automatically.
- Windows Continuum
- Windows 10 was designed for a variety of screen sizes and input styles, and with its Continuum feature, it automatically adapts to fit your needs. A Windows 10 tablet on its own requires a touch-centric approach, but attaching a mouse and keyboard will shift everything to a more traditional interface. You can even attach an external monitor to your Windows 10 phone for a near-desktop experience. But it's not just the operating system; Windows Universal Apps take advantage of Continuum as well.
- Xbox on Windows 10
- Gaming is a big focus of Windows 10. Xbox integration allows for PC players to match up against Xbox One players on supported games, and if you have an Xbox One, you can even stream compatible titles to your PC. Native support for recording with the new Game DVR feature makes it easy to capture and share your gameplay. The new DirectX12 takes better advantage of multi-core processors, giving games a performance boost, even on older hardware. Windows 10 also features native support for virtual reality headsets, such as the Oculus Rift.
- Windows 10 Pro
- The Pro version of Windows 10 includes all of the features of Windows 10 Home plus many designed specifically for businesses users, including Hyper-V virtualization, BitLocker disk encryption, and remote desktop access. Devices will also be able to join domains and the Azure Active Directory, and they can even access a specialized version of the Windows Store featuring custom, company-specific applications.
UPC: 192545289177 In the Box HP 14" ZBook x2 G4 Multi-Touch 2-in-1 Mobile Workstation ZBook x2 Pen Elite Services Card 90W AC Adapter Power Cord Limited 1-Year Parts & Labor Warranty Guides & Manuals More from Manufacturer Table of Contents
|
Upload User Manual
Have you got an user manual for the HP 14" ZBook x2 G4 Multi-Touch 2-in-1 Mobile Workstation in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Download User ManualThe user manual for the HP 14" ZBook x2 G4 Multi-Touch 2-in-1 Mobile Workstation can be downloaded in PDF format at the link stated below.
Technical parametersHP G4 Specs | Operating System | Windows 10 Pro (64-Bit) | | | | CPU | 1.6 GHz Intel Core i5-8250U Quad-Core | | Maximum Boost Speed | 3.4 GHz | | Memory Type | 2133 MHz DDR4 | | Total Installed Memory | 8 GB | | Maximum Memory Capacity | 8 GB | | Memory Slot Type | 260-Pin SO-DIMM | | Available Memory Slots | None | | Graphics Type | Dedicated | | GPU | NVIDIA Quadro M620 with 2 GB GDDR5 VRAM | | | | Panel Type | IPS | | Size | 14" | | Aspect Ratio | 16:9 | | Resolution | 3840 x 2160 | | Touchscreen | Yes | | Finish | Matte | | Maximum Brightness | 300 cd/m2 | | Refresh Rate | 60 Hz | | Adaptive Sync Technology | None | | Viewing Angle (H x V) | 170 x 170° | | | | Total Installed Capacity | 128 GB | | Solid State Storage | 1 x 128 GB M.2 SATA | | Expansion Slots | 1 x Smart Card | | Optical Drive | None | | | | Ports | 1 x USB Type-A (USB 3.1 Gen 1) | | USB Type-C Ports | 2 x Thunderbolt 3 (Supports DisplayPort) | | Display | 1 x HDMI 1.4 | | Audio | 1 x 1/8" / 3.5 mm Headphone/Microphone Input/Output | | Built-In Speakers | 2 | | Built-In Microphones | 2 | | Media Card Slots | 1 x SDXC | | | | Ethernet | 1 x RJ45 (Gigabit) | | Wi-Fi | Wi-Fi 5 (802.11ac); Dual-Band (2.4 & 5 GHz) | | MU-MIMO Support | 2 x 2 | | Bluetooth | 4.2 | | GPS | None | | NFC | Yes | | Webcam | User-Facing: 720p
World-Facing: 1080p | | | | Battery Chemistry | Lithium-Ion Polymer (LiPo) | | Watt Hours / Type | 70 Wh | | Cells | 4 | | Output Voltage | 15.2 VDC | | Maximum Runtime | 10 Hours | | | | Keyboard | 85-Key Notebook Keyboard with Backlight | | Pointing Device | TouchPad | | | | Security | Power-On Password, Accepts 3rd Party Security Lock Devices, Infineon TPM Software Professional Package | | Power Supply | 90 W | | AC Input Power | 90 to 265 VAC, 50 / 60 Hz | | Dimensions | 14.4 x 0.8 x 9" / 36.6 x 2 x 22.9 cm | | Weight | 4.8 lb / 2.2 kg | | | | Package Weight | 9.45 lb | | Box Dimensions (LxWxH) | 19.0 x 14.0 x 6.0" |
Rating90% users recommend this product to others. And what about you?
This product has already been rated by 73 owners. Add your rating and experience with the product.
