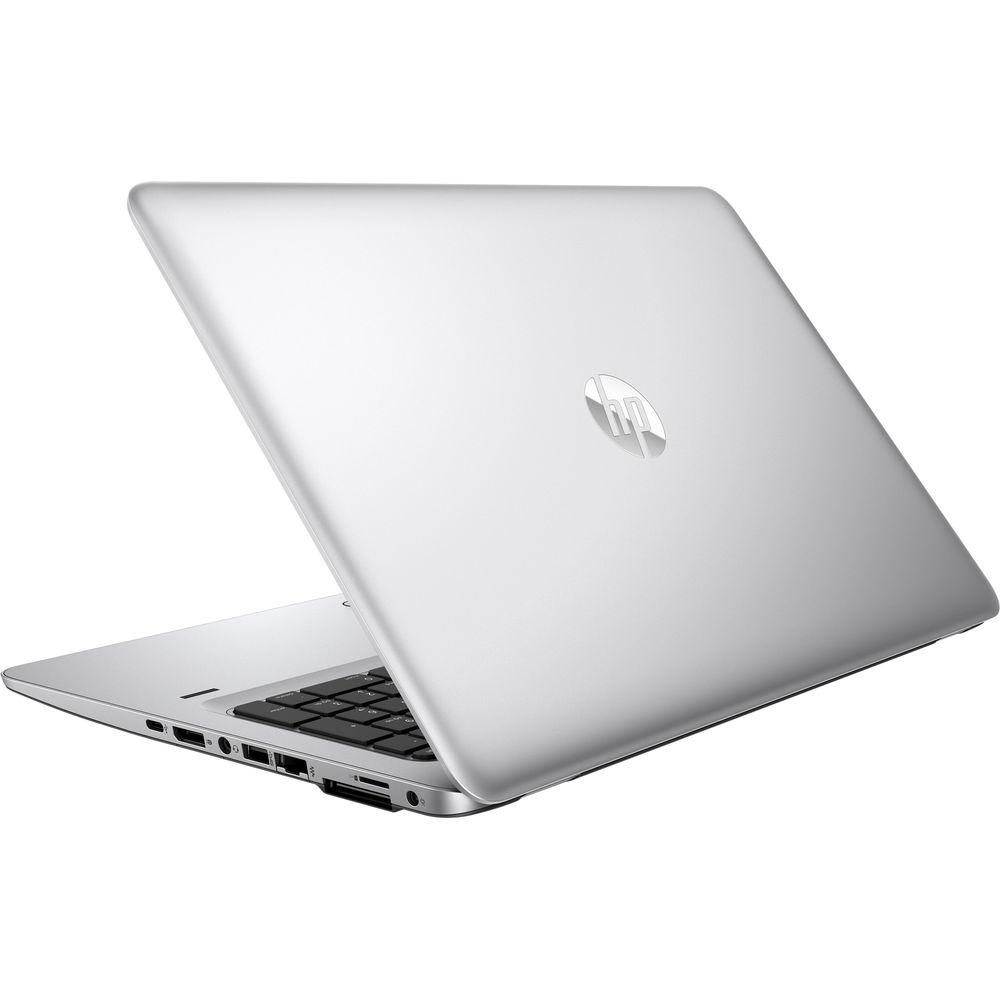

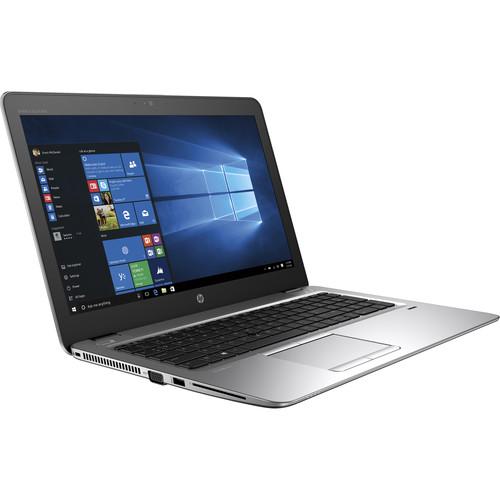

User Manual for HP 15.6" EliteBook 850 G3 Laptop Click to enlarge the picture
Contents of the user manual for the HP 15.6" EliteBook 850 G3 Laptop
- Product category: Notebooks HP
- Brand: HP
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for HP Notebooks
 |
User manual for the HP 15.6" EliteBook 850 G3 Laptop contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any HP product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official HP user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a HP product will considerably shorten its lifespan!
|

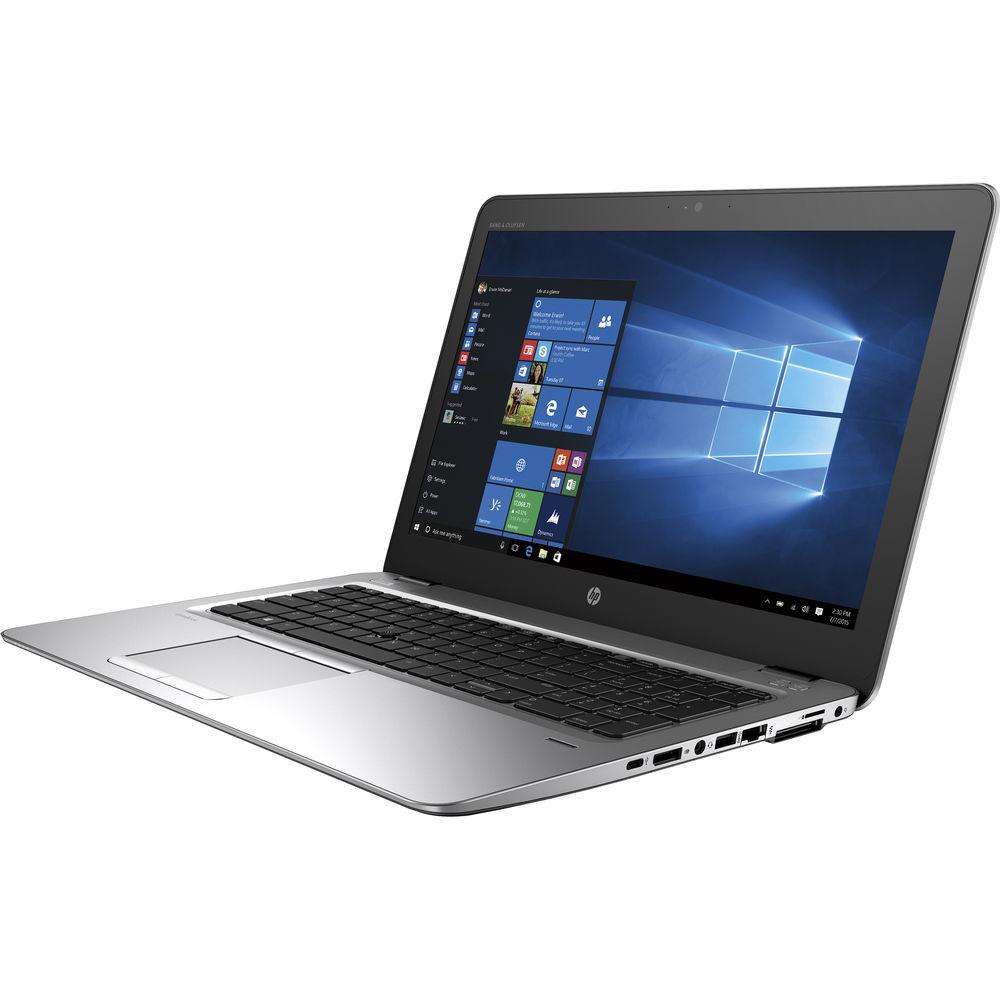

Product description Designed for mobile professionals who need a business-rugged notebook with enhance system and graphics performance in a managed-IT environment, the 15.6" EliteBook 850 G3 Laptop from HP is thin at 0.76" and weighs 4.06 lb. It allows users to create, connect, and collaborate, using Enterprise-class performance technology to help boost productivity both within and outside of the office.
The EliteBook 850 G3 is powered by a 2.6 GHz Intel Core i7-6600U Dual-Core processor which will allow users to run multiple applications simultaneously. If you need more power, the CPU can be overclocked to 3.4 GHz. The 8GB of 2133 MHz DDR4 SDRAM also helps the computer to run multiple applications simultaneously, as well as access frequently-used files and programs. The current memory configuration is one 8GB module with an additional slot available for memory upgrades, making for a total of two 260-pin SO-DIMM slots. With both slots in use, this system supports 32GB of RAM, or 16GB per slot.

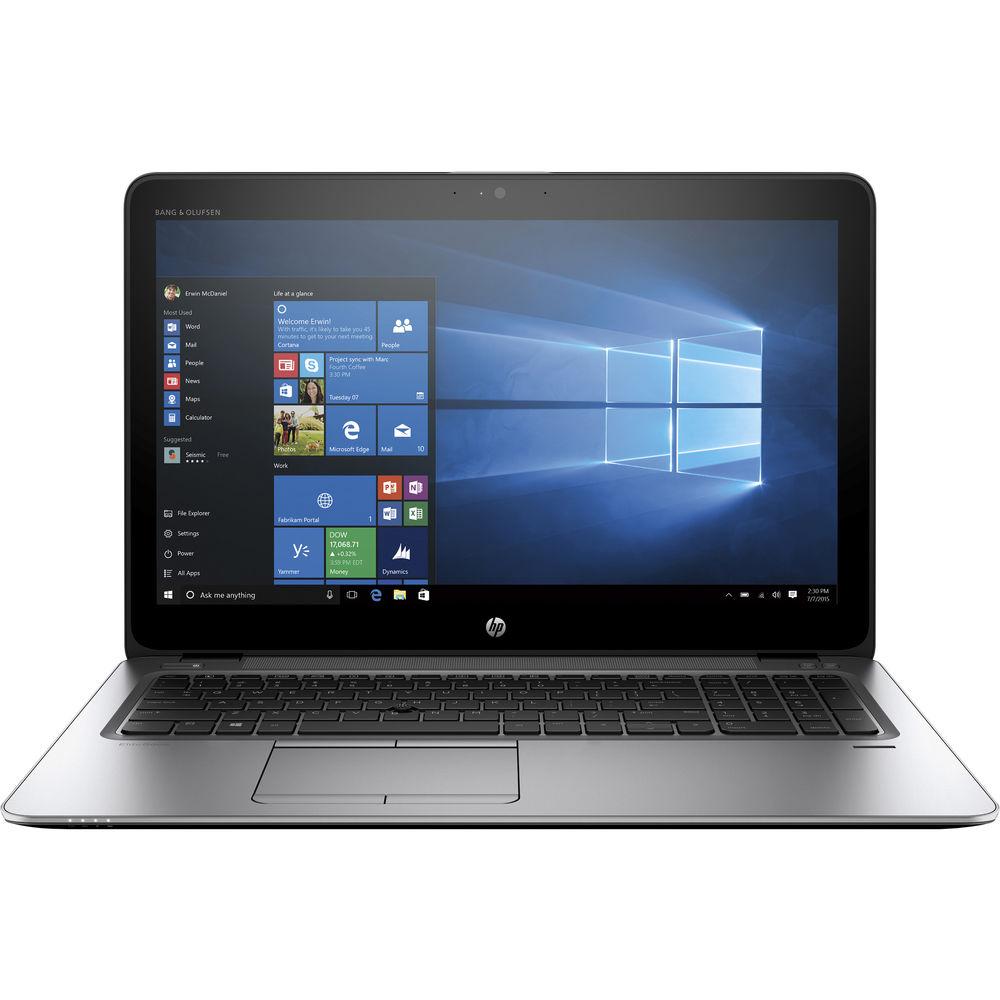

The 15.6" TN Slim eDP SVA anti-glare display features a Full HD 1920 x 1080 screen resolution, LED-backlighting, a 16:9 aspect ratio, a typical contrast ratio of 400:1, a response time of 16ms, 142 ppi, a brightness of 300 nits, and viewing angles of 45/45/25/35°.. Integrated Intel HD Graphics 520 delivers a sharp, clear picture, and you'll also be able to output video to an external display using the system's DisplayPort 1.2 port at resolutions up to 4096 x 2160 @ 60 Hz, and the VGA port at resolutions up to 1920 x 1200 @ 60 Hz.

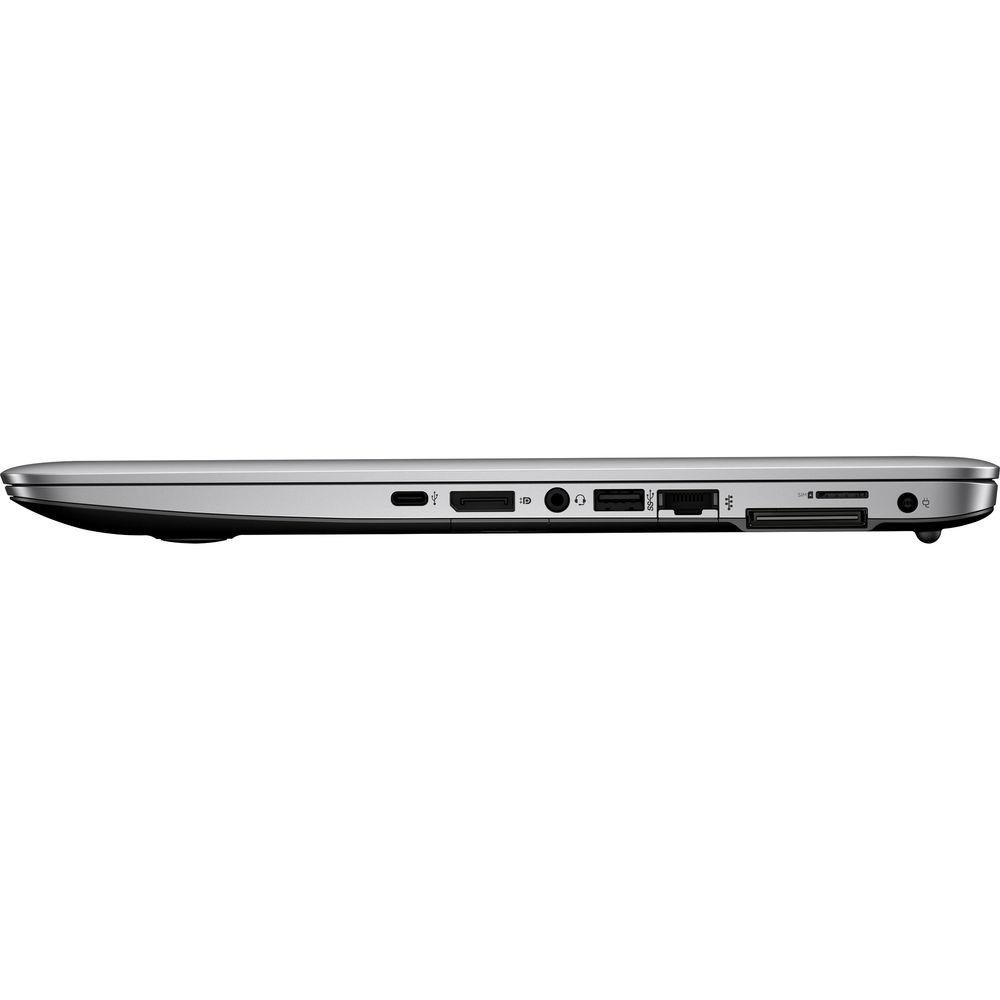

For long-term storage of your files, a 256 GB M.2 2280 SATA III Self-Encrypting Drive (Opal 2) MLC SSD offers quick access to your data. If you want to add external storage drives or other peripherals, the EliteBook 850 G3 features two 5 Gb/s USB 3.0 Type-A ports, one of which doubles as a charging port, one 5 Gb/s USB 3.0 Type-C port, and a docking connector. Gigabit Ethernet and 802.11ac Wi-Fi are also built-in for wired and wireless networking and Bluetooth 4.2 technology will also allow you to connect additional compatible peripherals. So that content from memory cards may be accessed, a built-in SD/SDHC/SDXC card reader lets users download content from their digital camera. Other integrated features include a 720p webcam, dual-array microphones, and stereo speakers with Bang & Olufsen HD audio.
The EliteBook 850 G3 Laptop includes a Smart AC adapter and an HP 3-cell / 46Wh Lithium-ion polymer Long Life battery that can typically be recharged in 163 minutes, lasts for up to 12.5 hours of use, and up to 223 hours of standby time. While the installed operating system is Windows 7 Professional (64-bit), a Windows 10 Professional (64-bit) license is included at no additional cost, as is Windows 7 Professional (32/64-bit) recovery media. General Features - 2 x USB 3.0 Type-A Ports & 1 x USB 3.0 Type-C Port
- The system features 2 x USB 3.0 Type-A ports and 1 x USB 3.0 Type-C port that will allow you to connect peripherals such as hard drives, printers, and memory card readers. At 5 Gb/s, USB 3.0 transfers data up to 10 times faster than USB 2.0, which operates at 480 Mb/s. USB 3.0's high-speed transfer rate helps to significantly reduce data transfer times, meaning you spend less time waiting and more time focusing on the task at hand. One of the USB 3.0 Type-A ports also doubles as a fast charging port, and the USB 3.0 Type-C port features a connector that may be inserted whether oriented right-side up or upside down.
- Gigabit Ethernet & 802.11ac Wi-Fi
- The system uses a Gigabit Ethernet controller for Internet access when connected to a router, modem, or network switch. It also features 802.11a/b/g/n/ac dual-band Wi-Fi so that users may access network connectivity using wireless technology.
- Bluetooth 4.2
- Additional compatible peripherals, such as mice, keyboards, headsets, and more may be paired using Bluetooth 4.2 technology.
- DisplayPort & VGA

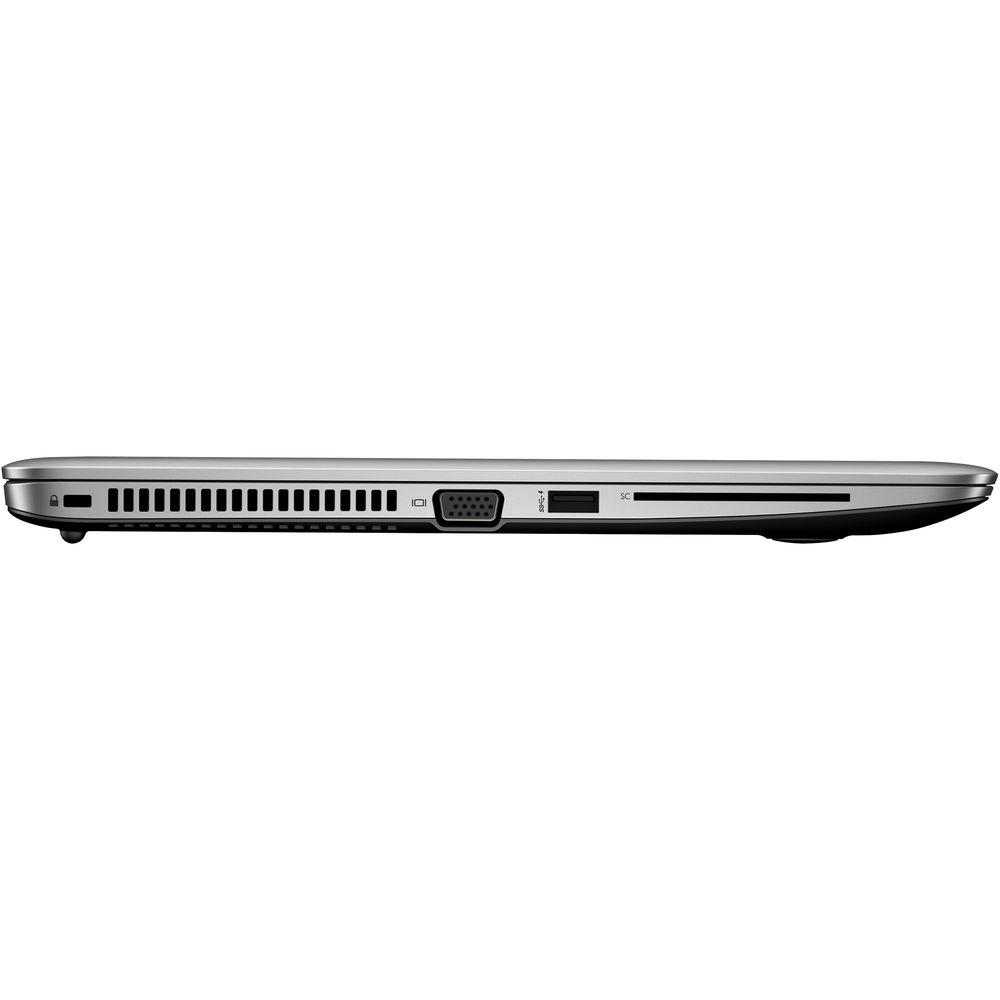

- The DisplayPort output supports resolutions up to 4096 x 2160 @ 60 Hz and the VGA port supports resolutions up to 1920 x 1200 @ 60 Hz. The resolutions are dependent upon monitor capabilities, and resolution and color depth settings.
- Multi-Display Support
- When used with an optional HP Ultraslim Docking Station, up to three independent displays are supported.
- Windows 7 Pro (64-bit) + Windows 10 Pro (64-bit) License
- This system is pre-installed with Windows 7 Professional software and also comes with a license and media for Windows 10 Pro software. You may only use one version of the Windows software at a time. Switching between versions will require you to uninstall one version and install the other version. You must back up all data (files, photos, etc.) before uninstalling and installing operating systems to avoid loss of your data.
In the Box HP 15.6" EliteBook 850 G3 Laptop 3-cell / 46Wh Lithium-ion Polymer Long Life Battery AC Adapter Windows 7 Pro (32-bit) Recovery Media Windows 7 Pro (64-bit) Recovery Media Windows 10 Pro (64-bit) License Limited 3-Year Warranty User Manual - windows 8.1 PDF 2.7mb More from Manufacturer Table of Contents
|
Upload User Manual
Have you got an user manual for the HP 15.6" EliteBook 850 G3 Laptop in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHP 850 G3 Specs | | | Processor | Intel Core i7-6600U Dual-Core | | Base Clock Speed | 2.6 GHz | | Maximum Boost Speed | 3.4 GHz | | Total Installed Memory | 8 GB | | Maximum Memory Capacity | 32 GB | | Memory Type | DDR4 SDRAM | | Memory Speed | 2133 MHz | | Available Memory Slots | 2 | | Memory Slot Type | 260-Pin SO-DIMM | | Graphics Type | Integrated | | GPU | Intel HD Graphics 520 | | | | Panel Type | TN | | Size | 15.6" | | Aspect Ratio | 16:9 | | Native Resolution | 1920 x 1080 | | Finish | Matte | | Maximum Brightness | 300 cd/m2 | | Response Time | 16 ms | | External Resolution | Up to 4096 x 2160 | | | | Available Slots | 1 x 2.5" (7 mm)
1 x M.2 | | Total Installed Capacity | 256 GB | | Solid State Storage | 1 x 256 GB M.2 SATA | | Optical Drive | None | | | | Ports | 2 x USB 3.1 Gen 1 Type-A
1 x USB 3.1 Gen 1 Type-C
1 x Docking Connector | | Display | 1 x DisplayPort
1 x VGA | | Audio | 2 x Integrated Speaker
2 x Integrated Microphone

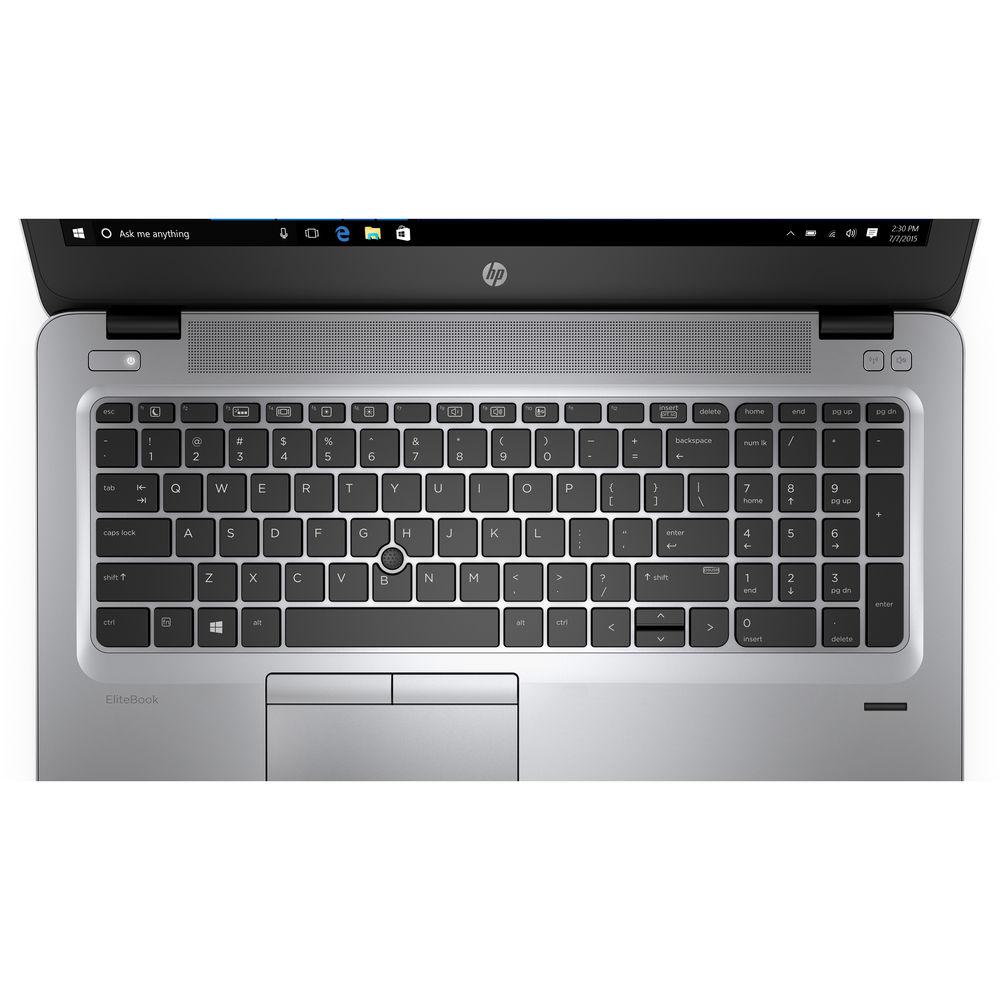

1 x 1/8" (3.5 mm) Headphone/Microphone Combo Jack | | Expansion Slots | 1 x Smart Card | | Media Card Slots | SD/SDHC/SDXC | | | | Network | 1 x 10/100/1000 Mb/s Gigabit Ethernet (RJ45) | | Wi-Fi | Wi-Fi 5 (802.11ac); Dual-Band (2.4 & 5 GHz) | | Bluetooth | Bluetooth 4.2 | | NFC | Yes | | Webcam | User-Facing: 720p | | | | Battery Chemistry | Lithium-Ion | | Watt Hours / Type | 46 Wh | | Cells | 3 | | Maximum Runtime | 12.5 Hours | | | | Operating System | Windows 7 Professional (64-Bit) | | Keyboard | Full-Size (Backlight, Numeric Keypad) | | Pointing Device | TouchPad | | Dimensions (W x H x D) | 15.1 x 0.8 x 10.1" / 38.4 x 2.0 x 25.7 cm | | Weight | 4.06 lb / 1.84 kg (Weight will vary by configuration) | | | | Package Weight | 6.2 lb | | Box Dimensions (LxWxH) | 20.0 x 12.1 x 3.1" |
