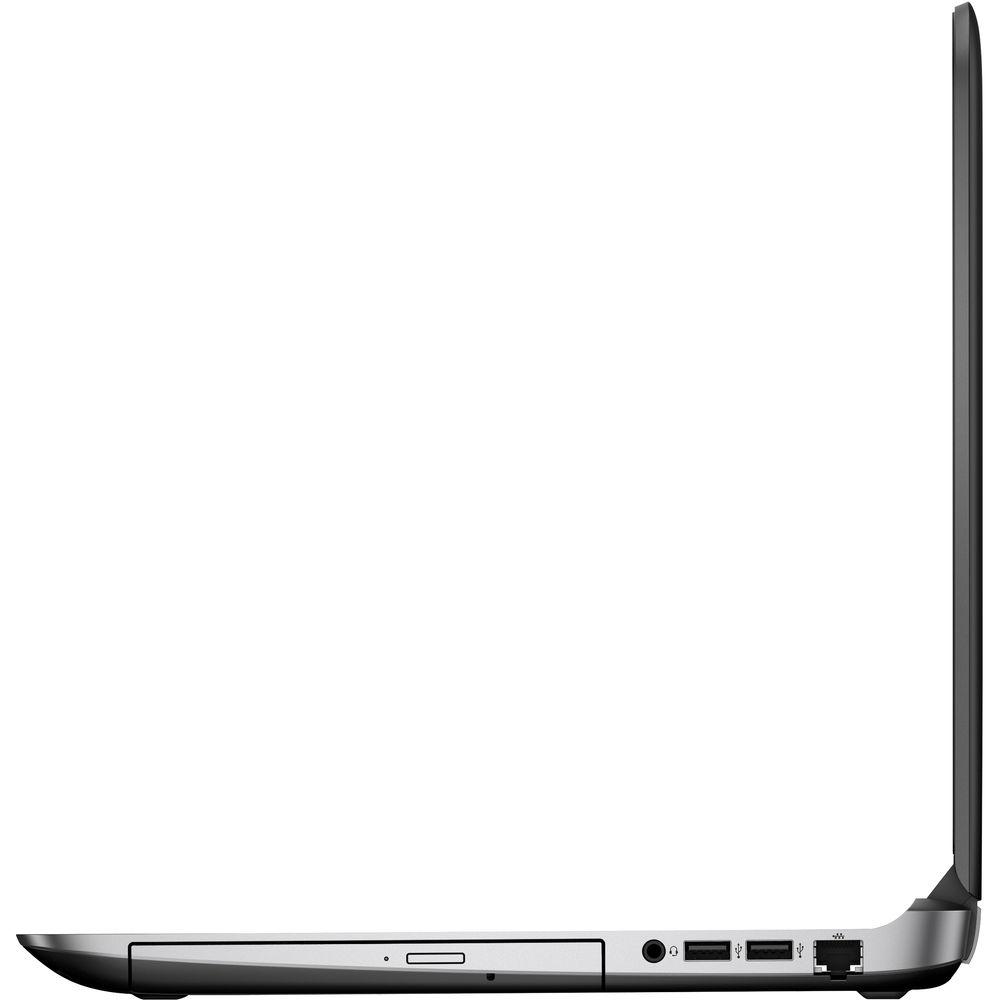

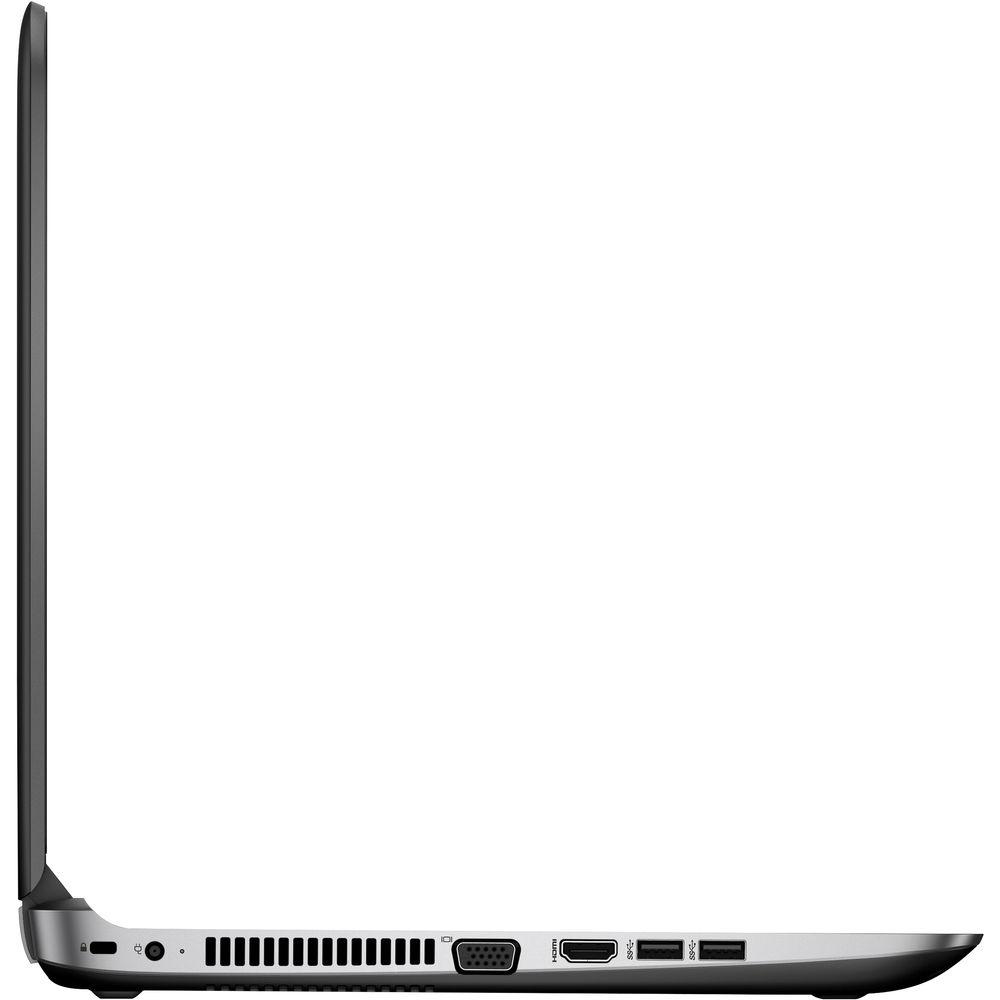

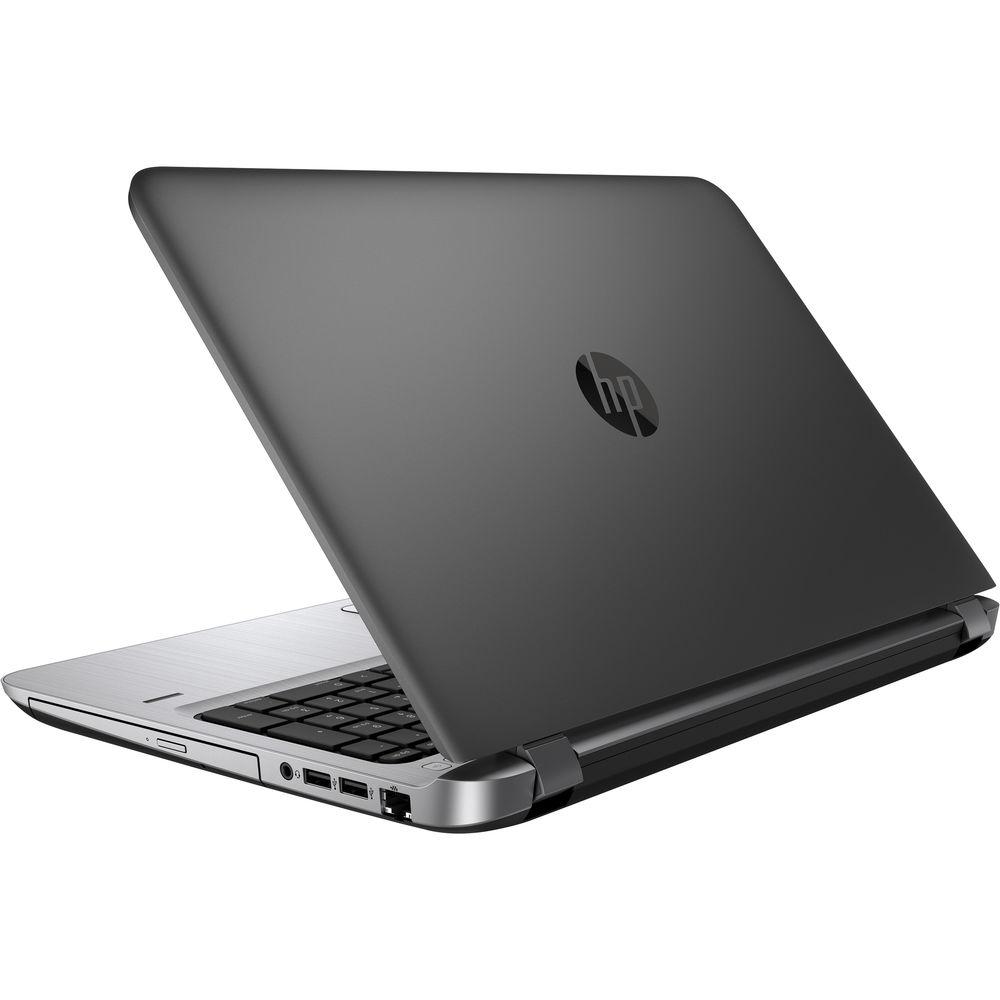

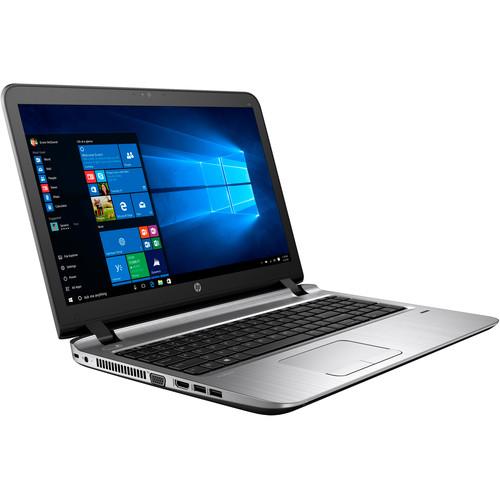

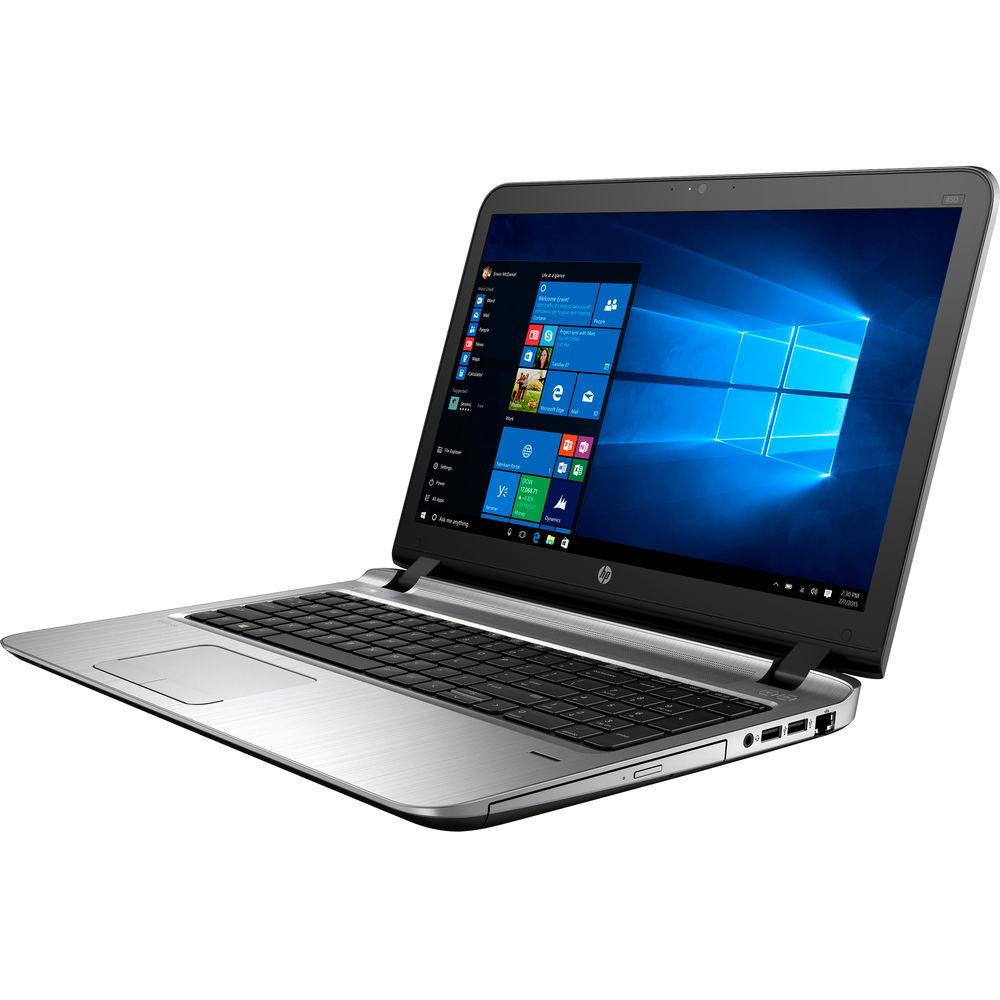

User Manual for HP 15.6" ProBook 450 G3 Laptop Click to enlarge the picture
Contents of the user manual for the HP 15.6" ProBook 450 G3 Laptop
- Product category: Notebooks HP
- Brand: HP
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for HP Notebooks
 |
User manual for the HP 15.6" ProBook 450 G3 Laptop contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any HP product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official HP user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a HP product will considerably shorten its lifespan!
|
Product description Designed for professionals in corporate or SMB environments who want a combination of innovation, security, and multimedia capabilities, the 15.6" ProBook 450 G3 Laptop from HP is a full-featured, thin, and light system that lets users remain productive whether in or out of the office. It is powered by a 2.3 GHz Intel Core i5-6200U Dual-Core processor and 8GB of 2133 MHz DDR4 RAM, allowing you to run multiple programs simultaneously and quickly access frequently used files and programs. When running more demanding programs or tasks, the processor can be boosted to achieve a speed of 2.8 GHz using Intel's Turbo Boost 2.0 technology, and the memory can also be upgraded to a maximum of 16GB.
The 15.6" anti-glare SVA display features a Full HD 1920 x 1080 screen resolution, a 16:9 aspect ratio, LED-backlighting, 220 cd/m2 brightness, a 300:1 contrast ratio, a 60 Hz refresh rate, 142 ppi, and viewing angles of 45/45/25/35°. The integrated Intel HD Graphics 520 chipset delivers a sharp, clear picture, and you'll also be able to output video to an external display using the built-in HDMI and VGA outputs at resolutions up to 4096 x 2160 @ 24 Hz.
For storage of your files, this system is equipped with a 500GB 5400 rpm SATA III 2.5" solid-state hybrid drive with an 8GB cache. If you want to add external storage, optical drives, memory card readers, printers, and more, the ProBook 450 G3 offers two USB 3.1 Gen 1 Type-A ports and two USB 2.0 Type-A ports. Gigabit Ethernet and 802.11ac 2x2 Wi-Fi are built-in for wired and wireless networking, and Bluetooth 4.0 technology will also allow you to connect additional compatible peripherals wirelessly. There is also an SD/SDHC/SDXC card reader, a 720p webcam, dual-array microphones, and stereo speakers.
HP's ProBook 450 G3 includes a 45W AC adapter and a 4-cell / 44Wh lithium-ion battery that lasts for up to 9.25 hours before recharging is required. While the installed operating system is Windows 7 Pro (64-bit), a Windows 10 Pro (64-bit) license is included at no additional charge. Also included is Windows 7 Pro (64-bit) recovery media and protection is provided by a limited 1-year parts & labor warranty. General Features - Designed for Mobility
- Work in style with the powerful 15.6" diagonal HP ProBook 450 G3 with a gravity black LCD cover. Confidently take on the day with a system that passed MIL-STD 810G testing, built with an aluminum-reinforced keyboard.
- 9.5mm DVD±RW SuperMulti DL Drive
- Read from and write to various types of optical CD and DVD media using the 9.5mm DVD±RW SuperMulti DL Drive.
- Up to 16GB RAM
- The current memory configuration is one 8GB module, with an additional 260-pin SO-DIMM slot available for upgrades. With both slots in use, this system supports 16GB of 2133 MHz DDR4 RAM, or 8GB per slot.
- 15.6" Full HD Anti-Glare SVA Display
- The 15.6" anti-glare SVA display features a Full HD 1920 x 1080 screen resolution, a 16:9 aspect ratio, and LED-backlighting with a brightness of 220 cd/m2, a 300:1 contrast ratio, 142 ppi, and viewing angles of 45/45/25/35°.
- HDMI & VGA Video Outputs
- Using the HDMI and VGA video outputs, users will be able to use their system with an external display. The HDMI port supports resolutions up to 4096 x 2160 @ 24 Hz and the VGA port supports resolutions up to 2048 x 1536 @ 60 Hz. The HDMI port also supports 7-channel audio.
- USB 3.1 Gen 1 Type-A | USB 2.0 Type-A
- The HP ProBook 450 G3 has two USB 3.1 Gen 1Type-A ports, and two USB 2.0 Type-A ports that will allow you to connect peripherals such as hard drives, printers, and memory card readers. At 5 Gb/s, USB 3.1 Gen 1 transfers data up to 10 times faster than USB 2.0, which operates at 480 Mb/s. USB 3.1 Gen 1's high-speed transfer rate helps to significantly reduce data transfer times, meaning you spend less time waiting and more time focusing on the task at hand.
- Stay Connected
- This HP notebook can connect to a home or public wireless network via 802.11ac 2x2 Wi-Fi. If you require a more reliable Internet connection, you can utilize the Gigabit Ethernet LAN jack. You can also connect wirelessly to peripherals such as keyboards, mice, and headsets via Bluetooth 4.0.
- Windows 7 Pro (64-Bit) + Windows 10 Pro (64-Bit) License
- This system is preinstalled with Windows 7 Professional software and also comes with a license and media for Windows 10 Pro software. You may only use one version of the Windows software at a time. Switching between versions will require you to uninstall one version and install the other version. You must back up all data (files, photos, etc.) before uninstalling and installing operating systems to avoid loss of your data.
In the Box HP 15.6" ProBook 450 G3 Laptop 45W AC Adapter Windows 7 Pro (64-Bit) Recovery Media Windows 10 Pro (64-Bit) License Limited 1-Year Parts & Labor Warranty Quick Specs PDF 1.1mb Table of Contents
|
Upload User Manual
Have you got an user manual for the HP 15.6" ProBook 450 G3 Laptop in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHP ProBook 450 G3 Specs | | | Processor | Intel Core i5-6200U Dual-Core | | Base Clock Speed | 2.3 GHz | | Maximum Boost Speed | 2.8 GHz | | Total Installed Memory | 8 GB | | Maximum Memory Capacity | 16 GB | | Memory Type | DDR4 SDRAM | | Memory Speed | 2133 MHz | | Available Memory Slots | 1 | | Memory Slot Type | 260-Pin SO-DIMM | | Graphics Type | Integrated | | GPU | Intel HD Graphics 520 | | | | Panel Type | LCD | | Size | 15.6" | | Aspect Ratio | 16:9 | | Native Resolution | 1920 x 1080 | | Touchscreen | No | | Finish | Matte | | Maximum Brightness | 220 cd/m2 | | Viewing Angle (H x V) | 90 x 60° | | Refresh Rate | 60 Hz | | External Resolution | Up to 4096 x 2160 | | | | Total Installed Capacity | 500 GB | | Hybrid Storage | 1 x 500 GB 2.5" SATA SSHD | | Optical Drive | Tray-Load SuperMulti DVD Burner with Dual Layer Support | | | | Ports | 2 x USB 3.1 Gen 1 Type-A
2 x USB 2.0 Type-A | | Display | 1 x HDMI
1 x VGA | | Audio | 2 x Integrated Speaker
2 x Integrated Microphone
1 x 1/8" (3.5 mm) Headphone/Microphone Combo Jack | | Expansion Slots | None | | Media Card Slots | SD/SDHC/SDXC | | | | Network | 1 x 10/100/1000 Mb/s Gigabit Ethernet (RJ45) | | Modem | None | | Wi-Fi | Wi-Fi 5 (802.11ac); Dual-Band (2.4 & 5 GHz) | | MU-MIMO Support | 2 x 2 | | Bluetooth | Bluetooth 4.0 | | Mobile Broadband | None | | GPS | None | | NFC | None | | Webcam | User-Facing: 720p | | | | Battery Chemistry | Lithium-Ion | | Watt Hours / Type | 41 Wh | | Cells | 4 | | Output Voltage | 14.8 VDC | | Maximum Runtime | 9.25 Hours | | Power Requirements | 90-265 VAC, 47-63 Hz | | Power Supply | x 45 W | | | | Operating System | Windows 7 Professional (64-Bit) | | Security | Kensington Lock Slot, Infineon TPM Software Professional Package, Fingerprint Reader | | Keyboard | Standard Notebook Keyboard | | Pointing Device | TouchPad | | Dimensions (W x H x D) | 14.9 x 1.0 x 10.4" / 37.8 x 2.5 x 26.4 cm | | Weight | 4.56 lb / 2.07 kg | | | | Package Weight | 6.95 lb | | Box Dimensions (LxWxH) | 19.9 x 12.1 x 2.9" |
