User Manual for HP 15.6" ProBook 650 G2 Laptop Click to enlarge the picture
Contents of the user manual for the HP 15.6" ProBook 650 G2 Laptop
- Product category: Notebooks HP
- Brand: HP
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for HP Notebooks
 |
User manual for the HP 15.6" ProBook 650 G2 Laptop contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any HP product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official HP user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a HP product will considerably shorten its lifespan!
|

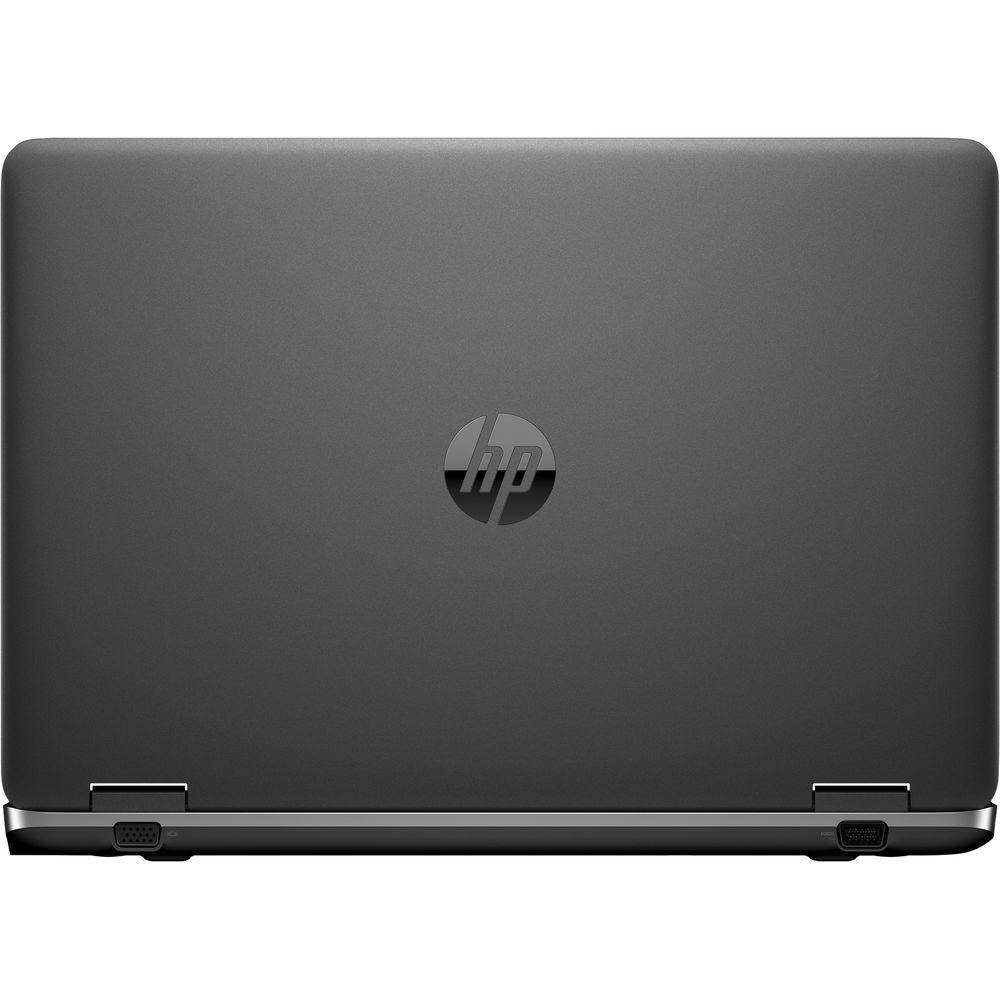

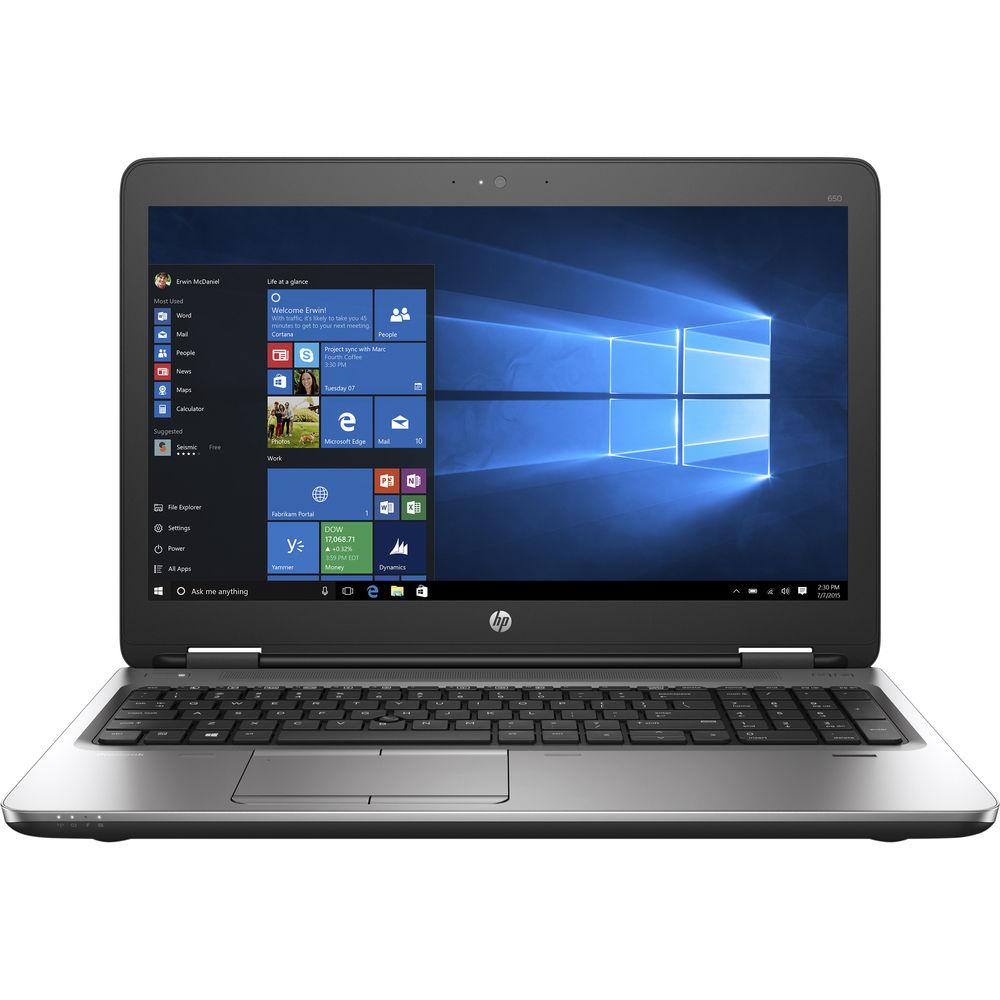

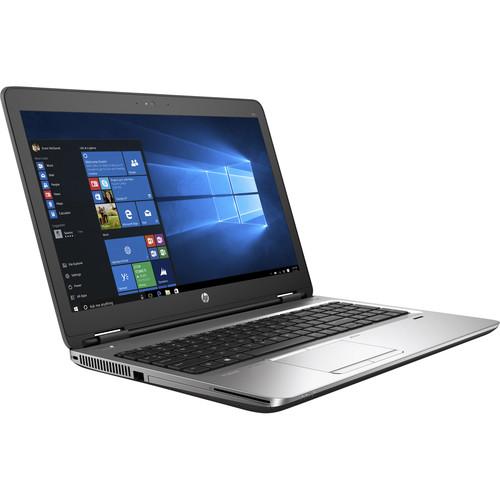

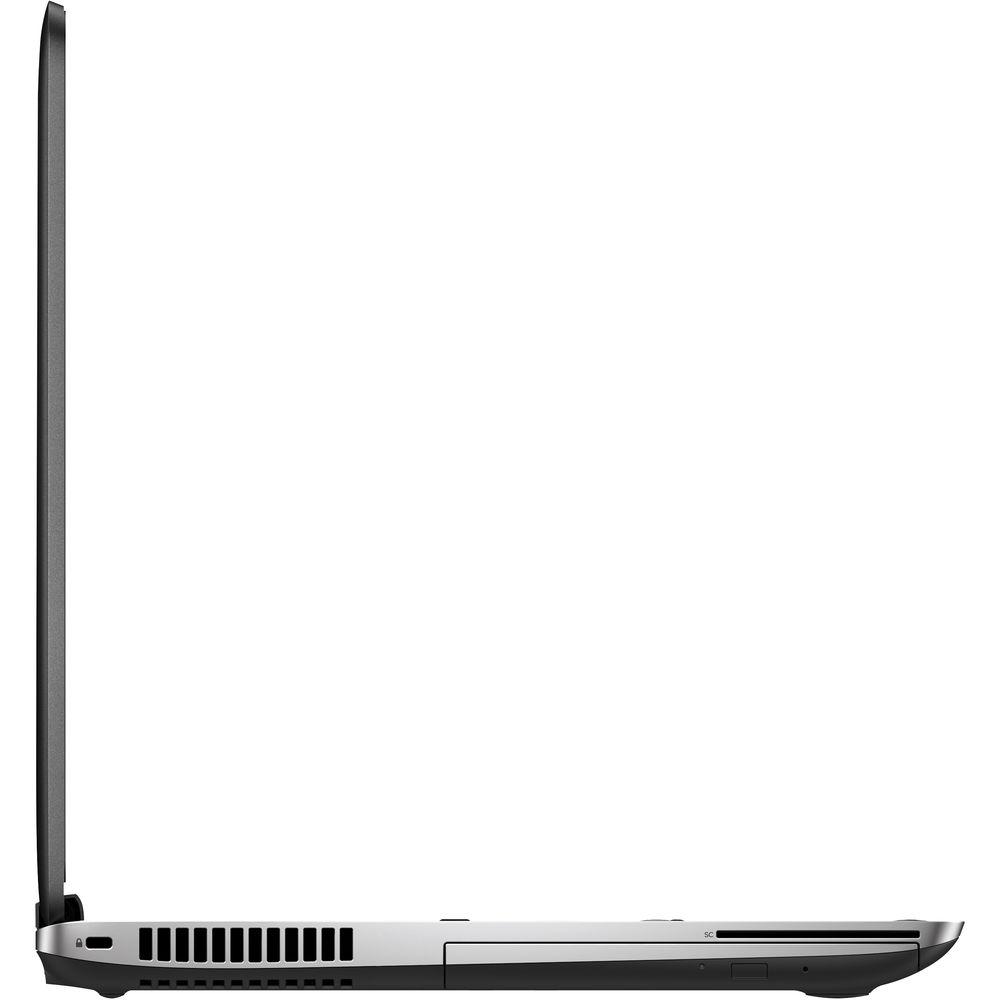

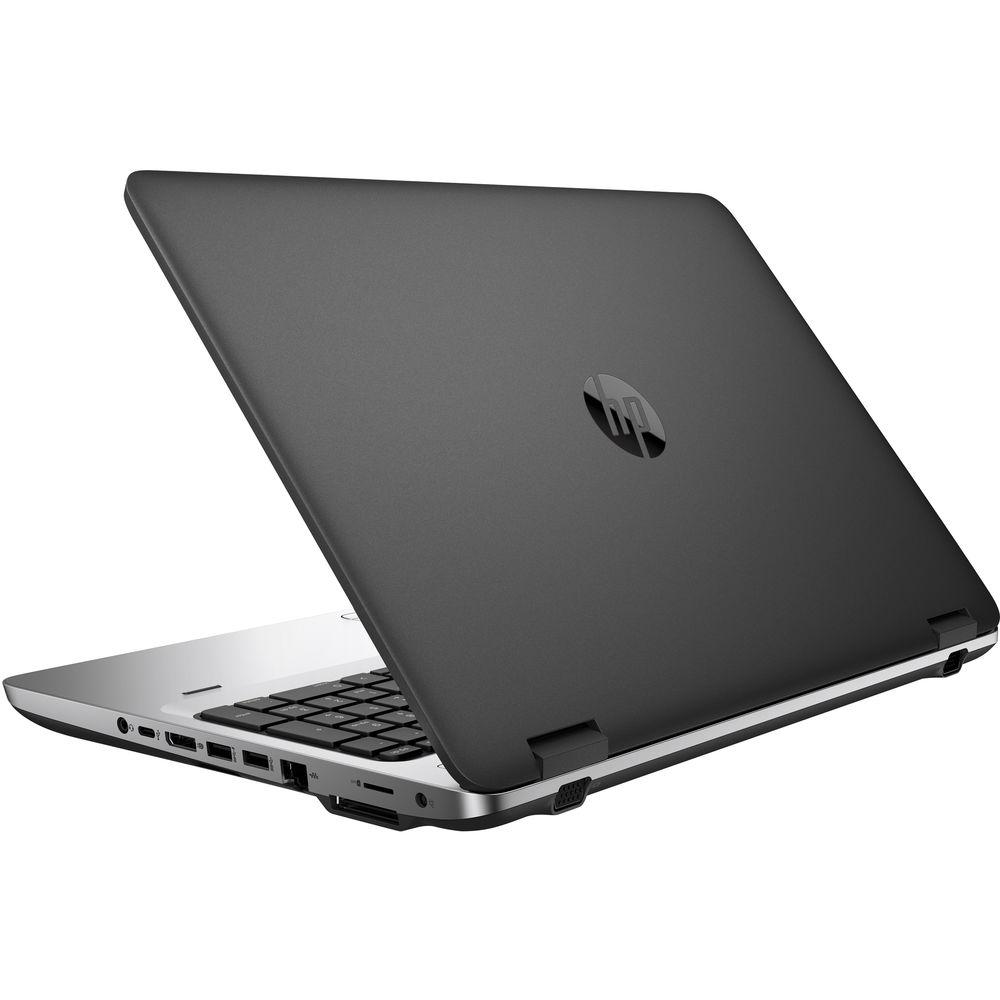

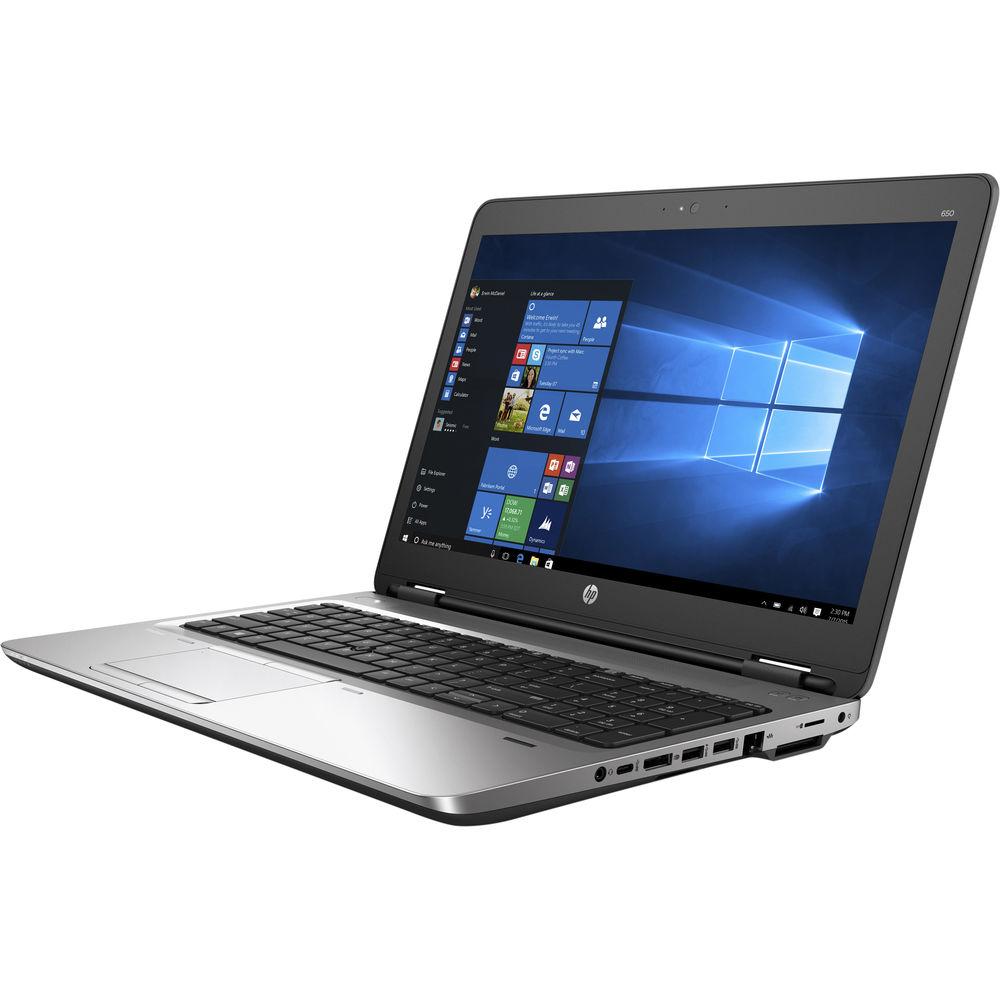

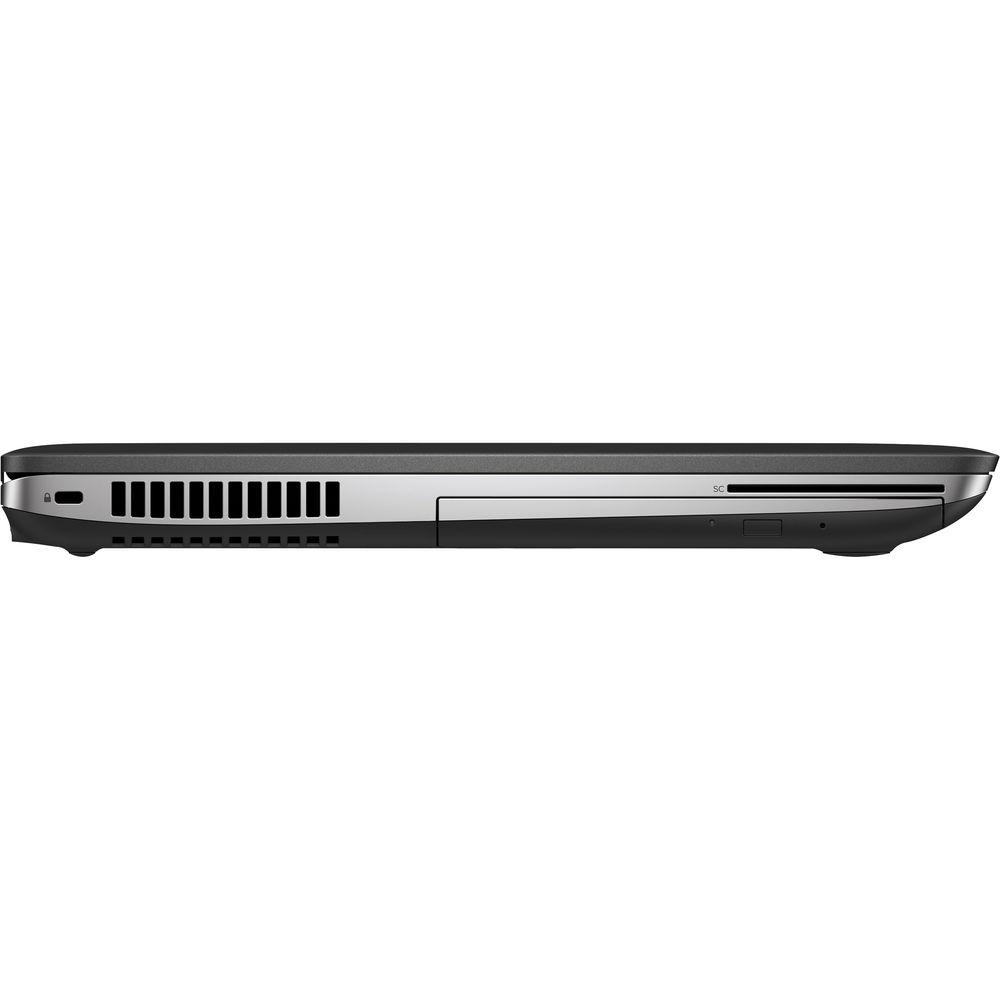

Product description Thin at 1.07" and weighing 5.1 lb, the 15.6" ProBook 650 G2 Laptop from HP is a configurable and cost effective system that combines support for legacy features with long-term stability and modern security for today's businesses. It is powered by a 2.4 GHz Intel Core i5-6300U Dual-Core processor, allowing you to run multiple applications simultaneously. The processor also features a burst speed of up to 3.0 GHz and the system's 8GB of 2133 MHz DDR4 RAM not only allows efficient multitasking, but also allows the computer to quickly access frequently-used files and programs.
The 15.6" SVA anti-glare flat display features a Full HD 1920 x 1080 screen resolution, LED-backlighting, a 16:9 aspect ratio, and 300 cd/m2 brightness. The integrated Intel HD Graphics 520 delivers a sharp, clear picture and you'll also be able to output video to an external display using the built-in DisplayPort 1.2 and VGA outputs. For connecting to the Internet, the ProBook 650 G2 is equipped with wired Gigabit Ethernet and dual-band 802.11ac (2x2) Wi-Fi. External peripherals, such as additional storage or optical drives may be connected using the one USB 3.0 Type-C port or the two USB 3.0 Type-A ports, one of which doubles as a charging port. Additional compatible peripherals may be connected using Bluetooth 4.2 technology.
For long-term storage of your files, the ProBook 650 G2 has a 500GB 7200 rpm SATA hard drive that provides quick access to your data. Whether you are listening to music, watching a movie, or playing a game, the built in stereo speakers offer HD audio with DTS Studio Sound. There is also an integrated 720p HD webcam which allows you to engage in face-to-face conversations using Skype or other software, an integrated dual-microphone array, and an SD media card reader that supports SD, SDHC, and SDXC card formats.
The ProBook 650 G2 Laptop is powered by a Smart AC adapter and a 3-cell / 48 Wh Lithium-ion prismatic battery that lasts for up to 9.75 hours before recharging is required. Included with this system is a power cord and Windows 7 Professional (32 & 64-bit) recovery media. While the installed operating system is Windows 7 Professional (64-bit), a Windows 10 Professional (64-bit) license is included at no additional cost. General Features - USB 3.0 Type-A & USB 3.0 Type-C

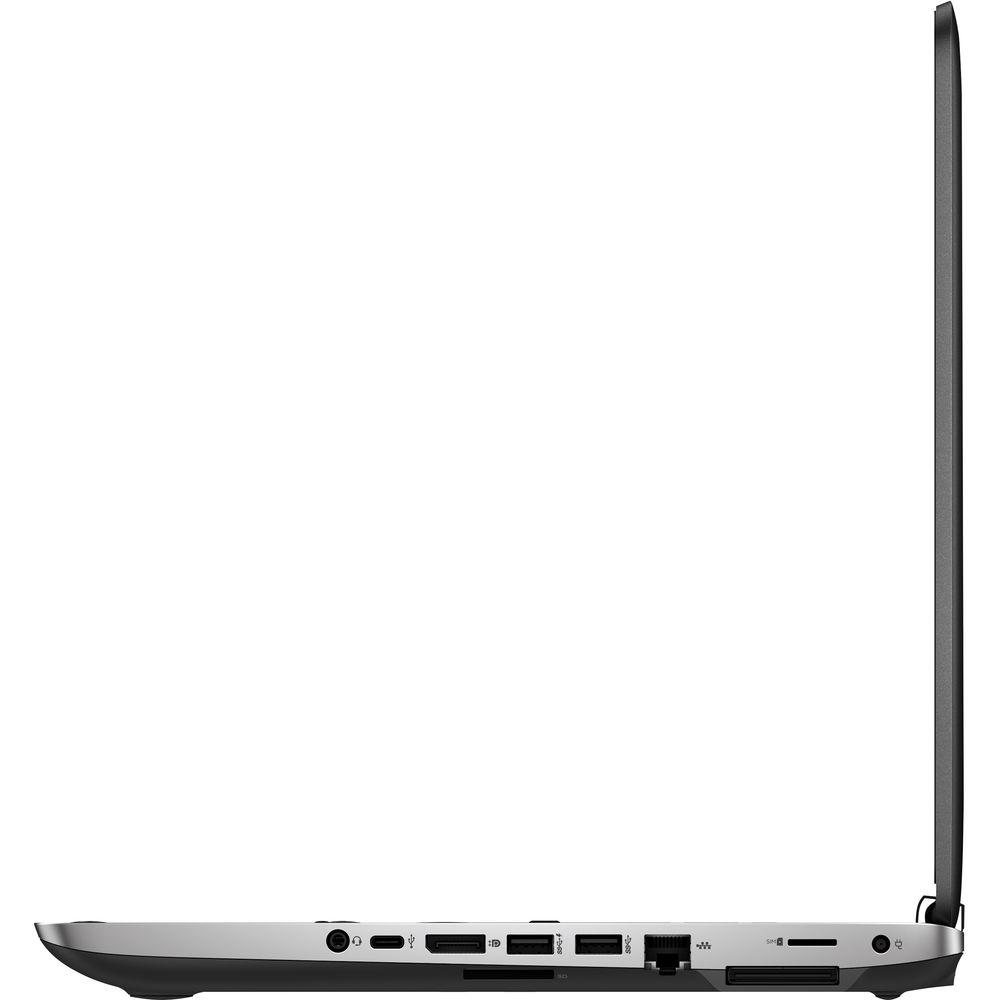

- The ProBook 650 G2 has one USB 3.0 Type-C port and two USB 3.0 Type-A ports that operate at speeds up to 5 Gb/s. These may be used for connecting external peripherals such as external storage, optical drives, card readers, printers, and more. One of the USB 3.0 Type-A ports also doubles as a charging port. USB Type-C is a reversible-plug connector for USB devices and USB cabling and uses a different connector than USB Type-A
- SuperMulti DVD Burner
- The 9.5mm SuperMulti DVD Burner uses a SATA connection and supports a variety of optical DVD and CD media, including DVD±RW
- Up to 16GB RAM
- While the memory configuration of this system is 1 x 8GB module, the ProBook 650 G2 is able to support up to 16GB of RAM when an 8GB module is used in each of its 260-pin SO-DIMM memory slots
- Gigabit Ethernet & 802.11ac Wi-Fi
- The ProBook 650 G2 connects to the Internet using a Realtek RTL8111HSH Gigabit Ethernet adapter or Intel Dual Band Wireless-AC 8260 802.11a/b/g/n (2x2) Wi-Fi
- Bluetooth 4.2
- Bluetooth-compatible peripherals, such as keyboards, mice, and headsets may be connected using Bluetooth 4.2 technology
- DisplayPort 1.2 & VGA Video Output
- The ProBook 650 G2 is able to utilize external displays at resolutions up to 2560 x 1600 @ 60 Hz with a 30-bit color depth and Full HD 1920 x 1080 @ 120 Hz with a 24-bit color depth using the built-in DisplayPort 1.2 output, as well as resolutions up to 1920 x 1200 @ 60 Hz using the VGA port
- Multiple Display Support
- When paired with the separately sold HP Advanced Docking Station, this system is able to support up to three simultaneous displays
- SD Card Reader
- A built-in SD card reader supports SD, SDHC, and SDXC cards
- 3-cell / 48Wh Lithium-ion Prismatic Battery
- The 3-cell / 48Wh Lithium-ion prismatic battery lasts up for up to 10.25 hours before recharging is required
- Security Management
- HP Client Security
HP BIOSphere
Optional Self-Encrypting or FIPS Certified Storage Drives
Security lock slot (lock must be purchased separately)
TPM 1.2
Integrated smart card reader (active)
Pre-boot Authentication (password, Smart Card) - Windows 7 Professional + Windows 10 Professional
- This system is pre-installed with Windows 7 Professional (64-bit) and also comes with a license and media for Windows 10 Professional (64-bit) software. You may only use one version of the Windows software at a time. Switching between versions will require you to uninstall one version and install the other version. You must back up all data (files, photos, etc) before uninstalling and installing operating systems to avoid loss of your data
In the Box HP 15.6" ProBook 650 G2 Laptop Smart AC Adapter Power Cord Windows 7 Professional (32 & 64-bit) Recovery Media Windows 10 Professional (64-bit) License and Media Limited 3-Year Parts & Labor Warranty Guides & Manuals More from Manufacturer Table of Contents
|
Upload User Manual
Have you got an user manual for the HP 15.6" ProBook 650 G2 Laptop in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Download User ManualThe user manual for the HP 15.6" ProBook 650 G2 Laptop can be downloaded in PDF format at the link stated below.
Technical parametersHP 650 G2 Specs | | | Processor | Intel Core i5-6300U Dual-Core | | Base Clock Speed | 2.4 GHz | | Maximum Boost Speed | 3.0 GHz | | Total Installed Memory | 8 GB | | Maximum Memory Capacity | 16 GB | | Memory Type | DDR4 SDRAM | | Memory Speed | 2133 MHz | | Available Memory Slots | 2 | | Memory Slot Type | 260-Pin SO-DIMM | | Graphics Type | Integrated | | GPU | Intel HD Graphics 520 | | | | Panel Type | LCD | | Size | 15.6" | | Aspect Ratio | 16:9 | | Native Resolution | 1920 x 1080 | | Finish | Matte | | Maximum Brightness | 300 cd/m2 | | External Resolution | Up to 2560 x 1600 | | | | Available Slots | 1 x 2.5" (7 mm) | | Total Installed Capacity | 500 GB | | Hard Disk Storage | 1 x 500 GB 2.5" SATA (7200 rpm) | | Optical Drive | Tray-Load SuperMulti DVD Burner with Dual Layer Support | | | | Ports | 1 x USB 3.1 Gen 1 Type-C
2 x USB 3.1 Gen 1 Type-A
1 x DE-9 Serial
1 x Docking Connector | | Display | 1 x DisplayPort
1 x VGA | | Audio | 2 x Integrated Speaker
2 x Integrated Microphone
1 x 1/8" (3.5 mm) Headphone/Microphone Combo Jack | | Expansion Slots | 1 x Smart Card | | Media Card Slots | SD/SDHC/SDXC | | | | Network | 1 x 10/100/1000 Mb/s Gigabit Ethernet (RJ45) | | Wi-Fi | Wi-Fi 5 (802.11ac); Dual-Band (2.4 & 5 GHz) | | Bluetooth | Bluetooth 4.2 | | Webcam | User-Facing: 720p | | | | Battery Chemistry | Lithium-Ion | | Watt Hours / Type | 48 Wh | | Cells | 3 | | Maximum Runtime | 9.75 Hours | | | | Operating System | Windows 7 Professional (64-Bit) | | Security | Power-On Password, Kensington Lock Slot, Accepts 3rd Party Security Lock Devices, Infineon TPM Software Professional Package | | Keyboard | Standard Notebook Keyboard (Backlight) | | Pointing Device | TouchPad | | Dimensions (W x H x D) | 14.9 x 10.1 x 1.1" / 37.8 x 25.7 x 2.8 cm | | Weight | 5.1 lb / 2.3 kg (Weight will vary by configuration) | | | | Package Weight | 7.45 lb | | Box Dimensions (LxWxH) | 20.079 x 12.126 x 2.913" |
