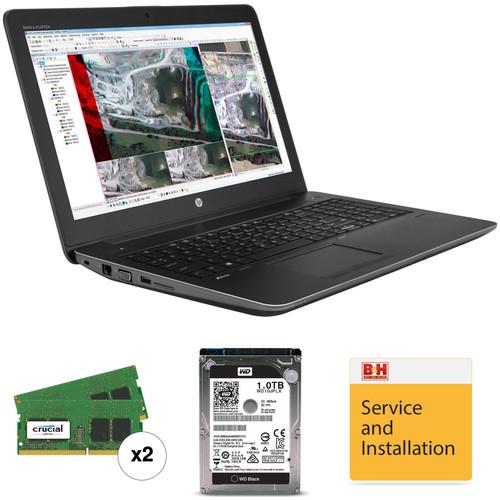

User Manual for HP 15.6" ZBook 15 G3 Custom Mobile Workstation

• Product category: Notebooks HP
• Brand: HP
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for HP Notebooks

Product description

• HP 15.6" ZBook 15 G3 Mobile Workstation Thin at 1.0" and weighing 5.7 lb, the 15.6" ZBook G3 Mobile Workstation from HP is designed for mobile professionals who require a versatile system with powerful processing and graphics as well as simple scalability that can handle a wide variety of functions. The ZBook Studio G3 will help users stay productive, whether they are at home, at the office, or in the field, and it is powered by a 2.8 GHz Intel Xeon E3-1505M v5 Quad-Core processor that allows you to run multiple applications simultaneously. Using Intel Turbo Boost 2.0 technology, the processor is capable of boosting to 3.7 GHz if more power is needed. The 16GB of 2133 MHz DDR4 ECC RAM helps to ensure smooth multitasking and also allows the computer to quickly access frequently-used files and programs. The current memory configuration is 2 x 8GB 260-pin SO-DIMM memory modules with two additional slots that are available for memory upgrades. With all four slots in use, this system can support 64GB, or 16GB per slot.

  The 15.6" UWVA anti-glare display features an Ultra HD 3840 x 2160 native resolution. The Ultra HD display also features IPS technology, LED-backlighting, and a 16:9 aspect ratio. The dedicated NVIDIA Quadro M2000M graphics card has 4GB of discrete GDDR5 RAM and delivers a sharp, clear picture. You'll also be able to output video to an external display at resolutions up to 5120 x 2880 using the system's HDMI and dual Thunderbolt 3 ports.

  For storage of your files, this ZBook G3 is equipped with a 256GB Z Turbo Drive PCIe SSD which offers quick access to your data. While the SSD may not have the larger storage capacity of a traditional spinning disk, it contains no moving parts, which helps it to be more resistant against bumps, drops, and other kinds of damage. SSDs also receive less wear and tear than traditional hard drives, as they never come into contact with read and write heads. Additionally, as this SSD connects via PCIe as compared to SATA, it is able to operate with even greater data transfer speeds. It provides sequential reads up to 2150 MB/s and sequential writes up to 1260 MB/s.

  If you want to add external storage, optical drives, memory card readers, and more, the ZBook Studio G3 offers two USB Type-C connectors that support 40 Gb/s Thunderbolt 3 and 10 Gb/s USB 3.1. There are also two 5 Gb/s USB 3.0 Type-A ports and one USB 3.0 Type-A charging port. Gigabit Ethernet and 802.11ac Wi-Fi are also built-in for wired and wireless networking and Bluetooth 4.2 technology will also allow you to connect additional compatible peripherals. So that content from memory cards may be accessed, a built-in SD/SDHC/SDXC card reader supports UHS-II flash media and lets users download content from their digital camera. Other integrated features include stereo speakers with Bang & Olufsen HD audio.

  The ZBook G3 includes a 150W Slim Smart AC adapter and is also able to operate using an HP Long Life 9-cell / 90Wh Lithium-ion polymer battery that can last for up to 15.75 hours before recharging is required. The installed operating system is Windows 10 Pro (64-bit).

  Photo is an authorized HP reseller with professional in-house technicians available for upgrades & installations on these workstations and laptops. Built with power and speed in mind, the Z Series is designed to enhance audio and video post-production workflows and more. Each HP Z series workstation or laptop features a range of top-tier processors and large RAM loadouts. The workstations are built with graphics flexibility in mind as well so that the end consumer can configure the graphics options to their needs, and each unit includes a 3/3/3 warranty – 3-year limited warranty for parts, 3-year limited warranty for labor, and 3 years of repairs performed at customer site for those parts not eligible for Customer Self Repair (CSR). For 24/7 customer service, please call 1-866-625-1175.

  General Features

  Thunderbolt 3
  • The two USB Type-C ports of the ZBook G3 support Thunderbolt 3 connectivity, which features bi-directional transfer speeds of up to 40 Gb/s. Thunderbolt 3 also supports DisplayPort 1.2, 10 Gb/s USB 3.1, and PCIe Gen 3 devices, all using the USB Type-C connector
  DisplayPort 1.2 Protocol Features Supported via Thunderbolt 3
  • Legacy displays (HDMI, DVI, VGA) may be attached to Thunderbolt port with the use of a certified dongle
  • DisplayPort monitors capable of supporting DisplayPort 1.2 may be directly attached to the Thunderbolt port to achieve HBR2 with the use a dongle
  • Thunderbolt 3 enabled monitors may be directly attached to the Thunderbolt port to achieve HBR2 and MST
  • DisplayPort 1.2 MST (daisy-chain feature) is supported through the Thunderbolt 3 port on Thunderbolt 3 enabled devices or DisplayPort 1.2 monitors (requires a monitor with DisplayPort 1.2 MST capability) with the use of a dongle
  • Up to 2 streams (eight lanes) of DisplayPort 1.2 are supported over a single Thunderbolt 3 port. Up to two 4K displays 24/30-bit color depth at 60 Hz or one 5K display is supported over a single Thunderbolt 3 port. (Requires an Intel certified Thunderbolt cable)
  • DisplayPort 1.2 w/MST (Multi-stream Transport): Supports resolutions up to Full 4K, 24/30-bit color depth at 60 Hz, and WUXGA (1920 x 1200) monitors, 24/30-bit color depth at 120 Hz
  Multi-Display Support
  • The ZBook G3 supports multiple displays in several configurations. Using Thunderbolt 3, hybrid graphics, and the separately sold ZBook Dock, up to five independent displays are supported. If a system uses integrated graphics instead of hybrid, it will support up to three displays. Using Thunderbolt 3, hybrid or integrated graphics, and no ZBook Dock, up to three independent displays are supported. When using hybrid graphics and DisplayPort 1.2 Multi-stream Transport (MST) technology built into a display or hub, the ZBook G3 will support up to five displays without a docking station
  Gigabit Ethernet & 802.11ac Wi-Fi
  • The system uses an integrated Intel I219-LM Gigabit Ethernet controller for Internet access when connected to a router, modem, or network switch. It also features Intel Dual Band Wireless-AC 8260 which is compatible with 802.11a/b/g/n/ac Wi-Fi so that users may access network connectivity using wireless technology
  Bluetooth 4.2
  • Dual mode Bluetooth 4.2 enables BR/EDR-Low Energy devices to act as a Bluetooth Smart Ready Hub and Bluetooth Smart peripherals at the same time. Bluetooth 4.2 connects to low energy products as well as familiar devices such as keyboards, headsets, mice, and more
  UPC: 193015126213
• 2 x Crucial 16GB DDR4 2400 MHz SO-DIMM Memory Kit (2 x 8GB) Upgrade the memory in your compatible system using the 16GB DDR4 2400 MHz SO-DIMM Memory Kit from Crucial. This memory kit features a capacity of 16GB, which comes in a configuration of 2 x 8GB, a clock speed of 2400 MHz (PC4-19200), a 260-pin SO-DIMM form factor, operates using 1.2V, and has a CAS latency of 17. Additionally, this RAM is not buffered and does not support ECC technology. Adding more memory to your system will help boost its capabilities, including improving system performance and application responsiveness. Start-up times will be improved with fewer delays during routine operations, and more programs will be able to run simultaneously with easier switching between them. This memory is protected by a limited lifetime warranty.

  General Features

  • Helps increase bandwidth, reduce power consumption, and extend battery life
  • Faster burst access speeds for improved sequential data throughput
  UPC: 649528776341
• WD 1TB WD Black Mobile OEM Hard Drive (WD10JPLX) With a 2.5" form factor, the 1TB WD Black Mobile OEM Hard Drive from WD is designed to suit the needs of both creative professionals and gamers. Whether this drive is used in an all-in-one computer or a notebook users benefit from a SATA 6 Gb/s interface along with a 7200 rpm rotational speed for optimal performance. The WD Black mobile hard drive is designed for a variety of high performance applications from photo and video editing to gaming as it comes equipped with 32MB cache memory for faster load and data access times.
  Maximum Performance
  • Performance enhancing features deliver the speed you need for demanding applications such as photo and video editing and Internet gaming.
  No Compromises
  • High performance, high capacity, and high reliability
  Dual Processor and Rock-Solid Mechanical Architecture
  • Twice the processing power to maximize performance
  Dynamic Cache
  • WD's dynamic caching algorithm improves performance in real time by optimizing cache allocation between reads and writes. For example, if there is an overwhelming percentage of read traffic as opposed to write traffic, the drive automatically allocates more cache for read data, which reduces congestion and improves overall drive performance.
  Available SATA 6 Gb/s Interface
  • The SATA 6 Gb/s interface provides backwards compatibility to legacy systems with SATA 3 Gb/s requirements.
  NoTouch Ramp Load Technology
  • The recording head never touches the disk media ensuring significantly less wear to the recording head and media as well as better drive protection in transit.
  Tested for Compatibility
  • Tests are performed on hundreds of systems and platforms in the FIT Lab to check that this drive will work in any system.
  UPC: 718037846729
• Photo Video Computer Component Upgrade Installation Select Computer Component Upgrade Installation while purchasing your computer and will install computer components for you. The installation is done by a certified technician from the 's Computer Service Center. The technician will install your computer components in compliance with the original manufacturer's warranty. This will ensure that your computer and its components are still covered after installation. Note: This service does not include software installation.
  Certified Technician
  • The installation will be done by a certified technician. The technician will adhere to the original manufacturer's warranty to ensure that all computer components are installed safely and without voiding the warranty.
  Expert Testing
  • The technician will also test the computer to ensure all installed components are working correctly.

• 2 x Crucial - 16GB DDR4 2400 MHz SO-DIMM Memory Kit (2 x 8GB) asebsuzztqfzwaxauyftxfzs

• WD - 1TB WD Black Mobile OEM Hard Drive (WD10JPLX)

• B&H Photo Video - Computer Component Upgrade Installation

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• HP 15.6" ZBook 15 G3 Mobile Workstation

  Operating System

  Windows 10 Pro (64-Bit)

  CPU	2.8 GHz Intel Xeon E3-1505M Quad-Core
  Maximum Boost Speed	3.7 GHz
  Memory Type	2133 MHz DDR4
  Total Installed Memory	16 GB
  Maximum Memory Capacity	64 GB
  Memory Slot Type	260-Pin SO-DIMM
  Available Memory Slots	2
  Buffered Memory	No
  ECC Memory	Yes
  Graphics Type	Dedicated
  GPU	NVIDIA Quadro M2000M with 4 GB GDDR5 VRAM

  Panel Type	IPS
  Size	15.6"
  Aspect Ratio	16:9
  Resolution	3840 x 2160
  Touchscreen	No
  Finish	Matte
  Maximum Brightness	270 cd/m2
  Refresh Rate	60 Hz
  Adaptive Sync Technology	None
  Viewing Angle (H x V)	170 x 170°

  2.5" Slots	1 x 7 mm (Available)
  SSD Slots	1 x M.2 (Available)
  Total Installed Capacity	256 GB
  Solid State Storage	1 x 256 GB M.2 NVMe PCIe
  Expansion Slots	1 x Smart Card
  Optical Drive	None

  Ports	3 x USB Type-A (USB 3.1 Gen 1)
  USB Type-C Ports	2 x Thunderbolt 3 (Supports DisplayPort)
  Display	1 x HDMI 1.4 1 x VGA
  Audio	1 x 1/8" / 3.5 mm Headphone/Microphone Input/Output
  Built-In Speakers	2
  Built-In Microphones	2
  Media Card Slots	None

  Ethernet	1 x RJ45 (Gigabit)
  Wi-Fi	Wi-Fi 5 (802.11ac); Dual-Band (2.4 & 5 GHz)
  MU-MIMO Support	2 x 2
  Bluetooth	4.2
  GPS	None
  NFC	None
  Webcam	None

  Battery Chemistry	Lithium-Ion Polymer (LiPo)
  Watt Hours / Type	90 Wh Non-Removable
  Cells	9
  Output Voltage	11.4 VDC
  Maximum Runtime	15.75 Hours

  Keyboard	100-Key Full-Size Keyboard with Backlight and Number Pad
  Pointing Device	TouchPad

  Security	Power-On Password, Kensington Lock Slot, Accepts 3rd Party Security Lock Devices, Infineon TPM Software Professional Package, Fingerprint Reader
  Power Supply	150 W
  AC Input Power	100 to 240 VAC, 50 / 60 Hz
  Dimensions	15.2 x 10.4 x 1" / 386.1 x 264.2 x 25.4 mm
  Weight	5.7 lb / 2.6 kg Starting Weight

  Box Dimensions (LxWxH)	22.0 x 12.0 x 3.0"

• 2 x Crucial 16GB DDR4 2400 MHz SO-DIMM Memory Kit (2 x 8GB)

  Capacity	16 GB
  Kit Configuration	2 x 8 GB
  Speed	PC4-19200 (2400 MHz)
  Memory Type	DDR4
  DIMM Type	260-Pin SO-DIMM
  Buffered/Registered	No
  Error Correction (ECC)	Non-ECC
  Voltage	1.2 V
  CAS Latency	CL17
  Memory Rank	Single Rank

  Box Dimensions (LxWxH)	6.8 x 1.9 x 1.1"

• WD 1TB WD Black Mobile OEM Hard Drive (WD10JPLX)

  Drive Capacity	1.0 TB
  Cache Memory	32 MB

  Interface	SATA III (6 Gb/s)
  Maximum Read Speed	115 MB/s
  Maximum Write Speed	115 MB/s

  Drive Type	HDD
  Form Factor	2.5"
  Noise Level	27.0 dB (Active) 25.0 dB (Idle)

  Spindle Speed (RPM)	7200 RPM

  Load/Unload Cycles	600,000
  Non-Recoverable Read Errors per Bits Read	< 1 in 10

  Power Draw	1.8 W (Active) 0.8 W (Idle) 0.2 W (Standby)
  Current	1.1 A at 5 VDC

  Operating Shock	400 G / 2.0 ms
  Storage Shock	1000 G / 2.0 ms
  Operating Temperature	32 to 140°F / 0 to 60°C
  Storage Temperature	-40 to 158°F / -40 to 70°C

  Dimensions (W x H x D)	0.4 x 3.9 x 2.8" / 9.5 x 100.2 x 69.8 mm
  Weight	0.2 lb / 0.1 kg

  Box Dimensions (LxWxH)	8.74 x 6.142 x 2.913"

• Photo Video Computer Component Upgrade Installation

  Box Dimensions (LxWxH)	1.0 x 1.0 x 1.0"
