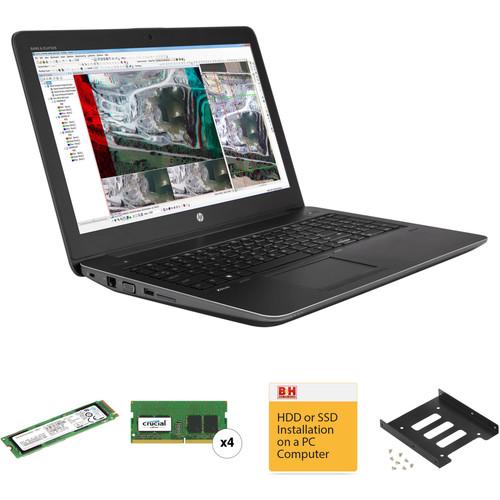

User Manual for HP 15.6" ZBook 15 G3 Mobile Turnkey Workstation with 64GB RAM and 512GB SSD

• Product category: Mobile Workstations HP
• Brand: HP
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for HP Mobile Workstations

Product description

• HP 15.6" ZBook 15 G3 Mobile Workstation Thin at 1.0" and weighing 5.7 lb, the 15.6" ZBook 15 G3 Mobile Workstation from HP is designed for mobile professionals who require a versatile system with powerful processing and graphics as well as simple scalability that can handle a wide variety of functions. The ZBook Studio G3 will help users stay productive, whether they are at home, at the office, or in the field, and it is powered by a 2.6 GHz Intel Core i7-6700HQ Quad-Core processor that allows you to run multiple applications simultaneously. Using Intel Turbo Boost 2.0 technology, the processor is capable of boosting to 3.5 GHz if more power is needed. The 8GB of 2133 MHz DDR4 RAM helps to ensure smooth multitasking and also allows the computer to quickly access frequently-used files and programs. The current memory configuration is 1 x 8GB SODIMM memory module with three additional slots that are available for memory upgrades. With all four slots in use, this system can support 64GB, or 16GB per slot.

  The 15.6" anti-glare display features a Full HD 1920 x 1080 native resolution. The Full HD display also features LED-backlighting and a 16:9 aspect ratio. The dedicated NVIDIA Quadro M1000M graphics card has 2GB of discrete GDDR5 RAM and delivers a sharp, clear picture. You'll also be able to output video to an external display at resolutions up to 5120 x 2880 using the system's HDMI and dual Thunderbolt 3 ports.

  For storage of your files, this ZBook G3 is equipped with a 1TB 5400 rpm SATA hard drive. If you want to add external storage, optical drives, memory card readers, and more, the ZBook Studio G3 offers two USB Type-C connectors that support 40 Gb/s Thunderbolt 3 and 10 Gb/s USB 3.1. There are also two 5 Gb/s USB 3.0 Type-A ports and one USB 3.0 Type-A charging port. Gigabit Ethernet and 802.11ac Wi-Fi are also built-in for wired and wireless networking and Bluetooth 4.2 technology will also allow you to connect additional compatible peripherals. So that content from memory cards may be accessed, a built-in SD/SDHC/SDXC card reader supports UHS-II flash media and lets users download content from their digital camera. Other integrated features include a 720p webcam, dual-array microphones, and stereo speakers with Bang & Olufsen HD audio.

  The ZBook 15 G3 includes a 150W Slim Smart AC adapter and is also able to operate using an HP Long Life 9-cell / 90Wh Lithium-ion polymer battery. While the installed operating system is Windows 7 Professional (64-bit), a Windows 10 Professional (64-bit) license is included. Also included is Windows 7 Professional (64-bit) recovery media and Windows 10 Professional (64-bit) recovery media.

  Photo is an authorized HP reseller with professional in-house technicians available for upgrades & installations on these workstations and laptops. Built with power and speed in mind, the Z Series is designed to enhance audio and video post-production workflows and more. Each HP Z series workstation or laptop features a range of top-tier processors and large RAM loadouts. The workstations are built with graphics flexibility in mind as well so that the end consumer can configure the graphics options to their needs, and each unit includes a 3/3/3 warranty – 3-year limited warranty for parts, 3-year limited warranty for labor, and 3 years of repairs performed at customer site for those parts not eligible for Customer Self Repair (CSR). For 24/7 customer service, please call 1-866-625-1175.
  Thunderbolt 3
  • The two USB Type-C ports of the ZBook G3 support Thunderbolt 3 connectivity, which features bi-directional transfer speeds of up to 40 Gb/s. Thunderbolt 3 also supports DisplayPort 1.2, 10 Gb/s USB 3.1, and PCIe Gen 3 devices, all using the USB Type-C connector
  DisplayPort 1.2 Protocol Features Supported via Thunderbolt 3
  • Legacy displays (HDMI, DVI, VGA) may be attached to Thunderbolt port with the use of a certified dongle
  • DisplayPort monitors capable of supporting DisplayPort 1.2 may be directly attached to the Thunderbolt port to achieve HBR2 with the use a dongle
  • Thunderbolt 3 enabled monitors may be directly attached to the Thunderbolt port to achieve HBR2 and MST
  • DisplayPort 1.2 MST (daisy-chain feature) is supported through the Thunderbolt 3 port on Thunderbolt 3 enabled devices or DisplayPort 1.2 monitors (requires a monitor with DisplayPort 1.2 MST capability) with the use of a dongle
  • Up to 2 streams (eight lanes) of DisplayPort 1.2 are supported over a single Thunderbolt 3 port. Up to two 4K displays 24/30-bit color depth at 60 Hz or one 5K display is supported over a single Thunderbolt 3 port. (Requires an Intel certified Thunderbolt cable)
  • DisplayPort 1.2 w/MST (Multi-stream Transport): Supports resolutions up to Full 4K, 24/30-bit color depth at 60 Hz, and WUXGA (1920 x 1200) monitors, 24/30-bit color depth at 120 Hz
  Multi-Display Support
  • The ZBook G3 supports multiple displays in several configurations. Using Thunderbolt 3, hybrid graphics, and the separately sold ZBook Dock, up to five independent displays are supported. If a system uses integrated graphics instead of hybrid, it will support up to three displays. Using Thunderbolt 3, hybrid or integrated graphics, and no ZBook Dock, up to three independent displays are supported. When using hybrid graphics and DisplayPort 1.2 Multi-stream Transport (MST) technology built into a display or hub, the ZBook G3 will support up to five displays without a docking station
  Gigabit Ethernet & 802.11ac Wi-Fi
  • The system uses an integrated Intel I219-LM Gigabit Ethernet controller for Internet access when connected to a router, modem, or network switch. It also features Intel Dual Band Wireless-AC 8260 which is compatible with 802.11a/b/g/n/ac Wi-Fi so that users may access network connectivity using wireless technology
  Bluetooth 4.2
  • Dual mode Bluetooth 4.2 enables BR/EDR-Low Energy devices to act as a Bluetooth Smart Ready Hub and Bluetooth Smart peripherals at the same time. Bluetooth 4.2 connects to low energy products as well as familiar devices such as keyboards, headsets, mice, and more
  UPC: 889899048542
• HP 512GB Z Turbo Drive PCIe M.2 Internal SSD The 512GB Z Turbo Drive PCIe M.2 Internal SSD from HP provides users with 512GB of storage for their compatible system. This SSD utilizes MLC NAND, an M.2 2280 form factor, a PCIe Gen 3.0 x4 interface, and can achieve maximum sequential write speeds of up to 1,600 MB/s and maximum sequential read speeds of up to 2,260 MB/s. When compared to a SATA SSD, its PCIe interface allows it to operate with faster data transfer speeds.

  General Features

  • ATA Security
  • TRIM
  • L1.2
  UPC: 889899874189
• 4 x Crucial 16GB DDR4 2400 MHz SO-DIMM Memory Module The 16GB DDR4 2400 MHz SO-DIMM Memory Module from Crucial provides a capacity of 16GB for notebooks as well as most NUCs. This RAM chip is compatible with systems that have a 260-pin slot and support non-ECC, unbuffered DDR4 memory. It features a CAS latency of 17 and a speed of 2400 MHz. With more memory, the computer can better handle demanding applications as well as run multiple programs at the same time. In addition, it operates at 1.2V and offers other energy features to reduce power consumption.
  Energy Efficient
  • Operating at just 1.2V, Crucial DDR4 SO-DIMMs consume 20% less voltage than standard DDR3 memory. These memory modules also have other efficiency features to reduce power consumption
  Performance
  • This memory module features a speed of 2400 MHz, so demanding programs can run without lag. To handle more data at once, it has a bandwidth of PC4-19200 that enables your system to effortlessly multitask between apps
  UPC: 649528773401
• Pearstone 2.5" to 3.5" Hard Drive Adapter Bracket The 2.5" to 3.5" Hard Drive Adapter Bracket from Pearstone is designed to fit a 2.5" drive into a 3.5" drive bay. Use it to install a solid-state drive or a laptop drive into a desktop computer for extra storage. UPC: 847628007062

• 15.6" ZBook 15 G3 Mobile Workstation sutxscetzbxbtctezvyxvzsscyeadbt
• 150W Slim Smart AC Adapter
• 9-cell / 90Wh Long Life Lithium-ion Polymer Battery
• Windows 10 Professional (64-bit) License & Recovery Media
• Windows 7 Professional (64-bit) Recovery Media
• Limited 3-Year Warranty for Parts
• Limited 3-Year Warranty for Labor
• 3 Years of Repairs Performed at Customer Site for Those Parts Not Eligible for Customer Self Repair (CSR)
• For 24/7 Customer Service, Please Call 1-866-625-1175

• 512GB Z Turbo Drive PCIe M.2 Internal SSD

• 4 x Crucial - 16GB DDR4 2400 MHz SO-DIMM Memory Module

• B&H Photo Video - Install HD or SSD into PC with System Copy sutxscetzbxbtctezvyxvzsscyeadbt

• Pearstone - 2.5" to 3.5" Hard Drive Adapter Bracket

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• HP 15.6" ZBook 15 G3 Mobile Workstation

  Operating System

  Windows 7 Professional (64-Bit)

  CPU	2.6 GHz Intel Core i7-6700HQ Quad-Core
  Maximum Boost Speed	3.5 GHz
  Memory Type	2133 MHz DDR4
  Total Installed Memory	8 GB
  Maximum Memory Capacity	64 GB
  Memory Slot Type	260-Pin SO-DIMM
  Available Memory Slots	4
  Graphics Type	Dedicated
  GPU	NVIDIA Quadro M1000M with 2 GB GDDR5 VRAM

  Panel Type	Unspecified LCD
  Size	15.6"
  Aspect Ratio	16:9
  Resolution	1920 x 1080
  Touchscreen	No
  Finish	Matte
  Refresh Rate	60 Hz
  Adaptive Sync Technology	None

  Total Installed Capacity	1 TB
  Hard Disk Storage	1 x 1 TB 2.5" SATA (5400 rpm)
  Optical Drive	None

  Ports	3 x USB Type-A (USB 3.1 Gen 1)
  USB Type-C Ports	2 x Thunderbolt 3 (Supports DisplayPort)
  Display	1 x HDMI 1 x VGA
  Audio	1 x 1/8" / 3.5 mm Headphone/Microphone Input/Output
  Built-In Speakers	2
  Built-In Microphones	2
  Media Card Slots	1 x SDXC

  Ethernet	1 x RJ45 (Gigabit)
  Wi-Fi	Wi-Fi 5 (802.11ac); Dual-Band (2.4 & 5 GHz)
  Bluetooth	4.2
  GPS	None
  NFC	No
  Webcam	User-Facing: 720p

  Battery Chemistry	Lithium-Ion Polymer (LiPo)
  Watt Hours / Type	90 Wh Removable
  Cells	9

  Keyboard	100-Key Full-Size Keyboard with Backlight and Number Pad
  Pointing Device	TouchPad

  Security	Power-On Password, Kensington Lock Slot, Accepts 3rd Party Security Lock Devices, Infineon TPM Software Professional Package, Fingerprint Reader
  Power Supply	150 W
  Dimensions	15.2 x 10.4 x 1" / 386.1 x 264.2 x 25.4 mm
  Weight	5.7 lb / 2.6 kg Starting Weight

  Box Dimensions (LxWxH)	21.9 x 12.1 x 2.9"

• HP 512GB Z Turbo Drive PCIe M.2 Internal SSD

  Drive Capacity	512.00 GB
  Cache Memory	None

  Interface	PCIe 3.0 x4
  Sequential Read Speed	2260 MB/s
  Sequential Write Speed	1600 MB/s

  Drive Type	SSD
  Form Factor	M.2 2280

  Flash Memory Type	Multi-Level Cell (MLC)

  Operating Temperature	32 to 158°F / 0 to 70°C

  Weight	0.4 oz / 10 g

  Box Dimensions (LxWxH)	9.2 x 9.0 x 0.7"

• 4 x Crucial 16GB DDR4 2400 MHz SO-DIMM Memory Module

  Capacity	16 GB
  Speed	PC4-19200 (2400 MHz)
  Memory Type	DDR4
  DIMM Type	260-Pin SO-DIMM
  Buffered/Registered	No
  Error Correction (ECC)	Non-ECC
  Voltage	1.2 V
  CAS Latency	CL17
  Memory Rank	Dual Rank

  Box Dimensions (LxWxH)	6.6 x 1.8 x 0.5"

• Pearstone 2.5" to 3.5" Hard Drive Adapter Bracket

  Drive Bays Supported	3.5"
  Drives Supported	2.5"
  Dimensions	Not Specified by Manufacturer
  Weight	Not Specified by Manufacturer

  Box Dimensions (LxWxH)	4.6 x 4.3 x 0.8"
