User Manual for HP 15.6" ZBook 15 G3 Mobile Workstation Click to enlarge the picture
Contents of the user manual for the HP 15.6" ZBook 15 G3 Mobile
- Product category: Mobile Workstations HP
- Brand: HP
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for HP Mobile Workstations
 |
User manual for the HP 15.6" ZBook 15 G3 Mobile contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any HP product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official HP user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a HP product will considerably shorten its lifespan!
|

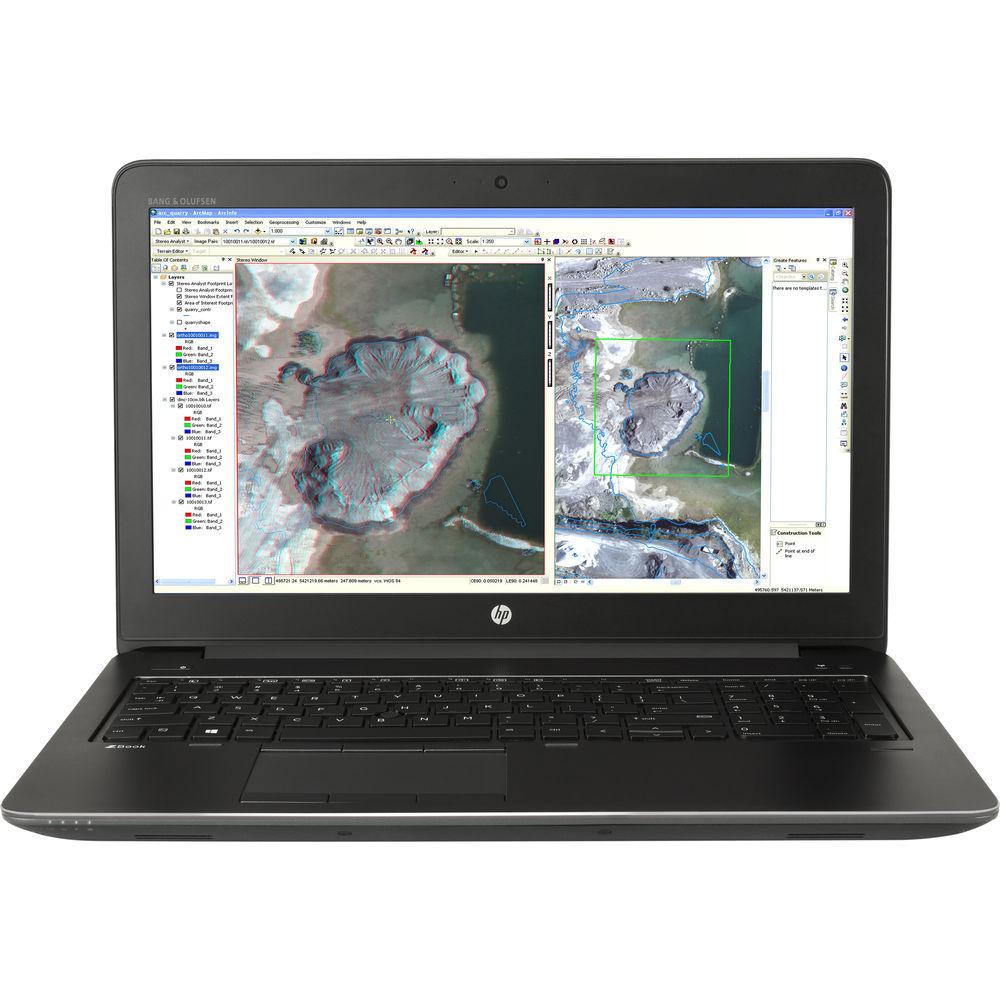

Product description Work Laptops Thin at 1.0" and weighing 5.7 lb, the 15.6" ZBook 15 G3 Mobile Workstation from HP is designed for mobile professionals who require a versatile system with powerful processing and graphics as well as simple scalability that can handle a wide variety of functions. The ZBook Studio G3 will help users stay productive, whether they are at home, at the office, or in the field, and it is powered by a 2.7 GHz Intel Core i7-6820HQ Quad-Core processor that allows you to run multiple applications simultaneously. Using Intel Turbo Boost 2.0 technology, the processor is capable of boosting to 3.6 GHz if more power is needed. The 16GB of 2133 MHz DDR4 RAM helps to ensure smooth multitasking and also allows the computer to quickly access frequently-used files and programs. The current memory configuration is 2 x 8GB 260-pin SO-DIMM memory modules with two additional slots available for memory upgrades. With all four slots in use, this system can support 64GB, or 16GB per slot.
The 15.6" Dreamcolor display features an Ultra HD 3840 x 2160 screen resolution that is equipped with IPS technology, an anti-glare finish, LED-backlighting, an ultra-wide viewing angle (UWVA), and a 16:9 aspect ratio. The dedicated NVIDIA Quadro M2000M graphics card has 4GB of discrete GDDR5 RAM and delivers a sharp, clear picture. You'll also be able to output video to an external display at resolutions up to 5120 x 2880 using the system's HDMI and dual Thunderbolt 3 ports, the latter of which supports DisplayPort 1.2.
For long term storage of your files, this ZBook 15 G3 is equipped with a 256GB Z Turbo Drive PCIe SSD, which offers quick access to your data. While the SSD may not have the larger storage capacity of a traditional spinning hard drive, it contains no moving parts which helps it to be more resistant against bumps, drops, and other kinds of damage. SSDs also receive less wear and tear than traditional hard drives, as they don't have any read and write heads. Additionally, as this SSD connects via PCIe as compared to SATA, it is able to operate with even greater data transfer speeds. It provides sequential reads up to 1.08 GB/s and sequential writes up to 800 MB/s.
If you want to add external storage, optical drives, memory card readers, and more, the ZBook Studio G3 offers two USB Type-C connectors that support 40 Gb/s Thunderbolt 3 and 10 Gb/s USB 3.1. There are also two 5 Gb/s USB 3.0 Type-A ports and one USB 3.0 Type-A charging port. Gigabit Ethernet and 802.11ac Wi-Fi are also built-in for wired and wireless networking and Bluetooth 4.2 technology will also allow you to connect additional compatible peripherals. So that content from memory cards may be accessed, a built-in SD/SDHC/SDXC card reader supports UHS-II flash media and lets users download content from their digital camera. Other integrated features include a 720p webcam, dual-array microphones, and stereo speakers with Bang & Olufsen HD audio.
The ZBook 15 G3 includes a 150W Slim Smart AC adapter and is also able to operate using an HP Long Life 9-cell / 90Wh Lithium-ion polymer battery that lasts for up to 15.75 hours before recharging is required. The installed operating system is Windows 10 Professional (64-bit) and also included is Windows 10 Professional (64-bit) recovery media.
Photo is an authorized HP reseller with professional in-house technicians available for upgrades & installations on these workstations and laptops. Built with power and speed in mind, the Z Series is designed to enhance audio and video post-production workflows and more. Each HP Z series workstation or laptop features a range of top-tier processors and large RAM loadouts. The workstations are built with graphics flexibility in mind as well so that the end consumer can configure the graphics options to their needs, and each unit includes a 3/3/3 warranty – 3-year limited warranty for parts, 3-year limited warranty for labor, and 3 years of repairs performed at customer site for those parts not eligible for Customer Self Repair (CSR). For 24/7 customer service, please call 1-866-625-1175. General Features ZBook 15 G3 - Thunderbolt 3
- Thunderbolt 3 is a hardware interface that utilizes the reversible USB Type-C connector. Doubling the speed of its predecessor, Thunderbolt 3 features a maximum throughput of 40 Gb/s when used with compatible devices. The connector also transmits data via USB 3.1 at up to 10 Gb/s, and dual-bandwidth DisplayPort 1.2 allows you to connect up to two 4K displays simultaneously. Additionally, you can daisy chain up to six devices from a single Thunderbolt 3 port
- DisplayPort 1.2 Protocol Features Supported via Thunderbolt 3
-
- Legacy displays (HDMI, DVI, VGA) may be attached to Thunderbolt port with the use of a certified dongle
- DisplayPort monitors capable of supporting DisplayPort 1.2 may be directly attached to the Thunderbolt port to achieve HBR2 with the use a dongle
- Thunderbolt 3 enabled monitors may be directly attached to the Thunderbolt port to achieve HBR2 and MST
- DisplayPort 1.2 MST (daisy-chain feature) is supported through the Thunderbolt 3 port on Thunderbolt 3 enabled devices or DisplayPort 1.2 monitors (requires a monitor with DisplayPort 1.2 MST capability) with the use of a dongle
- Up to 2 streams (eight lanes) of DisplayPort 1.2 are supported over a single Thunderbolt 3 port. Up to two 4K displays 24/30-bit color depth at 60 Hz or one 5K display is supported over a single Thunderbolt 3 port. (Requires an Intel certified Thunderbolt cable)
- DisplayPort 1.2 w/MST (Multi-stream Transport): Supports resolutions up to Full 4K, 24/30-bit color depth at 60 Hz, and WUXGA (1920 x 1200) monitors, 24/30-bit color depth at 120 Hz
- Multi-Display Support
- The ZBook G3 supports multiple displays in several configurations. Using Thunderbolt 3, hybrid graphics, and the separately sold ZBook Dock, up to five independent displays are supported. If a system uses integrated graphics instead of hybrid, it will support up to three displays. Using Thunderbolt 3, hybrid or integrated graphics, and no ZBook Dock, up to three independent displays are supported. When using hybrid graphics and DisplayPort 1.2 Multi-stream Transport (MST) technology built into a display or hub, the ZBook G3 will support up to five displays without a docking station
- Gigabit Ethernet & 802.11ac Wi-Fi
- The system uses an integrated Intel I219-LM Gigabit Ethernet controller for Internet access when connected to a router, modem, or network switch. It also features Intel Dual Band Wireless-AC 8260 which is compatible with 802.11a/b/g/n/ac Wi-Fi so that users may access network connectivity using wireless technology
- Bluetooth 4.2
- Dual mode Bluetooth 4.2 enables BR/EDR-Low Energy devices to act as a Bluetooth Smart Ready Hub and Bluetooth Smart peripherals at the same time. Bluetooth 4.2 connects to low energy products as well as familiar devices such as keyboards, headsets, mice, and more
Windows 10 Professional (64-bit) - Start Menu
- After its hiatus in Windows 8, the Start Menu has returned. Utilizing a combination of the traditional menu system and Windows 8's Live Tiles, the improved Start Menu gives you more information at a glance, showing notification information alongside your applications and other pinned items
- Cortana
- Microsoft's digital personal assistant, Cortana can answer your questions with information gleaned from both your device and the internet at large. You can type or even talk with her, if your system has a microphone. Using her Notebook, Cortana keeps track of your needs and wants, and she learns over time to improve her information gathering skills
- Microsoft Edge
- After nearly 20 years, Microsoft has finally replaced its Internet Explorer web browser. With Microsoft Edge, users can write directly on web pages and share notes with friends and colleagues. It also improves the online reading experience by adding a distraction-free mode and read-it-later functionality. Edge also has built-in Cortana integration; you can have her help you find a restaurant, make a reservation, and pull up directions without leaving your browser
- Windows Store
- For Windows 10, Microsoft has unified the Windows Store. Now, apps for PCs, tablets, and phones will all be accessible from one place. And with support for Universal Apps, one version of an app can work across all your compatible devices automatically
- Windows Continuum
- Windows 10 was designed for a variety of screen sizes and input styles, and with its Continuum feature, it automatically adapts to fit your needs. A Windows 10 tablet on its own requires a touch-centric approach, but attaching a mouse and keyboard will shift everything to a more traditional interface. You can even attach an external monitor to your Windows 10 phone for a near-desktop experience. But it's not just the operating system; Windows Universal Apps take advantage of Continuum as well
- Xbox on Windows 10
- Gaming is a big focus of Windows 10. Xbox integration allows for PC players to match up against Xbox One players on supported games, and if you have an Xbox One, you can even stream compatible titles to your PC. Native support for recording with the new Game DVR feature makes it easy to capture and share your gameplay. The new DirectX12 takes better advantage of multi-core processors, giving games a performance boost, even on older hardware. Windows 10 also features native support for virtual reality headsets, such as the Oculus Rift
- Windows 10 Pro
- The Pro version of Windows 10 includes all of the features of Windows 10 Home plus many designed specifically for businesses users, including Hyper-V virtualization, BitLocker disk encryption, and remote desktop access. Devices will also be able to join domains and the Azure Active Directory, and they can even access a specialized version of the Windows Store featuring custom, company-specific applications
UPC: 190780192498 In the Box HP 15.6" ZBook 15 G3 Mobile Workstation 150W Slim Smart AC Adapter 9-cell / 90Wh Long Life Lithium-ion Polymer Battery Windows 10 Professional (64-bit) Recovery Media Limited 3-Year Warranty for Parts Limited 3-Year Warranty for Labor 3 Years of Repairs Performed at Customer Site for Those Parts Not Eligible for Customer Self Repair (CSR) For 24/7 Customer Service, Please Call 1-866-625-1175 Guides & Manuals More from Manufacturer Table of Contents
|
Upload User Manual
Have you got an user manual for the HP 15.6" ZBook 15 G3 Mobile Workstation in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Download User ManualThe user manual for the HP 15.6" ZBook 15 G3 Mobile Workstation can be downloaded in PDF format at the link stated below.
Technical parametersHP ZBook 15 G3 Specs | Operating System | Windows 10 Pro (64-Bit) | | | | CPU | 2.7 GHz Intel Core i7-6820HQ Quad-Core | | Maximum Boost Speed | 3.6 GHz | | Memory Type | 2133 MHz DDR4 | | Total Installed Memory | 16 GB | | Maximum Memory Capacity | 64 GB | | Memory Slot Type | 260-Pin SO-DIMM | | Available Memory Slots | 4 | | Graphics Type | Dedicated | | GPU | NVIDIA Quadro M2000M with 4 GB GDDR5 VRAM | | | | Panel Type | IPS | | Size | 15.6" | | Aspect Ratio | 16:9 | | Resolution | 3840 x 2160 | | Finish | Matte | | Maximum Brightness | 270 cd/m2 | | Refresh Rate | 60 Hz | | Adaptive Sync Technology | None | | Viewing Angle (H x V) | 85 x 85° | | | | Total Installed Capacity | 256 GB | | Solid State Storage | 1 x 256 GB M.2 PCIe | | Expansion Slots | 1 x Smart Card | | Optical Drive | None | | | | Ports | 3 x USB Type-A (USB 3.1 Gen 1) | | USB Type-C Ports | 2 x Thunderbolt 3 (Supports DisplayPort) | | Display | 1 x HDMI
1 x VGA | | Audio | 1 x 1/8" / 3.5 mm Headphone/Microphone Input/Output | | Built-In Speakers | 2 | | Built-In Microphones | 2 | | Media Card Slots | 1 x SDXC | | | | Ethernet | 1 x RJ45 (Gigabit) | | Wi-Fi | Wi-Fi 5 (802.11ac); Dual-Band (2.4 & 5 GHz) | | Bluetooth | 4.2 | | Webcam | User-Facing: 720p | | | | Battery Chemistry | Lithium-Ion Polymer (LiPo) | | Watt Hours / Type | 90 Wh Removable | | Cells | 9 | | Maximum Runtime | 15.75 Hours | | | | Keyboard | 100-Key Full-Size Keyboard with Backlight and Number Pad | | Pointing Device | TouchPad | | | | Security | Power-On Password, Kensington Lock Slot, Accepts 3rd Party Security Lock Devices, Infineon TPM Software Professional Package, Fingerprint Reader | | Power Supply | 150 W | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | Dimensions | 15.2 x 10.4 x 1" / 386.1 x 264.2 x 25.4 mm | | Weight | 5.8 lb / 2.6 kg Starting Weight | | | | Package Weight | 9.15 lb | | Box Dimensions (LxWxH) | 16.9 x 12.0 x 5.0" |
