Product description

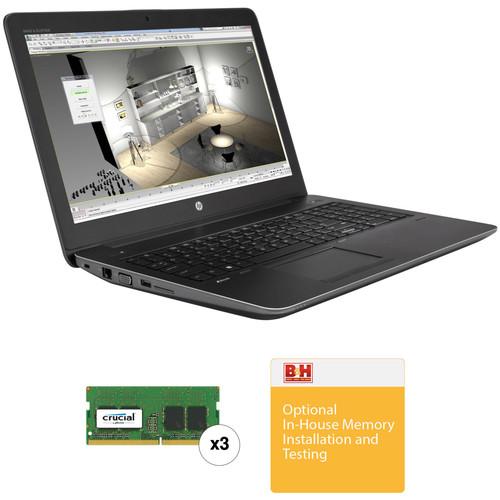

• HP 15.6" ZBook 15 G4 Mobile Workstation Thin at 1.0" and weighing 5.7 lb, the 15.6" ZBook 15 G4 Mobile Workstation from HP has been built for mobile creative and design professionals who need the power of a desktop workstation for demanding projects. It is powered by a 2.8 GHz Intel Core i7-7700HQ Quad-Core processor which allows you to run multiple applications simultaneously. If you need more power, the system can be overclocked to 3.8 GHz using Intel Turbo Boost 2.0 technology. The 8GB of 2400 MHz DDR4 RAM helps to ensure smooth multitasking and also allows the computer to quickly access frequently-used files and programs.

  The 15.6" display features a Full HD 1920 x 1080 screen resolution, an anti-glare finish, LED-backlighting, a 16:9 aspect ratio, a contrast ratio of 400:1, a refresh rate of 60 Hz, a brightness of 300 cd/m², 141 ppi, and standard viewing angles (SVA) of 45/45/35/25°. The dedicated NVIDIA Quadro M1200 graphics card has 4GB of discrete GDDR5 RAM and delivers a sharp, clear picture. You'll also be able to output video to an external display at resolutions up to 5120 x 2880 using the system's HDMI, VGA, and dual Thunderbolt 3 ports, the latter of which supports DisplayPort 1.2.

  For long-term storage of your files, this ZBook 15 G4 is equipped with a 1TB 5400 rpm SATA 2.5" / 7mm hard drive, which offers quick access to your data, and there are two additional M.2 slots if you want to increase the storage capacity. The hard drive provides maximum transfer speeds of 600 MB/s.

  If you want to add external storage, optical drives, memory card readers, and more, the ZBook 15 G4 offers two 40 Gb/s Thunderbolt 3 ports that also support 10 Gb/s USB 3.1 Type-C. There are also two 5 Gb/s USB 3.0 Type-A ports and one USB 3.0 Type-A charging port. Gigabit Ethernet and 802.11ac Wi-Fi are also built-in for wired and wireless networking, and Bluetooth 4.2 technology will also allow you to connect additional compatible peripherals. So that content from memory cards may be accessed, a built-in SD/SDHC/SDXC card reader supports UHS-II flash media and lets users download content from their digital camera. Other integrated features include a 720p webcam, dual-array microphones, and stereo speakers with Bang & Olufsen HD audio.

  The ZBook 15 G4 includes a 150W Slim Smart AC adapter that operates using 100-240 VAC at 47-63 Hz, a power cord, and an HP Long Life 9-cell / 90Wh lithium-ion prismatic battery that can typically be recharged in 3-5 hours and lasts for up to 17.43 hours. The installed operating system is Windows 10 Professional (64-bit) and recovery media is also included.

  Photo is an authorized HP reseller with professional in-house technicians available for upgrades & installations on these workstations and laptops. Built with power and speed in mind, the Z Series is designed to enhance audio and video post-production workflows and more. Each HP Z series workstation or laptop features a range of top-tier processors and large RAM loadouts. The workstations are built with graphics flexibility in mind as well so that the end consumer can configure the graphics options to their needs, and each unit includes a 3/3/3 warranty - 3 years limited warranty for parts, 3 years limited warranty for labor, and 3 years of repairs performed at customer site for those parts not eligible for Customer Self Repair (CSR). For 24/7 customer service, please call 1-866-625-1175.

  General Features

  HP ZBook 15 G4

  Thunderbolt 3
  • Thunderbolt 3 is a hardware interface that utilizes the reversible USB Type-C connector. Doubling the speed of its predecessor, Thunderbolt 3 features a maximum bi-directional throughput of 40 Gb/s when used with compatible devices. The connector also transmits data via USB 3.1 at up to 10 Gb/s, and dual-bandwidth DisplayPort 1.2 allows you to simultaneously connect two 4K displays or one 5K display. Additionally, you can daisy chain up to six devices from a single Thunderbolt 3 port
  DisplayPort 1.2 Protocol Features Supported via Thunderbolt 3
  • Legacy displays (HDMI, DVI, VGA) may be attached to a Thunderbolt port with the use of a certified dongle
  • DisplayPort monitors capable of support DisplayPort 1.2 may be directly attached to the Thunderbolt port to achieve HBR2 with the use of a dongle
  • Thunderbolt 3 enabled monitors may be directly attached to the Thunderbolt port to achieve HBR2 and MST
  • The DisplayPort 1.2 MST feature ("daisy chain" feature) is supported through the Thunderbolt 3 port on Thunderbolt 3 enabled devices or DisplayPort 1.2 monitors (requires a monitor with DisplayPort 1.2 MST capability) with the use of a dongle
  • Up to two streams (eight lanes) of DisplayPort 1.2 are supported over a single Thunderbolt 3 port. Up to two 4K displays with 24/30-bit color depth at 60 Hz or one 5K display are supported over a single Thunderbolt 3 port using an Intel certified Thunderbolt cable
  • DisplayPort 1.2 w/MST (Multi-stream Transport): Supports resolutions up to Full 4K (4096 x 2160), 24/30-bit color depth at 60 Hz, and WUXGA (1920 x 1200) monitors with 24/30-bit color depth at 120 Hz
  Multi-Display Support Using the ZBook Dock with Thunderbolt 3
  • The separately sold ZBook Dock with Thunderbolt 3 has a Thunderbolt 3 port, VGA port, and two DisplayPort 1.2 ports. When used together with the HP ZBook 15 G4 configuration with hybrid graphics, a maximum of 5 independent displays are supported. These five displays are the internal panel plus four external displays connected to the ZBook dock's Thunderbolt 3, VGA, and two DisplayPort ports. When used together with the HP ZBook 15 G4 configuration with Intel integrated graphics, a maximum of three independent displays are supported
  Multi-Display Support Without the ZBook Dock with Thunderbolt 3
  • The HP ZBook 15 G4 with hybrid graphics and without the use of the separately sold ZBook dock supports up to a maximum of three independent displays. These three displays are the internal panel plus two external displays connected to two of the three following ports: HDMI, Thunderbolt 3, and Thunderbolt 3.

    The HP ZBook 15 G4 configuration with Intel integrated graphics and without the use of the ZBook dock supports up to a maximum of three independent displays. These three displays are the internal panel plus two external displays connected to two of the three following ports: HDMI, Thunderbolt 3, and Thunderbolt 3
  Multi-Display Support Without the ZBook Dock with Thunderbolt 3 (using DP 1.2 MST)
  • Multi-stream Transport (MST) is a DP 1.2 feature that allows daisy chaining of DP 1.2 monitors (requires the built-in support of DP 1.2 MST in the monitor), or the use of DP 1.2 hubs with MST to achieve five active displays without a docking station on configurations with hybrid graphics enabled
  Gigabit Ethernet & 802.11ac Wi-Fi
  • The system uses a Gigabit Ethernet controller for Internet access when connected to a router, modem, or network switch. It also features Intel Dual Band Wireless-AC 8260 which is compatible with 802.11a/b/g/n/ac Wi-Fi so that users may access network connectivity using wireless technology
  Bluetooth 4.2
  • Additional compatible peripherals, such as mice, keyboards, headsets, and more may be paired using Bluetooth 4.2 technology
  Webcam
  • HD format (widescreen)
  • Supports videoconferencing and still image capture
  • High quality fixed focus lens
  • Video capture at various resolutions up to 1280 x 720 resolution (720p) and up to 30 fps
  • M-JPEG compression supports higher frame rates for video capture and videoconferencing
  • Improved low light sensitivity
  • Improved dynamic range
  Security Features
  • TPM
    Fingerprint Reader
    Security Lock Slot
  Environmental
  • US ENERGY STAR
    IT ECO declaration
    EPEAT

  Windows 10 Professional (64-bit)

  Start Menu
  • After its hiatus in Windows 8, the Start Menu has returned. Utilizing a combination of the traditional menu system and Windows 8's Live Tiles, the improved Start Menu gives you more information at a glance, showing notification information alongside your applications and other pinned items
  Cortana
  • Microsoft's digital personal assistant, Cortana can answer your questions with information gleaned from both your device and the internet at large. You can type or even talk with her, if your system has a microphone. Using her Notebook, Cortana keeps track of your needs and wants, and she learns over time to improve her information gathering skills
  Microsoft Edge
  • After nearly 20 years, Microsoft has finally replaced its Internet Explorer web browser. With Microsoft Edge, users can write directly on web pages and share notes with friends and colleagues. It also improves the online reading experience by adding a distraction-free mode and read-it-later functionality. Edge also has built-in Cortana integration; you can have her help you find a restaurant, make a reservation, and pull up directions without leaving your browser
  Windows Store
  • For Windows 10, Microsoft has unified the Windows Store. Now, apps for PCs, tablets, and phones will all be accessible from one place. And with support for Universal Apps, one version of an app can work across all your compatible devices automatically
  Windows Continuum
  • Windows 10 was designed for a variety of screen sizes and input styles, and with its Continuum feature, it automatically adapts to fit your needs. A Windows 10 tablet on its own requires a touch-centric approach, but attaching a mouse and keyboard will shift everything to a more traditional interface. You can even attach an external monitor to your Windows 10 phone for a near-desktop experience. But it's not just the operating system; Windows Universal Apps take advantage of Continuum as well
  Xbox on Windows 10
  • Gaming is a big focus of Windows 10. Xbox integration allows for PC players to match up against Xbox One players on supported games, and if you have an Xbox One, you can even stream compatible titles to your PC. Native support for recording with the new Game DVR feature makes it easy to capture and share your gameplay. The new DirectX12 takes better advantage of multi-core processors, giving games a performance boost, even on older hardware. Windows 10 also features native support for virtual reality headsets, such as the Oculus Rift
  Windows 10 Pro
  • The Pro version of Windows 10 includes all of the features of Windows 10 Home plus many designed specifically for businesses users, including Hyper-V virtualization, BitLocker disk encryption, and remote desktop access. Devices will also be able to join domains and the Azure Active Directory, and they can even access a specialized version of the Windows Store featuring custom, company-specific applications
  UPC: 190781697794
• 3 x Crucial 8GB DDR4 2400 MHz SO-DIMM Memory Module Upgrade the memory in your compatible system using the 8GB DDR4 2400 MHz SO-DIMM Memory Module from Crucial. This single memory module features a capacity of 8GB, a clock speed of 2400 MHz (PC4-19200), a 260-pin SO-DIMM form factor, operates using 1.2V, and has a CAS latency of 17. Additionally, this RAM is not buffered and does not support ECC technology. Adding more memory to your system will help boost its capabilities, including improving system performance and application responsiveness. Start-up times will be improved with fewer delays during routine operations, and more programs will be able to run simultaneously with easier switching between them. This memory is protected by a limited lifetime warranty.

  General Features

  • Helps increase bandwidth, reduce power consumption, and extend battery life
  • Faster burst access speeds for improved sequential data throughput
  UPC: 649528776334
• Photo Video In-house Memory Installation & Testing Service Select In-house Additional Computer Memory Installation and Testing when you want B&H to do the installation of additional memory - when purchased on the same order of the computer. The Additional Memory Installation and Testing is done by a certified technician in our Computer Service Center, so that it is assured that the original manufacturer's warranty on the computer continues on throughout the warranty period.This item doesn't include software installation. If you also need software installation use B&H item code # BHWEBPCC. Note: The only warranty on the additional memory is the warranty provided by the manufacturer of the additional memory.
  Certified Technician
  • The install is done by a certified technician who knows the do's and don'ts of installation, so that the manufacturer's original warranty on the computer continues on and doesn't get voided by unwanted moves.
  Expert Testing
  • Testing is done on the computer to check if the system recognizes and allocates the additional memory.
  Get to Work Immediately
  • The Installation and Testing will allow you to start working on your new computer as soon as you get it.

• 3 x Crucial - 8GB DDR4 2400 MHz SO-DIMM Memory Module ufurvqyafutqzqccfb

• B&H Photo Video - In-house Memory Installation & Testing Service

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• HP 15.6" ZBook 15 G4 Mobile Workstation

  Operating System

  Windows 10 Pro (64-Bit)

  Chipset	Intel CM238
  CPU Socket	BGA 1440
  CPU	2.8 GHz Intel Core i7-7700HQ Quad-Core
  Maximum Boost Speed	3.8 GHz
  L3 Cache	6 MB
  Memory Type	2400 MHz DDR4
  Total Installed Memory	8 GB
  Memory Configuration	1 x 8 GB (User-Replaceable)
  Maximum Memory Capacity	64 GB
  Memory Slot Type	260-Pin SO-DIMM
  Available Memory Slots	3
  Graphics Type	Dedicated
  GPU	NVIDIA Quadro M1200 with 4 GB GDDR5 VRAM

  Panel Type	Unspecified LCD
  Size	15.6"
  Aspect Ratio	16:9
  Resolution	1920 x 1080
  Touchscreen	None
  Finish	Matte
  Maximum Brightness	300 cd/m2
  Refresh Rate	60 Hz
  Viewing Angle (H x V)	90 x 60°

  Total Drive Bays	1 x 2.5" (Internal)
  2.5" Slots	1 x 7 mm (In Use)
  SSD Slots	2 x M.2 SATA / PCIe
  Total Installed Capacity	1 TB
  Hard Disk Storage	1 x 1 TB 2.5" SATA (5400 rpm)
  Expansion Slots	1 x Smart Card
  Optical Drive	None

  Ports	3 x USB Type-A (USB 3.1 Gen 1)
  USB Type-C Ports	2 x Thunderbolt 3 (Supports DisplayPort)
  Display	1 x HDMI 1.4 Output 1 x VGA Output
  Audio	1 x 1/8" / 3.5 mm Headphone/Microphone Input/Output
  Built-In Speakers	2 x 2 W
  Built-In Microphones	2
  Media Card Slots	1 x SDXC (UHS-II [312 MB/s])

  Ethernet	1 x RJ45 (Gigabit)
  Wi-Fi	Wi-Fi 5 (802.11ac); Dual-Band (2.4 & 5 GHz)
  MU-MIMO Support	2 x 2
  Bluetooth	4.2
  Webcam	User-Facing: 720p

  Battery Chemistry	Lithium-Ion
  Watt Hours / Type	90 Wh Removable
  Cells	9
  Output Voltage	11.4 VDC
  Maximum Runtime	17.43 Hours

  Keyboard	Notebook Keyboard with Backlight, Number Pad
  Pointing Device	TouchPad

  Security	Kensington Lock Slot, Infineon TPM Software Professional Package, Fingerprint Reader
  Power Supply	150 W
  AC Input Power	100 to 240 VAC, 50 / 60 Hz
  Operating Temperature	32 to 95°F / 0 to 35°C
  Operating Humidity	10 to 90%
  Dimensions	15.2 x 10.4 x 1" / 386.08 x 264.16 x 25.4 mm
  Weight	5.7 lb / 2.6 kg

  Box Dimensions (LxWxH)	22.3 x 12.1 x 2.8"

• 3 x Crucial 8GB DDR4 2400 MHz SO-DIMM Memory Module

  Capacity	8 GB
  Kit Configuration	1 x 8 GB
  Speed	PC4-19200 (2400 MHz)
  Memory Type	DDR4
  DIMM Type	260-Pin SO-DIMM
  Buffered/Registered	No
  Error Correction (ECC)	Non-ECC
  Voltage	1.2 V
  CAS Latency	CL17
  Memory Rank	Single Rank

  Box Dimensions (LxWxH)	6.4 x 1.7 x 0.5"

• Photo Video In-house Memory Installation & Testing Service

  Box Dimensions (LxWxH)	1.0 x 1.0 x 1.0"
