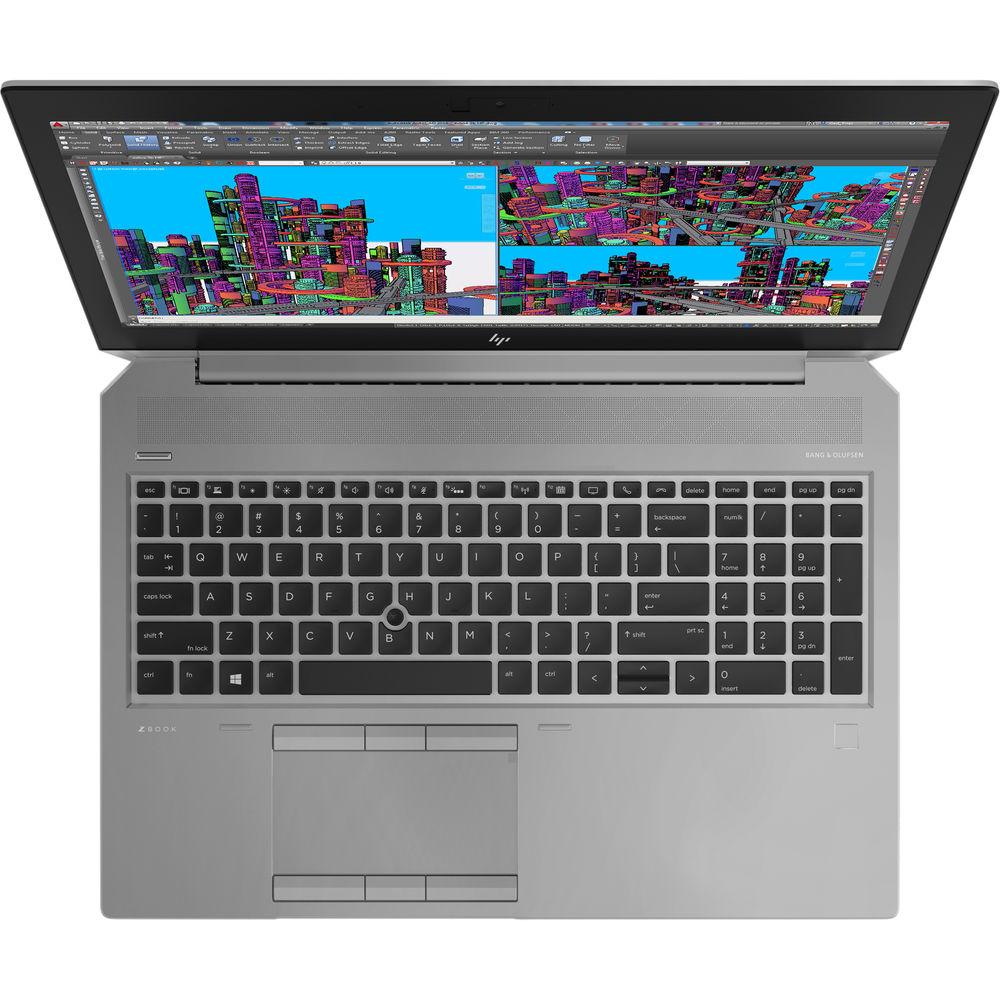

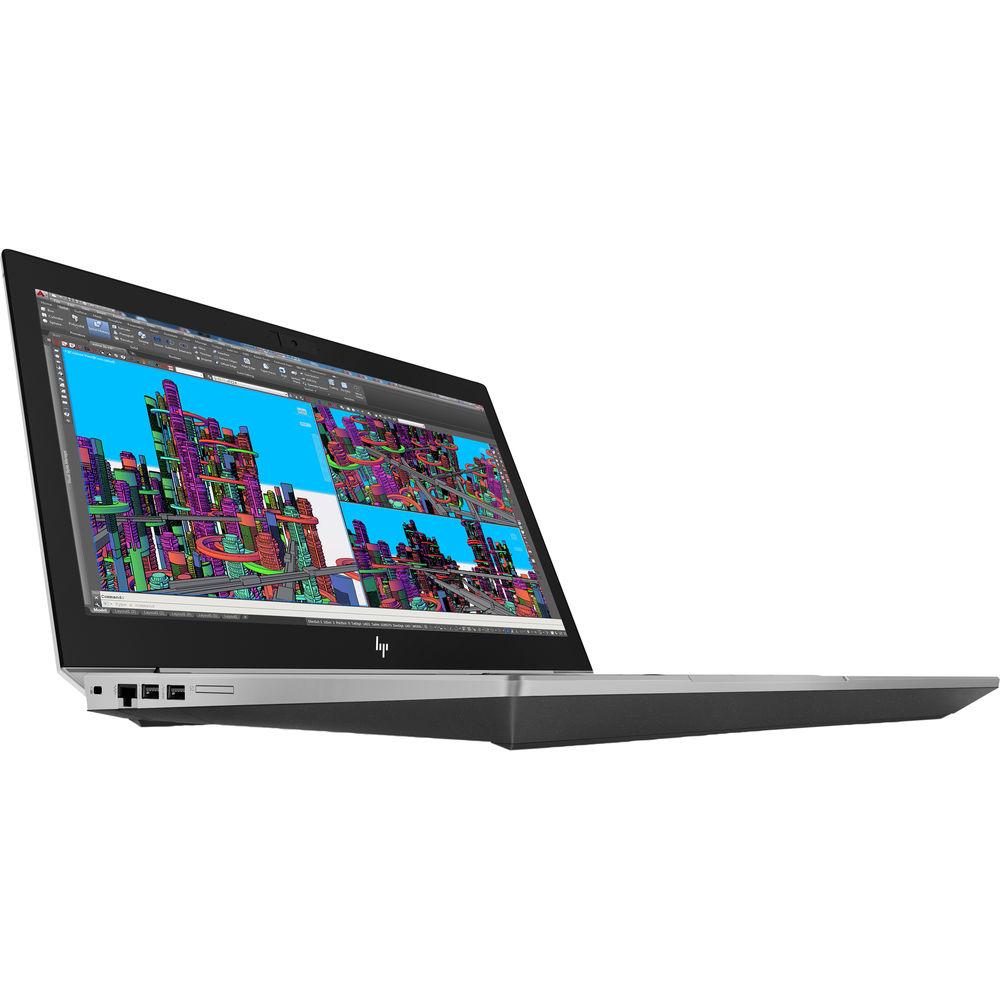

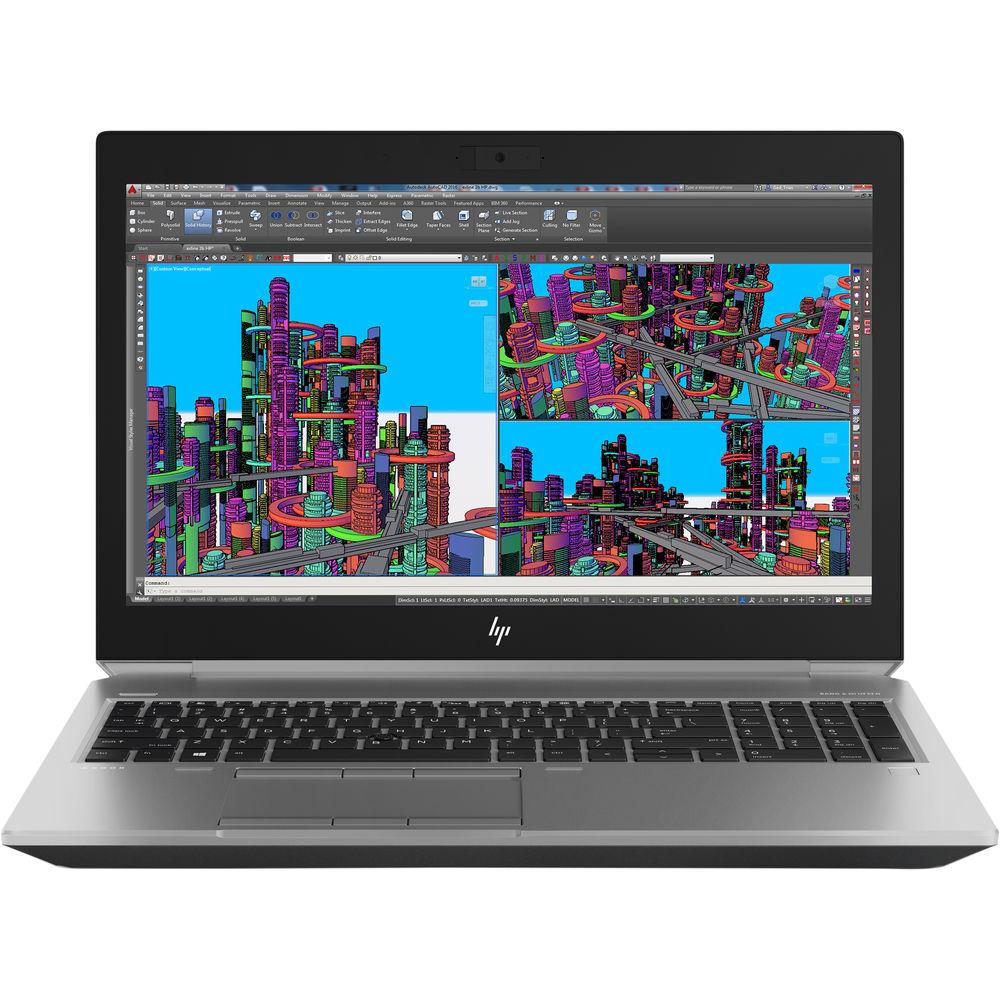

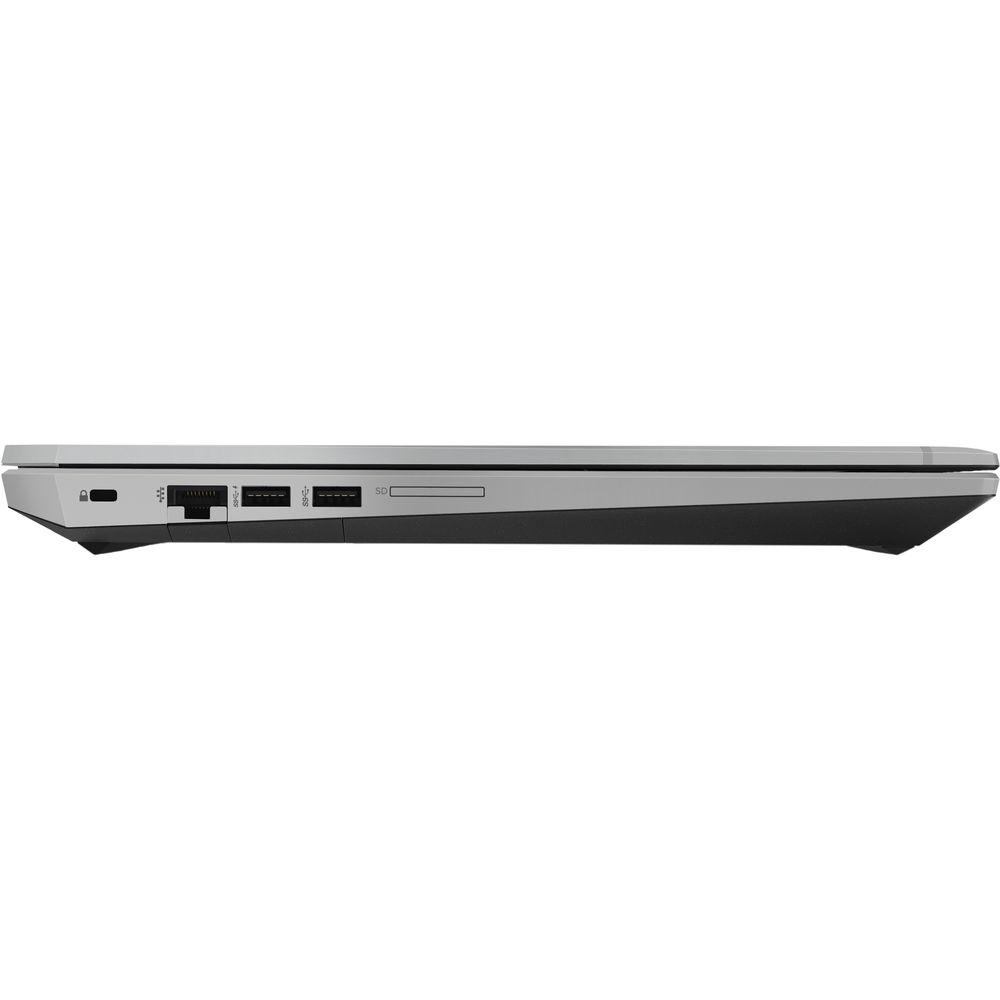

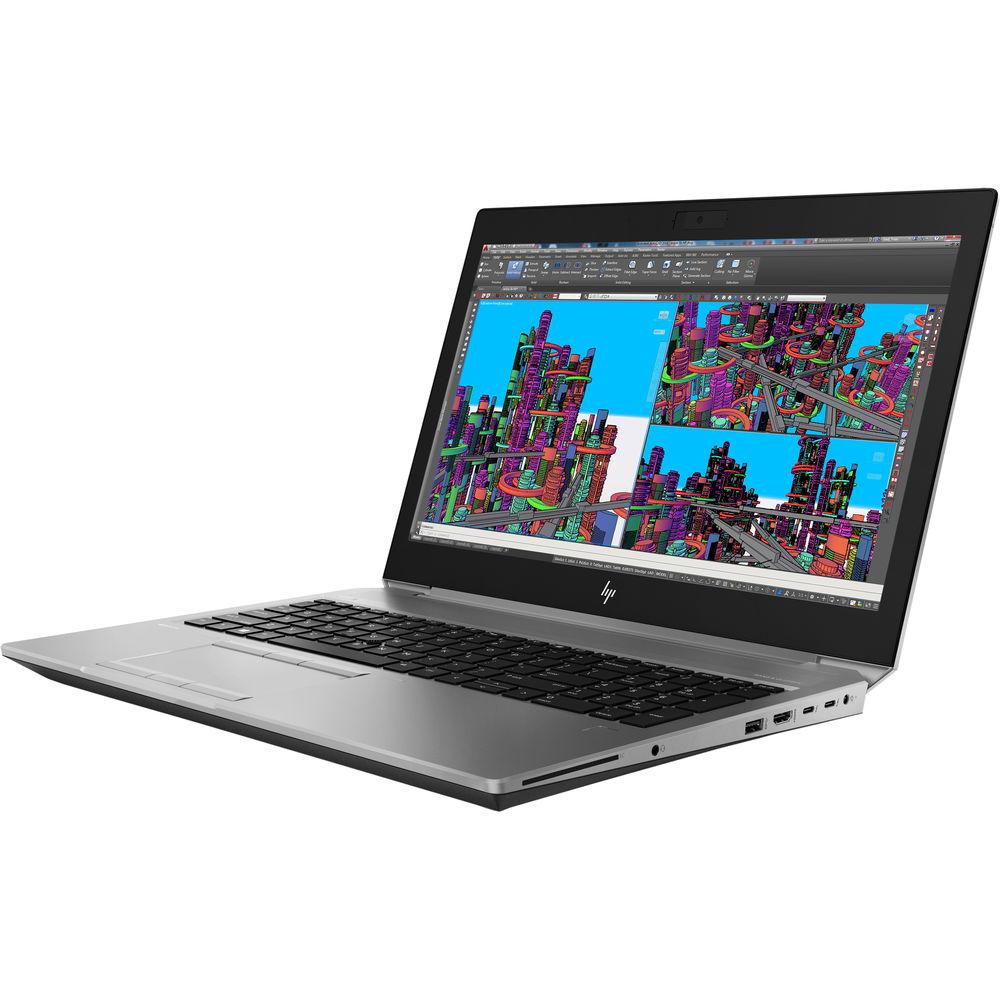

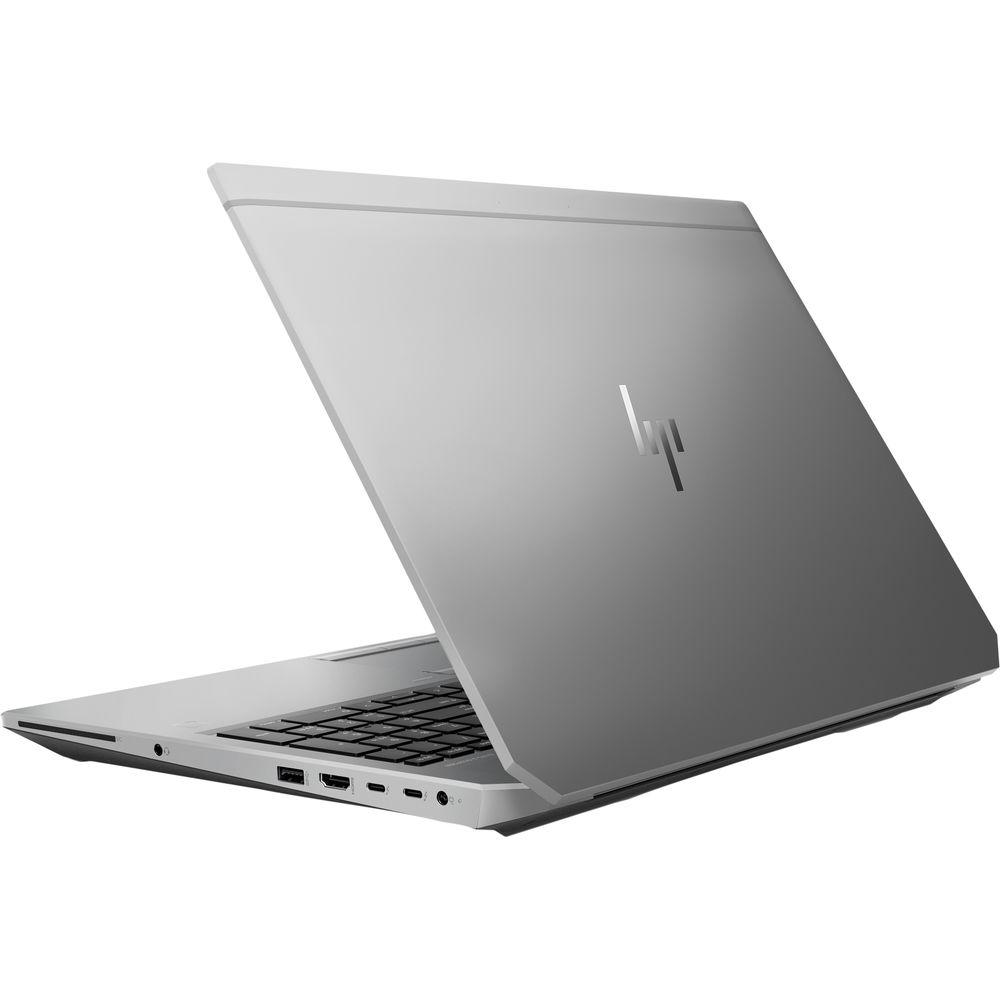

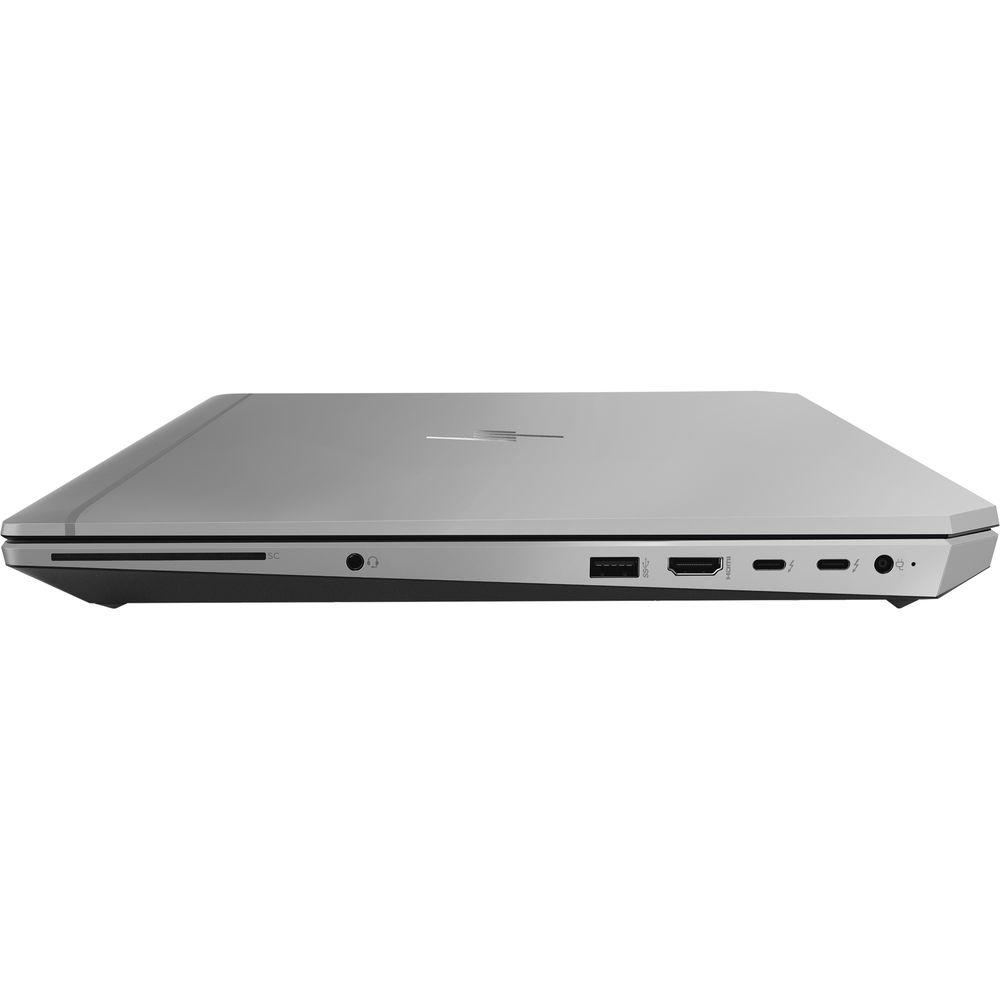

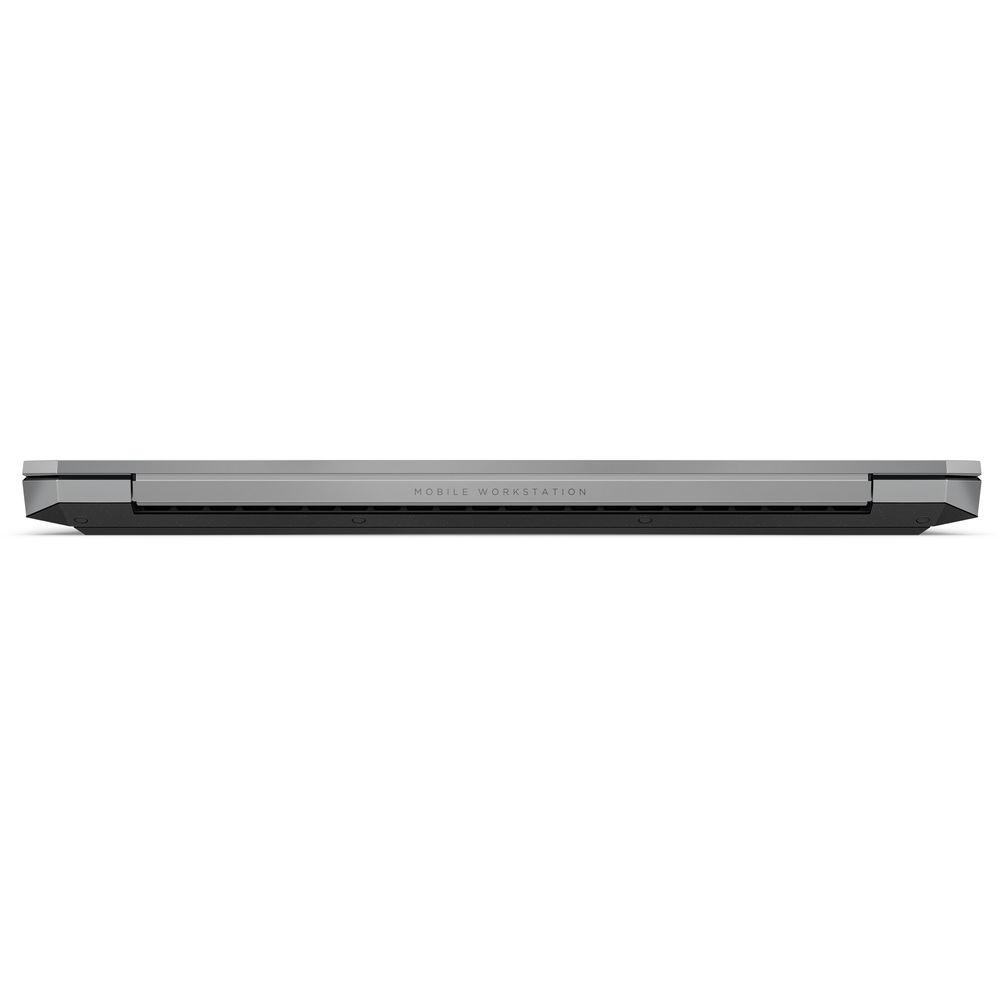

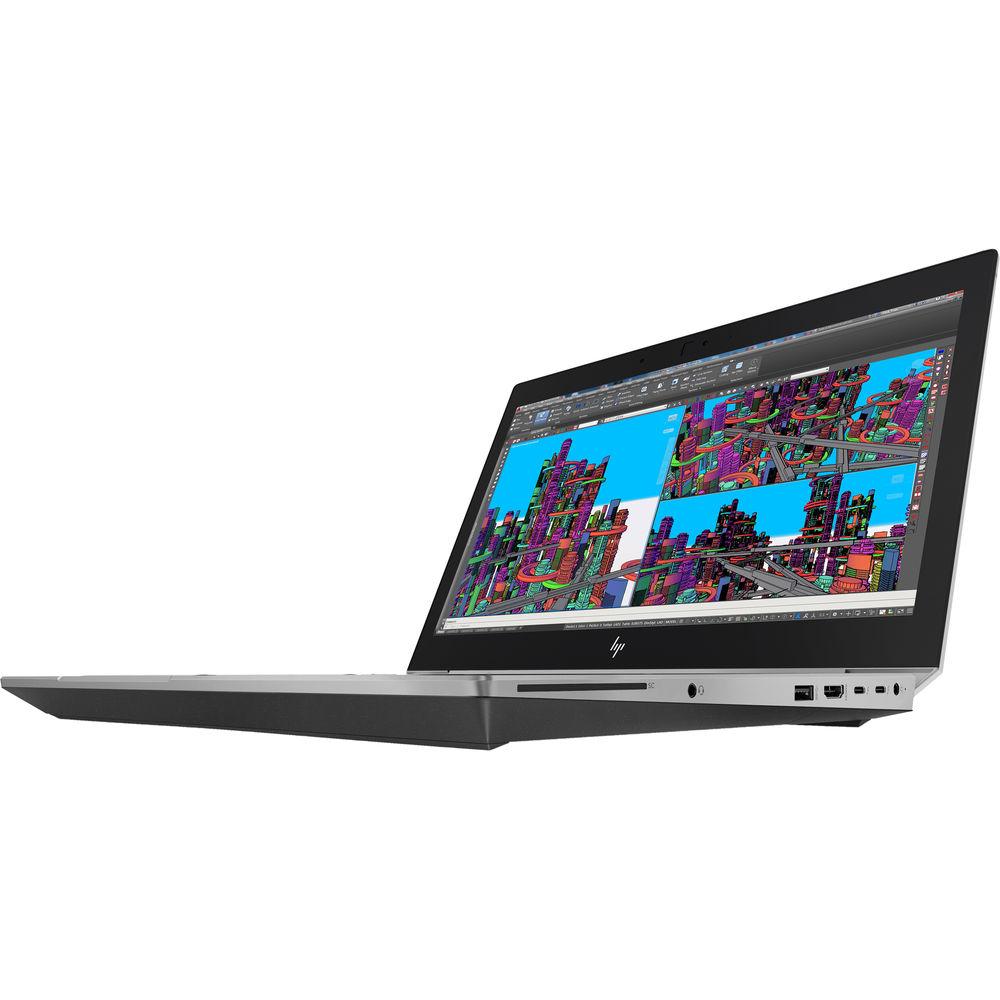

User Manual for HP 15.6" ZBook 15 G5 Multi-Touch Mobile Workstation Click to enlarge the picture
Contents of the user manual for the HP 15.6" ZBook 15 G5 Multi-Touch
- Product category: Mobile Workstations HP
- Brand: HP
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for HP Mobile Workstations
 |
User manual for the HP 15.6" ZBook 15 G5 Multi-Touch contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any HP product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official HP user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a HP product will considerably shorten its lifespan!
|
Product description Work Laptops New Mobile Workstations from HP Read More Thin at 1.0" and weighing 5.79 lb, the 15.6" ZBook 15 G5 Multi-Touch Mobile Workstation from HP has been designed to thrive with heavy rendering, engineering, and simulation workflows. It is powered by a 2.2 GHz Intel Core i7-8750H Six-Core processor which allows you to run multiple applications simultaneously. If you need more power, the system can be overclocked to 4.1 GHz using Intel Turbo Boost 2.0 technology. The 16GB of 2666 MHz DDR4 RAM helps to ensure smooth multitasking and also allows the computer to quickly access frequently used files and programs.
The 15.6" display features IPS (In-Plane Switching) technology, a Full HD 1920 x 1080 screen resolution, an integrated SureView privacy filter, an anti-glare finish, LED-backlighting, a 16:9 aspect ratio, a contrast ratio of 600:1, a refresh rate of 120 Hz, a brightness of 650 cd/m2, 141 ppi, and viewing angles 85/85/85/85°. The display is protected by Corning Gorilla Glass 4 and features multi-touch functionality, allowing you to utilize the touch gestures and functions in Windows 10 Pro to further improve accessibility and productivity. The dedicated NVIDIA Quadro P1000 graphics card has 4GB of discrete GDDR5 RAM and delivers a sharp, clear picture. You'll also be able to output video to an external display at resolutions up to 5120 x 2880 using the system's HDMI 2.0 and dual Thunderbolt 3 ports, the latter of which supports DisplayPort 1.3.
For long-term storage of your files, this ZBook 15 G5 is equipped with a 512GB NVMe PCIe M.2 SSD with TLC flash memory, which offers quick access to your data. If you'd like to expand the internal storage, there is an empty 2.5" / 7mm SATA drive bay, plus an additional M.2 2280 slot for SATA and PCIe SSDs. If you want to add external storage, optical drives, memory card readers, and more, the ZBook 15 G5 offers two 40 Gb/s Thunderbolt 3 ports that also support 10 Gb/s USB 3.1 Gen 2 Type-C. There are also two 5 Gb/s USB 3.1 Gen 1 Type-A ports and one USB 3.1 Gen 1 Type-A charging port. Gigabit Ethernet and 802.11ac Wi-Fi are also built-in for wired and wireless networking, and Bluetooth 5.0 technology will also allow you to connect additional compatible peripherals. So that content from memory cards may be accessed, a built-in SD/SDHC/SDXC card reader supports UHS-II flash media and lets users download content from their digital camera. Other integrated features include a 720p IR webcam for face authentication with Windows Hello, dual-array microphones, stereo speakers with Bang & Olufsen HD audio, and a SmartCard reader.
The ZBook 15 G5 includes a 150W Slim Smart AC adapter that operates using 100-240 VAC at 47-63 Hz, a power cord, and an HP Long Life 4-cell / 90Wh lithium-ion polymer battery that can typically be recharged in 3-5 hours, or up to 90% in 90 minutes using HP Fast Charge, and lasts for up to 16.5 hours. The installed operating system is Windows 10 Pro (64-bit) and recovery media is also included. Protection is provided by a limited 1-year parts & labor warranty. General Features ZBook 15 G5 - Thunderbolt 3
- Thunderbolt 3 is a hardware interface that utilizes the reversible USB Type-C connector. Doubling the speed of its predecessor, Thunderbolt 3 features a maximum bi-directional throughput of 40 Gb/s when used with compatible devices. The connector also transmits data via USB 3.1 Gen 2 at up to 10 Gb/s, and dual-bandwidth DisplayPort 1.3 allows you to simultaneously connect two 4K displays or one 5K display. Additionally, you can daisy chain up to six devices from a single Thunderbolt 3 port.
- DisplayPort 1.3 Protocol Features Supported via Thunderbolt 3
-
- Legacy displays (HDMI, DVI, and VGA) may be attached to the Thunderbolt port with the use of a certified dongle
- DisplayPort monitors capable of supporting DisplayPort 1.3 may be directly attached to the Thunderbolt port to achieve HBR2 with the use a dongle
- Thunderbolt 3-enabled monitors may be directly attached to the Thunderbolt port to achieve HBR2 and MST
- DisplayPort 1.3 MST ("daisy-chain" feature) is supported through the Thunderbolt 3 port on Thunderbolt 3-enabled devices or DisplayPort 1.3 monitors (requires monitor with DisplayPort 1.3 MST capability) with the use of a dongle
- Up to two streams (eight lanes) of DisplayPort 1.3 are supported over a single Thunderbolt 3 port. Up to two 4K displays with 24/30-bit color depth at 60 Hz or one 5K display are supported over a single Thunderbolt 3 port. An Intel-certified Thunderbolt cable is required
- DisplayPort 1.3 w/MST (Multi-stream Transport) supports resolutions up to Full 4K with 24/30-bit color depth at 60 Hz, and WUXGA (1920 x1200) monitors with a 24/30-bit color depth at 120 Hz
- Multi-Display Support with the HP Thunderbolt Dock G2
- The HP Thunderbolt Dock G2 has a Thunderbolt 3 port, VGA port, two DisplayPort 1.3 ports, and a USB Type-C port. When used together with a HP ZBook 15 configured with hybrid graphics, a maximum of six independent displays are supported. These six displays are internal panel, one external display connected to the system's HDMI port, and four external displays connected to the ZBook dock's Thunderbolt 3, VGA, and two DisplayPort ports. When used together with an HP ZBook 15 configured with integrated Intel graphics, a maximum of three independent displays are supported using any three-display combination of the system panel, system ports, and ZBook Dock ports.
- Multi-Display Support without the HP Thunderbolt Dock G2
- An HP ZBook 15 with hybrid graphics and without the use of the ZBook dock supports up to a maximum of four independent displays. These four displays are the internal panel plus three external displays connected to the three following ports: HDMI 2.0, Thunderbolt 3, and Thunderbolt 3. An HP ZBook 15 configuration with integrated Intel graphics and without the use of the ZBook dock supports up to a maximum of three independent displays using any three-display combination of the system panel and HDMI, Thunderbolt 3, or Thunderbolt 3.
- HP SureView Privacy Display
- This display features HP's SureView privacy technology, which helps prevent curious onlookers from seeing what is on the screen.
- Up to 64GB RAM
- This ZBook 15 G5 has 16GB of 2666 MHz DDR4 memory in a 1 x 16GB configuration, with three additional 260-pin SO-DIMM slots available for memory upgrades. When all four slots are used, the ZBook 15 G5 supports up to 64GB of RAM, or 16GB per slot.
- 802.11ac Wi-Fi
- The system features Intel Dual Band Wireless-AC 9560 which is compatible with 802.11a/b/g/n/ac Wi-Fi so that users may access network connectivity using wireless technology.
- Bluetooth 5.0
- Additional compatible peripherals, such as mice, keyboards, headsets, and more may be paired using Bluetooth 5.0 technology
- HP 720p IR HD Privacy Webcam
-
- Privacy Camera features a sliding camera shutter
- HD format (widescreen)
- Supports videoconferencing and still image capture
- High-quality fixed-focus lens
- Video capture at various resolutions up to 1280 x 720 resolution (720p) and up to 30 fps
- M-JPEG compression supports higher frame rates for video capture and videoconferencing
- Improved low-light sensitivity
- Improved dynamic range
- Smart Card Reader
- The Alcor AU9560 Smart Card reader is compatible with ISO 7816-compliant Smart Cards (PC/SC interface support).
Windows 10 Professional (64-bit) - Start Menu
- After its hiatus in Windows 8, the Start Menu has returned. Utilizing a combination of the traditional menu system and Windows 8's Live Tiles, the improved Start Menu gives you more information at a glance, showing notification information alongside your applications and other pinned items
- Cortana
- Microsoft's digital personal assistant, Cortana can answer your questions with information gleaned from both your device and the internet at large. You can type or even talk with her, if your system has a microphone. Using her Notebook, Cortana keeps track of your needs and wants, and she learns over time to improve her information gathering skills
- Microsoft Edge
- After nearly 20 years, Microsoft has finally replaced its Internet Explorer web browser. With Microsoft Edge, users can write directly on web pages and share notes with friends and colleagues. It also improves the online reading experience by adding a distraction-free mode and read-it-later functionality. Edge also has built-in Cortana integration; you can have her help you find a restaurant, make a reservation, and pull up directions without leaving your browser
- Windows Store
- For Windows 10, Microsoft has unified the Windows Store. Now, apps for PCs, tablets, and phones will all be accessible from one place. And with support for Universal Apps, one version of an app can work across all your compatible devices automatically
- Windows Continuum
- Windows 10 was designed for a variety of screen sizes and input styles, and with its Continuum feature, it automatically adapts to fit your needs. A Windows 10 tablet on its own requires a touch-centric approach, but attaching a mouse and keyboard will shift everything to a more traditional interface. You can even attach an external monitor to your Windows 10 phone for a near-desktop experience. But it's not just the operating system; Windows Universal Apps take advantage of Continuum as well
- Xbox on Windows 10
- Gaming is a big focus of Windows 10. Xbox integration allows for PC players to match up against Xbox One players on supported games, and if you have an Xbox One, you can even stream compatible titles to your PC. Native support for recording with the new Game DVR feature makes it easy to capture and share your gameplay. The new DirectX12 takes better advantage of multi-core processors, giving games a performance boost, even on older hardware. Windows 10 also features native support for virtual reality headsets, such as the Oculus Rift
- Windows 10 Pro
- The Pro version of Windows 10 includes all of the features of Windows 10 Home plus many designed specifically for business users, including Hyper-V virtualization, BitLocker disk encryption, and remote desktop access. Devices will also be able to join domains and the Azure Active Directory, and they can even access a specialized version of the Windows Store featuring custom, company-specific applications
UPC: 192545950268 In the Box HP 15.6" ZBook 15 G5 Multi-Touch Mobile Workstation 150W Slim Smart AC Adapter Power Cord Recovery Media Limited 1-Year Parts & Labor Warranty Guides & Manuals Table of Contents
|
Upload User Manual
Have you got an user manual for the HP 15.6" ZBook 15 G5 Multi-Touch Mobile Workstation in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHP 15 G5 Specs | Operating System | Windows 10 Pro (64-Bit) | | | | CPU | 2.2 GHz Intel Core i7-8750H 6-Core | | Maximum Boost Speed | 4.1 GHz | | L3 Cache | 9 MB | | Memory Type | 2666 MHz DDR4 | | Total Installed Memory | 16 GB | | Memory Configuration | 1 x 16 GB (User-Replaceable) | | Maximum Memory Capacity | 64 GB | | Memory Slot Type | 260-Pin SO-DIMM | | Available Memory Slots | 3 | | Buffered Memory | No | | ECC Memory | No | | Graphics Type | Dedicated | | GPU | NVIDIA Quadro P1000 with 4 GB GDDR5 VRAM | | | | Panel Type | IPS | | Size | 15.6" | | Aspect Ratio | 16:9 | | Resolution | 1920 x 1080 | | Touchscreen | Yes | | Finish | Matte | | Maximum Brightness | 650 cd/m2 | | Color Gamut | 100% sRGB | | Refresh Rate | 120 Hz | | Contrast Ratio | 600:1 | | Viewing Angle (H x V) | 170 x 170° | | | | 2.5" Slots | 1 x 7 mm (Available) | | SSD Slots | 1 x M.2 2280 SATA / PCIe x4 (Available)
1 x M.2 2280 SATA / PCIe x4 (In Use) | | Total Installed Capacity | 512 GB | | Solid State Storage | 1 x 512 GB M.2 NVMe PCIe | | Optical Drive | None | | | | Ports | 3 x USB Type-A (USB 3.1 Gen 1) | | USB Type-C Ports | 2 x Thunderbolt 3 (Supports DisplayPort) | | Display | 1 x HDMI 2.0 | | Audio | 1 x 1/8" / 3.5 mm Headphone/Microphone Input/Output | | Built-In Speakers | 2 | | Built-In Microphones | 2 | | Media Card Slots | 1 x SDXC (UHS-II [312 MB/s]) | | | | Ethernet | 1 x RJ45 (Gigabit) | | Wi-Fi | Wi-Fi 5 (802.11ac); Dual-Band (2.4 & 5 GHz) | | MU-MIMO Support | 2 x 2 | | Bluetooth | 5.0 | | GPS | None | | NFC | No | | Webcam | User-Facing: 720p | | | | Battery Chemistry | Lithium-Ion Polymer (LiPo) | | Watt Hours / Type | 90 Wh Non-Removable | | Cells | 4 | | Output Voltage | 15.4 VDC | | Maximum Runtime | 16.5 Hours | | | | Keyboard | Full-Size Keyboard with Backlight and Number Pad | | Pointing Device | TouchPad, Pointing Stick | | | | Security | Accepts 3rd Party Security Lock Devices | | Power Supply | 150 W | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz at 1.45 to 2.9 A | | Operating Temperature | 32 to 95°F / 0 to 35°C | | Operating Humidity | 10 to 90% | | Dimensions | 14.8 x 10.4 x 1" / 37.59 x 26.42 x 2.54 cm | | Weight | 5.7 lb / 2.6 kg | | | | Package Weight | 7.9 lb | | Box Dimensions (LxWxH) | 17.0 x 12.0 x 4.75" |
