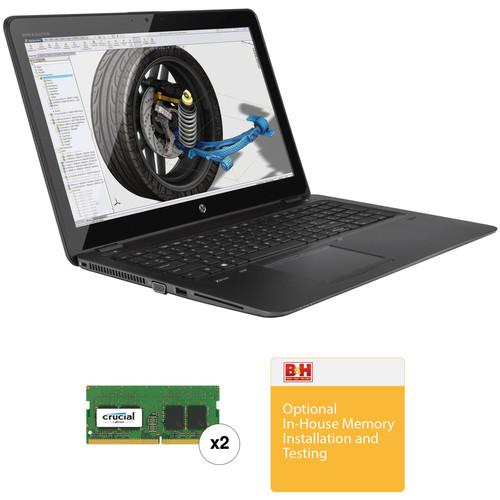

User Manual for HP 15.6" ZBook 15u G3 Custom Mobile Workstation

• Product category: Notebooks HP
• Brand: HP
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for HP Notebooks

Product description

• HP 15.6" ZBook 15u G3 Mobile Workstation Thin at 0.78" and weighing 4.18 lb, the 15.6" ZBook 15u G3 Mobile Workstation from HP delivers workstation performance and long battery life within a compact mobile form factor. This system is powered by a 2.3 GHz Intel Core i5-6200U Dual-Core processor which allows you to run multiple applications simultaneously. If you need more power, the system can be overclocked to 2.8 GHz using Intel Turbo Boost 2.0 technology. The 4GB of 2133 MHz DDR4 RAM helps to ensure smooth multitasking and also allows the computer to quickly access frequently-used files and programs.

  The 15.6" Twisted Nematic SVA anti-glare display features a Full HD 1920 x 1080 native resolution. It also features LED-backlighting, a 16:9 aspect ratio, 300 cd/m² brightness, a 400:1 typical contrast ratio, a refresh rate of 60 Hz, and 142 ppi. The dedicated AMD FirePro W4190M graphics card has 2GB of discrete GDDR5 RAM and delivers a sharp, clear picture. You'll also be able to output video to an external display at resolutions up to 3840 x 2160 using the system's DisplayPort and VGA ports.

  For long term storage of your files, this ZBook 15u G3 is equipped with a 500GB 7200 rpm SATA hard drive, which offers quick access to your data. If you want to add external storage, optical drives, memory card readers, and more, the ZBook 15u G3 offers three USB 3.0 ports, one of which doubles as a charging port. Gigabit Ethernet and 802.11ac dual-band Wi-Fi are built-in for wired and wireless networking and Bluetooth 4.2 technology will also allow you to connect additional compatible peripherals. So that content from memory cards may be accessed, a built-in SD/SDHC/SDXC card reader supports UHS-II flash media and lets users download content from their digital camera. Other integrated features include a 720p webcam, dual-array microphones, stereo speakers with Bang & Olufsen HD audio, and a smart card reader.

  The ZBook 15u G3 includes a 65W Slim Smart AC adapter that operates using 100-240 VAC at 47-63 Hz and an HP Long Life 3-cell / 46Wh Lithium-ion Polymer battery that can typically be recharged in 3 hours, regardless of whether the system is off or in standby mode. Included with this mobile workstation is Windows 7 Pro (64-bit) and Windows 10 Pro (64-bit) recovery media. While the installed operating system is Windows 7 Professional (64-bit), a Windows 10 Professional (64-bit) license is included at no additional cost.

  Photo is an authorized HP reseller with professional in-house technicians available for upgrades & installations on these workstations and laptops. Built with power and speed in mind, the Z Series is designed to enhance audio and video post-production workflows and more. Each HP Z series workstation or laptop features a range of top-tier processors and large RAM loadouts. The workstations are built with graphics flexibility in mind as well so that the end consumer can configure the graphics options to their needs, and each unit includes a 3/3/3 warranty - 3 years limited warranty for parts, 3 years limited warranty for labor, and 3 years of repairs performed at customer site for those parts not eligible for Customer Self Repair (CSR). For 24/7 customer service, please call 1-866-625-1175.
  USB 3.0 Ports
  • This ZBook 15u G3 features three USB 3.0 ports that will allow you to connect external peripherals such as additional storage, optical drives, printers, memory card readers, and more. One of the USB 3.0 ports also doubles as an always-on charging port for compatible USB devices
  Gigabit Ethernet & 802.11ac Wi-Fi
  • The system uses a Gigabit Ethernet controller for Internet access when connected to a router, modem, or network switch. It also features Intel Dual Band Wireless-AC 8260 which is compatible with 802.11a/b/g/n/ac Wi-Fi so that users may access network connectivity using wireless technology
  Bluetooth 4.2 LE
  • Additional compatible peripherals, such as mice, keyboards, headsets, and more may be paired using Bluetooth 4.2 LE technology
  Up to 32GB Memory
  • While this system natively includes 4GB of RAM in a 1 x 4GB configuration, it can be upgraded to a maximum of 32GB when 16GB memory modules are used in each of the system's 260-pin SO-DIMM slots
  External Displays
  • Users may output video to an external display using either the DisplayPort or VGA port. The DisplayPort is compatible with Multi-stream Transport technology and supports resolutions up to Ultra HD 3840 x 2160 @ 60 Hz and color depths of 24/30-bit, as well as resolutions of WUXGA 1920 x 1200 @ 120 Hz and color depths of 24/30-bit. The VGA port supports resolutions up to 1920 x 1200 @ 60 Hz and lower resolutions up to 75 Hz
  Multi-stream Transport (MST)
  • Multi-stream Transport (MST) is a DisplayPort 1.2 feature that allows daisy chaining of DisplayPort 1.2 monitors (requires monitor with DisplayPort 1.2 MST capability), or the use of DisplayPort 1.2 hubs with MST to achieve a maximum of 3 active displays
  720p Webcam
  • HD format (widescreen)
    Supports videoconferencing and still image capture
    High quality fixed focus lens
    Video capture at various resolutions up to 1280 x 720 resolution (720p) and up to 30 fps
    M-JPEG compression supports higher frame rates for video capture and videoconferencing
    Improved low light sensitivity
    Improved dynamic range
  Security Features
  • Integrated smart card reader
    One-step logon
    Common Criteria EAL4+ Augmented Certified Discrete TPM 1.2/2.0 Embedded Security Chip
    Security lock slot
    Support for Intel AT
    HP FingerPrint Sensor (optional)
    Absolute Persistence Module
    HP BIOSphere with Sure Start
    SATA port disablement (via BIOS)
    DriveLock and Automatic
    DriveLock; RAID (available as a configurable option)
    Serial, parallel, USB enable/disable (via BIOS)
    Optional USB port disable at factory (user configurable via BIOS)
    Removable media write/boot control
    Power-on password (via BIOS)
    Setup password (via BIOS)
  Smart Card Reader
  • The integrated smart card reader is compatible with ISO 7816 compliant smart cards with PC/SC interface support
  Energy Efficiency Compliance
  • ENERGY STAR certified and EPEAT registered configurations available
  Environmental
  • Low halogen
  Windows 7 Professional (64-bit) + Windows 10 Professional (64-bit) License
  • While the installed operating system is Windows 7 Pro (64-bit), a license and media for installing Windows 10 Pro (64-bit) is also included. However, please note that you may only use one version of the Windows software at a time. Switching from Windows 7 Pro will require you to uninstall it and install Windows 10 Pro. You must back up all data before uninstalling and installing operating systems to avoid loss of your data
  UPC: 889894907554
• 2 x Crucial 8GB DDR4 2400 MHz SO-DIMM Memory Module Upgrade the memory in your compatible system using the 8GB DDR4 2400 MHz SO-DIMM Memory Module from Crucial. This single memory module features a capacity of 8GB, a clock speed of 2400 MHz (PC4-19200), a 260-pin SO-DIMM form factor, operates using 1.2V, and has a CAS latency of 17. Additionally, this RAM is not buffered and does not support ECC technology. Adding more memory to your system will help boost its capabilities, including improving system performance and application responsiveness. Start-up times will be improved with fewer delays during routine operations, and more programs will be able to run simultaneously with easier switching between them. This memory is protected by a limited lifetime warranty.

  General Features

  • Helps increase bandwidth, reduce power consumption, and extend battery life
  • Faster burst access speeds for improved sequential data throughput
  UPC: 649528776334
• Photo Video In-house Memory Installation & Testing Service Select In-house Additional Computer Memory Installation and Testing when you want B&H to do the installation of additional memory - when purchased on the same order of the computer. The Additional Memory Installation and Testing is done by a certified technician in our Computer Service Center, so that it is assured that the original manufacturer's warranty on the computer continues on throughout the warranty period.This item doesn't include software installation. If you also need software installation use B&H item code # BHWEBPCC. Note: The only warranty on the additional memory is the warranty provided by the manufacturer of the additional memory.
  Certified Technician
  • The install is done by a certified technician who knows the do's and don'ts of installation, so that the manufacturer's original warranty on the computer continues on and doesn't get voided by unwanted moves.
  Expert Testing
  • Testing is done on the computer to check if the system recognizes and allocates the additional memory.
  Get to Work Immediately
  • The Installation and Testing will allow you to start working on your new computer as soon as you get it.

• 2 x Crucial - 8GB DDR4 2400 MHz SO-DIMM Memory Module

• B&H Photo Video - In-house Memory Installation & Testing Service

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• HP 15.6" ZBook 15u G3 Mobile Workstation

  Operating System

  Windows 7 Professional (64-Bit)

  CPU	2.3 GHz Intel Core i5-6200U Dual-Core
  Maximum Boost Speed	2.8 GHz
  Memory Type	2133 MHz DDR4
  Total Installed Memory	4 GB
  Maximum Memory Capacity	32 GB
  Memory Slot Type	260-Pin SO-DIMM
  Available Memory Slots	2
  Graphics Type	Dedicated
  GPU	AMD FirePro W4190M with 2 GB GDDR5 VRAM

  Panel Type	TN
  Size	15.6"
  Aspect Ratio	16:9
  Resolution	1920 x 1080
  Finish	Matte
  Maximum Brightness	300 cd/m2
  Refresh Rate	60 Hz
  Adaptive Sync Technology	None

  2.5" Slots	1 x 7 mm (Available)
  Total Installed Capacity	500 GB
  Hard Disk Storage	1 x 500 GB 2.5" SATA (7200 rpm)
  Expansion Slots	1 x Smart Card
  Optical Drive	None

  Ports	3 x USB Type-A (USB 3.1 Gen 1) 1 x Docking Connector
  Display	1 x DisplayPort 1 x VGA
  Audio	1 x 1/8" / 3.5 mm Headphone/Microphone Input/Output
  Built-In Speakers	2
  Built-In Microphones	2
  Media Card Slots	1 x SDXC

  Ethernet	1 x RJ45 (Gigabit)
  Wi-Fi	Wi-Fi 5 (802.11ac); Dual-Band (2.4 & 5 GHz)
  Bluetooth	4.2
  NFC	Yes
  Webcam	User-Facing: 720p

  Battery Chemistry	Lithium-Ion Polymer (LiPo)
  Watt Hours / Type	46 Wh Removable
  Cells	3

  Keyboard	Full-Size Keyboard with Backlight and Number Pad
  Pointing Device	TouchPad

  Security	Power-On Password, Kensington Lock Slot, Accepts 3rd Party Security Lock Devices, Infineon TPM Software Professional Package, Fingerprint Reader
  Power Supply	65 W
  AC Input Power	100 to 240 VAC, 50 / 60 Hz
  Dimensions	15.1 x 10.1 x 0.8" / 38.4 x 25.7 x 2 cm
  Weight	4.2 lb / 1.9 kg Starting Weight

  Box Dimensions (LxWxH)	19.9 x 12.1 x 3.1"

• 2 x Crucial 8GB DDR4 2400 MHz SO-DIMM Memory Module

  Capacity	8 GB
  Kit Configuration	1 x 8 GB
  Speed	PC4-19200 (2400 MHz)
  Memory Type	DDR4
  DIMM Type	260-Pin SO-DIMM
  Buffered/Registered	No
  Error Correction (ECC)	Non-ECC
  Voltage	1.2 V
  CAS Latency	CL17
  Memory Rank	Single Rank

  Box Dimensions (LxWxH)	6.4 x 1.7 x 0.5"

• Photo Video In-house Memory Installation & Testing Service

  Box Dimensions (LxWxH)	1.0 x 1.0 x 1.0"
