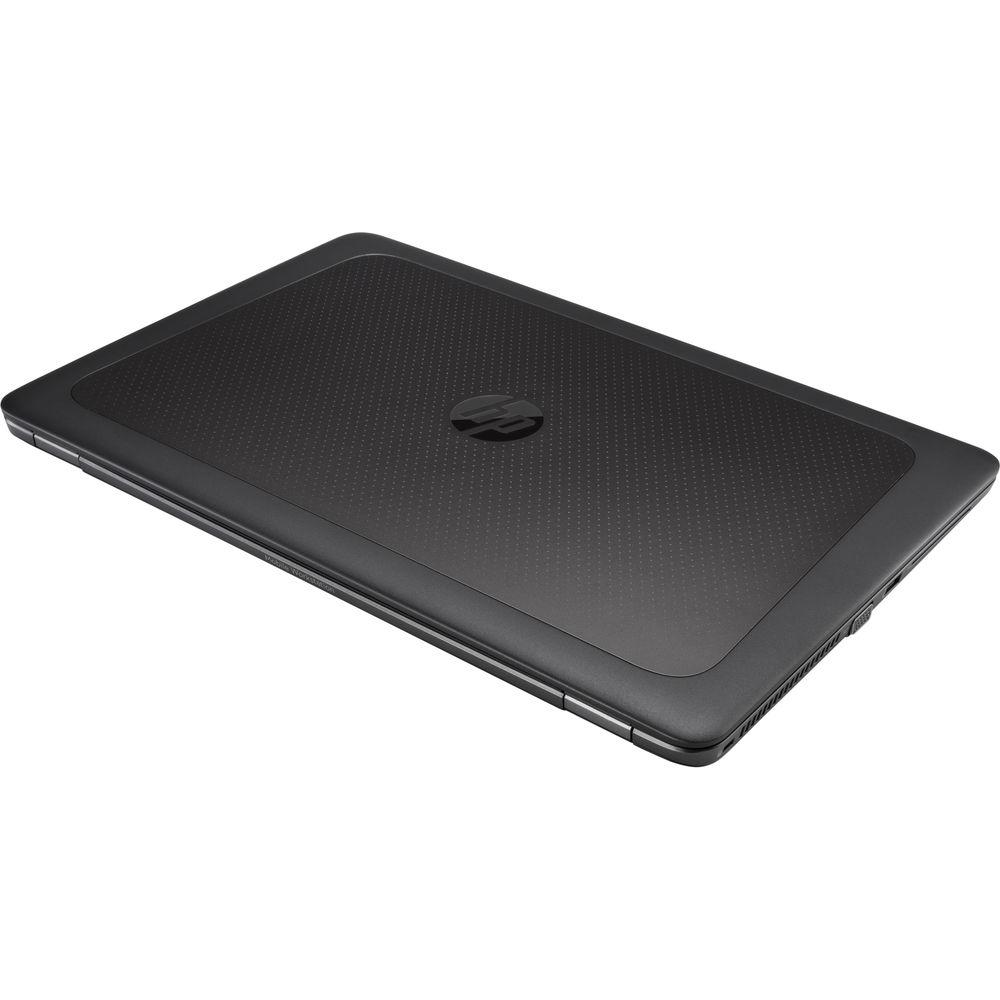

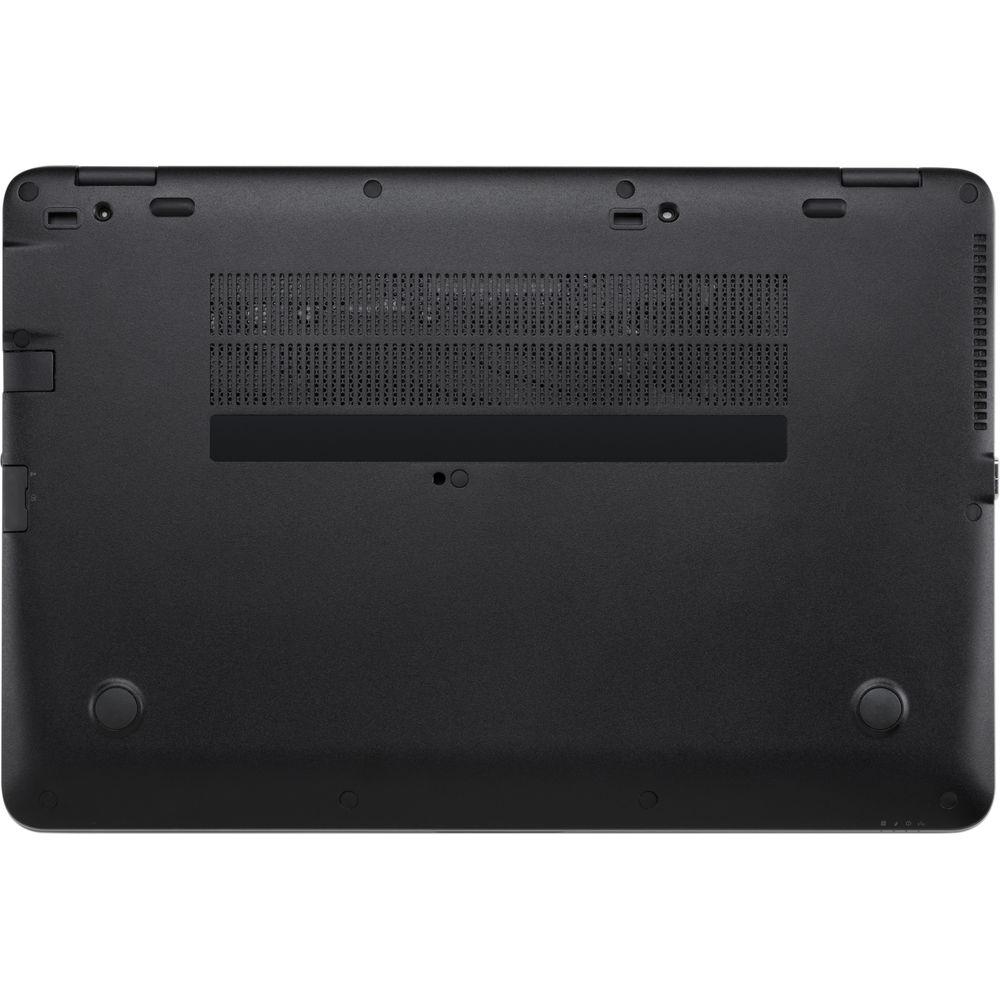

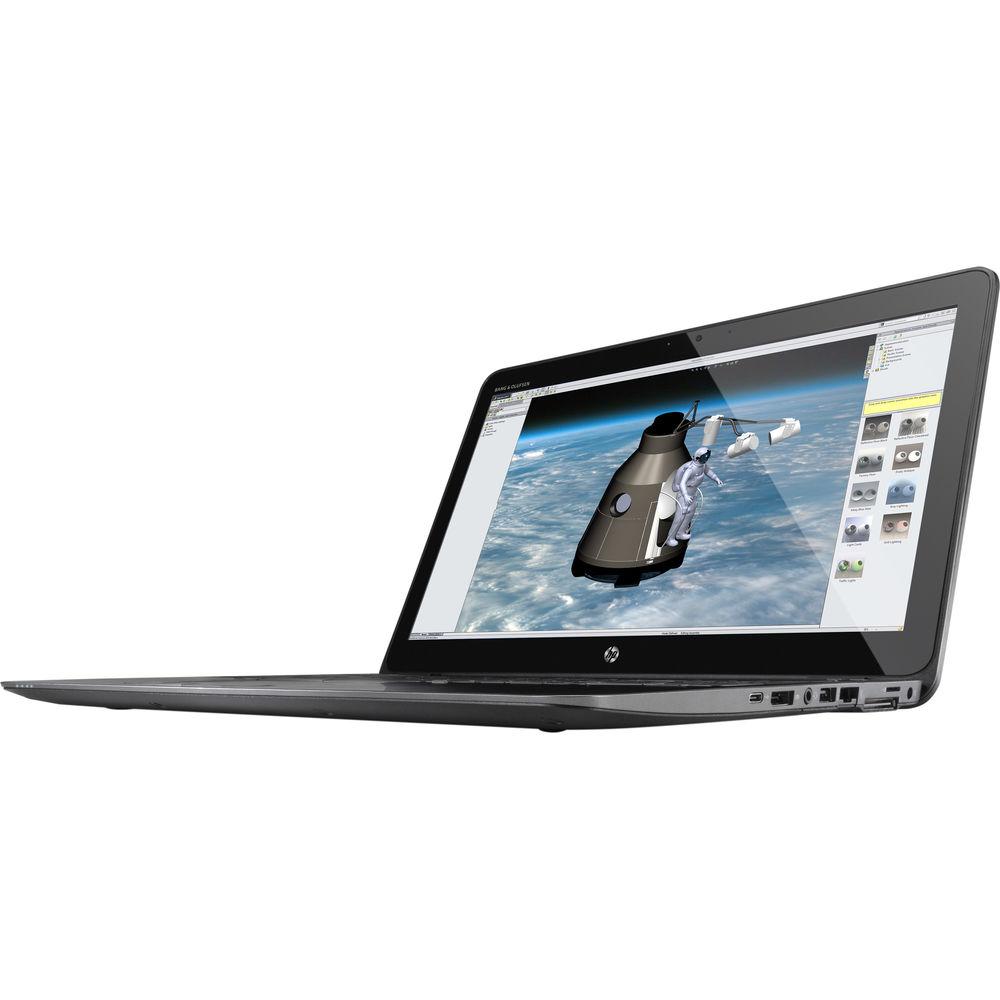

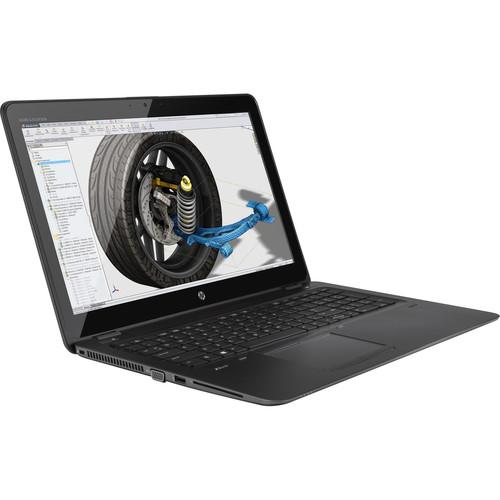

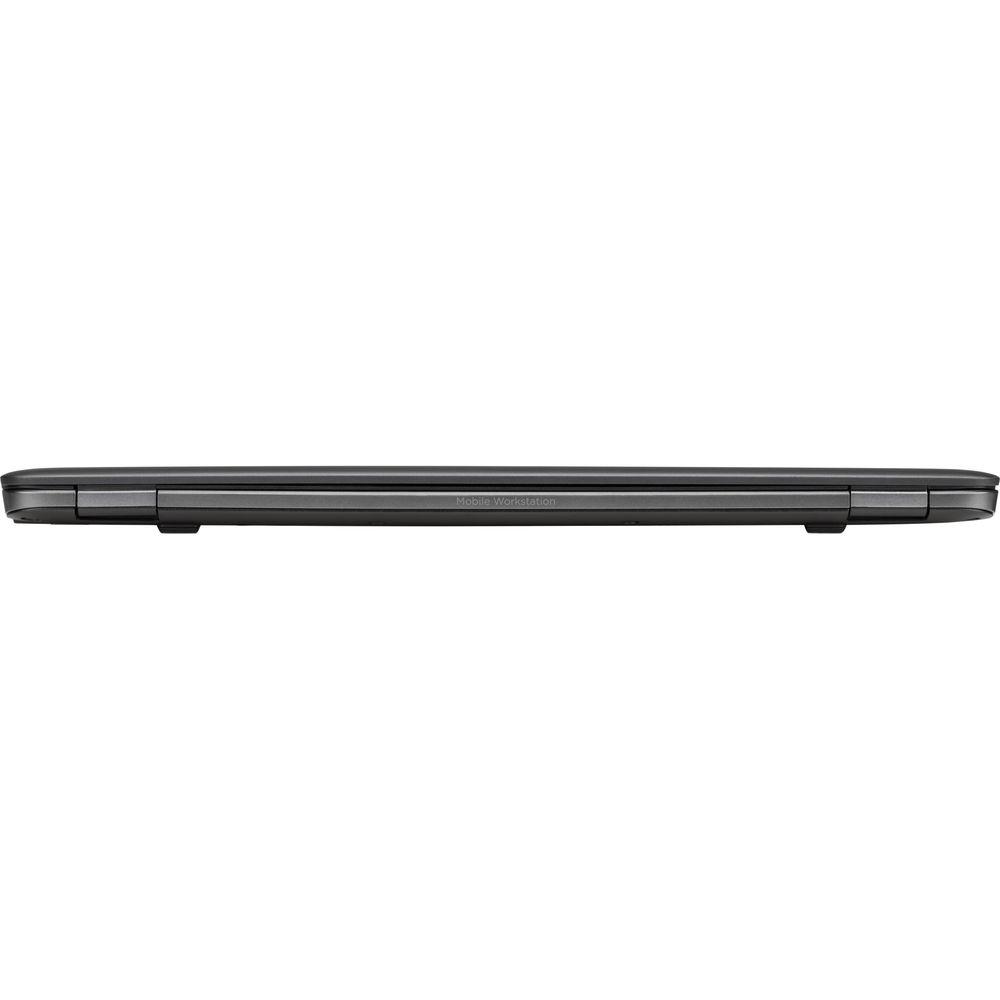

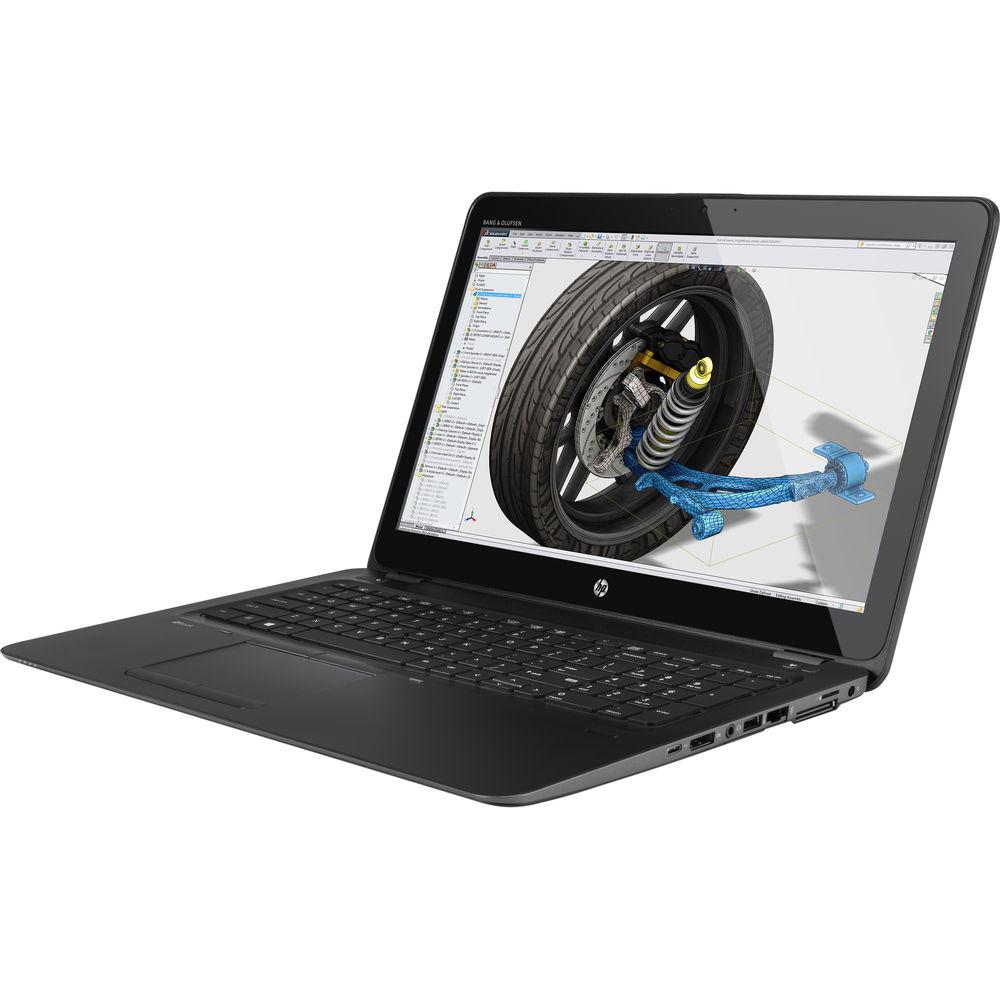

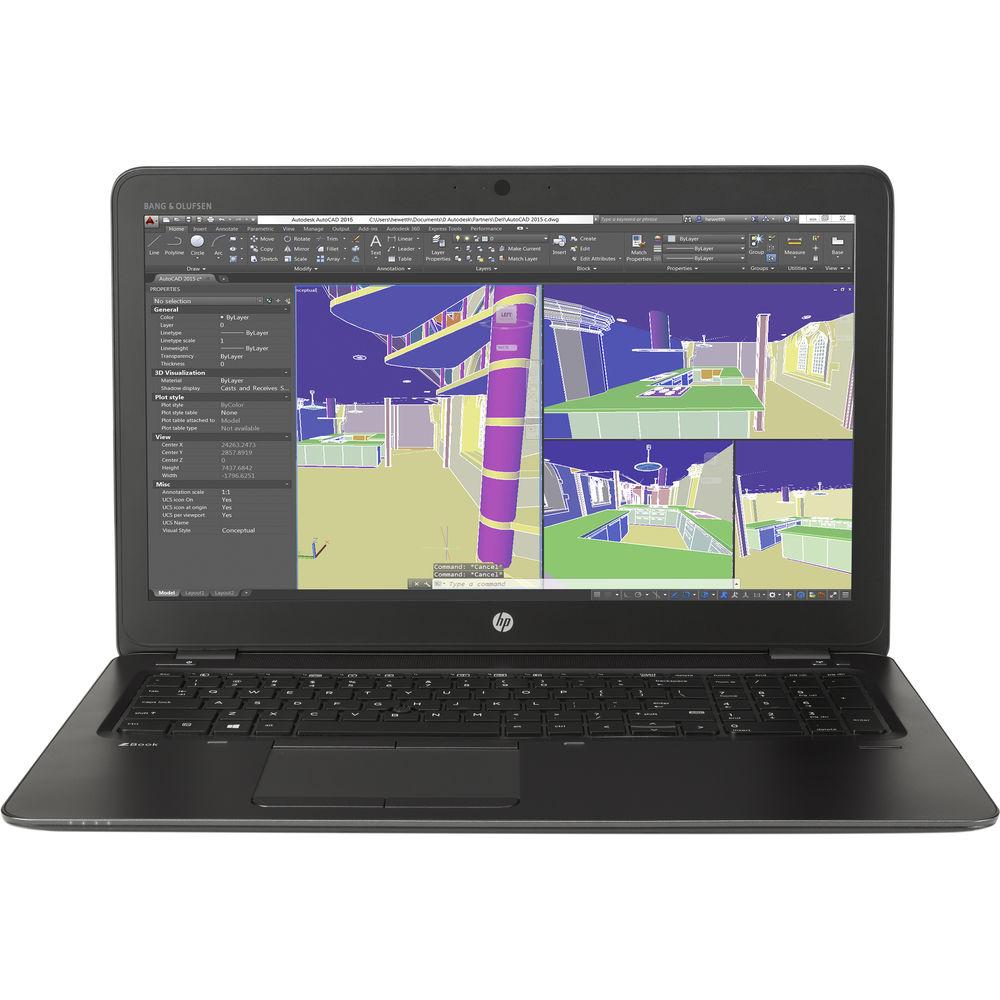

User Manual for HP 15.6" ZBook 15u G3 Mobile Workstation Click to enlarge the picture
Contents of the user manual for the HP 15.6" ZBook 15u G3 Mobile
- Product category: Mobile Workstations HP
- Brand: HP
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for HP Mobile Workstations
 |
User manual for the HP 15.6" ZBook 15u G3 Mobile contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any HP product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official HP user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a HP product will considerably shorten its lifespan!
|
Product description Work Laptops Thin at 0.78" and weighing 4.18 lb, the 15.6" ZBook 15u G3 Mobile Workstation from HP delivers workstation performance and long battery life within a compact mobile form factor. This system is powered by a 2.5 GHz Intel Core i7-6500U Dual-Core processor which allows you to run multiple applications simultaneously. If you need more power, the system can be overclocked to 3.1 GHz using Intel Turbo Boost 2.0 technology. The 16GB of 2133 MHz DDR4 RAM helps to ensure smooth multitasking and also allows the computer to quickly access frequently-used files and programs.
The 15.6" IPS UWVA anti-glare display features a Full HD 1920 x 1080 native resolution. It also features LED-backlighting, a 16:9 aspect ratio, 300 cd/m2 brightness, a 600:1 typical contrast ratio, a refresh rate of 60 Hz, 142 ppi, an 80° horizontal viewing angle and a ±80° viewing angle. The dedicated AMD FirePro W4190M graphics card has 2GB of discrete GDDR5 RAM and delivers a sharp, clear picture. You'll also be able to output video to an external display at resolutions up to 3840 x 2160 using the system's DisplayPort and VGA ports.
For long term storage of your files, this ZBook 15u G3 is equipped with a 512GB Z Turbo Drive PCIe SSD that uses MLC-type NAND and an NVMe interface. While the SSD may not have the larger storage capacity of a traditional spinning hard drive, it contains no moving parts which helps it to be more resistant against bumps, drops, and other kinds of damage. SSDs also receive less wear and tear than traditional hard drives, as they don't have any read and write heads. Additionally, as this SSD connects via PCIe as compared to SATA, it is able to operate with even greater data transfer speeds. It provides sequential reads up to 1.17 GB/s and sequential writes up to 930 MB/s.
If you want to add external storage, optical drives, memory card readers, and more, the ZBook 15u G3 offers three USB 3.0 ports, one of which doubles as a charging port. Gigabit Ethernet and 802.11ac dual-band Wi-Fi are built-in for wired and wireless networking and Bluetooth 4.2 technology will also allow you to connect additional compatible peripherals. So that content from memory cards may be accessed, a built-in SD/SDHC/SDXC card reader supports UHS-II flash media and lets users download content from their digital camera. Other integrated features include a 720p webcam, dual-array microphones, stereo speakers with Bang & Olufsen HD audio, and a smart card reader.
The ZBook 15u G3 includes a 65W Slim Smart AC adapter that operates using 100-240 VAC at 47-63 Hz and an HP Long Life 3-cell / 46Wh Lithium-ion Polymer battery that can typically be recharged in 3 hours, regardless of whether the system is off or in standby mode. While the installed operating system is Windows 7 Professional (64-bit), a Windows 10 Professional (64-bit) license is included at no additional cost.
Photo is an authorized HP reseller with professional in-house technicians available for upgrades & installations on these workstations and laptops. Built with power and speed in mind, the Z Series is designed to enhance audio and video post-production workflows and more. Each HP Z series workstation or laptop features a range of top-tier processors and large RAM loadouts. The workstations are built with graphics flexibility in mind as well so that the end consumer can configure the graphics options to their needs, and each unit includes a 3/3/3 warranty - 3 years limited warranty for parts, 3 years limited warranty for labor, and 3 years of repairs performed at customer site for those parts not eligible for Customer Self Repair (CSR). For 24/7 customer service, please call 1-866-625-1175. - USB 3.0 Ports

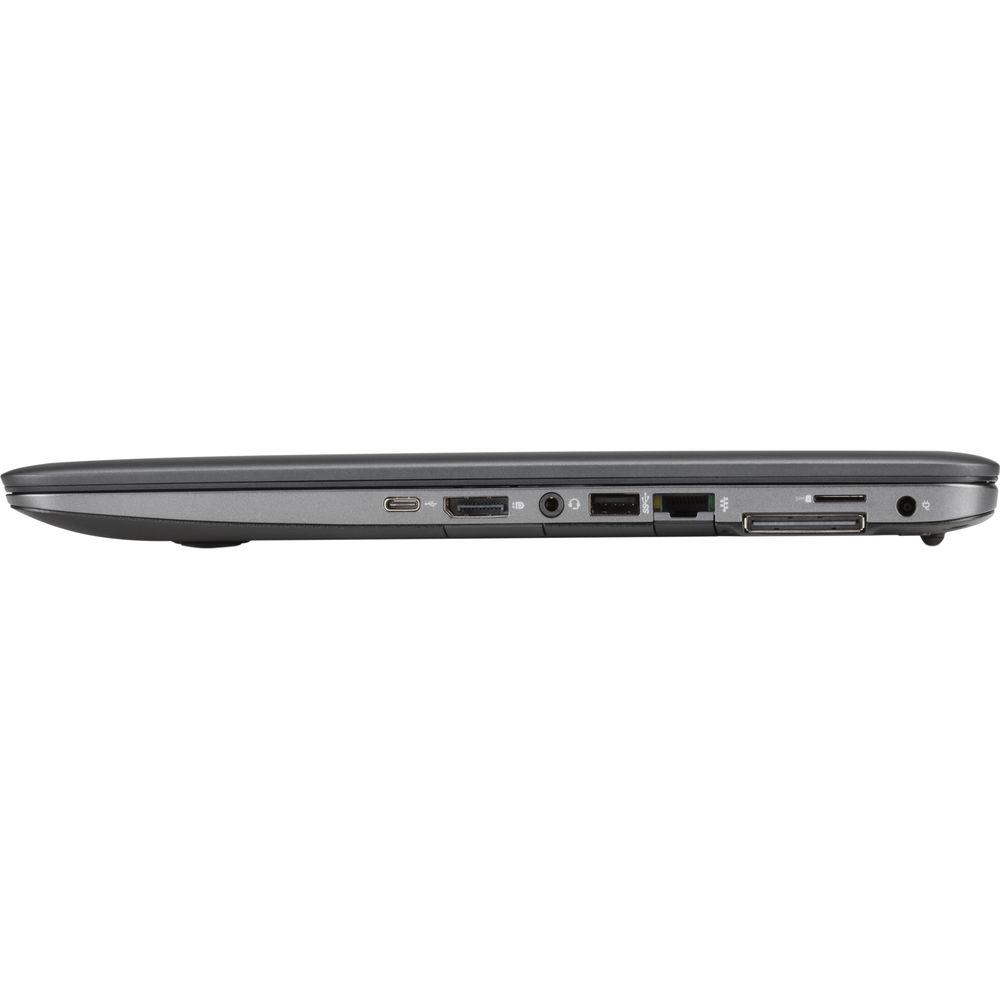

- This ZBook 15u G3 features three USB 3.0 ports that will allow you to connect external peripherals such as additional storage, optical drives, printers, memory card readers, and more. One of the USB 3.0 ports also doubles as an always-on charging port for compatible USB devices
- Gigabit Ethernet & 802.11ac Wi-Fi
- The system uses a Gigabit Ethernet controller for Internet access when connected to a router, modem, or network switch. It also features Intel Dual Band Wireless-AC 8260 which is compatible with 802.11a/b/g/n/ac Wi-Fi so that users may access network connectivity using wireless technology
- Bluetooth 4.2 LE
- Additional compatible peripherals, such as mice, keyboards, headsets, and more may be paired using Bluetooth 4.2 LE technology
- Up to 32GB Memory
- While this system natively includes 16GB of RAM in a 1 x 16GB configuration, it can be upgraded to a maximum of 32GB when 16GB memory modules are used in each of the system's 260-pin SO-DIMM slots
- External Displays

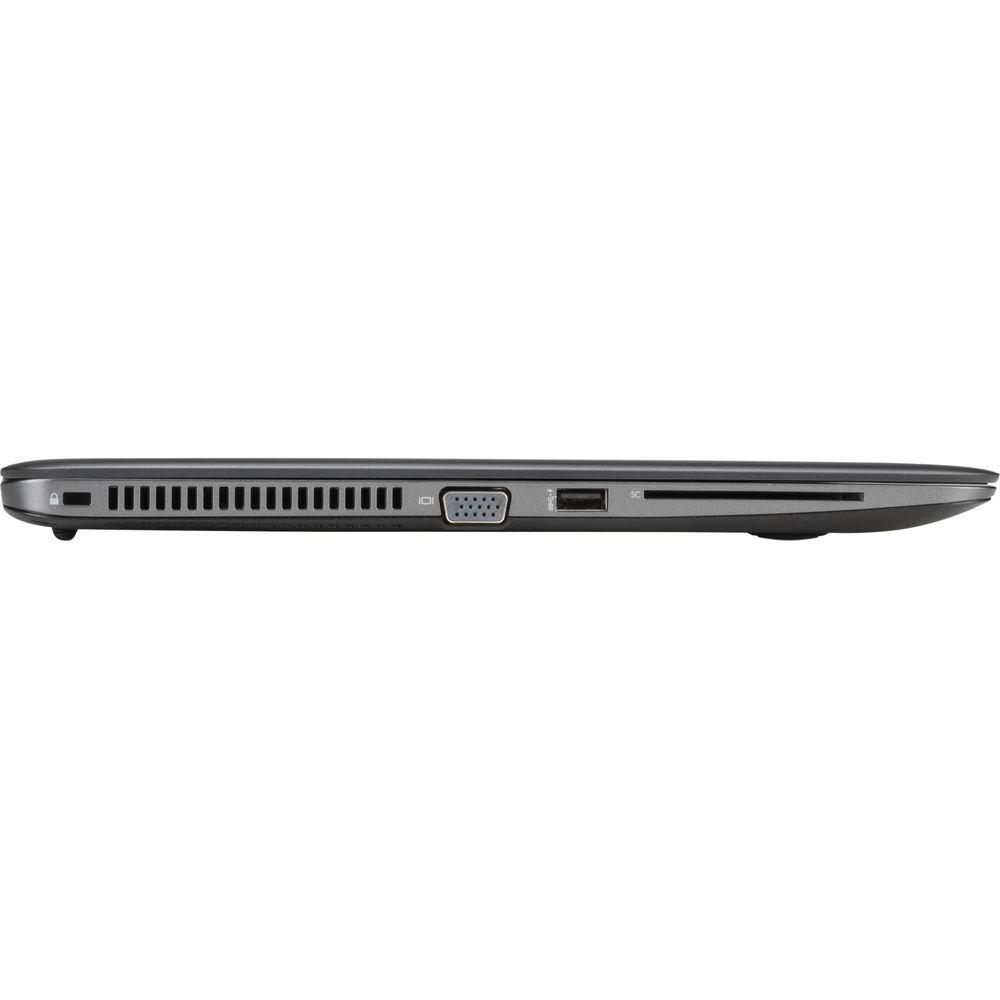

- Users may output video to an external display using either the DisplayPort or VGA port. The DisplayPort is compatible with Multi-stream Transport technology and supports resolutions up to Ultra HD 3840 x 2160 @ 60 Hz and color depths of 24/30-bit, as well as resolutions of WUXGA 1920 x 1200 @ 120 Hz and color depths of 24/30-bit. The VGA port supports resolutions up to 1920 x 1200 @ 60 Hz and lower resolutions up to 75 Hz
- Multi-stream Transport (MST)
- Multi-stream Transport (MST) is a DisplayPort 1.2 feature that allows daisy chaining of DisplayPort 1.2 monitors (requires monitor with DisplayPort 1.2 MST capability), or the use of DisplayPort 1.2 hubs with MST to achieve a maximum of 3 active displays
- 720p Webcam
- HD format (widescreen)
Supports videoconferencing and still image capture
High quality fixed focus lens
Video capture at various resolutions up to 1280 x 720 resolution (720p) and up to 30 fps
M-JPEG compression supports higher frame rates for video capture and videoconferencing
Improved low light sensitivity
Improved dynamic range - Security Features
- Integrated smart card reader
One-step logon
Common Criteria EAL4+ Augmented Certified Discrete TPM 1.2/2.0 Embedded Security Chip
Security lock slot
Support for Intel AT
HP FingerPrint Sensor (optional)
Absolute Persistence Module
HP BIOSphere with Sure Start
SATA port disablement (via BIOS)
DriveLock and Automatic
DriveLock; RAID (available as a configurable option)
Serial, parallel, USB enable/disable (via BIOS)
Optional USB port disable at factory (user configurable via BIOS)
Removable media write/boot control
Power-on password (via BIOS)
Setup password (via BIOS) - Smart Card Reader
- The integrated smart card reader is compatible with ISO 7816 compliant smart cards with PC/SC interface support
- Energy Efficiency Compliance
- ENERGY STAR certified and EPEAT registered configurations available
- Environmental
- Low halogen
- Windows 7 Professional (64-bit) + Windows 10 Professional (64-bit) License
- While the installed operating system is Windows 7 Pro (64-bit), a license and media for installing Windows 10 Pro (64-bit) is also included. However, please note that you may only use one version of the Windows software at a time. Switching from Windows 7 Pro will require you to uninstall it and install Windows 10 Pro. You must back up all data before uninstalling and installing operating systems to avoid loss of your data
UPC: 889894908001 In the Box HP 15.6" ZBook 15u G3 Mobile Workstation 65W Slim Smart AC Adapter 3-cell / 46Wh Lithium-ion Polymer Prismatic Long Life Battery Windows 10 Professional (64-bit) License Windows 7 Pro (64-bit) & Windows 10 Pro (64-bit) Recovery Media Limited 3-Year Warranty for Parts Limited 3-Year Warranty for Labor 3 Years of Repairs Performed at Customer Site for Those Parts Not Eligible for Customer Self Repair (CSR) For 24/7 Customer Service, Please Call 1-866-625-1175 Guides & Manuals wwvtvwvuvsscfxycfqebxf More from Manufacturer Table of Contents
|
Upload User Manual
Have you got an user manual for the HP 15.6" ZBook 15u G3 Mobile Workstation in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHP ZBook 15u G3 Specs | Operating System | Windows 7 Professional (64-Bit) | | | | CPU | 2.5 GHz Intel Core i7-6500U Dual-Core | | Maximum Boost Speed | 3.1 GHz | | Memory Type | 2133 MHz DDR4 | | Total Installed Memory | 16 GB | | Maximum Memory Capacity | 32 GB | | Memory Slot Type | 260-Pin SO-DIMM | | Available Memory Slots | 2 | | Graphics Type | Dedicated | | GPU | AMD FirePro W4190M with 2 GB GDDR5 VRAM | | | | Panel Type | IPS | | Size | 15.6" | | Aspect Ratio | 16:9 | | Resolution | 1920 x 1080 | | Finish | Matte | | Maximum Brightness | 300 cd/m2 | | Refresh Rate | 60 Hz | | Adaptive Sync Technology | None | | Viewing Angle (H x V) | 80 x 80° | | | | Total Installed Capacity | 512 GB | | Solid State Storage | 1 x 512 GB M.2 PCIe | | Expansion Slots | 1 x Smart Card | | Optical Drive | None | | | | Ports | 3 x USB Type-A (USB 3.1 Gen 1)
1 x Docking Connector | | Display | 1 x DisplayPort
1 x VGA | | Audio | 1 x 1/8" / 3.5 mm Headphone/Microphone Input/Output | | Built-In Speakers | 2 | | Built-In Microphones | 2 | | Media Card Slots | 1 x SDXC | | | | Ethernet | 1 x RJ45 (Gigabit) | | Wi-Fi | Wi-Fi 5 (802.11ac); Dual-Band (2.4 & 5 GHz) | | Bluetooth | 4.2 | | NFC | Yes | | Webcam | User-Facing: 720p | | | | Battery Chemistry | Lithium-Ion Polymer (LiPo) | | Watt Hours / Type | 46 Wh Removable | | Cells | 3 | | | | Keyboard | Full-Size Keyboard with Backlight and Number Pad | | Pointing Device | TouchPad | | | | Security | Power-On Password, Kensington Lock Slot, Accepts 3rd Party Security Lock Devices, Infineon TPM Software Professional Package, Fingerprint Reader | | Power Supply | 65 W | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | Dimensions | 15.1 x 10.1 x 0.8" / 38.4 x 25.7 x 2 cm | | Weight | 4.2 lb / 1.9 kg Starting Weight | | | | Package Weight | 6.75 lb | | Box Dimensions (LxWxH) | 20.0 x 12.2 x 3.0" |
