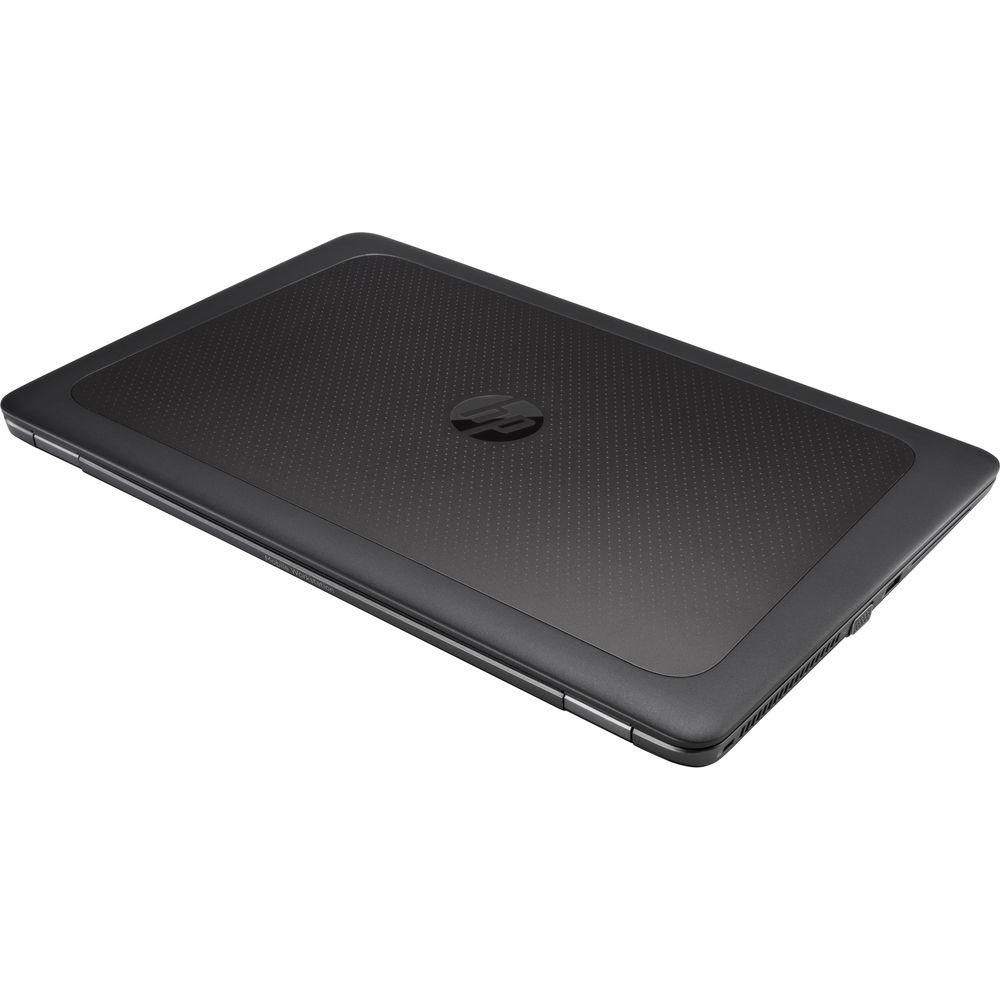

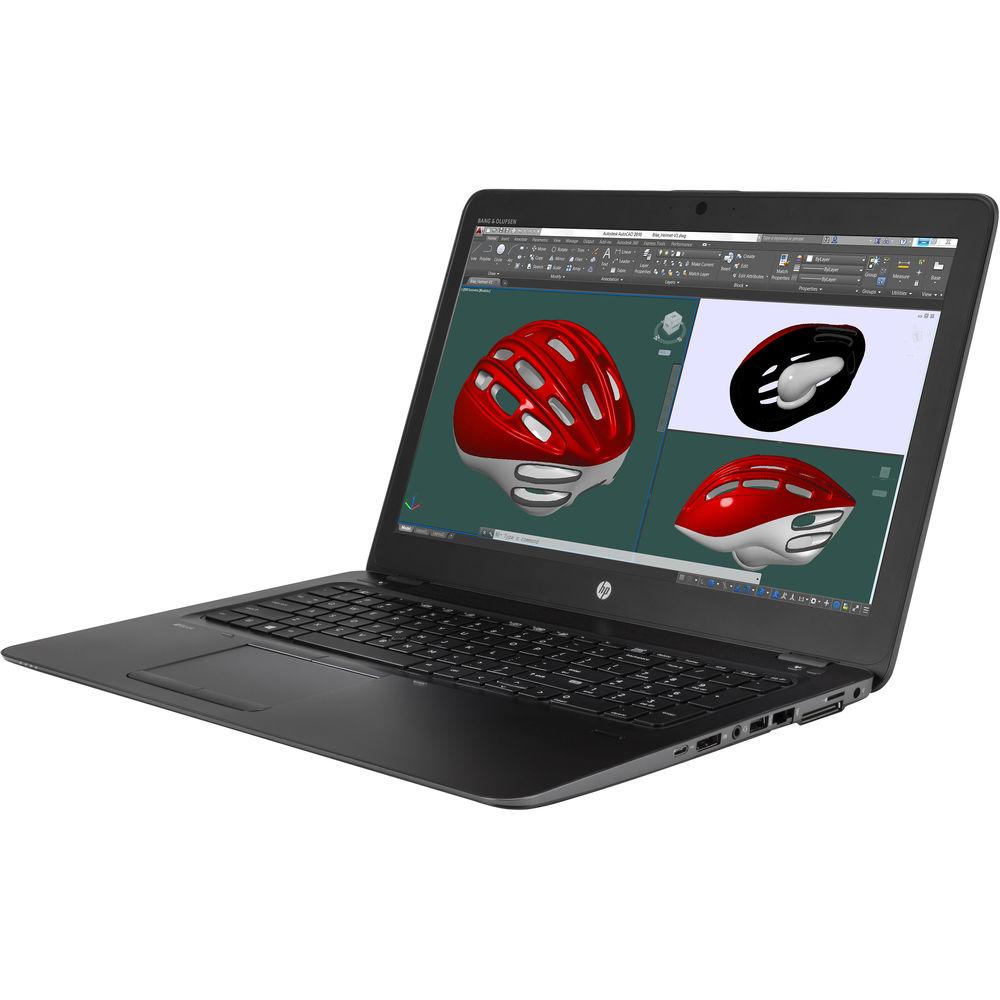

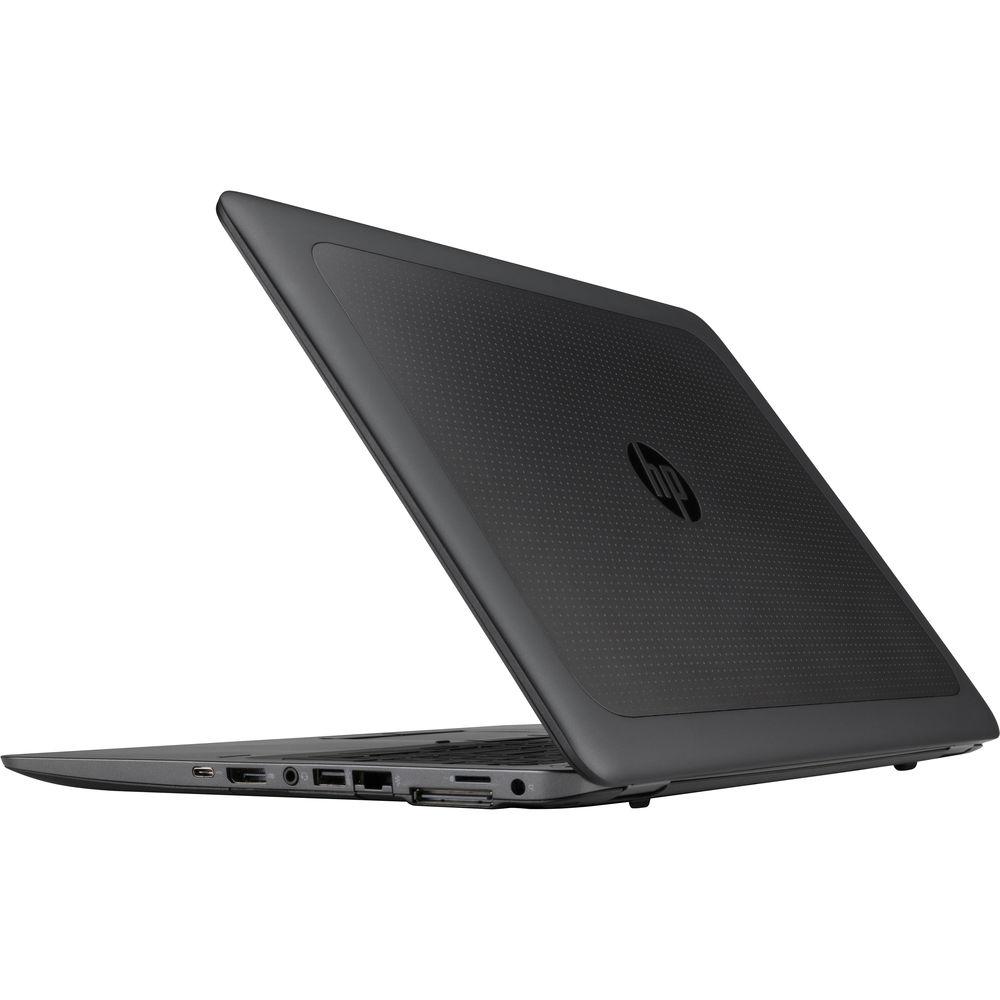

Product description Thin at 0.78" and weighing 4.18 pounds, the 15.6" ZBook 15u G3 Mobile Workstation from HP delivers workstation performance and long battery life within a compact mobile form factor. This system is powered by a 2.3 GHz Intel Core i5-6200U Dual-Core processor which allows you to run multiple applications simultaneously. If you need more power, the system can be overclocked to 2.8 GHz using Intel Turbo Boost 2.0 technology. The 4GB of 2133 MHz DDR4 RAM helps to ensure smooth multitasking and also allows the computer to quickly access frequently used files and programs.

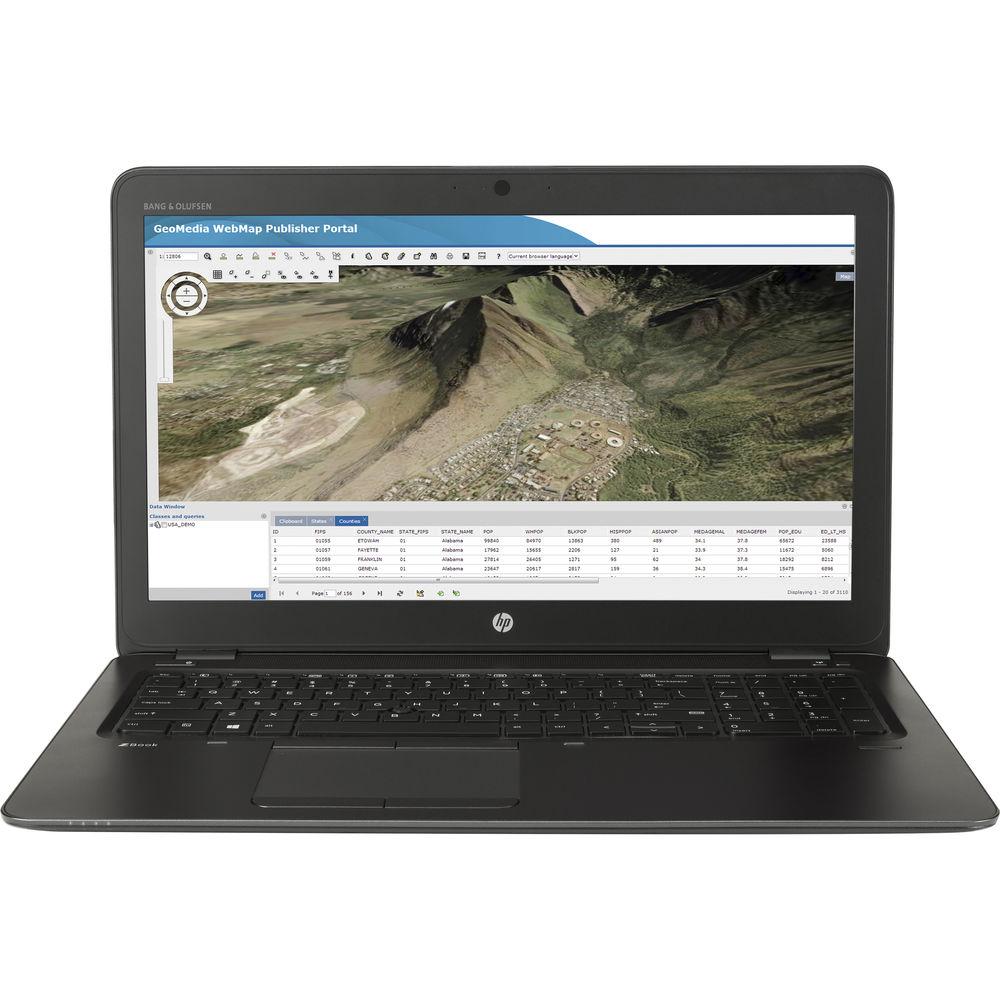

The 15.6" Twisted Nematic SVA anti-glare display features a Full HD 1920 x 1080 screen resolution. It also features LED-backlighting, a 16:9 aspect ratio, 300 cd/m2 brightness, a 400:1 typical contrast ratio, a refresh rate of 60 Hz, 142 ppi, and viewing angles of 45/45/25/35°. The dedicated AMD FirePro W4190M graphics card has 2GB of discrete GDDR5 RAM and delivers a sharp, clear picture. You'll also be able to output video to an external display at resolutions up to 3840 x 2160 using the system's DisplayPort 1.2 and VGA ports.
For long-term storage of your files, this ZBook 15u G3 is equipped with a 256GB SATA III M.2 SSD, which offers quick access to your data, and there's an empty 2.5" / 7mm SATA drive bay for additional internal storage. If you want to add external storage, optical drives, memory card readers, and more, the ZBook 15u G3 offers three USB 3.0 ports, one of which doubles as a charging port. Gigabit Ethernet and 802.11ac dual-band Wi-Fi are built-in for wired and wireless networking and Bluetooth 4.2 technology will also allow you to connect additional compatible peripherals. So that content from memory cards may be accessed, a built-in SD/SDHC/SDXC card reader supports UHS-II flash media and lets users download content from their digital camera. Other integrated features include a 720p webcam, dual-array microphones, stereo speakers with Bang & Olufsen HD audio, and a smart card reader.
The ZBook 15u G3 includes a 65W Slim Smart AC adapter that operates using 100-240 VAC at 47-63 Hz and an HP Long Life 3-cell / 46Wh lithium-ion polymer battery that lasts up for up to 10 hours before recharging is required and can typically be recharged in 3 hours, regardless of whether the system is off or in standby mode. Included with this mobile workstation is Windows 7 Pro (64-bit) and Windows 10 Pro (64-bit) recovery media. While the installed operating system is Windows 7 Professional (64-bit), a Windows 10 Professional (64-bit) license is included at no additional cost.
Photo is an authorized HP reseller with professional in-house technicians available for upgrades & installations on these workstations and laptops. Built with power and speed in mind, the Z Series is designed to enhance audio and video post-production workflows and more. Each HP Z series workstation or laptop features a range of top-tier processors and large RAM loadouts. The workstations are built with graphics flexibility in mind as well so that the end consumer can configure the graphics options to their needs, and each unit includes a 3/3/3 warranty - 3 years limited warranty for parts, 3 years limited warranty for labor, and 3 years of repairs performed at customer site for those parts not eligible for Customer Self Repair (CSR). For 24/7 customer service, please call 1-866-625-1175. General Features - USB 3.0 Type-A Ports

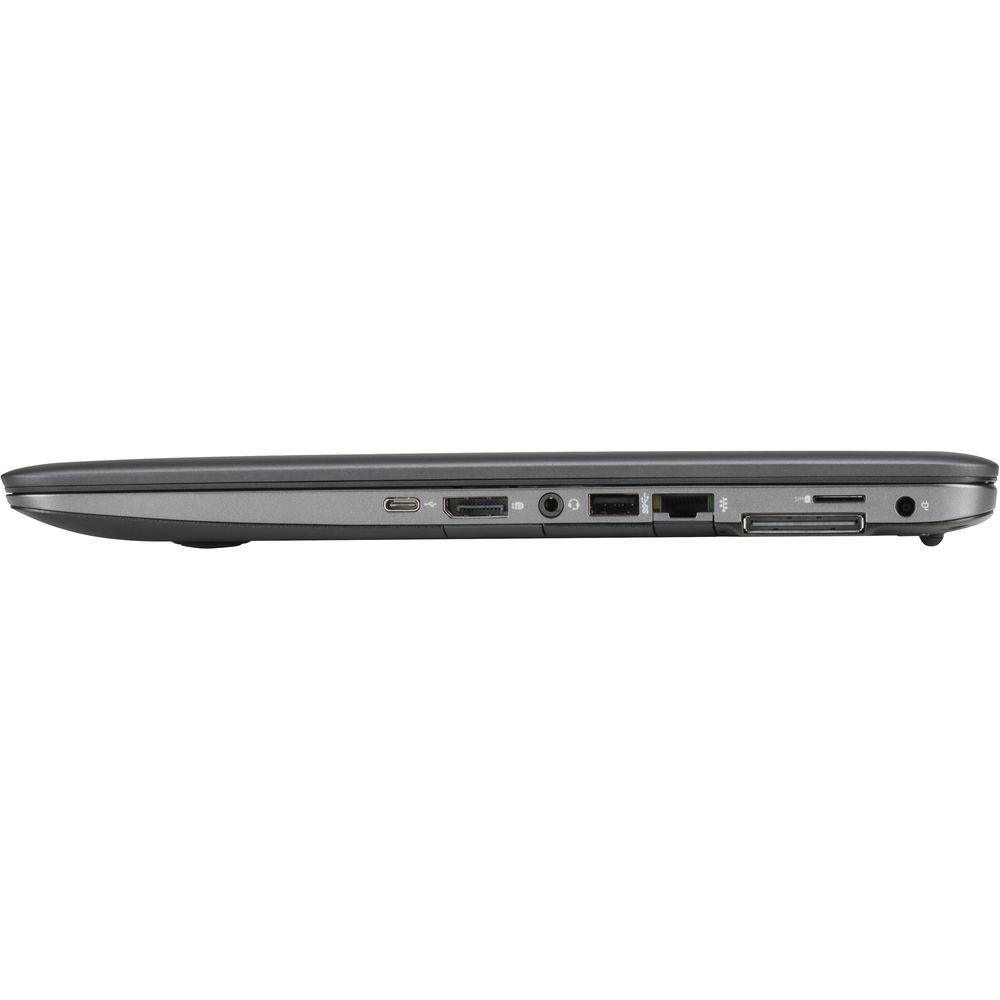

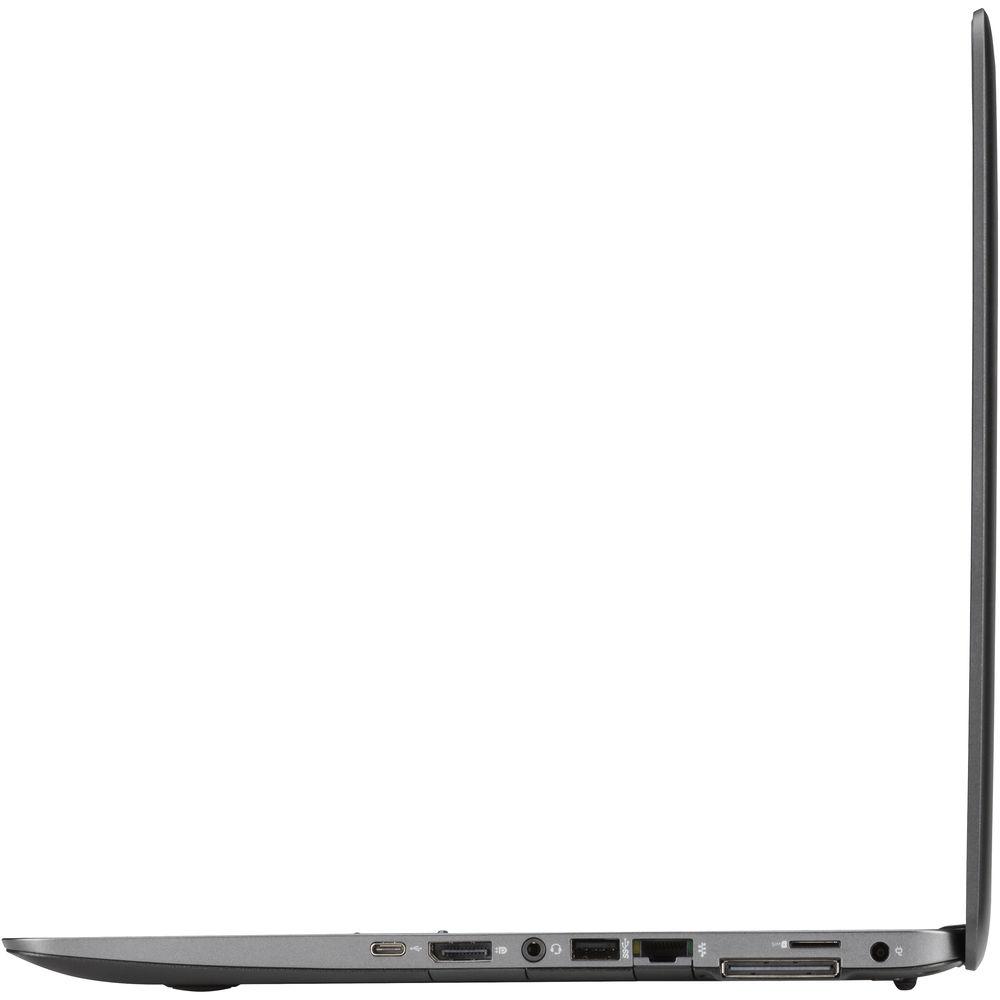

- This ZBook 15u G3 features three USB 3.0 ports that will allow you to connect external peripherals such as additional storage, optical drives, printers, memory card readers, and more. One of the USB 3.0 ports also doubles as an always-on charging port for compatible USB devices.
- Gigabit Ethernet & 802.11ac Wi-Fi
- The system uses a Gigabit Ethernet controller for Internet access when connected to a router, modem, or network switch. It also features Intel Dual Band Wireless-AC 8260 which is compatible with 802.11a/b/g/n/ac Wi-Fi so that users may access network connectivity using wireless technology.
- Bluetooth 4.2
- Additional compatible peripherals, such as mice, keyboards, headsets, and more may be paired using Bluetooth 4.2 technology.
- Up to 32GB Memory
- While this system natively includes 8GB of RAM in a 1 x 8GB configuration, it can be upgraded to a maximum of 32GB when 16GB memory modules are used in each of the system's 260-pin SO-DIMM slots.
- External Displays

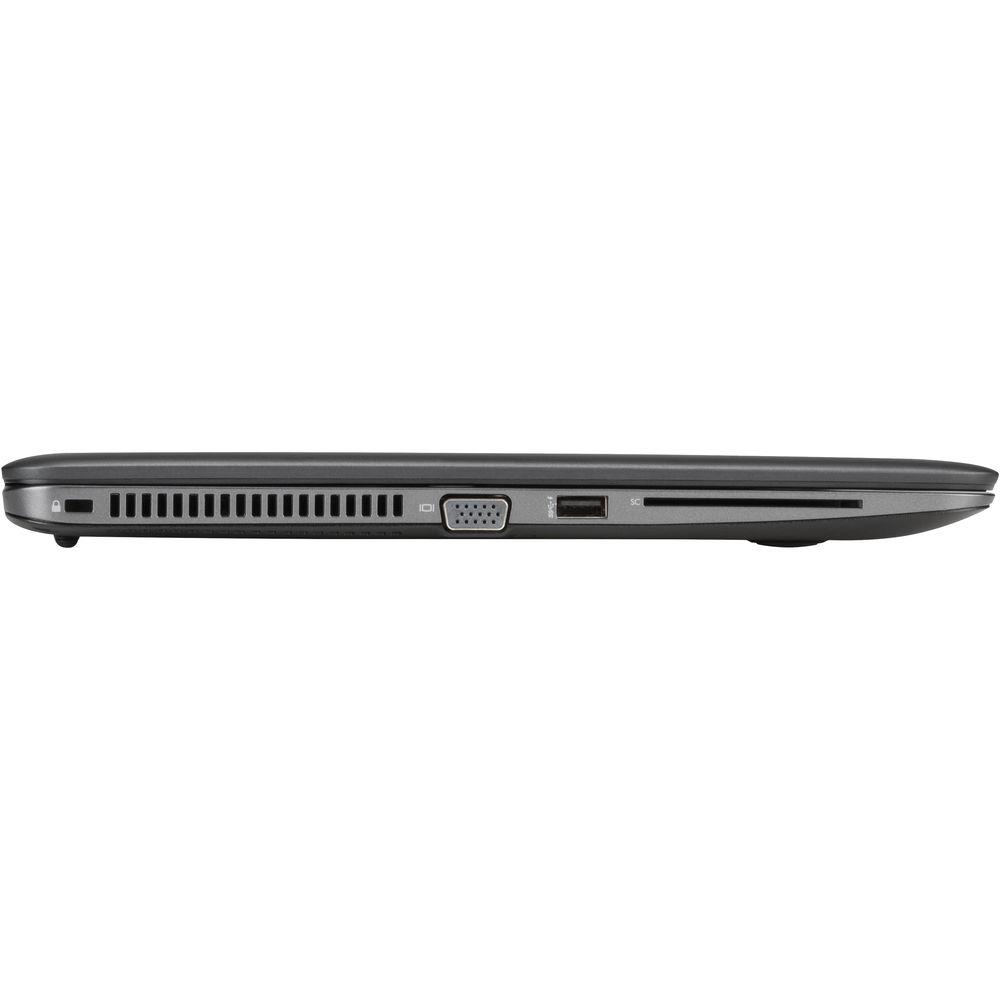

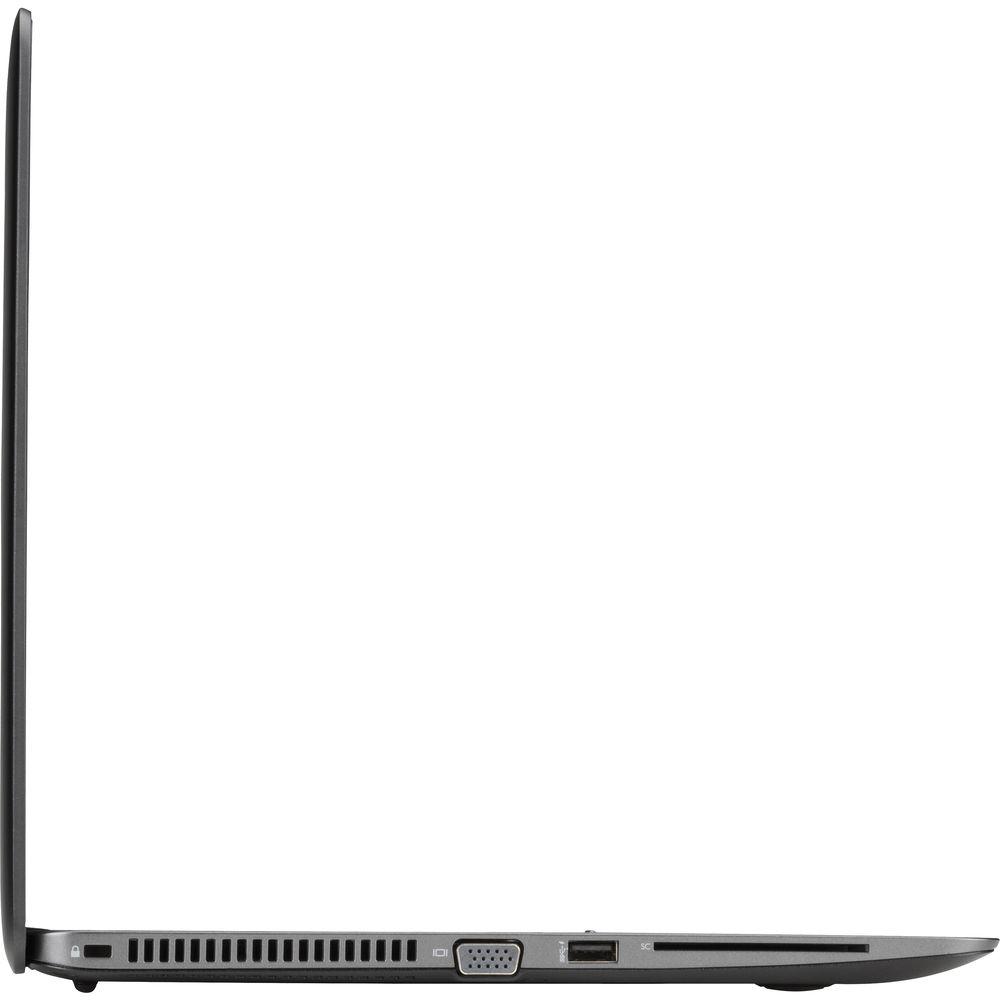

- Users may output video to an external display using either the DisplayPort 1.2 or VGA ports. The DisplayPort is compatible with Multi-Stream Transport technology and supports resolutions up to Ultra HD 3840 x 2160 @ 60 Hz and color depths of 24/30-bit, as well as resolutions of WUXGA 1920 x 1200 @ 120 Hz and color depths of 24/30-bit. The VGA port supports resolutions up to 1920 x 1200 @ 60 Hz and lower resolutions up to 75 Hz.
- Multi-Stream Transport (MST)
- Multi-Stream Transport (MST) is a DisplayPort 1.2 feature that allows daisy chaining of DisplayPort 1.2 monitors (requires monitor with DisplayPort 1.2 MST capability), or the use of DisplayPort 1.2 hubs with MST to achieve a maximum of 3 active displays.
- 720p Webcam
- HD format (widescreen)
Supports videoconferencing and still image capture
High quality fixed focus lens
Video capture at various resolutions up to 1280 x 720 resolution (720p) and up to 30 fps
M-JPEG compression supports higher frame rates for video capture and videoconferencing
Improved low light sensitivity
Improved dynamic range - Security Features
- Integrated smart card reader
One-step logon
Common Criteria EAL4+ Augmented Certified Discrete TPM 1.2/2.0 Embedded Security Chip
Security lock slot
Support for Intel AT
HP FingerPrint Sensor (optional)
Absolute Persistence Module
HP BIOSphere with Sure Start
SATA port disablement (via BIOS)
DriveLock and Automatic
DriveLock; RAID (available as a configurable option)
Serial, parallel, USB enable/disable (via BIOS)
Optional USB port disable at factory (user configurable via BIOS)
Removable media write/boot control
Power-on password (via BIOS)
Setup password (via BIOS) - Smart Card Reader
- The integrated smart card reader is compatible with ISO 7816 compliant smart cards with PC/SC interface support.
- Energy Efficiency Compliance
- ENERGY STAR certified and EPEAT registered configurations available.
- Environmental
- Low halogen.
- Windows 7 Professional (64-bit) + Windows 10 Professional (64-bit) License
- While the installed operating system is Windows 7 Pro (64-bit), a license and media for installing Windows 10 Pro (64-bit) is also included. However, please note that you may only use one version of the Windows software at a time. Switching from Windows 7 Pro will require you to uninstall it and install Windows 10 Pro. You must back up all data before uninstalling and installing operating systems to avoid loss of your data.
In the Box HP 15.6" ZBook 15u G3 Mobile Workstation 65W Slim Smart AC Adapter 3-cell / 46Wh Lithium-ion Polymer Prismatic Long Life Battery Windows 10 Professional (64-bit) License Windows 7 Pro (64-bit) & Windows 10 Pro (64-bit) Recovery Media Limited 3-Year Warranty for Parts Limited 3-Year Warranty for Labor 3 Years of Repairs Performed at Customer Site for Those Parts Not Eligible for Customer Self Repair (CSR) For 24/7 Customer Service, Please Call 1-866-625-1175 More from Manufacturer Table of Contents
|
Upload User Manual
Have you got an user manual for the HP 15.6" ZBook 15u G3 Mobile Workstation in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHP 15u G3 Specs | | | Processor | Intel Core i5-6200U Dual-Core | | Base Clock Speed | 2.3 GHz | | Maximum Boost Speed | 2.8 GHz | | Total Installed Memory | 8 GB | | Maximum Memory Capacity | 32 GB | | Memory Type | DDR4 SDRAM | | Memory Speed | 2133 MHz | | Available Memory Slots | 1 | | Memory Slot Type | 260-Pin SO-DIMM | | Graphics Type | Dedicated | | GPU | AMD FirePro W4190M with 2 GB GDDR5 VRAM | | | | Panel Type | TN | | Size | 15.6" | | Aspect Ratio | 16:9 | | Native Resolution | 1920 x 1080 | | Touchscreen | None | | Finish | Matte | | Maximum Brightness | 300 cd/m2 | | Viewing Angle (H x V) | 90 x 60° | | Refresh Rate | 60 Hz | | External Resolution | Up to 3840 x 2160 | | | | Available Slots | 1 x 2.5" (7 mm) | | Total Installed Capacity | 256 GB | | Solid State Storage | 1 x 256 GB M.2 SATA | | Optical Drive | None | | | | Ports | 3 x USB 3.1 Gen 1 Type-A
1 x Docking Connector
1 x Kensington Lock | | Display | 1 x DisplayPort 1.2
1 x VGA | | Audio | 2 x Integrated Speaker
2 x Integrated Microphone
1 x 1/8" (3.5 mm) Headphone/Microphone Combo Jack | | Expansion Slots | 1 x Smart Card | | Media Card Slots | SD/SDHC/SDXC | | | | Network | 1 x 10/100/1000 Mb/s Gigabit Ethernet (RJ45) | | Wi-Fi | Wi-Fi 5 (802.11ac); Dual-Band (2.4 & 5 GHz) | | Bluetooth | Bluetooth 4.2 | | Mobile Broadband | None | | GPS | None | | NFC | Yes | | Webcam | User-Facing: 720p | | | | Battery Chemistry | Lithium-Ion Polymer (LiPo) | | Watt Hours / Type | 46 Wh Removable | | Cells | 3 | | Output Voltage | 11.1 VDC | | Maximum Runtime | 10 Hours | | Power Requirements | 100-240 VAC, 47-63 Hz | | Power Supply | x 65 W | | | | Operating System | Windows 7 Professional (64-Bit) | | Security | Power-On Password, Kensington Lock Slot, Accepts 3rd Party Security Lock Devices, Infineon TPM Software Professional Package, Fingerprint Reader | | Keyboard | Full-Size (Backlight, Numeric Keypad) | | Pointing Device | TouchPad | | Dimensions (W x H x D) | 15.1 x 0.8 x 10.1" / 38.4 x 2.0 x 25.7 cm | | Weight | 4.18 lb / 1.90 kg (Weight varies by configuration and components) | | | | Package Weight | 6.19 lb | | Box Dimensions (LxWxH) | 19.0 x 12.3 x 2.7" |
