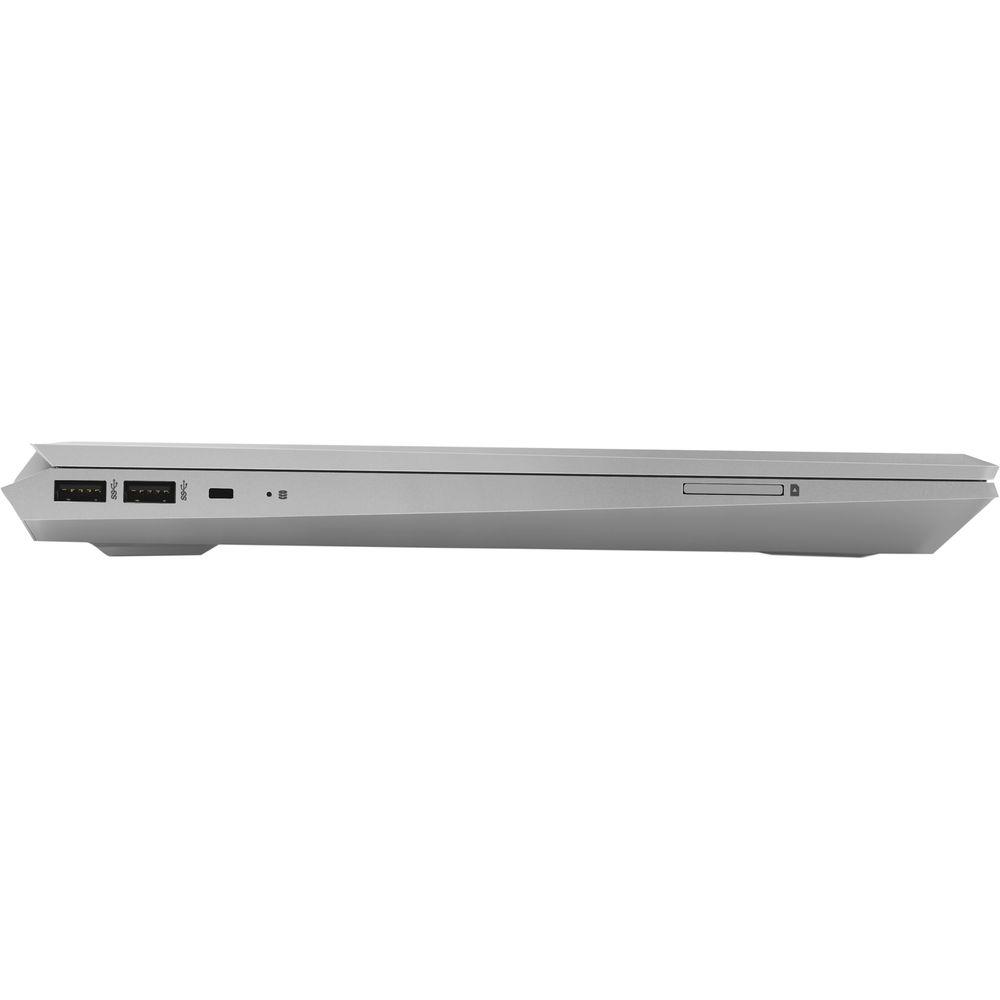

User Manual for HP 15.6" ZBook 15v G5 Multi-Touch Mobile Workstation Click to enlarge the picture
Contents of the user manual for the HP 15.6" ZBook 15v G5 Multi-Touch
- Product category: Mobile Workstations HP
- Brand: HP
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for HP Mobile Workstations
 |
User manual for the HP 15.6" ZBook 15v G5 Multi-Touch contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any HP product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official HP user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a HP product will considerably shorten its lifespan!
|

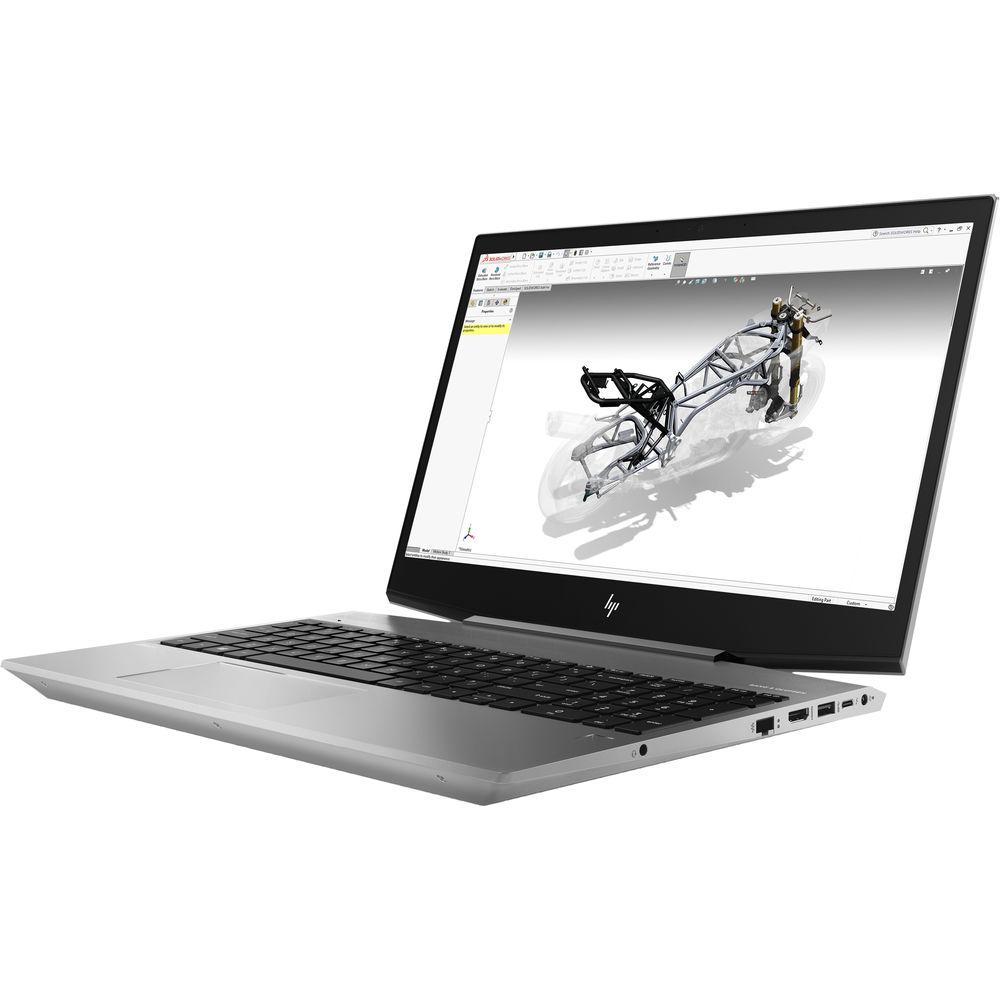

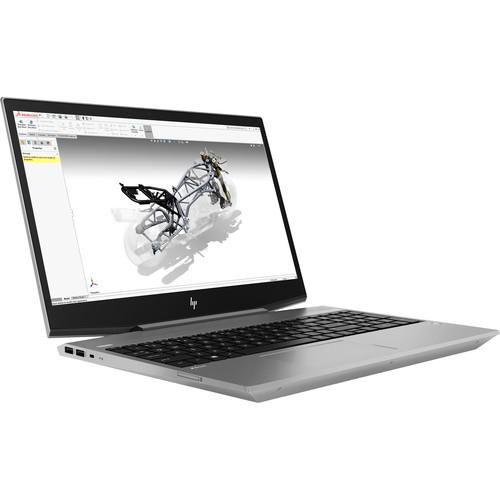

Product description Work Laptops New Mobile Workstations from HP Read More The 15.6" ZBook 15v G5 Multi-Touch Mobile Workstation from HP is a high-performance system that has been built to supercharge and optimize your workflows. It is powered by a 2.6 GHz Intel Core i7-8850H Six-Core processor and 16GB of 2666 MHz DDR4 RAM, allowing you to run multiple programs simultaneously and quickly access frequently used files and programs. When running more demanding programs or tasks, the processor can be boosted to achieve a speed of 4.3 GHz using Intel's Turbo Boost 2.0 technology. While the current memory configuration is 1 x 16GB, it can be upgraded to a maximum of 32GB by using one 16GB module in each of the 260-pin SO-DIMM slots.
The 15.6" BrightView UWVA IPS display features a Full HD 1920 x 1080 screen resolution, a 16:9 aspect ratio, LED-backlighting, a brightness of 250 cd/m2, a contrast ratio of 400:1, 141 ppi, and viewing angles of 45/45/35/25°. The display is protected by Corning Gorilla Glass 4 and also features multi-touch functionality, allowing you to utilize the touch gestures and functions in Windows 10 Pro to further improve accessibility and productivity. The dedicated NVIDIA Quadro P600 graphics card has 4GB of discrete GDDR5 RAM and delivers a sharp, clear picture. You'll also be able to output video to an external display using the system's HDMI 2.0 port, as well as DisplayPort 1.2 via Thunderbolt 3.
For storage of your files, this system is equipped with a 512GB NVMe PCIe M.2 SSD, and there is also an empty 2.5" / 7mm SATA drive bay available for additional internal storage, plus an empty M.2 2280 slot that supports SATA and PCIe SSDs. If you want to add external storage, optical drives, memory card readers, printers, and more, the ZBook 15v G5 offers one Thunderbolt 3 port, which supports 10 Gb/s USB 3.1 Gen 2 and PCIe 3.0, and three USB 3.1 Gen 1 Type-A ports, one of which doubles as a charging port. Gigabit Ethernet and Wi-Fi 5 (802.11ac 2x2) are built-in for wired and wireless networking, and Bluetooth 5.0 technology will also allow you to connect additional compatible peripherals wirelessly, such as keyboards, mice, and headsets. Content from memory cards may be accessed via a built-in SD/SDHC/SDXC card reader that supports UHS-II flash media. Other integrated features include dual-array microphones, stereo speakers with Bang & Olufsen HD audio, and a 1080p IR webcam for face authentication with Windows Hello.
HP's 15.6" ZBook 15v G5 includes a 150W AC adapter and a 3-cell / 52.5Wh lithium-ion polymer battery that supports HP Fast Charge and will recharge up to 90% in 90 minutes. The installed operating system is Windows 10 Pro (64-bit) and also included is recovery media. Protection is provided by a limited 1-year parts & labor warranty. General Features ZBook 15v G5 Mobile Workstation - Thunderbolt 3

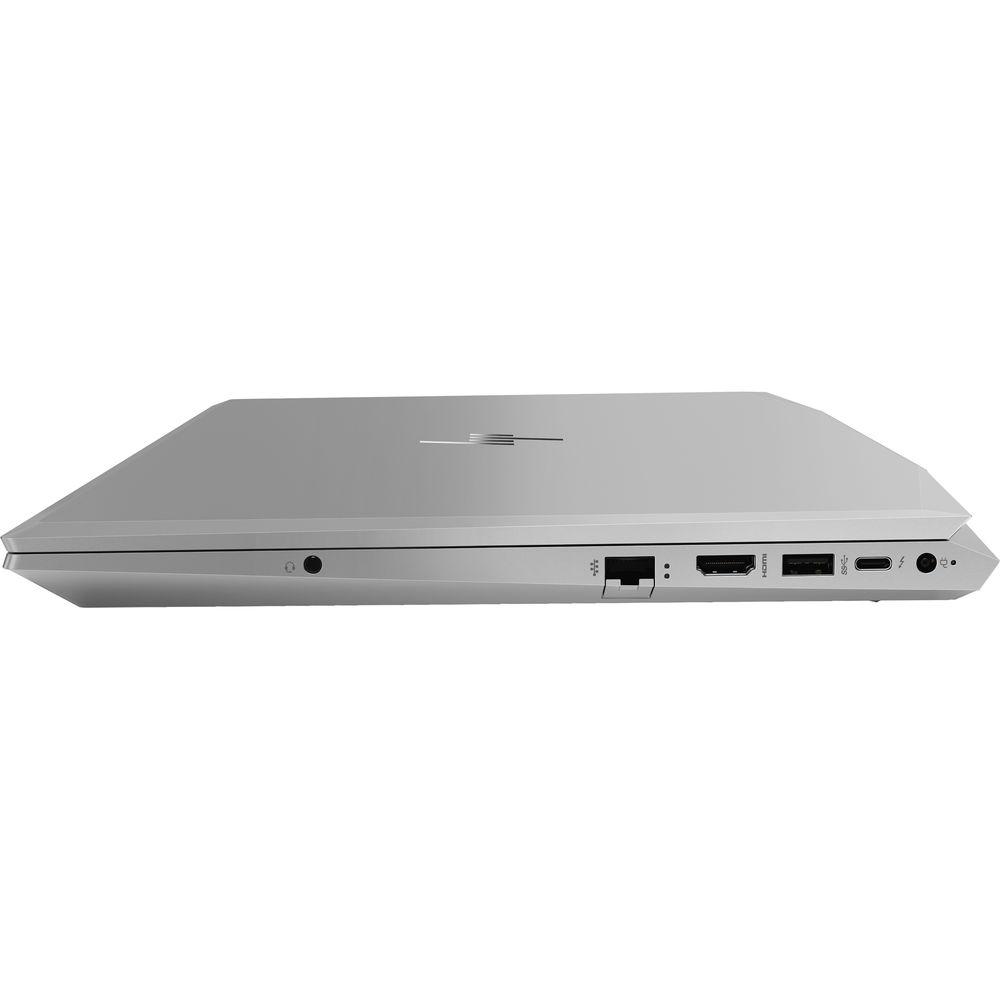

- Thunderbolt 3 is a hardware interface that utilizes the reversible USB Type-C connector. Doubling the speed of its predecessor, Thunderbolt 3 features a maximum throughput of 40 Gb/s when used with compatible devices. The connector also transmits data via USB 3.1 at up to 10 Gb/s, and dual-bandwidth DisplayPort 1.2 allows you to connect up to two 4K displays simultaneously. Additionally, you can daisy chain up to six devices from a single Thunderbolt 3 port.
- Multi-Display Support
- The ZBook 15v G5 supports multiple displays in several configurations. Using Thunderbolt 3 and HDMI 2.0 with hybrid graphics, but without HP's Thunderbolt Dock G2, the system supports three independent displays, which include the internal panel and two external displays. When using the Thunderbolt Dock G2 and hybrid graphics, up to five independent displays are supported, provided DisplayPort is connected. These five displays include the internal panel, one external display connected via the system's HDMI port, and three external displays connected to the dock's USB Type-C, VGA, and two DisplayPort ports. If the Thunderbolt port is the only port on the dock connected, then the three external displays will not function.
- USB 3.0 Type-A Ports
- This ZBook 17 G4 features four USB 3.0 Type-A ports that will allow you to connect external peripherals such as additional storage, optical drives, printers, memory card readers, and more. One of the USB 3.0 ports also doubles as an always-on charging port for compatible USB devices.

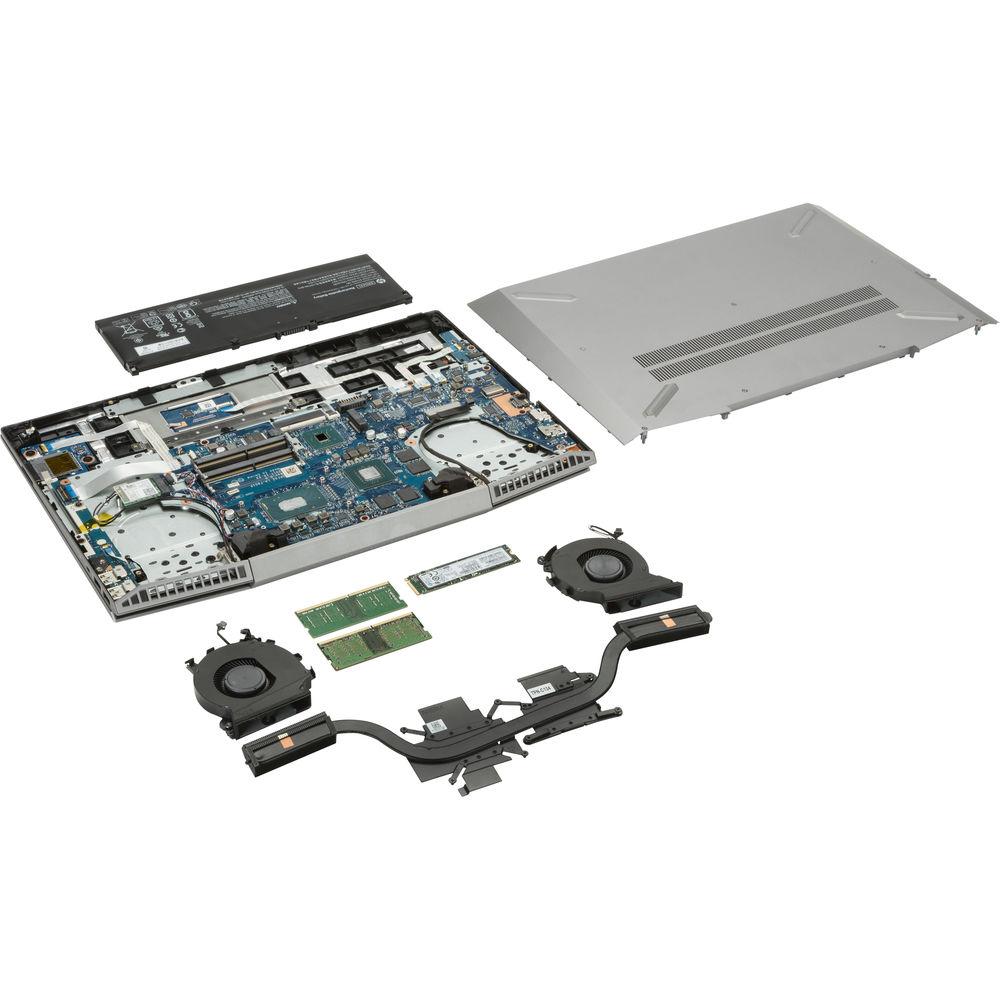

- Up to 32GB Memory
- While this system natively includes 16GB of RAM in a 1 x 16GB configuration, it can be upgraded to a maximum of 32GB when 16GB memory modules are used in each of the system's two 260-pin SO-DIMM slots.
- Drive Bays
- The HP ZBook 15v G5 Mobile Workstation supports two internal drives: one 2.5" / 7mm SATA hard drive or SSD, and one M.2 2280 PCIe or SATA SSD. As the M.2 slot is used for the 512GB SSD, the 2.5" / 7mm bay is available, as is an additional M.2 2280 slot, which supports SATA or PCIe SSDs.
- Gigabit Ethernet & 802.11ac Wi-Fi
- The system uses a Gigabit Ethernet controller for internet access when connected to a router, modem, or network switch. It also features Intel Dual Band Wireless-AC 8260 which is compatible with 802.11a/b/g/n/ac Wi-Fi so that users may access network connectivity using wireless technology
- Bluetooth 5.0
- Additional compatible peripherals, such as mice, keyboards, headsets, and more may be paired using Bluetooth 5.0 technology.
- 1080p IR Webcam
-
- Full HD format
- Supports videoconferencing and still image capture
- High-quality fixed focus lens
- Video capture at various resolutions up to 1920 x 1080 (1080p) and up to 30 fps
- M-JPEG compression supports high frame rates for video capture and video conferencing
Windows 10 - Start Menu
- After its hiatus in Windows 8, the Start Menu has returned. Utilizing a combination of the traditional menu system and Windows 8's Live Tiles, the improved Start Menu gives you more information at a glance, showing notification information alongside your applications and other pinned items.
- Cortana
- Microsoft's digital personal assistant, Cortana can answer your questions with information gleaned from both your device and the internet at large. You can type or even talk with her, if your system has a microphone. Using her Notebook, Cortana keeps track of your needs and wants, and she learns over time to improve her information gathering skills.
- Microsoft Edge
- After nearly 20 years, Microsoft has finally replaced its Internet Explorer web browser. With Microsoft Edge, users can write directly on web pages and share notes with friends and colleagues. It also improves the online reading experience by adding a distraction-free mode and read-it-later functionality. Edge also has built-in Cortana integration; you can have her help you find a restaurant, make a reservation, and pull up directions without leaving your browser.
- Windows Store
- For Windows 10, Microsoft has unified the Windows Store. Now, apps for PCs, tablets, and phones will all be accessible from one place. And with support for Universal Apps, one version of an app can work across all your compatible devices automatically.
- Windows Continuum
- Windows 10 was designed for a variety of screen sizes and input styles, and with its Continuum feature, it automatically adapts to fit your needs. A Windows 10 tablet on its own requires a touch-centric approach, but attaching a mouse and keyboard will shift everything to a more traditional interface. You can even attach an external monitor to your Windows 10 phone for a near-desktop experience. But it's not just the operating system; Windows Universal Apps take advantage of Continuum as well.
- Xbox on Windows 10
- Gaming is a big focus of Windows 10. Xbox integration allows for PC players to match up against Xbox One players on supported games, and if you have an Xbox One, you can even stream compatible titles to your PC. Native support for recording with the new Game DVR feature makes it easy to capture and share your gameplay. The new DirectX12 takes better advantage of multi-core processors, giving games a performance boost, even on older hardware. Windows 10 also features native support for virtual reality headsets, such as the Oculus Rift.
- Windows 10 Pro (64-bit)
- The Pro version of Windows 10 includes all of the features of Windows 10 Home plus many designed specifically for businesses users, including Hyper-V virtualization, BitLocker disk encryption, and remote desktop access. Devices will also be able to join domains and the Azure Active Directory, and they can even access a specialized version of the Windows Store featuring custom, company-specific applications.
UPC: 192545798297 In the Box HP 15.6" ZBook 15v G5 Multi-Touch Mobile Workstation Hard Drive Cage for 2.5" Drives 150W AC Adapter Windows 10 Pro (64-Bit) Recovery Media Limited 1-Year Parts & Labor Warranty Guides & Manuals twzzcfvsttauzsvastztwswxsrxbcvyyad Table of Contents
|
Upload User Manual
Have you got an user manual for the HP 15.6" ZBook 15v G5 Multi-Touch Mobile Workstation in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHP ZBook 15v G5 Specs | Operating System | Windows 10 Pro (64-Bit) | | | | CPU | 2.6 GHz Intel Core i7-8850H 6-Core | | Maximum Boost Speed | 4.3 GHz | | L3 Cache | 9 MB | | Memory Type | 2666 MHz DDR4 | | Total Installed Memory | 16 GB | | Memory Configuration | 1 x 16 GB (User-Replaceable) | | Maximum Memory Capacity | 32 GB | | Memory Slot Type | 260-Pin SO-DIMM | | Available Memory Slots | 1 | | Graphics Type | Dedicated | | GPU | NVIDIA Quadro P600 with 4 GB GDDR5 VRAM | | | | Panel Type | IPS | | Size | 15.6" | | Aspect Ratio | 16:9 | | Resolution | 1920 x 1080 | | Touchscreen | Yes | | Finish | Glossy | | Maximum Brightness | 250 cd/m2 | | Color Gamut | 67% sRGB | | Refresh Rate | 60 Hz | | Contrast Ratio | 400:1 | | Adaptive Sync Technology | None | | Viewing Angle (H x V) | 90 x 60° | | | | 2.5" Slots | 1 x 7 mm (Available) | | SSD Slots | 1 x M.2 2280 SATA / PCIe x4 (Available)
1 x M.2 2280 SATA / PCIe x4 (In Use) | | Total Installed Capacity | 512 GB | | Solid State Storage | 1 x 512 GB M.2 NVMe PCIe | | Optical Drive | None | | | | Ports | 3 x USB Type-A (USB 3.1 Gen 1) | | USB Type-C Ports | 1 x Thunderbolt 3 (Supports DisplayPort) | | Display | 1 x HDMI 2.0 | | Audio | 1 x 1/8" / 3.5 mm Headphone/Microphone Input/Output | | Built-In Speakers | 2 | | Built-In Microphones | 2 | | Media Card Slots | 1 x SDXC (UHS-II [312 MB/s]) | | | | Ethernet | 1 x RJ45 (Gigabit) | | Wi-Fi | Wi-Fi 5 (802.11ac); Dual-Band (2.4 & 5 GHz) | | MU-MIMO Support | 2 x 2 | | Bluetooth | 5.0 | | GPS | None | | NFC | None | | Webcam | User-Facing: 1080p | | | | Battery Chemistry | Lithium-Ion Polymer (LiPo) | | Watt Hours / Type | 52.5 Wh Non-Removable | | Cells | 3 | | Output Voltage | 11.55 VDC | | Maximum Runtime | 12.25 Hours | | | | Keyboard | Notebook Keyboard with Backlight and Number Pad | | Pointing Device | TouchPad | | | | Security | Kensington Lock Slot, Facial Recognition | | Power Supply | 150 W | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz at 2.2 A | | Operating Temperature | 41 to 95°F / 5 to 35°C | | Operating Humidity | 10 to 90% | | Dimensions | 14.4 x 10.1 x 1" / 36.6 x 25.7 x 2.5 cm | | Weight | 4.8 lb / 2.2 kg | | | | Package Weight | 7.25 lb | | Box Dimensions (LxWxH) | 17.0 x 12.0 x 4.5" |
