HP 15.6" ZBook Studio G3 Mobile

Search your instruction manual in PDF to download

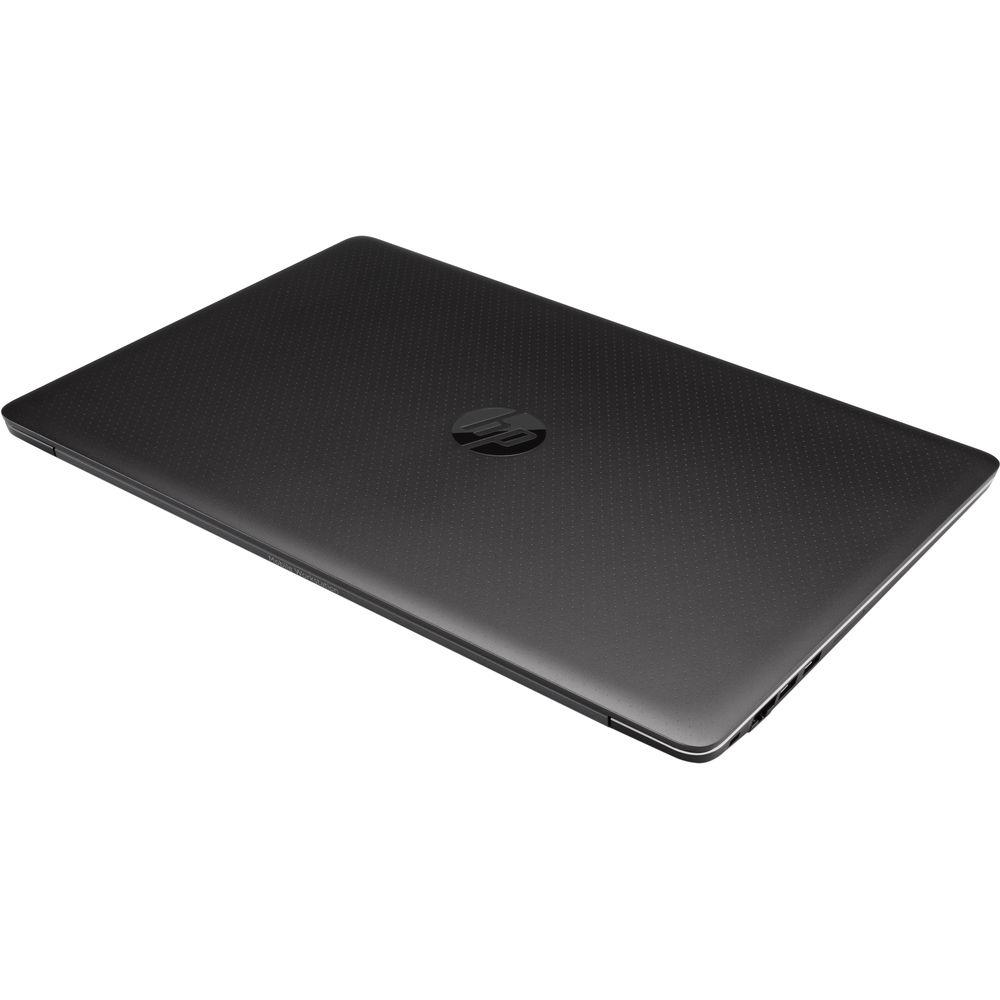

User Manual for HP 15.6" ZBook Studio G3 Mobile Workstation

Click to enlarge the picture
HP 15.6" ZBook Studio G3 Mobile Workstation Contents of the user manual for the HP 15.6" ZBook Studio G3 Mobile
  • Product category: Mobile Workstations HP
  • Brand: HP
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for HP Mobile Workstations

HP 15.6" ZBook Studio G3 Mobile Workstation HP 15.6" ZBook Studio G3 Mobile Workstation HP 15.6" ZBook Studio G3 Mobile Workstation HP 15.6" ZBook Studio G3 Mobile Workstation HP 15.6" ZBook Studio G3 Mobile Workstation HP 15.6" ZBook Studio G3 Mobile Workstation HP 15.6" ZBook Studio G3 Mobile Workstation HP 15.6" ZBook Studio G3 Mobile Workstation HP 15.6" ZBook Studio G3 Mobile Workstation
User manual for the HP 15.6" ZBook Studio G3 Mobile contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any HP product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official HP user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a HP product will considerably shorten its lifespan!



Product description

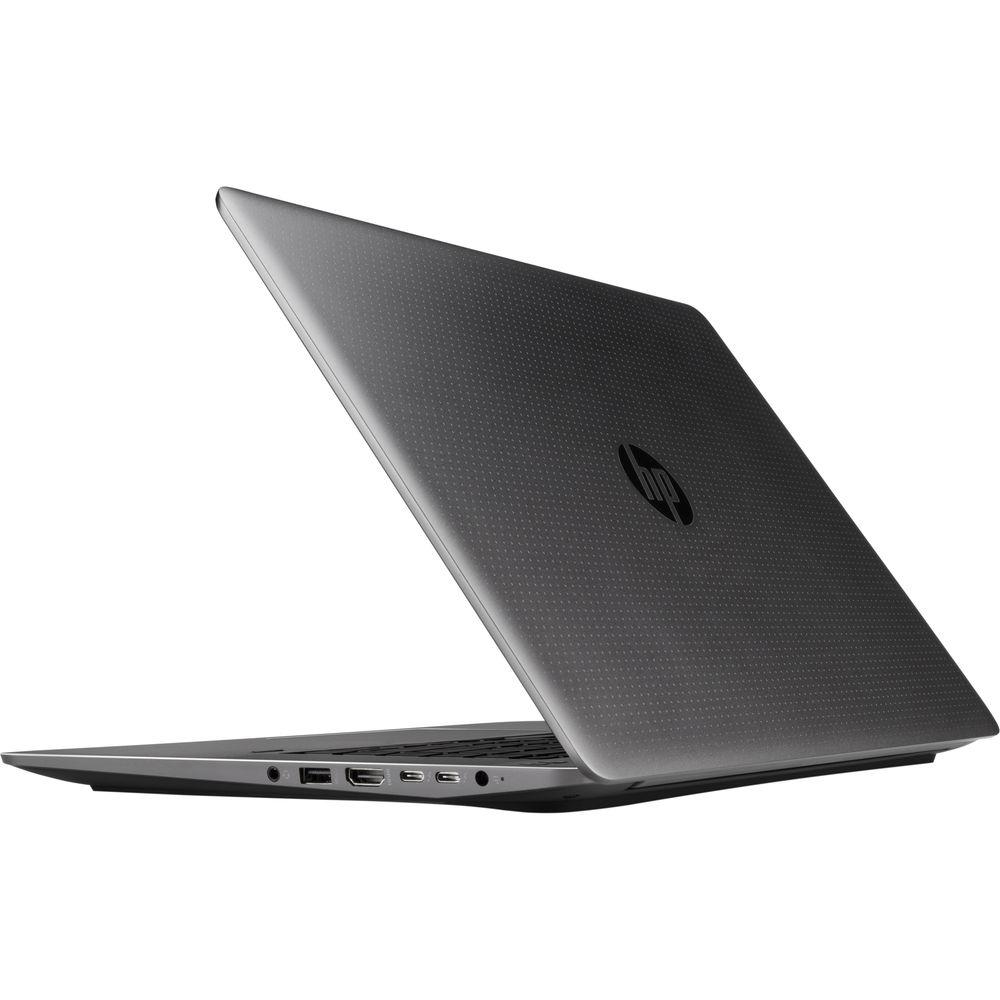

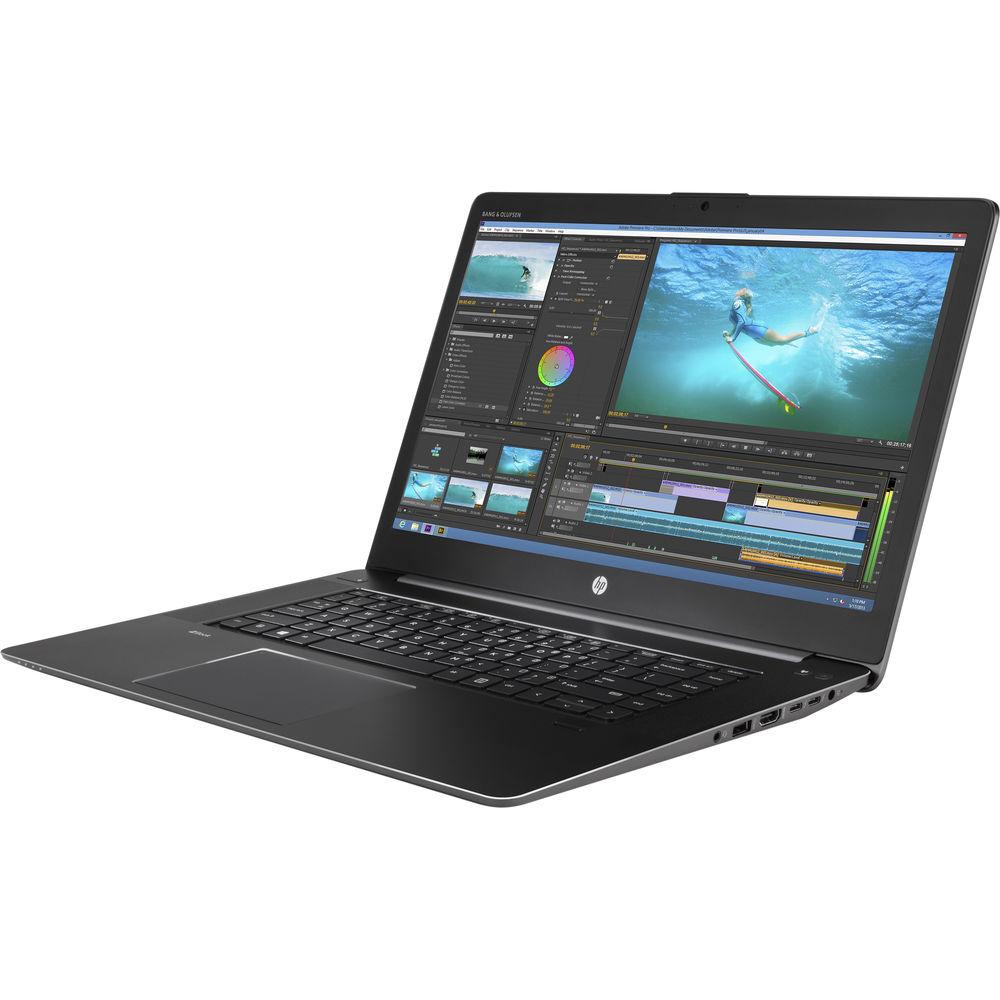

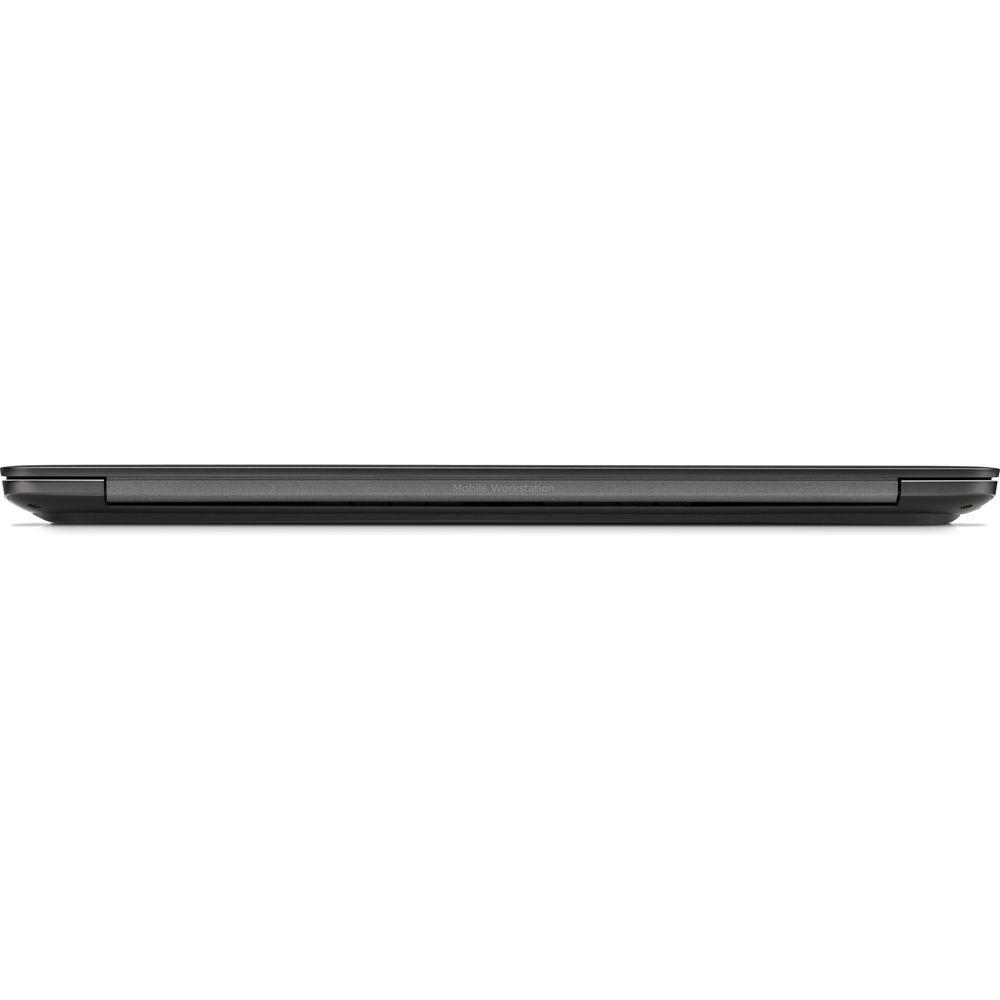

Work Laptops Thin at 0.71" and weighing 4.4 pounds, the 15.6" ZBook Studio G3 Mobile Workstation from HP is designed for mobile professionals who require a versatile system with powerful processing and graphics, as well as simple scalability that can handle a wide variety of functions. The ZBook Studio G3 will help users stay productive, whether they are at home, at the office, or in the field and is powered by a 2.3 GHz Intel Core i5-6300HQ Quad-Core processor which allows you to run multiple applications simultaneously. If you need more power, the system can be overclocked to 3.7 GHz using Intel Turbo Boost 2.0 technology. The 8GB of 2133 MHz DDR4 RAM helps to ensure smooth multitasking and also allows the computer to quickly access frequently used files and programs.

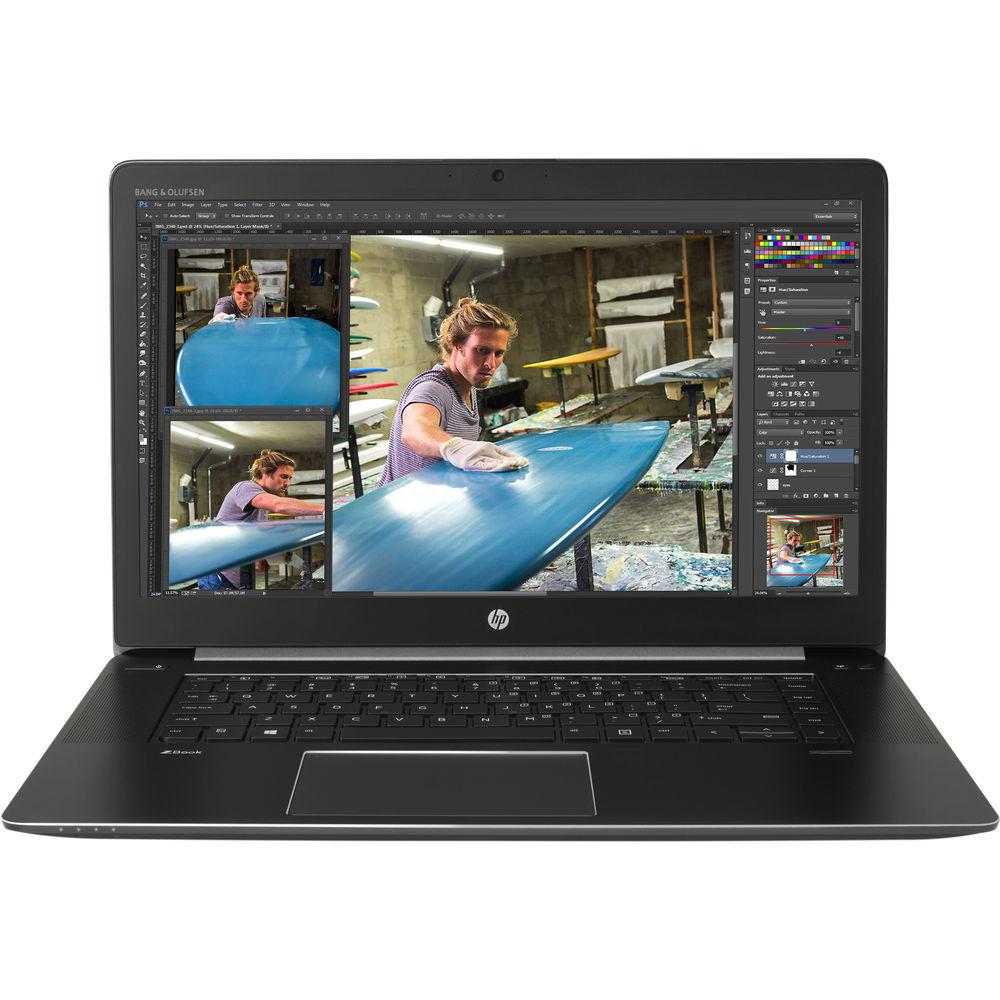

The 15.6" anti-glare display features a Full HD 1920 x 1080 native resolution. The Full HD display also features IPS technology, LED-backlighting, an ultra-wide viewing angle (UWVA), and a 16:9 aspect ratio. The dedicated NVIDIA Quadro M1000M graphics card has 4GB of discrete GDDR5 RAM and delivers a sharp, clear picture. You'll also be able to output video to an external display at resolutions up to 5120 x 2880 using the system's HDMI and dual Thunderbolt 3 ports, the latter of which supports DisplayPort 1.2.

For long-term storage of your files, this ZBook Studio G3 is equipped with a 256GB Z Turbo Drive PCIe SSD, which offers quick access to your data. While the SSD may not have the larger storage capacity of a traditional spinning hard drive, it contains no moving parts which helps it to be more resistant against bumps, drops, and other kinds of damage. SSDs also receive less wear and tear than traditional hard drives, as they don't have any read and write heads. Additionally, as this SSD connects via PCIe as compared to SATA, it is able to operate with even greater data transfer speeds. It provides sequential reads up to 1.08 GB/s and sequential writes up to 800 MB/s.

If you want to add external storage, optical drives, memory card readers, and more, the ZBook Studio G3 offers two USB Type-C connectors that support 40 Gb/s Thunderbolt 3 and 10 Gb/s USB 3.1. There are also two 5 Gb/s USB 3.0 Type-A ports and one USB 3.0 Type-A charging port. Gigabit Ethernet and 802.11ac Wi-Fi are also built-in for wired and wireless networking and Bluetooth 4.2 technology will also allow you to connect additional compatible peripherals. A built-in SD/SDHC/SDXC card reader supports UHS-II flash media and lets users download content from their digital camera. Other integrated features include a 720p webcam, dual-array microphones, and stereo speakers with Bang & Olufsen HD audio.

The ZBook Studio G3 includes a 150W Slim Smart AC adapter that operates using 100-240 VAC at 47-63 Hz and an HP Long Life 4-cell / 64Wh Lithium-ion prismatic battery that can typically be recharged in 3-5 hours and lasts for up to 9.5 hours. While the installed operating system is Windows 7 Professional (64-bit), a Windows 10 Professional (64-bit) license is included at no additional cost.

Photo is an authorized HP reseller with professional in-house technicians available for upgrades & installations on these workstations and laptops. Built with power and speed in mind, the Z Series is designed to enhance audio and video post-production workflows and more. Each HP Z series workstation or laptop features a range of top-tier processors and large RAM loadouts. The workstations are built with graphics flexibility in mind as well so that the end consumer can configure the graphics options to their needs, and each unit includes a 3/3/3 warranty - 3 years limited warranty for parts, 3 years limited warranty for labor, and 3 years of repairs performed at customer site for those parts not eligible for Customer Self Repair (CSR). For 24/7 customer service, please call 1-866-625-1175.

General Features

    Thunderbolt 3
  • The two USB Type-C ports of the ZBook Studio G3 support Thunderbolt 3 connectivity, which features bi-directional transfer speeds of up to 40 Gb/s. Thunderbolt 3 also supports DisplayPort 1.2, 10 Gb/s USB 3.1, and PCIe Gen 3 devices, all using the USB Type-C connectors
    DisplayPort 1.2 Protocol Features Supported via Thunderbolt 3
  • Legacy displays (HDMI, DVI, VGA) may be attached to a Thunderbolt port with the use of a certified dongle
  • DisplayPort monitors capable of supporting DisplayPort 1.2 may be directly attached to the Thunderbolt port to achieve HBR2 with the use of a dongle
  • Thunderbolt 3 enabled monitors may be directly attached to the Thunderbolt port to achieve HBR2 and MST
  • The DisplayPort 1.2 MST feature ("daisy-chain" feature) is supported through the Thunderbolt 3 port on Thunderbolt 3 enabled devices or DisplayPort 1.2 monitors (requires a monitor with DisplayPort 1.2 MST capability) with the use of a dongle
  • Up to two streams (eight lanes) of DisplayPort 1.2 are supported over a single Thunderbolt 3 port. Up to two 4K displays with 24/30-bit color depth at 60 Hz or one 5K display are supported over a single Thunderbolt 3 port using an Intel-certified Thunderbolt cable
  • DisplayPort 1.2 w/MST (Multi-stream Transport): Supports resolutions up to Full 4K (4096 x 2160), 24/30-bit color depth at 60 Hz, and WUXGA (1920 x 1200) monitors with 24/30-bit color depth at 120 Hz
    Multi-Display Support Using the ZBook Dock with Thunderbolt 3
  • The separately sold ZBook Dock with Thunderbolt 3 has a Thunderbolt 3 port, VGA port, and two DisplayPort 1.2 ports. When used together with the HP ZBook Studio configuration with hybrid graphics, a maximum of 5 independent displays are supported. These five displays are the internal panel plus four external displays connected to the ZBook dock's Thunderbolt 3, VGA, and two DisplayPort ports. When used together with the HP ZBook Studio configuration with Intel integrated graphics, a maximum of three independent displays are supported
    Multi-Display Support Without the ZBook Dock with Thunderbolt 3
  • The HP ZBook Studio with hybrid graphics and without the use of the separately sold ZBook dock supports up to a maximum of three independent displays. These three displays are the internal panel plus two external displays connected to two of the three following ports: HDMI, Thunderbolt 3, and Thunderbolt 3.

    The HP ZBook Studio configuration with Intel integrated graphics and without the use of the ZBook dock supports up to a maximum of three independent displays. These three displays are the internal panel plus two external displays connected to two of the three following ports: HDMI, Thunderbolt 3, and Thunderbolt 3
    Multi-Display Support Without the ZBook Dock with Thunderbolt 3 (using DP 1.2 MST)
  • Multi-Stream Transport (MST) is a DP 1.2 feature that allows daisy chaining of DP 1.2 monitors (requires the built-in support of DP 1.2 MST in the monitor), or the use of DP 1.2 hubs with MST to achieve five active displays without a docking station on configurations with hybrid graphics enabled
    Panel Self Refresh (PSR)
  • PSR helps to save system power and further extend battery life in portable PC systems. PSR mode allows the GPU to enter a power saving state in between frame updates by including frame buffer memory in the display panel controller
    Gigabit Ethernet & 802.11ac Wi-Fi
  • The system uses a Gigabit Ethernet controller for Internet access when connected to a router, modem, or network switch. It also features Intel Dual Band Wireless-AC 8260 which is compatible with 802.11a/b/g/n/ac Wi-Fi so that users may access network connectivity using wireless technology
    Bluetooth 4.2
  • Additional compatible peripherals, such as mice, keyboards, headsets, and more may be paired using Bluetooth 4.2 technology
    Security Features
  • TPM
    Fingerprint Reader
    Security Lock Slot
    Environmental
  • US ENERGY STAR
    IT ECO declaration
    EPEAT
UPC: 190780097090 In the Box HP 15.6" ZBook Studio G3 Mobile Workstation
  • 150W Slim Smart AC Adapter
  • Power Cord
  • 4-Cell / 64Wh Long Life Lithium-ion Prismatic Battery
  • Limited 1-Year Warranty for Parts
  • Limited 1-Year Warranty for Labor
  • 1 Year of Repairs Performed at Customer Site for Those Parts Not Eligible for Customer Self Repair (CSR)
  • For 24/7 Customer Service, Please Call 1-866-625-1175
  • Guides & Manuals zzbrzaudux More from Manufacturer Table of Contents




    Upload User Manual

    Have you got an user manual for the HP 15.6" ZBook Studio G3 Mobile Workstation in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    HP Studio G3 Specs

    Operating System Windows 7 Professional
    CPU 2.3 GHz Intel Core i5-6300HQ Quad-Core
    Maximum Boost Speed 3.2 GHz
    Memory Type 2133 MHz DDR4
    Total Installed Memory 8 GB
    Maximum Memory Capacity 32 GB
    Memory Slot Type 204-Pin SO-DIMM
    Available Memory Slots 1
    Graphics Type Dedicated
    GPU NVIDIA Quadro M1000M with 4 GB GDDR5 VRAM
    Panel Type IPS
    Size 15.6"
    Aspect Ratio 16:9
    Resolution 1920 x 1080
    Finish Matte
    Maximum Brightness 300 cd/m2
    Refresh Rate 60 Hz
    Adaptive Sync Technology None
    Viewing Angle (H x V) 85 x 85°
    Total Installed Capacity 256 GB
    Solid State Storage 1 x 256 GB M.2 PCIe
    Optical Drive None

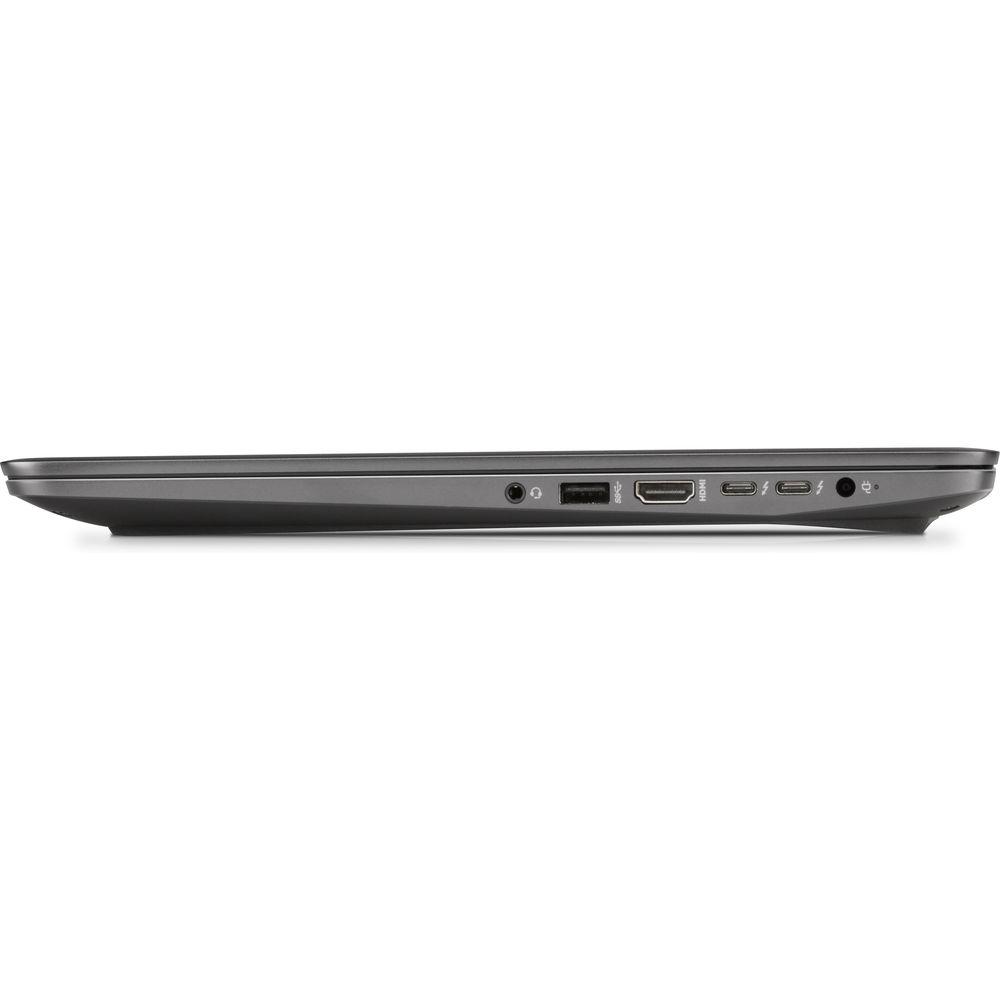

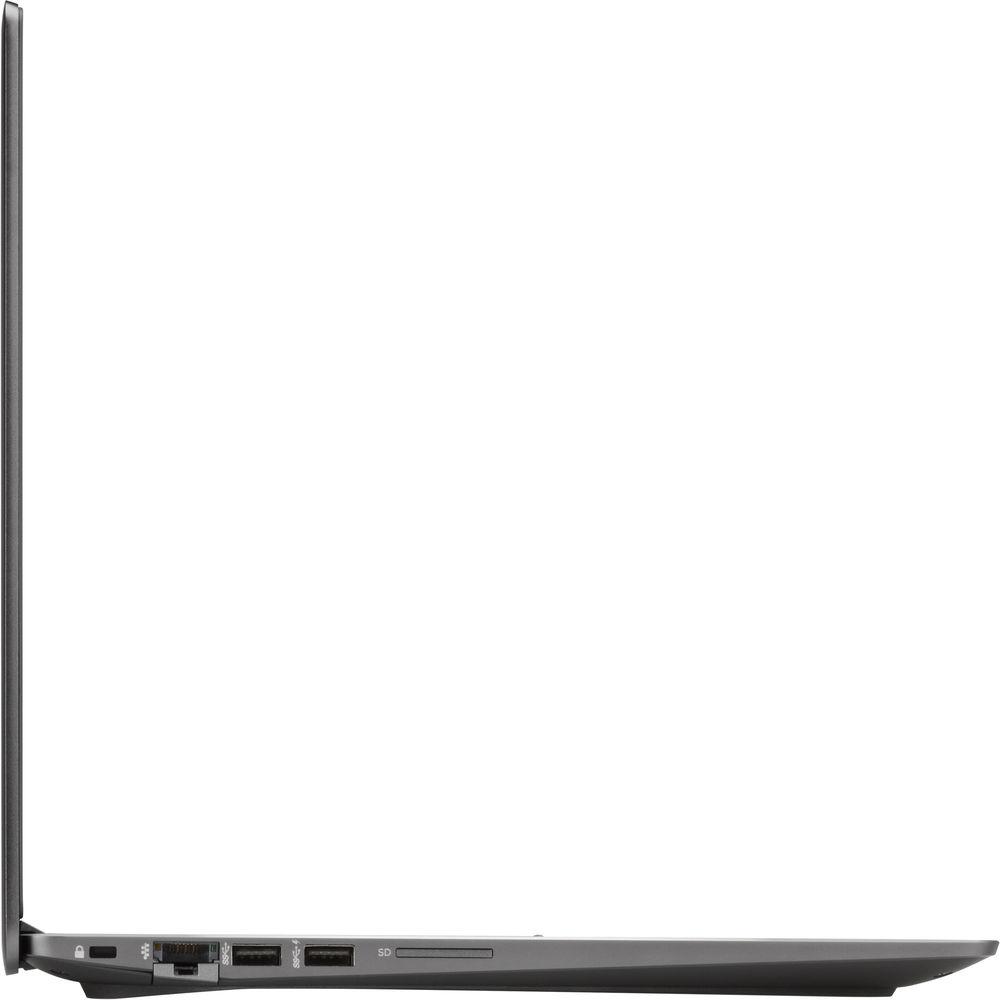

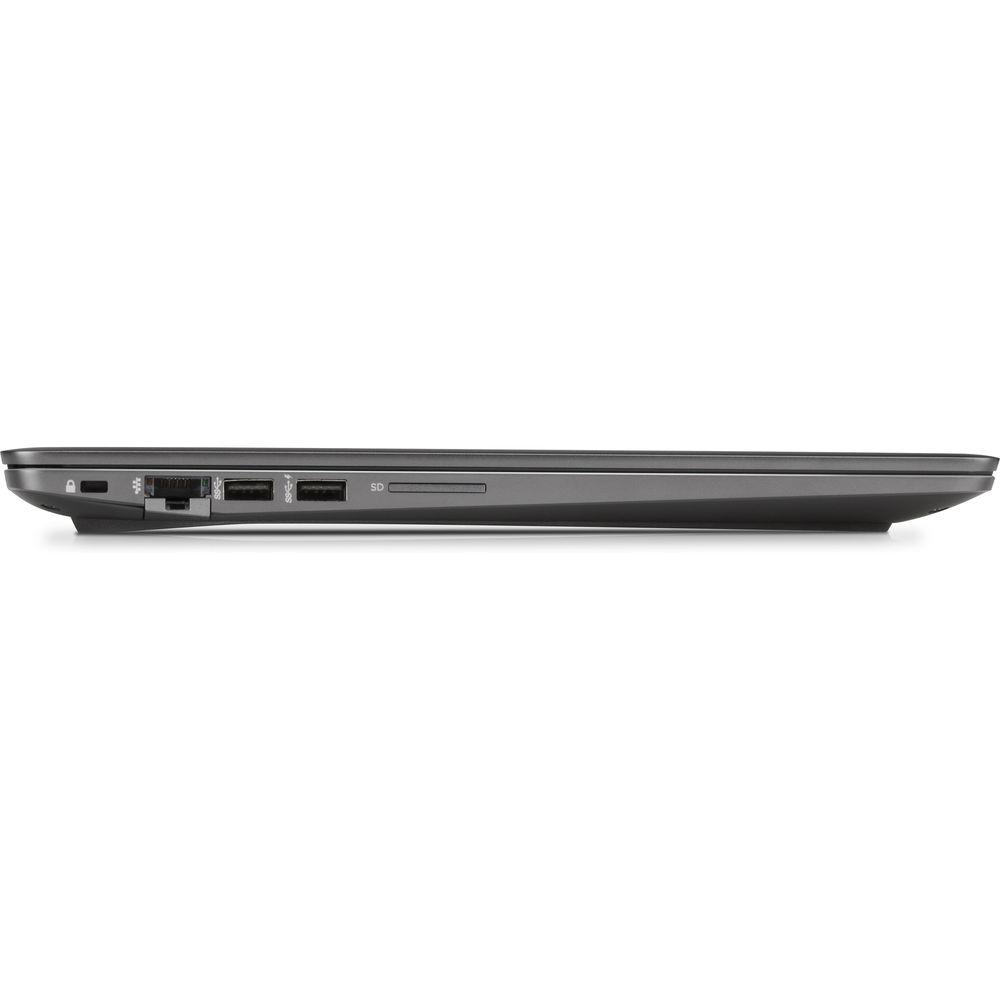

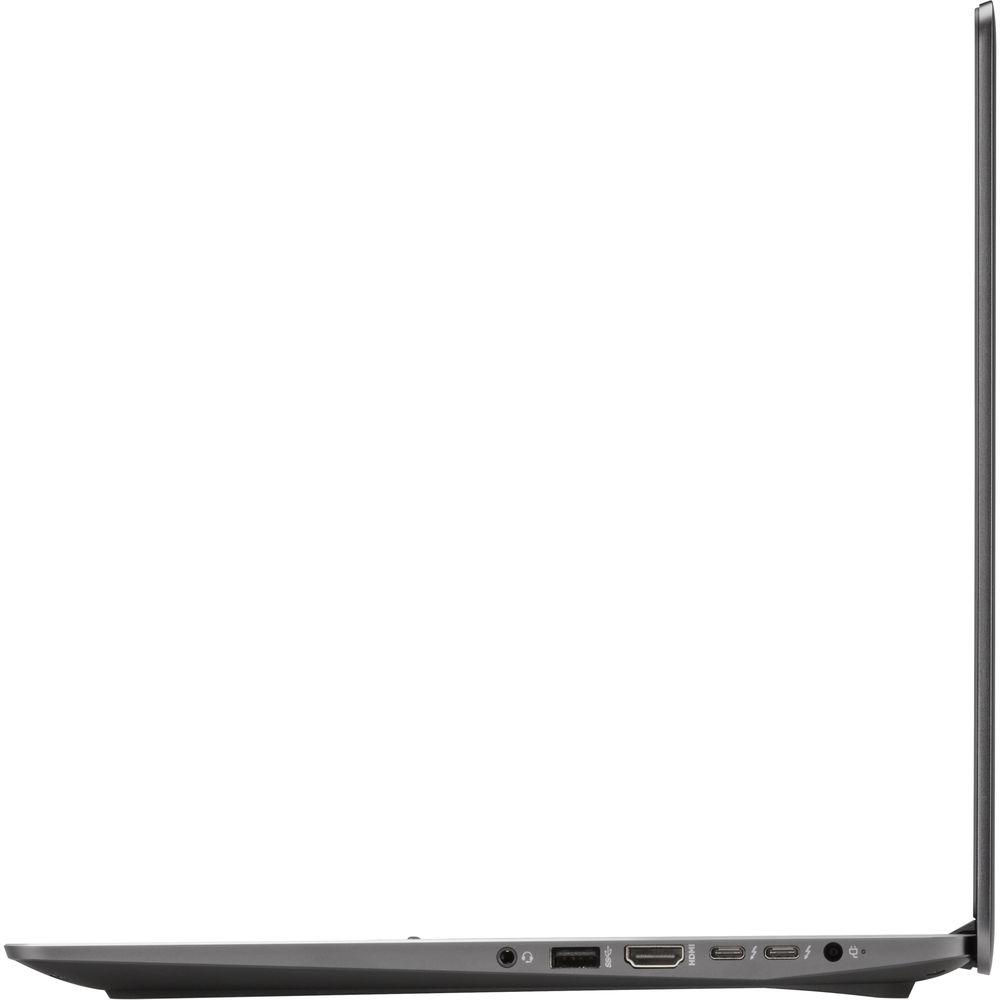

    Ports 3 x USB Type-A (USB 3.1 Gen 1)
    USB Type-C Ports 2 x Thunderbolt 3 (Supports DisplayPort)
    Display 1 x HDMI
    Audio 1 x 1/8" / 3.5 mm Headphone/Microphone Input/Output
    Built-In Speakers 2
    Built-In Microphones 2
    Media Card Slots 1 x SDXC
    Ethernet 1 x RJ45 (Gigabit)
    Wi-Fi Wi-Fi 5 (802.11ac); Dual-Band (2.4 & 5 GHz)
    Bluetooth 4.2
    Webcam User-Facing: 720p
    Keyboard Notebook Keyboard with Backlight
    Pointing Device TouchPad
    Security Kensington Lock Slot, Accepts 3rd Party Security Lock Devices, Infineon TPM Software Professional Package, Fingerprint Reader
    Power Supply 150 W
    AC Input Power 100 to 240 VAC, 50 / 60 Hz
    Dimensions 14.8 x 0.7 x 10" / 375.9 x 17.8 x 254 mm
    Weight 4.4 lb / 2 kg
    Package Weight 7.05 lb
    Box Dimensions (LxWxH) 21.9 x 12.1 x 2.9"
