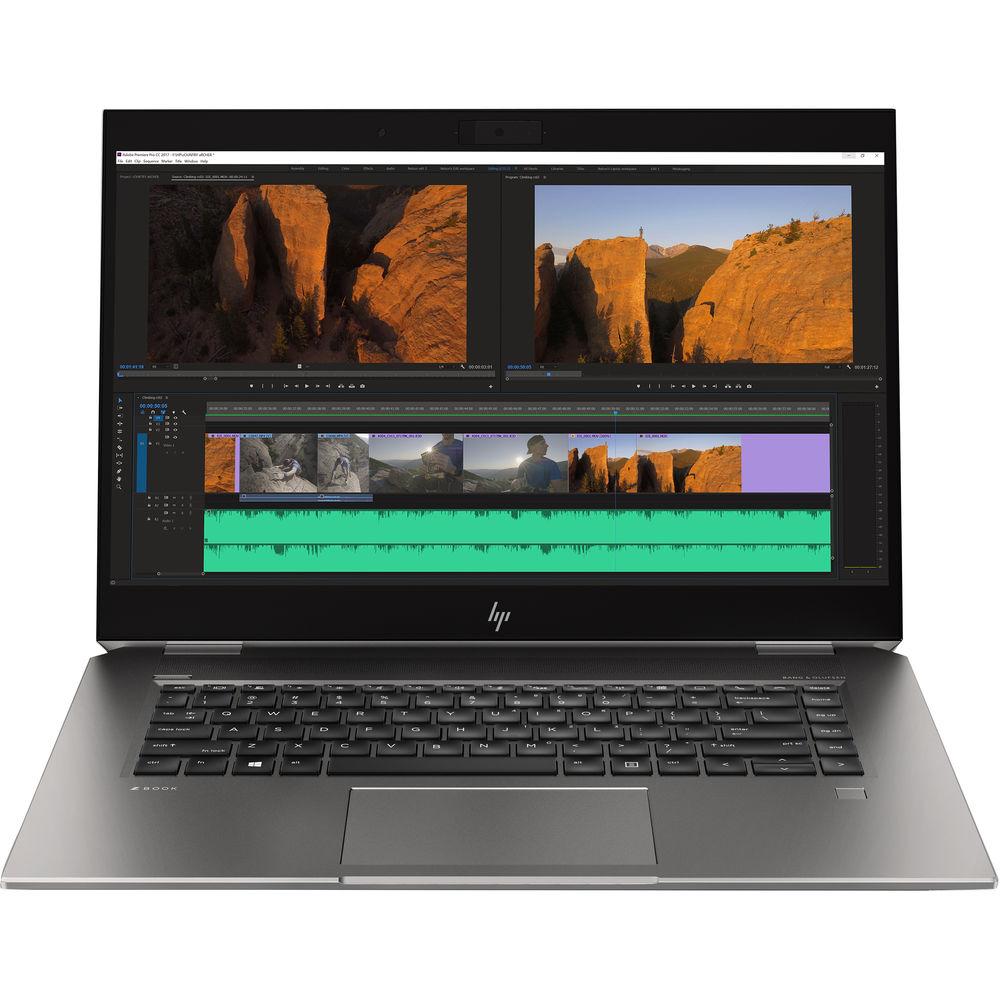

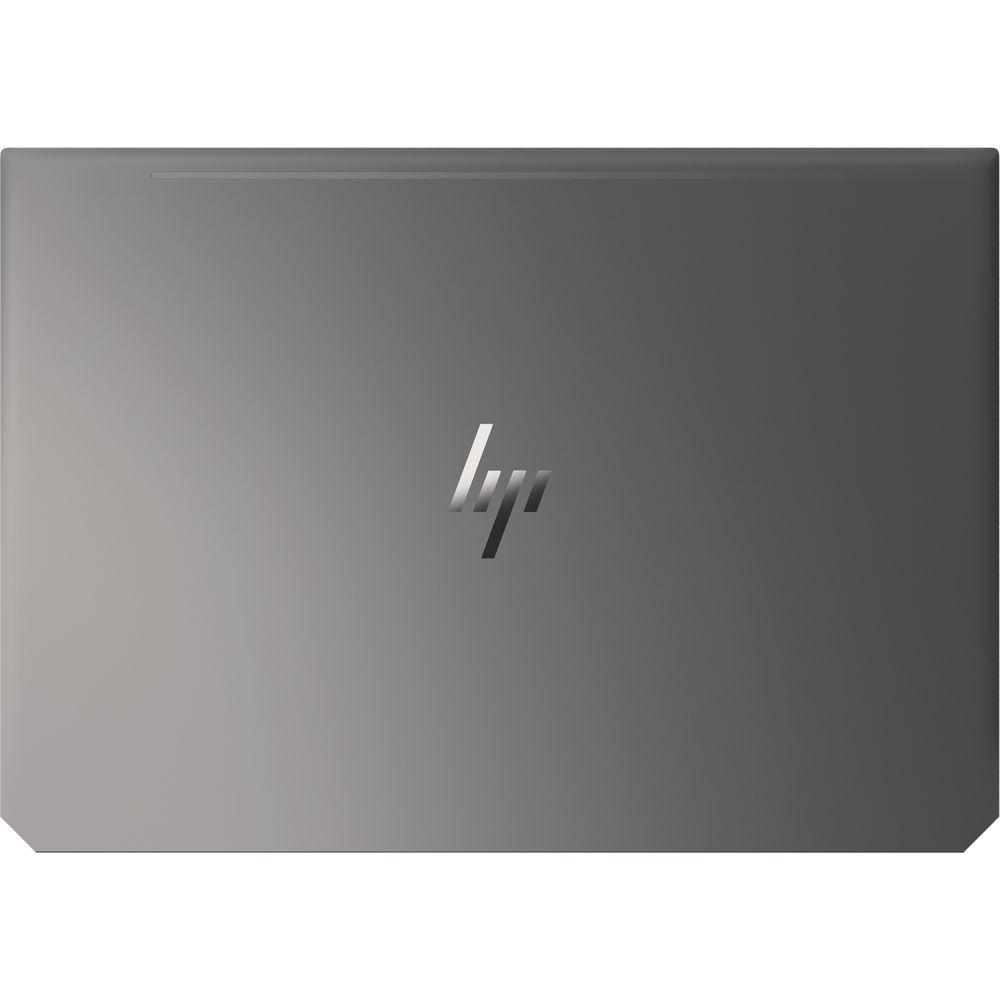

Product description Work Laptops Thin at 0.35" and weighing 4.4 pounds, the 15.6" ZBook Studio G5 Mobile Workstation from HP blends design and performance, letting you speed through your work and bring your ideas to life. It is powered by a 2.6 GHz Intel Core i7-8850H Six-Core processor which allows you to run multiple applications simultaneously. If you need more power, the system can be overclocked to 4.3 GHz using Intel Turbo Boost 2.0 technology. The 16GB of 2666 MHz DDR4 RAM, which can be upgraded to 64GB, helps to ensure smooth multitasking and also allows the computer to quickly access frequently used files and programs.
The 15.6" UWVA IPS anti-glare display features an Ultra HD 3840 x 2160 screen resolution that is equipped with an ambient light sensor, an anti-glare finish, LED-backlighting, a 16:9 aspect ratio, a contrast ratio of 1200:1, a refresh rate of 60 Hz, a brightness of 400 cd/m2, 282 ppi, and viewing angles of 85/85/85/85°. The dedicated NVIDIA Quadro P2000 graphics card has 4GB of discrete GDDR5 RAM and delivers a sharp, clear picture. You'll also be able to output video to an external display at resolutions up to 5120 x 2880 using the system's HDMI 2.0 and dual Thunderbolt 3 ports, the latter of which supports DisplayPort 1.3.
For storage of your files, this ZBook Studio G5 is equipped with a 512GB NVMe PCIe M.2 2280 SSD with TLC flash memory, which offers quick access to your data. If you want to add external storage, optical drives, memory card readers, and more, there are two 40 Gb/s Thunderbolt 3 ports that also support 10 Gb/s USB 3.1 Gen 2 Type-C, plus two 5 Gb/s USB 3.0 Type-A ports, one of which doubles as a charging port. Wi-Fi 5 (802.11ac) is built-in for wireless networking, and Bluetooth 5.0 technology will allow you to connect additional compatible wireless peripherals. So that content from memory cards may be accessed, a built-in SD/SDHC/SDXC card reader supports UHS-II flash media and lets users download content from their digital camera. Other integrated features include a 720p IR webcam for facial recognition with Windows Hello, dual-array microphones, stereo speakers with Bang & Olufsen HD audio, and a fingerprint reader.
The ZBook Studio G5 includes a 150W Slim Smart AC adapter that operates using 100-240 VAC at 47-63 Hz and a power cord. Its Long Life 6-cell / 96Wh lithium-ion polymer battery can typically be recharged in 3-5 hours and lasts for up to 16.5 hours. Thanks to HP Fast Charge, the battery can be charged up to 50% in 45 minutes. The installed operating system is Windows 10 Professional (64-bit) and also included is recovery media and an HP Elite Services card. Protection is provided by a limited 3-year parts & labor warranty. General Features ZBook Studio G5 - Thunderbolt 3
- Thunderbolt 3 is a hardware interface that utilizes the reversible USB Type-C connector. Doubling the speed of its predecessor, Thunderbolt 3 features a maximum bi-directional throughput of 40 Gb/s when used with compatible devices. The connector also transmits data via USB 3.1 Gen 2 at up to 10 Gb/s, and dual-bandwidth DisplayPort 1.3 allows you to simultaneously connect two 4K displays or one 5K display. Additionally, you can daisy chain up to six devices from a single Thunderbolt 3 port.
- DisplayPort 1.3 Protocol Features Supported via Thunderbolt 3
-
- Legacy displays (HDMI, DVI, and VGA) may be attached to the Thunderbolt port with the use of a certified dongle.
- DisplayPort monitors capable of supporting DisplayPort 1.3 may be directly attached to the Thunderbolt port to achieve HBR2 with the use a dongle.
- Thunderbolt 3-enabled monitors may be directly attached to the Thunderbolt port to achieve HBR2 and MST.
- DisplayPort 1.3 MST ("daisy-chain" feature) is supported through the Thunderbolt 3 port on Thunderbolt 3-enabled devices or DisplayPort 1.3 monitors (requires monitor with DisplayPort 1.3 MST capability) with the use of a dongle.
- Up to two streams (eight lanes) of DisplayPort 1.3 are supported over a single Thunderbolt 3 port. Up to two 4K displays with 24/30-bit color depth at 60 Hz or one 5K display are supported over a single Thunderbolt 3 port. An Intel-certified Thunderbolt cable is required.
- DisplayPort 1.3 w/MST (Multi-stream Transport) supports resolutions up to Full 4K with 24/30-bit color depth at 60 Hz, and WUXGA (1920 x1200) monitors with a 24/30-bit color depth at 120 Hz.
- Multi-Display Support with the HP Thunderbolt Dock G2
- The HP Thunderbolt Dock G2 has a Thunderbolt 3 port, VGA port, two DisplayPort 1.3 ports, and a USB Type-C port. When used together with the HP ZBook Studio configuration with hybrid graphics, a maximum of five independent displays are supported. These five displays are the internal panel, one external display connected to the system's HDMI port, and four external displays connected to the ZBook dock's Thunderbolt 3, VGA, and two DisplayPort ports. When used together with the HP ZBook Studio configuration with Intel integrated graphics, a maximum of three independent displays are supported using any three-display combination of the system panel, system ports, and ZBook Dock ports.
- Multi-Display Support without the HP Thunderbolt Dock G2
- The HP ZBook Studio with hybrid graphics and without the use of the separately sold ZBook dock supports up to a maximum of three independent displays. These three displays are the internal panel plus two external displays connected to two of the three following ports: HDMI, Thunderbolt 3, and Thunderbolt 3.
The HP ZBook Studio configuration with Intel integrated graphics and without the use of the ZBook dock supports up to a maximum of three independent displays. These three displays are the internal panel plus two external displays connected to two of the three following ports: HDMI, Thunderbolt 3, and Thunderbolt 3 - Multi-Display Support Without the ZBook Dock with Thunderbolt 3 (using DP 1.2 MST)
- An HP ZBook Studio with hybrid graphics and without the use of the ZBook Dock supports up to a maximum of three independent displays. These three displays are the internal panel plus two external displays connected to two of the three following ports: HDMI 2.0, Thunderbolt 3, and Thunderbolt 3. The HP ZBook Studio configuration with integrated Intel graphics and without the use of the ZBook dock supports up to a maximum of three independent displays using any three-display combination of the system panel plus 2 of the following: HDMI, Thunderbolt 3, or Thunderbolt 3.
- Up to 64GB RAM
- This ZBook Studio G5 features 16GB of 2666 MHz DDR4 RAM in a 2 x 8GB configuration, which can be upgraded to 64GB by using a 32GB module in each of the two 260-pin SO-DIMM slots.
- Additional Internal Storage
- There is a second M.2 2280 that is empty and supports PCIe and SATA SSDs.
- Wi-Fi 5 (802.11ac)
- The system features Intel Dual Band Wireless-AC 9560 which is compatible with 802.11a/b/g/n/ac Wi-Fi so that users may access network connectivity using wireless technology.
- Bluetooth 5.0
- Additional compatible peripherals, such as mice, keyboards, headsets, and more may be paired using Bluetooth 5.0 technology.
- HP 720p IR HD Privacy Webcam
-
- Face authentication with Windows Hello
- Privacy Camera features a sliding camera shutter
- HD format (widescreen)
- Supports videoconferencing and still image capture
- High-quality fixed-focus lens
- Video capture at various resolutions up to 1280 x 720 resolution (720p) and up to 30 fps
- M-JPEG compression supports higher frame rates for video capture and videoconferencing
- Improved low-light sensitivity
- Improved dynamic range
Windows 10 Professional (64-bit) - Start Menu
- After its hiatus in Windows 8, the Start Menu has returned. Utilizing a combination of the traditional menu system and Windows 8's Live Tiles, the improved Start Menu gives you more information at a glance, showing notification information alongside your applications and other pinned items
- Cortana
- Microsoft's digital personal assistant, Cortana can answer your questions with information gleaned from both your device and the internet at large. You can type or even talk with her, if your system has a microphone. Using her Notebook, Cortana keeps track of your needs and wants, and she learns over time to improve her information gathering skills
- Microsoft Edge
- After nearly 20 years, Microsoft has finally replaced its Internet Explorer web browser. With Microsoft Edge, users can write directly on web pages and share notes with friends and colleagues. It also improves the online reading experience by adding a distraction-free mode and read-it-later functionality. Edge also has built-in Cortana integration; you can have her help you find a restaurant, make a reservation, and pull up directions without leaving your browser
- Windows Store
- For Windows 10, Microsoft has unified the Windows Store. Now, apps for PCs, tablets, and phones will all be accessible from one place. And with support for Universal Apps, one version of an app can work across all your compatible devices automatically
- Windows Continuum
- Windows 10 was designed for a variety of screen sizes and input styles, and with its Continuum feature, it automatically adapts to fit your needs. A Windows 10 tablet on its own requires a touch-centric approach, but attaching a mouse and keyboard will shift everything to a more traditional interface. You can even attach an external monitor to your Windows 10 phone for a near-desktop experience. But it's not just the operating system; Windows Universal Apps take advantage of Continuum as well
- Xbox on Windows 10
- Gaming is a big focus of Windows 10. Xbox integration allows for PC players to match up against Xbox One players on supported games, and if you have an Xbox One, you can even stream compatible titles to your PC. Native support for recording with the new Game DVR feature makes it easy to capture and share your gameplay. The new DirectX12 takes better advantage of multi-core processors, giving games a performance boost, even on older hardware. Windows 10 also features native support for virtual reality headsets, such as the Oculus Rift
- Windows 10 Pro
- The Pro version of Windows 10 includes all of the features of Windows 10 Home plus many designed specifically for business users, including Hyper-V virtualization, BitLocker disk encryption, and remote desktop access. Devices will also be able to join domains and the Azure Active Directory, and they can even access a specialized version of the Windows Store featuring custom, company-specific applications
UPC: 193808240027 In the Box HP 15.6" ZBook Studio G5 Mobile Workstation 150W Slim Smart AC Adapter Power Cord Recovery Media Elite Services Card Limited 3-Year Parts & Labor Warranty Guides & Manuals veqybddxey Table of Contents
|
Upload User Manual
Have you got an user manual for the HP 15.6" ZBook Studio G5 Mobile Workstation in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHP G5 Specs | Operating System | Windows 10 Pro (64-Bit) | | | | CPU | 2.6 GHz Intel Core i7-8850H 6-Core | | Maximum Boost Speed | 4.3 GHz | | L3 Cache | 9 MB | | Memory Type | 2666 MHz DDR4 | | Total Installed Memory | 16 GB | | Memory Configuration | 2 x 8 GB (User-Replaceable) | | Maximum Memory Capacity | 64 GB | | Memory Slot Type | 260-Pin SO-DIMM | | Available Memory Slots | None | | Graphics Type | Dedicated | | GPU | NVIDIA Quadro P2000 with 4 GB GDDR5 VRAM | | | | Panel Type | IPS | | Size | 15.6" | | Aspect Ratio | 16:9 | | Resolution | 3840 x 2160 | | Touchscreen | No | | Finish | Matte | | Maximum Brightness | 400 cd/m2 | | Color Gamut | 100% sRGB | | Refresh Rate | 60 Hz | | Contrast Ratio | 1200:1 | | Viewing Angle (H x V) | 170 x 170° | | | | SSD Slots | 1 x M.2 2280 SATA / PCIe x4 (Available)
1 x M.2 2280 SATA / PCIe x4 (In Use) | | Total Installed Capacity | 512 GB | | Solid State Storage | 1 x 512 GB M.2 NVMe PCIe | | Optical Drive | None | | | | Ports | 2 x USB Type-A (USB 3.1 Gen 1) | | USB Type-C Ports | 2 x Thunderbolt 3 (Supports DisplayPort) | | Display | 1 x HDMI 2.0 | | Audio | 1 x 1/8" / 3.5 mm Headphone/Microphone Input/Output | | Built-In Speakers | 2 | | Built-In Microphones | 2 | | Media Card Slots | 1 x SDXC (UHS-II [312 MB/s]) | | | | Ethernet | None | | Wi-Fi | Wi-Fi 5 (802.11ac); Dual-Band (2.4 & 5 GHz) | | MU-MIMO Support | 2 x 2 | | Bluetooth | 5.0 | | GPS | None | | NFC | No | | Webcam | User-Facing: 720p | | | | Battery Chemistry | Lithium-Ion Polymer (LiPo) | | Watt Hours / Type | 96 Wh Non-Removable | | Cells | 6 | | Output Voltage | 11.55 VDC | | Maximum Runtime | 16.5 Hours | | | | Keyboard | Notebook Keyboard with Backlight | | Pointing Device | TouchPad | | | | Security | Kensington Lock Slot, Accepts 3rd Party Security Lock Devices, Infineon TPM Software Professional Package, Fingerprint Reader, Facial Recognition | | Power Supply | 150 W | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz at 1.45 to 2.9 A | | Operating Temperature | 32 to 95°F / 0 to 35°C | | Operating Humidity | 10 to 90% | | Dimensions | 14.2 x 9.7 x 0.4" / 360.68 x 246.38 x 10.16 mm | | Weight | 4.4 lb / 2 kg |
