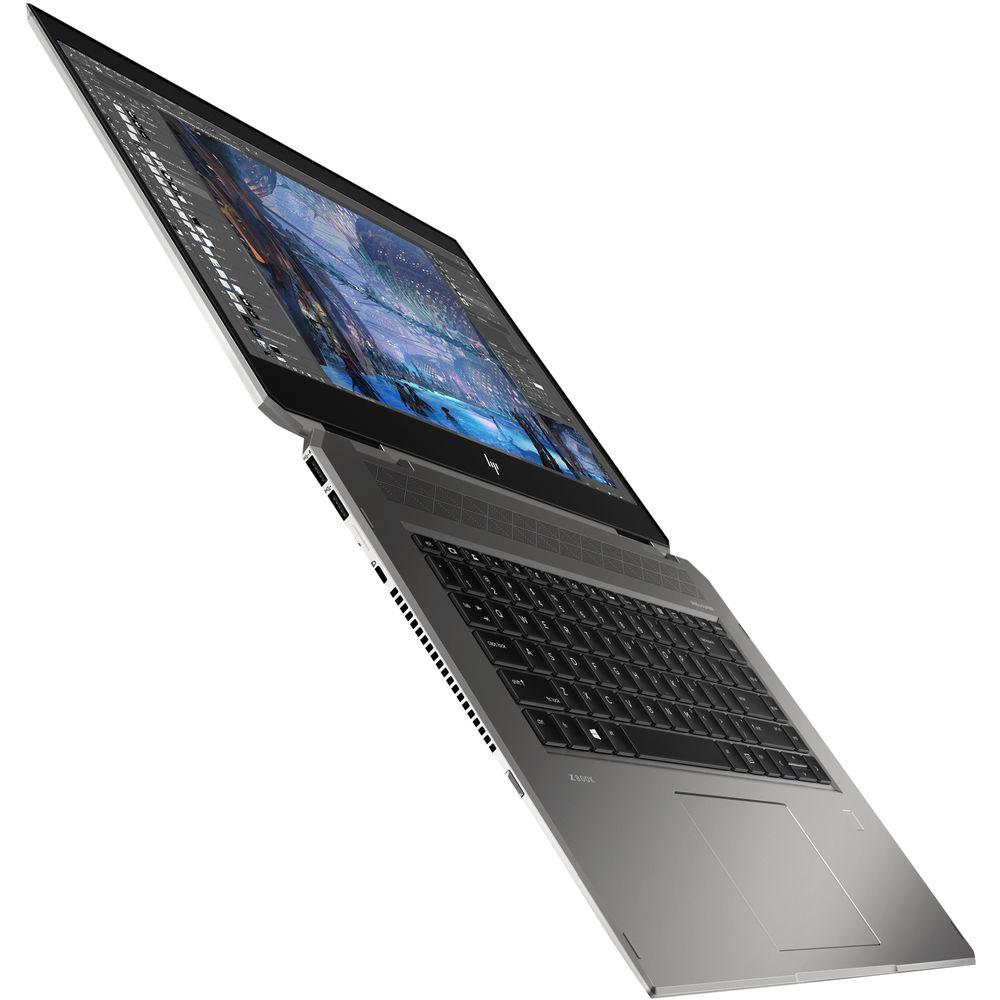

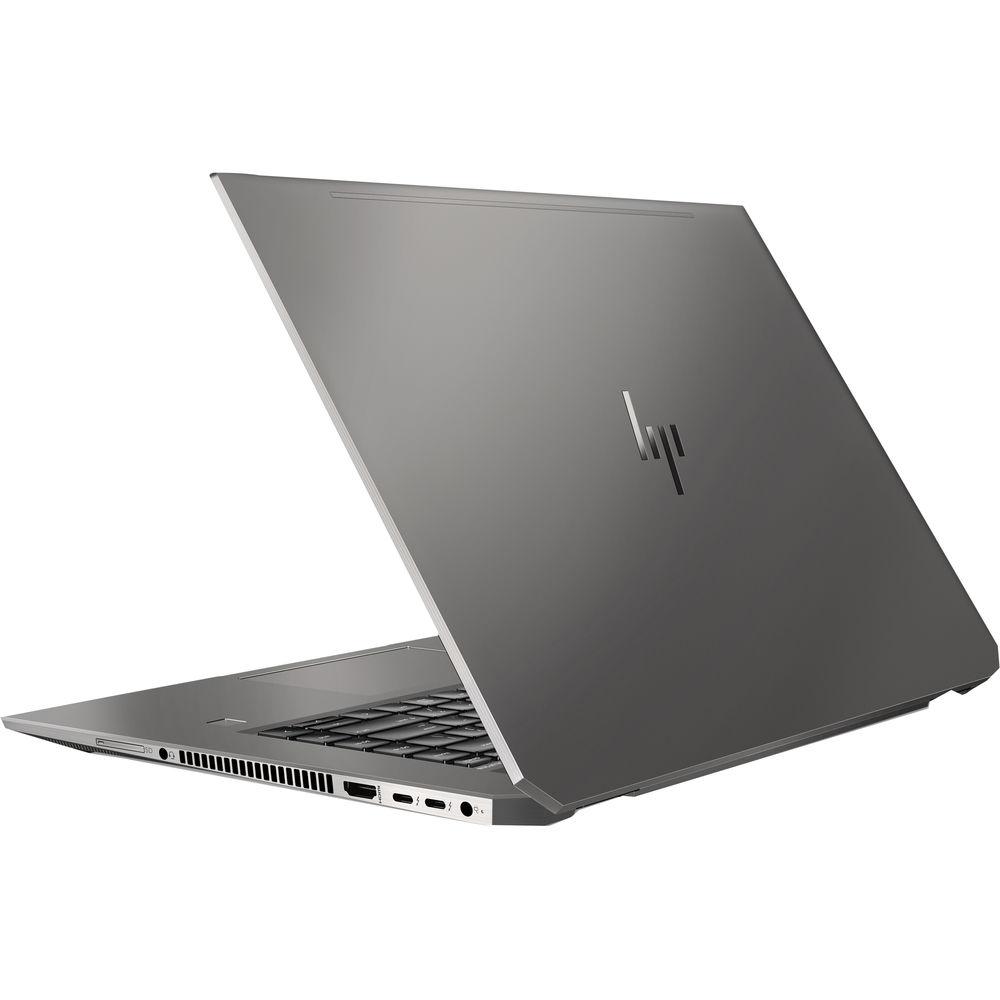

User Manual for HP 15.6" ZBook Studio x360 G5 Multi-Touch 2-in-1 Mobile Workstation Click to enlarge the picture
Contents of the user manual for the HP 15.6" ZBook Studio x360 G5
- Product category: Mobile Workstations HP
- Brand: HP
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for HP Mobile Workstations
 |
User manual for the HP 15.6" ZBook Studio x360 G5 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any HP product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official HP user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a HP product will considerably shorten its lifespan!
|
Product description Work Laptops Reimagine your creative process with the 15.6" ZBook Studio x360 G5 Multi-Touch 2-in-1 Mobile Workstation from HP, a versatile system that combines a convertible design with pro-grade performance. Tackle large files, run multiple apps with speed and responsiveness, and seamlessly edit or render high-res images. With a 360° hinge, you'll not only get the comfort of a laptop and the convenience of a tablet, but also additional modes to help showcase your work.
This ZBook Studio x360 features a 15.6" IPS display with a Full HD 1920 x 1080 screen resolution, LED backlighting, a 16:9 aspect ratio, 400 cd/m2 brightness, a 600:1 typical contrast ratio, a refresh rate of 60 Hz, 141 ppi, and viewing angles of 85/85/85/85°. The display also features multi-touch functionality, allowing you to utilize the touch gestures and functions in Windows 10 Pro to further improve accessibility and productivity, and is protected by Corning Gorilla Glass 3. The dedicated NVIDIA Quadro P2000 graphics card has 4GB of discrete GDDR5 RAM and delivers a sharp, clear picture. You'll be able to output video to an external display at resolutions up to 5120 x 2880 using the system's HDMI 2.0 and dual Thunderbolt 3 ports, the latter of which supports DisplayPort 1.3.
This system is powered by a 2.2 GHz Intel Core i7-8750H Six-Core processor, which allows you to run multiple applications simultaneously. If you need more power, the system can be overclocked to 4.1 GHz using Intel Turbo Boost 2.0 technology. The 16GB of 2666 MHz DDR4 RAM helps to ensure smooth multitasking and also allows the computer to quickly access frequently used files and programs. For storage of your files, this ZBook Studio x360 is equipped with a 512GB NVMe PCIe M.2 SSD.
If you want to add external storage, optical drives, memory card readers, and more, the ZBook Studio x360 offers two 40 Gb/s Thunderbolt 3 ports that also support 10 Gb/s USB 3.1 Gen 2 Type-C, plus two USB 3.1 Gen 1 Type-A ports, one of which doubles as a charging port. 802.11ac dual-band Wi-Fi is built-in for wireless networking and Bluetooth 5.0 technology will allow you to connect additional compatible peripherals. Content from memory cards may be accessed via a built-in SD/SDHC/SDXC card reader that supports UHS-II media, and other integrated features include a user-facing 720p IR webcam for face authentication with Windows Hello, dual-array microphones, and dual stereo speakers custom-tuned by HP and Bang & Olufsen.
HP's 15.6" ZBook Studio x360 includes Windows 10 recovery media, a 150W Slim Smart AC adapter that supports HP Fast Charge and operates using 100-240 VAC at 47-63 Hz, plus an HP Long Life 6-cell / 95.6Wh lithium-ion polymer prismatic battery that lasts for around 10 hours before recharging is required, and typically recharges in 3-5 hours. The installed operating system is Windows 10 Pro (64-bit) and protection is provided by a limited 3-year warranty. General Features - 360° Pro Performance
- Finally, a convertible laptop designed to tackle large files and run multiple apps with speed and responsiveness, allowing you to seamlessly edit or render high-res images.
- Precision-Crafted Versatility

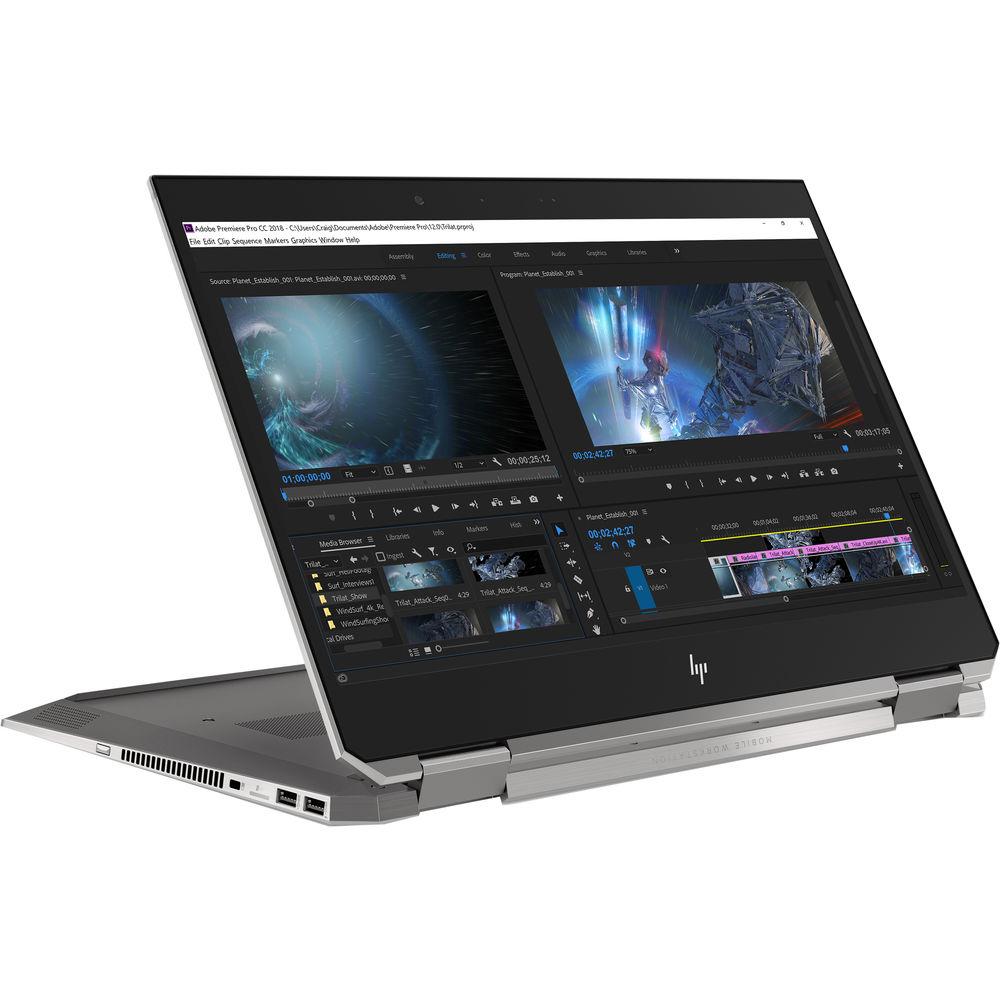

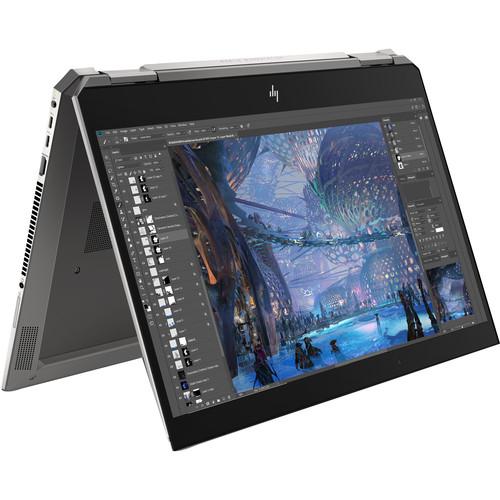

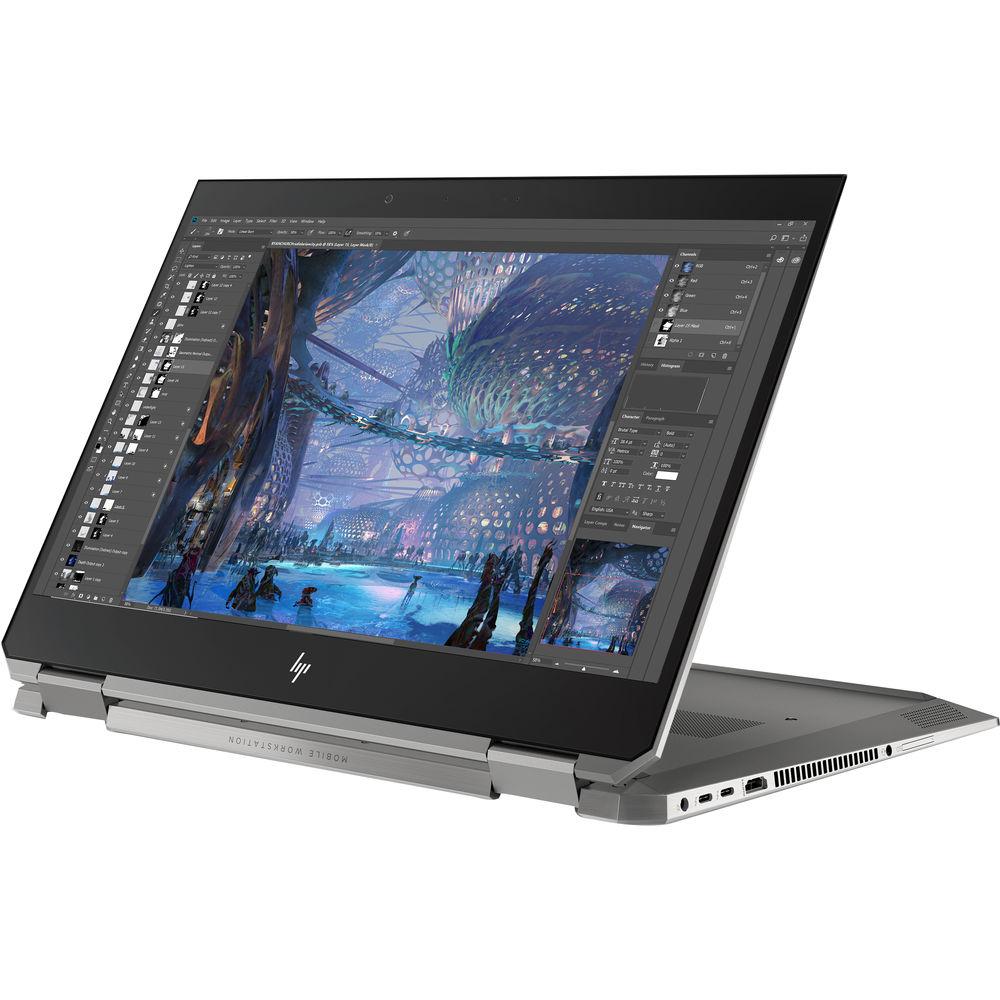

- With HP's 360° hinge, you'll get the comfort of a laptop, the convenience of a tablet, and the luxury of additional modes to help you showcase your work.
- Pixel-Perfect Tools
- Achieve inking precision with 4000 levels of pressure sensitivity and tilt with the separately sold ZBook x360 pen.
- Thunderbolt 3
- Thunderbolt 3 is a hardware interface that utilizes the reversible USB Type-C connector. Doubling the speed of its predecessor, Thunderbolt 3 features a maximum throughput of 40 Gb/s when used with compatible devices. The connector also transmits data via USB 3.1 at up to 10 Gb/s, and dual-bandwidth DisplayPort 1.3 allows you to connect up to two 4K displays simultaneously. Additionally, you can daisy chain up to six devices from a single Thunderbolt 3 port.
- USB 3.1 Gen 1 Type-A Ports

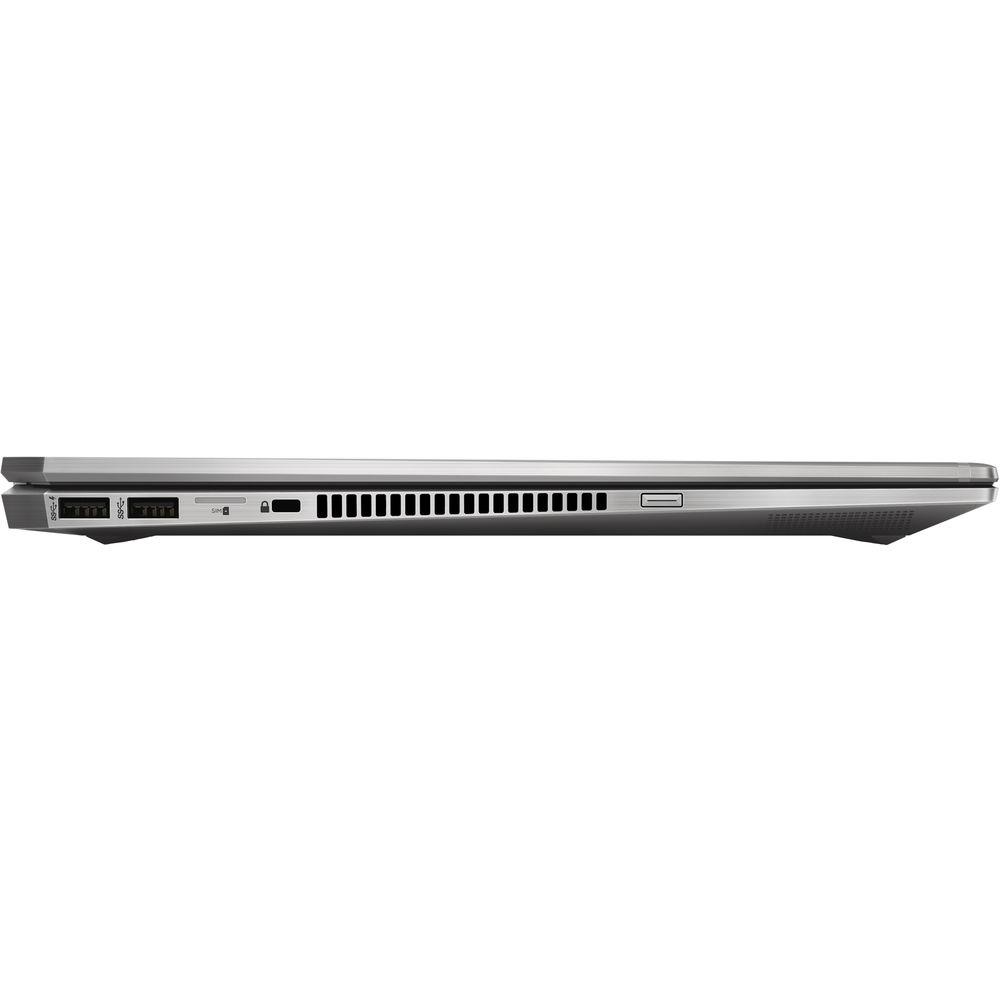

- This ZBook Studio x360 features two USB 3.1 Gen 1 Type-A ports that will allow you to connect external peripherals such as additional storage, optical drives, printers, memory card readers, and more. One of these ports also doubles as an always-on charging port for compatible USB devices.
- Up to 32GB Memory
- While this system natively includes 16GB of 2666 MHz DDR4 RAM in a 2 x 8GB configuration, it can be upgraded to a maximum of 32GB when 16GB memory modules are used in each of the system's two 260-pin SO-DIMM slots
- 802.11ac Wi-Fi
- The system uses Intel Dual Band Wireless-AC 9560 which is compatible with 802.11a/b/g/n/ac (2x2) Wi-Fi so that users may access network connectivity using wireless technology.
- Bluetooth 5.0
- Additional compatible peripherals, such as mice, keyboards, headsets, and more may be paired using Bluetooth 5.0 technology
- 720p IR Camera
-
- IR camera for face authentication with Windows Hello
- HD format (widescreen)
- Supports videoconferencing and still image capture
- High-quality fixed focus lens
- Video capture at various resolutions up to 1280 x 720 (720p) and up to 30 fps
- M-JPEG compression supports higher frame rates for video capture and videoconferencing
- Improved low light sensitivity
- Improved dynamic range
- DisplayPort 1.3 Protocol Features Supported on Thunderbolt 3 Ports
-
- Legacy displays (HDMI, DVI, and VGA) may be attached to Thunderbolt port with the use of a certified dongle
- DisplayPort monitors capable of supporting DisplayPort 1.3 may be directly attached to the Thunderbolt port to achieve HBR2 with the use of a dongle
- Thunderbolt 3 monitors may be directly attached to the Thunderbolt port to achieve HBR2 and MST
- DisplayPort 1.3 MST feature ("daisy-chain" feature) is supported through the Thunderbolt 3 port on Thunderbolt 3 devices or DisplayPort 1.3 monitors (requires monitor with DisplayPort 1.3 MST capability) with the use of a dongle
- Up to 2 streams (eight lanes) of DisplayPort 1.3 are supported over a single Thunderbolt 3 port. Up to two 4K displays 24-/30-bit color depth at 60 Hz or one 5K display are supported over a single Thunderbolt 3 port. An Intel-certified Thunderbolt cable is required
- DisplayPort 1.3 w/MST (Multi-stream Transport) supports resolutions up to Full 4K, 24-/30-bit color depth at 60 Hz, and WUXGA (1920 x 1200) monitors, 24-/30-bit color depth at 120 Hz
- Multi-Display Support without the HP Thunderbolt Dock G2
- The HP ZBook Studio x360 with hybrid graphics and without the use of the ZBook dock supports up to a maximum of three independent displays. These three displays are the internal panel plus two external displays connected to two of the three following ports: HDMI 2.0, Thunderbolt 3, and Thunderbolt 3. The HP ZBook Studio x360 configuration with integrated Intel graphics and without the use of the ZBook dock supports up to a maximum of three independent displays via any three-display combination of the system panel, HDMI, Thunderbolt 3, and Thunderbolt 3.
- Multi-Display Support with the HP Thunderbolt Dock G2
- The HP Thunderbolt Dock G2 has a Thunderbolt 3 port, VGA port, two DisplayPort 1.3 ports, and a USB Type-C port. When used together with the HP ZBook Studio x360 configuration with hybrid graphics, a maximum of five independent displays are supported. These five displays are the internal panel and four external displays connected to the ZBook Dock's Thunderbolt 3, VGA, and two DisplayPort ports. When used together with the HP ZBook Studio x360 configuration with Intel integrated graphics, a maximum of 3 independent displays are supported via any three-display combination of the system panel, system ports, and ZBook Dock ports.
Windows 10 - Start Menu
- After its hiatus in Windows 8, the Start Menu has returned. Utilizing a combination of the traditional menu system and Windows 8's Live Tiles, the improved Start Menu gives you more information at a glance, showing notification information alongside your applications and other pinned items.
- Cortana
- Microsoft's digital personal assistant, Cortana can answer your questions with information gleaned from both your device and the internet at large. You can type or even talk with her, if your system has a microphone. Using her Notebook, Cortana keeps track of your needs and wants, and she learns over time to improve her information gathering skills.
- Microsoft Edge
- After nearly 20 years, Microsoft has finally replaced its Internet Explorer web browser. With Microsoft Edge, users can write directly on web pages and share notes with friends and colleagues. It also improves the online reading experience by adding a distraction-free mode and read-it-later functionality. Edge also has built-in Cortana integration; you can have her help you find a restaurant, make a reservation, and pull up directions without leaving your browser.
- Windows Store
- For Windows 10, Microsoft has unified the Windows Store. Now, apps for PCs, tablets, and phones will all be accessible from one place. And with support for Universal Apps, one version of an app can work across all your compatible devices automatically.
- Windows Continuum
- Windows 10 was designed for a variety of screen sizes and input styles, and with its Continuum feature, it automatically adapts to fit your needs. A Windows 10 tablet on its own requires a touch-centric approach, but attaching a mouse and keyboard will shift everything to a more traditional interface. You can even attach an external monitor to your Windows 10 phone for a near-desktop experience. But it's not just the operating system; Windows Universal Apps take advantage of Continuum as well.
- Xbox on Windows 10
- Gaming is a big focus of Windows 10. Xbox integration allows for PC players to match up against Xbox One players on supported games, and if you have an Xbox One, you can even stream compatible titles to your PC. Native support for recording with the new Game DVR feature makes it easy to capture and share your gameplay. The new DirectX12 takes better advantage of multi-core processors, giving games a performance boost, even on older hardware. Windows 10 also features native support for virtual reality headsets, such as the Oculus Rift.
- Windows 10 Pro
- The Pro version of Windows 10 includes all of the features of Windows 10 Home plus many designed specifically for business users, including Hyper-V virtualization, BitLocker disk encryption, and remote desktop access. Devices will also be able to join domains and the Azure Active Directory, and they can even access a specialized version of the Windows Store featuring custom, company-specific applications.
UPC: 193808212918 In the Box HP 15.6" ZBook Studio x360 G5 Multi-Touch 2-in-1 Mobile Workstation 150W Slim Smart AC adapter Power Cord Windows 10 Recovery Media Limited 3-Year Parts & Labor Warranty Guides & Manuals adrrbvvrztbdsbucdy Table of Contents
|
Upload User Manual
Have you got an user manual for the HP 15.6" ZBook Studio x360 G5 Multi-Touch 2-in-1 Mobile Workstation in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Download User ManualThe user manual for the HP 15.6" ZBook Studio x360 G5 Multi-Touch 2-in-1 Mobile Workstation can be downloaded in PDF format at the link stated below.
Technical parametersHP Studio x360 Specs | Operating System | Windows 10 Pro (64-Bit) | | | | CPU | 2.2 GHz Intel Core i7-8750H 6-Core | | Maximum Boost Speed | 4.1 GHz | | L3 Cache | 9 MB | | Memory Type | 2666 MHz DDR4 | | Total Installed Memory | 16 GB | | Memory Configuration | 2 x 8 GB (User-Replaceable) | | Maximum Memory Capacity | 32 GB | | Memory Slot Type | 260-Pin SO-DIMM | | Available Memory Slots | None | | ECC Memory | No | | Graphics Type | Dedicated | | GPU | NVIDIA Quadro P2000 with 4 GB GDDR5 VRAM | | | | Panel Type | IPS | | Size | 15.6" | | Aspect Ratio | 16:9 | | Resolution | 1920 x 1080 | | Touchscreen | Yes | | Finish | Matte | | Maximum Brightness | 400 cd/m2 | | Refresh Rate | 60 Hz | | Contrast Ratio | 600:1 | | Adaptive Sync Technology | None | | Viewing Angle (H x V) | 170 x 170° | | | | SSD Slots | 1 x M.2 2280 SATA / PCIe x4 (Available)
1 x M.2 2280 SATA / PCIe x4 (In Use) | | Total Installed Capacity | 512 GB | | Solid State Storage | 1 x 512 GB M.2 NVMe PCIe | | Optical Drive | None | | | | Ports | 2 x USB Type-A (USB 3.1 Gen 1) | | USB Type-C Ports | 2 x Thunderbolt 3 (Supports DisplayPort) | | Display | 1 x HDMI 2.0 | | Audio | 1 x 1/8" / 3.5 mm Headphone/Microphone Input/Output | | Built-In Speakers | 2 | | Built-In Microphones | 2 | | Media Card Slots | 1 x SDXC | | | | Ethernet | None | | Wi-Fi | Wi-Fi 5 (802.11ac); Dual-Band (2.4 & 5 GHz) | | MU-MIMO Support | 2 x 2 | | Bluetooth | 5.0 | | GPS | None | | NFC | None | | Webcam | User-Facing: 720p | | | | Battery Chemistry | Lithium-Ion Polymer (LiPo) | | Watt Hours / Type | 95.6 Wh Non-Removable | | Cells | 6 | | Output Voltage | 11.55 VDC | | Maximum Runtime | 18.5 Hours | | | | Keyboard | 100-Key Notebook Keyboard with Backlight | | Pointing Device | TouchPad | | | | Security | Accepts 3rd Party Security Lock Devices, Fingerprint Reader, Facial Recognition | | Power Supply | 150 W | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | Operating Temperature | 32 to 95°F / 0 to 35°C | | Operating Humidity | 10 to 90% | | Dimensions | 14.2 x 0.4 x 9.7" / 360.7 x 10.2 x 246.4 mm | | Weight | 4.9 lb / 2.2 kg |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 15 owners. Add your rating and experience with the product.
