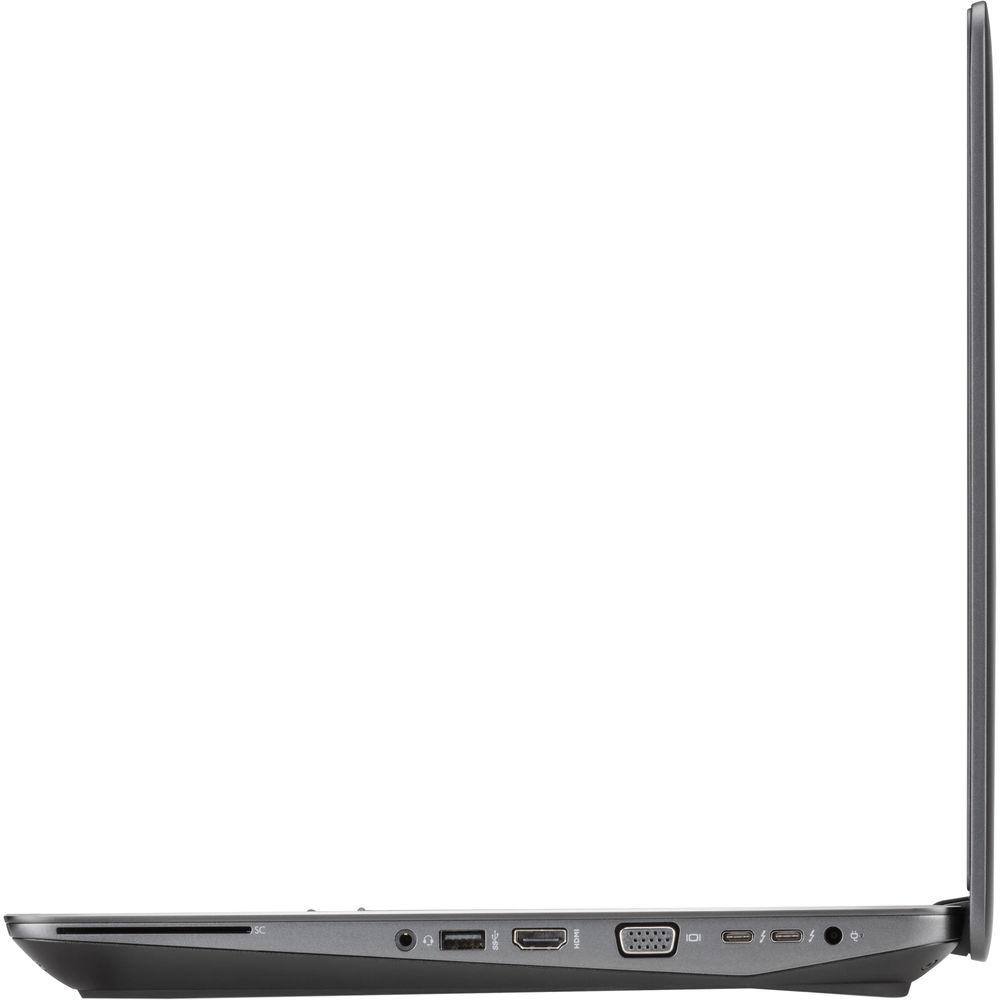

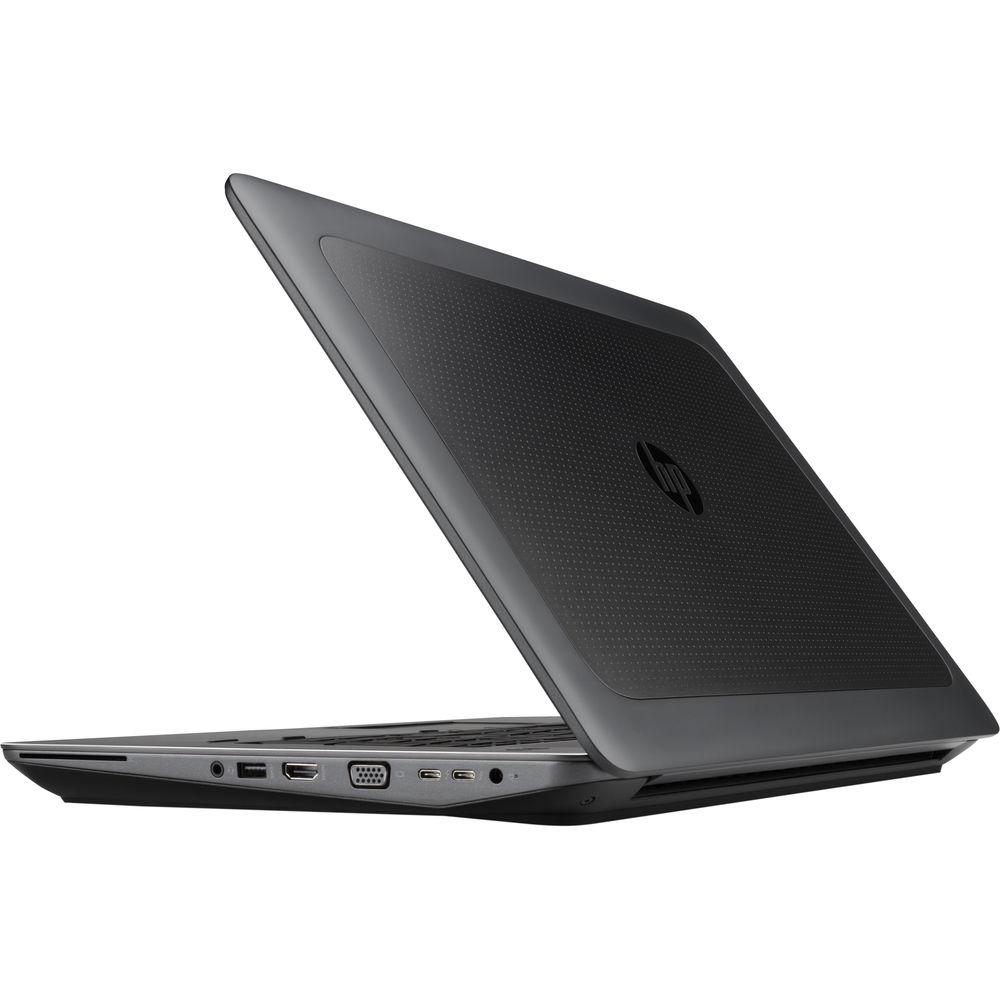

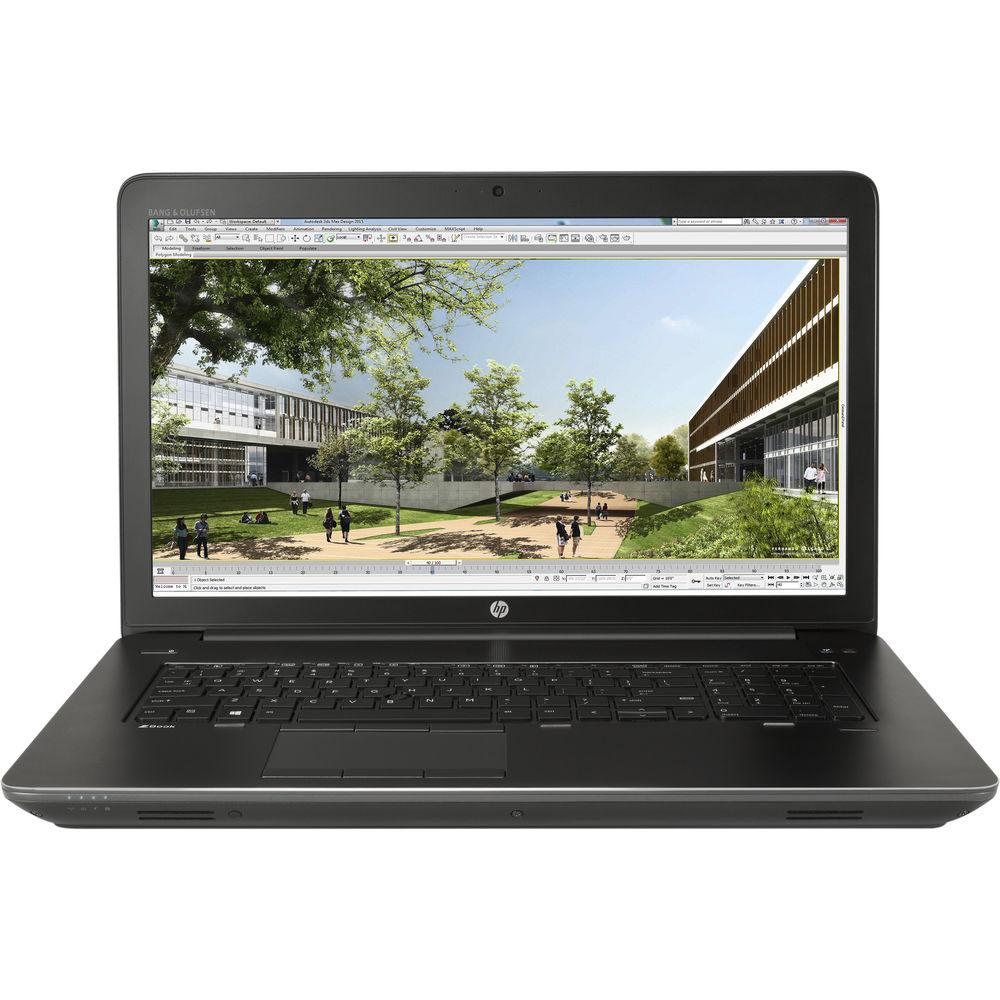

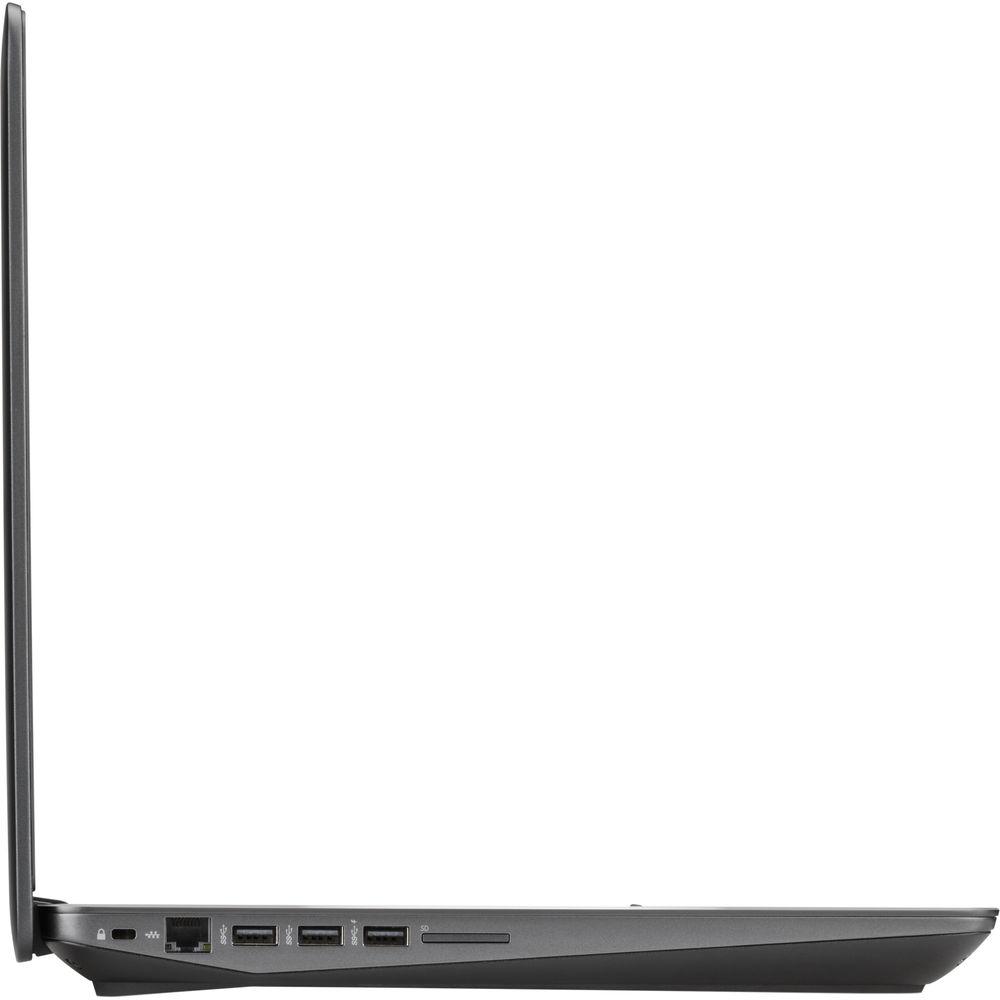

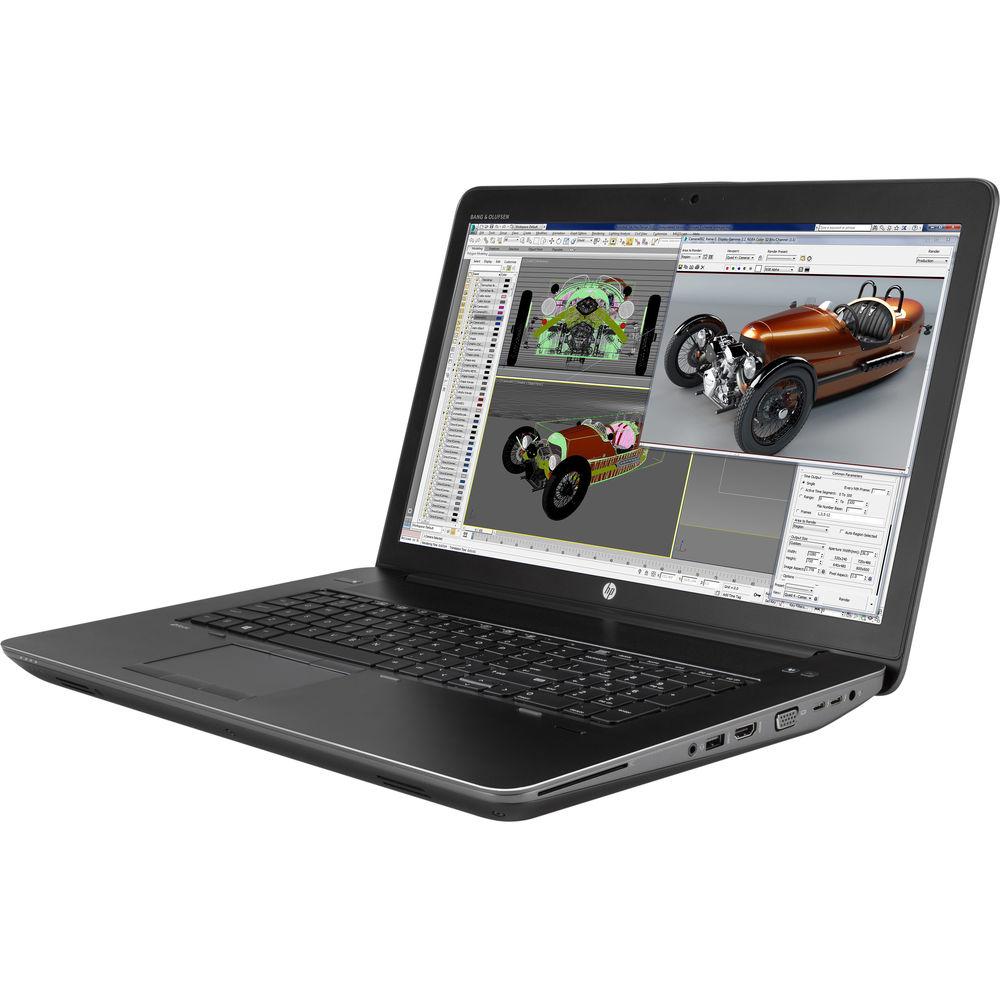

User Manual for HP 17.3" ZBook 17 G3 Mobile Workstation Click to enlarge the picture
Contents of the user manual for the HP 17.3" ZBook 17 G3 Mobile
- Product category: Mobile Workstations HP
- Brand: HP
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for HP Mobile Workstations
 |
User manual for the HP 17.3" ZBook 17 G3 Mobile contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any HP product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official HP user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a HP product will considerably shorten its lifespan!
|
Product description Work Laptops Thin at 1.2", weighing 6.62 lb, and built from magnesium aluminum, the 17.3" ZBook 17 G3 Mobile Workstation from HP provides users with desktop-like performance in a portable form factor that also includes scalability and configuration options for boosting system performance. This system is powered by a 2.9 GHz Intel Xeon E3-1535M v5 Quad-Core processor which allows you to run multiple applications simultaneously. If you need more power, the system can be overclocked to 3.8 GHz using Intel Turbo Boost 2.0 technology. The 16GB of 2133 MHz DDR4 ECC RAM helps to ensure smooth multitasking and also allows the computer to quickly access frequently-used files and programs. The 17.3" UWVA IPS anti-glare display features a Full HD 1920 x 1080 native resolution. It also features LED-backlighting, a 16:9 aspect ratio, 300 cd/m2 brightness, a 600:1 typical contrast ratio, a refresh rate of 60 Hz, and 128 ppi. The dedicated NVIDIA Quadro M4000M graphics card has 4GB of discrete GDDR5 RAM and delivers a sharp, clear picture. You'll also be able to output video to an external display at resolutions up to 5120 x 2880 using the system's HDMI 1.4, VGA, and dual Thunderbolt 3 ports.
For long term storage of your files, this ZBook 17 G3 is equipped with a 512GB Z Turbo Drive PCIe SSD that uses MLC-type NAND and an NVMe interface, as well as a 1TB 7200 rpm SATA hard drive, for a total storage capacity of 1.512TB. While the SSD may not have the larger storage capacity of the 1TB spinning hard drive, it contains no moving parts which helps it to be more resistant against bumps, drops, and other kinds of damage. SSDs also receive less wear and tear than traditional hard drives, as they don't have any read and write heads. Additionally, as this SSD connects via PCIe as compared to SATA, it is able to operate with even greater data transfer speeds. It provides sequential reads up to 1.17 GB/s and sequential writes up to 930 MB/s.
If you want to add external storage, optical drives, memory card readers, and more, the ZBook 17 G3 offers two Thunderbolt 3 and four USB 3.0 ports, with one of the USB 3.0 ports doubling as a charging port. Gigabit Ethernet and 802.11ac dual-band Wi-Fi are built-in for wired and wireless networking and Bluetooth 4.2 technology will also allow you to connect additional compatible peripherals. So that content from memory cards may be accessed, a built-in SD/SDHC/SDXC card reader supports UHS-II flash media and lets users download content from their digital camera. Other integrated features include a 720p webcam, dual-array microphones, stereo speakers with Bang & Olufsen HD audio, and a smart card reader.
The ZBook 17 G3 includes a 200W Slim Smart AC adapter that operates using 100-240 VAC at 47-63 Hz and an HP Long Life 6-cell / 96Wh Lithium-ion prismatic battery that lasts for up to 16.25 hours before recharging is required. Also included are Windows 7 Pro (64-bit) and Windows 10 Pro (64-bit) recovery media. While the installed operating system is Windows 7 Professional (64-bit), a Windows 10 Professional (64-bit) license is included at no additional cost.
Photo is an authorized HP reseller with professional in-house technicians available for upgrades & installations on these workstations and laptops. Built with power and speed in mind, the Z Series is designed to enhance audio and video post-production workflows and more. Each HP Z series workstation or laptop features a range of top-tier processors and large RAM loadouts. The workstations are built with graphics flexibility in mind as well so that the end consumer can configure the graphics options to their needs, and each unit includes a 3/3/3 warranty - 3 years limited warranty for parts, 3 years limited warranty for labor, and 3 years of repairs performed at customer site for those parts not eligible for Customer Self Repair (CSR). For 24/7 customer service, please call 1-866-625-1175. - Thunderbolt 3
- Thunderbolt 3 is a hardware interface that utilizes the reversible USB Type-C connector. Doubling the speed of its predecessor, Thunderbolt 3 features a maximum throughput of 40 Gb/s when used with compatible devices. The connector also transmits data via USB 3.1 at up to 10 Gb/s, and dual-bandwidth DisplayPort 1.2 allows you to connect up to two 4K displays simultaneously. Additionally, you can daisy chain up to six devices from a single Thunderbolt 3 port
- DisplayPort 1.2 Protocol Features Supported via Thunderbolt 3
-
- Legacy displays (HDMI, DVI, VGA) may be attached to the Thunderbolt 3 port with the use of a certified dongle
- DisplayPort monitors capable of supporting DisplayPort 1.2 may be directly attached to the Thunderbolt 3 port to achieve HBR2 with the use a dongle
- Thunderbolt 3 enabled monitors may be directly attached to the Thunderbolt 3 port to achieve HBR2 and MST
- DisplayPort 1.2 MST feature ("daisy-chain" feature) is supported through the Thunderbolt 3 port on Thunderbolt 3 enabled devices or DisplayPort 1.2 monitors (requires monitor with DisplayPort 1.2 MST capability) with the use of a dongle
- Up to 2 streams (eight lanes) of DisplayPort 1.2 are supported over a single Thunderbolt 3 port. Up to two 4K displays with 24/30-bit color depth at 60 Hz or one 5K display supported over a single Thunderbolt 3 port (requires an Intel certified Thunderbolt cable)
- DisplayPort 1.2 w/MST (Multi-stream Transport): Supports resolutions up to Full 4K, 24/30-bit color depth at 60 Hz, and WUXGA (1920 x 1200) monitors, 24/30-bit color depth at 120 Hz
- Multi-Display Support
- The ZBook 17 G3 supports multiple displays in several configurations. Using Thunderbolt 3, hybrid graphics, and the separately sold ZBook Dock, up to six independent displays are supported. If a system uses integrated graphics instead of hybrid, it will support up to three displays. Using Thunderbolt 3, hybrid graphics, and no ZBook Dock, up to four independent displays are supported. Using Thunderbolt 3, integrated graphics, and no ZBook Dock, up to three independent displays are supported. When using hybrid graphics and DisplayPort 1.2 Multi-stream Transport (MST) technology built into a display or hub, the ZBook 17 G3 will support up to six displays without a docking station
- USB 3.0 Ports
- This ZBook 17 G3 features four USB 3.0 ports that will allow you to connect external peripherals such as additional storage, optical drives, printers, memory card readers, and more. One of the USB 3.0 ports also doubles as an always-on charging port for compatible USB devices
- Up to 64GB of ECC Memory
- While this system natively includes 16GB of ECC RAM in a 1 x 16GB configuration, it can be upgraded to a maximum of 64GB when 16GB memory modules are used in each of the system's four 260-pin SO-DIMM slots. Error-correcting code memory (ECC memory) is a type of computer data storage that can detect and correct the most common kinds of internal data corruption. ECC memory is used in most computers where data corruption cannot be tolerated under any circumstances, such as for scientific or financial computing
- Drive Bays
- The HP 17.3" ZBook 17 G3 Mobile Workstation has four drive bays - two that support 2.5" / 7mm drives and two that support M.2 drives. As one of the 2.5" bays is used for the 1TB hard drive, there is one available 2.5" / 7mm drive bay
- Gigabit Ethernet & 802.11ac Wi-Fi
- The system uses a Gigabit Ethernet controller for Internet access when connected to a router, modem, or network switch. It also features Intel Dual Band Wireless-AC 8260 which is compatible with 802.11a/b/g/n/ac Wi-Fi so that users may access network connectivity using wireless technology
- Bluetooth 4.2
- Additional compatible peripherals, such as mice, keyboards, headsets, and more may be paired using Bluetooth 4.2 technology
- 720p Webcam
- HD format (widescreen)
Supports videoconferencing and still image capture
High quality fixed focus lens
Video capture at various resolutions up to 1280 x 720 resolution (720p) and up to 30 fps
M-JPEG compression supports higher frame rates for video capture and videoconferencing
Improved low light sensitivity
Improved dynamic range - Energy Efficiency Compliance
- ENERGY STAR certified and EPEAT registered configurations available
- Environmental
- Low halogen
- Security
- Integrated smart card reader
One-step logon
Common Criteria EAL4+ Augmented Certified Discrete TPM 1.2/2.0 Embedded Security Chip
Security lock slot
Support for Intel AT
HP FingerPrint Sensor (optional)
Absolute Persistence Module
HP BIOSphere with Sure Start
SATA port disablement (via BIOS)
DriveLock and Automatic DriveLock
RAID (available as a configurable option)
Serial, parallel, USB enable/disable (via BIOS)
Optional USB port disable at factory (user configurable via BIOS)
Removable media write/boot control
Power-on password (via BIOS)
Setup password (via BIOS) - Smart Card Reader
- The integrated smart card reader is compatible with ISO 7816 compliant smart cards with PC/SC interface support
- Windows 7 Professional (64-bit) + Windows 10 Professional (64-bit) License
- While the installed operating system is Windows 7 Pro (64-bit), a license and media for installing Windows 10 Pro (64-bit) is also included. However, please note that you may only use one version of the Windows software at a time. Switching from Windows 7 Pro will require you to uninstall it and install Windows 10 Pro. You must back up all data before uninstalling and installing operating systems to avoid loss of your data
UPC: 889899042748 In the Box HP 17.3" ZBook 17 G3 Mobile Workstation 200W Slim Smart AC Adapter Power Cord 6-Cell / 96Wh Long Life Lithium-ion Prismatic Battery Windows 10 Pro (64-bit) License Windows 7 Pro (64-bit) & Windows 10 Pro (64-bit) Recovery Media Limited 3-Year Warranty for Parts Limited 3-Year Warranty for Labor 3 Years of Repairs Performed at Customer Site for Those Parts Not Eligible for Customer Self Repair (CSR) For 24/7 Customer Service, Please Call 1-866-625-1175 Guides & Manuals More from Manufacturer Table of Contents
|
Upload User Manual
Have you got an user manual for the HP 17.3" ZBook 17 G3 Mobile Workstation in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHP ZBook 17 G3 Specs | Operating System | Windows 7 Professional (64-Bit) | | | | CPU | 2.9 GHz Intel Xeon E3-1535M Quad-Core | | Maximum Boost Speed | 3.8 GHz | | Memory Type | 2133 MHz DDR4 | | Total Installed Memory | 16 GB | | Maximum Memory Capacity | 64 GB | | Memory Slot Type | 260-Pin SO-DIMM | | Available Memory Slots | 4 | | Graphics Type | Dedicated | | GPU | NVIDIA Quadro M4000M with 4 GB GDDR5 VRAM | | | | Panel Type | IPS | | Size | 17.3" | | Aspect Ratio | 16:9 | | Resolution | 1920 x 1080 | | Finish | Matte | | Maximum Brightness | 300 cd/m2 | | Refresh Rate | 60 Hz | | Adaptive Sync Technology | None | | | | 2.5" Slots | 2 x 7 mm (Available) | | Total Installed Capacity | 1.512 TB | | Solid State Storage | 1 x 512 GB M.2 PCIe | | Hard Disk Storage | 1 x 1 TB 2.5" SATA (7200 rpm) | | Expansion Slots | 1 x Smart Card | | Optical Drive | None | | | | Ports | 4 x USB Type-A (USB 3.1 Gen 1) | | USB Type-C Ports | 2 x Thunderbolt 3 (Supports DisplayPort) | | Display | 1 x HDMI
1 x VGA | | Audio | 1 x 1/8" / 3.5 mm Headphone/Microphone Input/Output | | Built-In Speakers | 2 | | Built-In Microphones | 2 | | Media Card Slots | 1 x SDXC | | | | Ethernet | 1 x RJ45 (Gigabit) | | Wi-Fi | Wi-Fi 5 (802.11ac); Dual-Band (2.4 & 5 GHz) | | Bluetooth | 4.2 | | Webcam | User-Facing: 720p | | | | Battery Chemistry | Lithium-Ion | | Watt Hours / Type | 96 Wh Removable | | Cells | 6 | | Maximum Runtime | 16.25 Hours | | | | Keyboard | Full-Size Keyboard with Backlight and Number Pad | | Pointing Device | TouchPad | | | | Security | Power-On Password, Kensington Lock Slot, Accepts 3rd Party Security Lock Devices, Infineon TPM Software Professional Package, Fingerprint Reader | | Power Supply | 200 W | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | Dimensions | 16.5 x 1.2 x 11" / 419.1 x 30.5 x 279.4 mm | | Weight | 6.6 lb / 3 kg Starting Weight | | | | Package Weight | 12.55 lb | | Box Dimensions (LxWxH) | 18.5 x 13.7 x 5.0" |
Rating76% users recommend this product to others. And what about you?
This product has already been rated by 17 owners. Add your rating and experience with the product.
