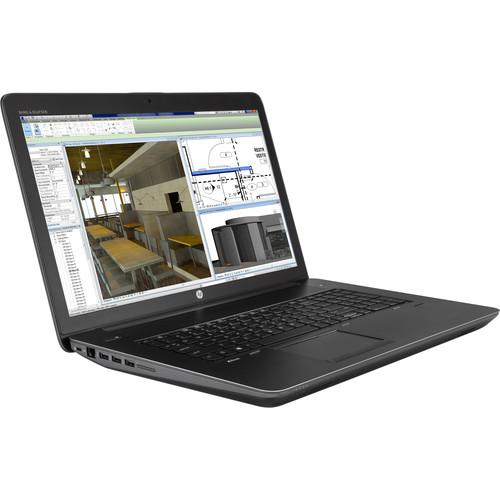

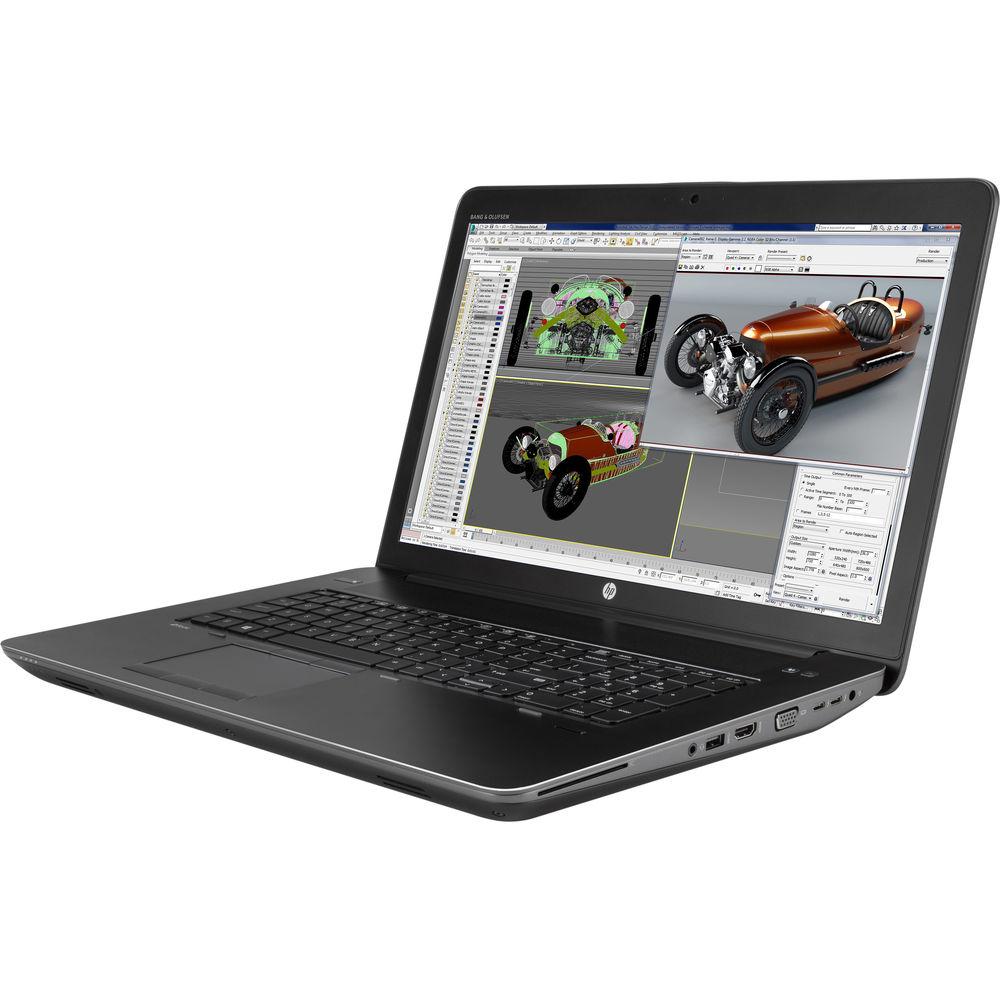

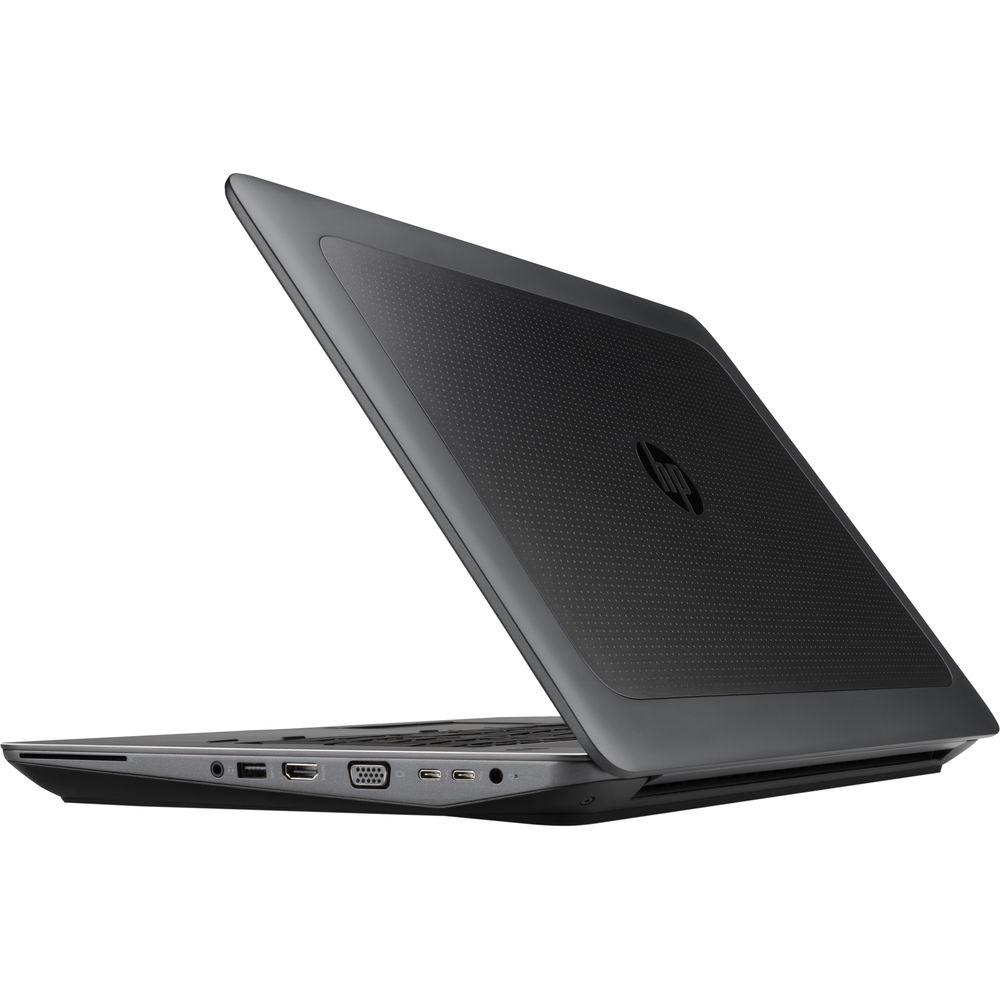

Product description Thin at 1.2", weighing 6.62 lb, and built from magnesium aluminum, the 17.3" ZBook 17 G3 Mobile Workstation from HP provides users with desktop-like performance in a portable form factor that also includes scalability and configuration options for boosting system performance. This system is powered by a 2.9 GHz Intel Xeon E3-1535M v5 Quad-Core processor which allows you to run multiple applications simultaneously. If you need more power, the system can be overclocked to 3.8 GHz using Intel Turbo Boost 2.0 technology. The 64GB of 2133 MHz DDR4 ECC RAM helps to ensure smooth multitasking and also allows the computer to quickly access frequently-used files and programs.

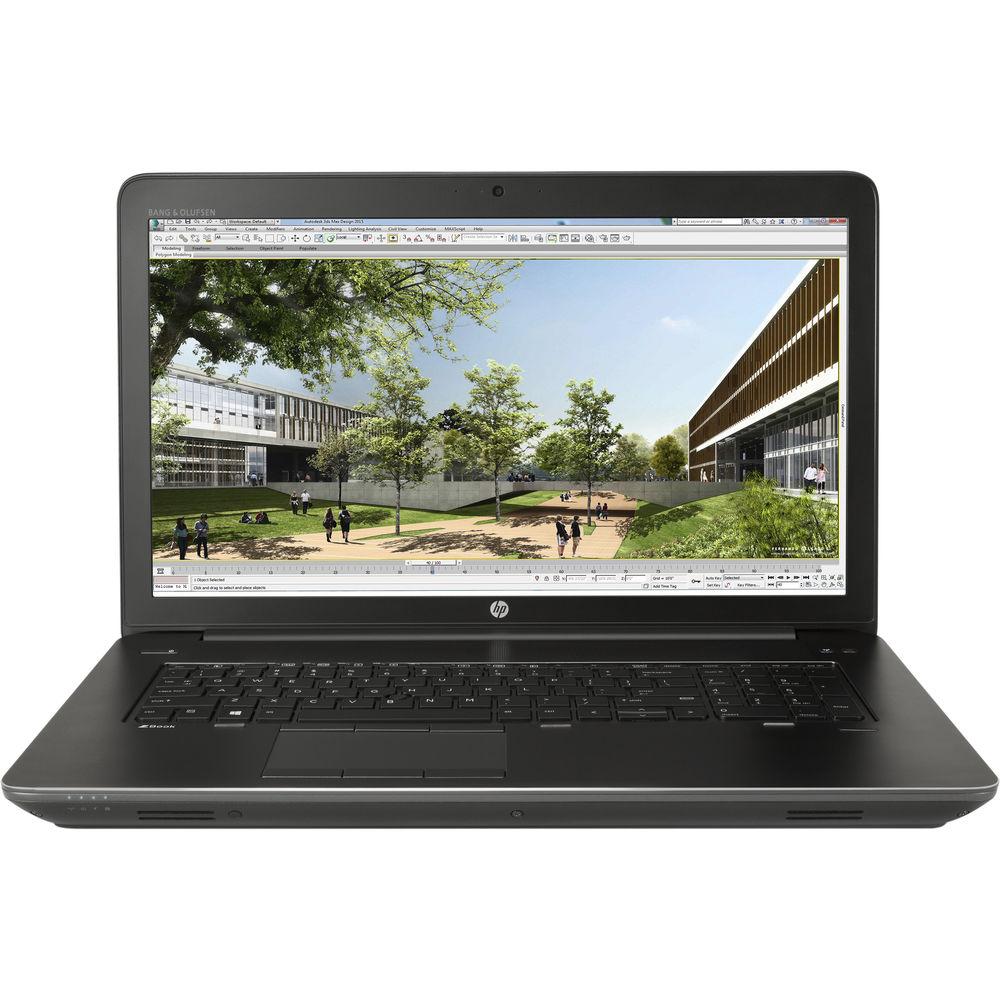

The 17.3" UWVA IPS anti-glare display features a Full HD 1920 x 1080 native resolution. It also features LED-backlighting, a 16:9 aspect ratio, 300 cd/m2 brightness, a 600:1 typical contrast ratio, a refresh rate of 60 Hz, and 128 ppi. The dedicated NVIDIA Quadro M5000M graphics card has 8GB of discrete GDDR5 RAM and delivers a sharp, clear picture. You'll also be able to output video to an external display at resolutions up to 5120 x 2880 using the system's HDMI 1.4, VGA, and dual Thunderbolt 3 ports.
For long term storage of your files, this ZBook 17 G3 is equipped with dual 512GB Z Turbo Drive PCIe SSDs that uses MLC-type NAND and an NVMe interface, as well as a 1TB 7200 rpm SATA hard drive, for a total storage capacity of 2.024TB. While the SSDs may not have the larger storage capacity of the 1TB spinning hard drive, they contain no moving parts which help them to be more resistant against bumps, drops, and other kinds of damage. SSDs also receive less wear and tear than traditional hard drives, as they don't have any read and write heads. Additionally, as these SSDs connect via PCIe as compared to SATA, they are able to operate with even greater data transfer speeds. They each provide sequential reads up to 1.17 GB/s and sequential writes up to 930 MB/s.

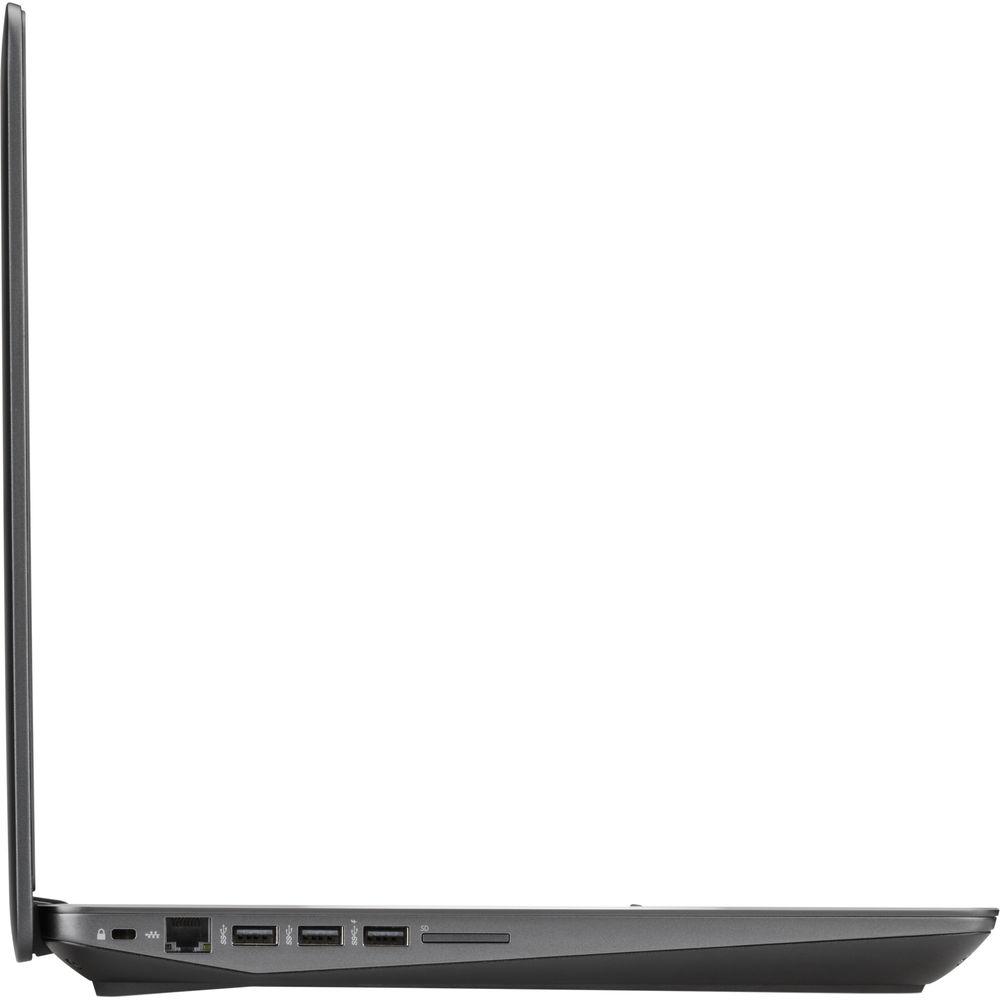

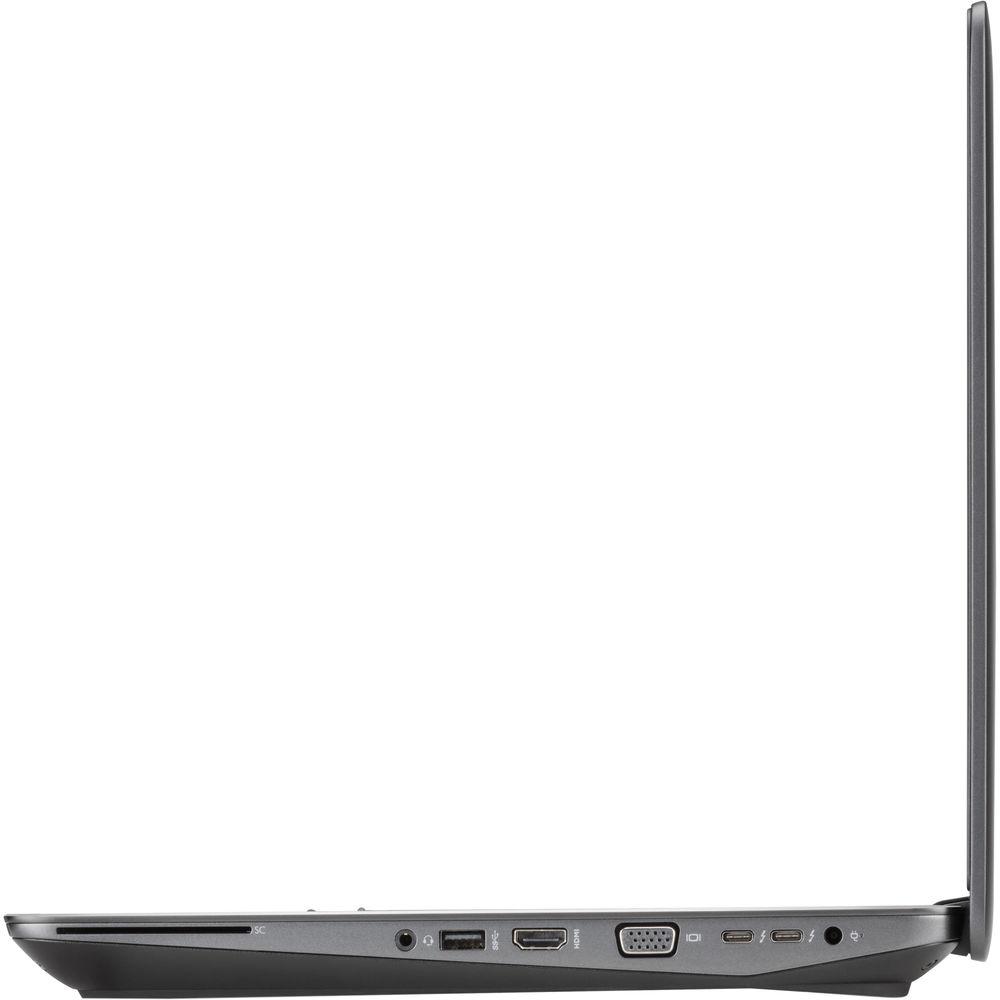

If you want to add external storage, optical drives, memory card readers, and more, the ZBook 17 G3 offers two Thunderbolt 3 and four USB 3.0 ports, with one of the USB 3.0 ports doubling as a charging port. Gigabit Ethernet and 802.11ac dual-band Wi-Fi are built-in for wired and wireless networking and Bluetooth 4.2 technology will also allow you to connect additional compatible peripherals. So that content from memory cards may be accessed, a built-in SD/SDHC/SDXC card reader supports UHS-II flash media and lets users download content from their digital camera. Other integrated features include a 720p webcam, dual-array microphones, stereo speakers with Bang & Olufsen HD audio, and a smart card reader.
The ZBook 17 G3 includes a 200W Slim Smart AC adapter that operates using 100-240 VAC at 47-63 Hz, a 6' power cords, and an HP Long Life 6-cell / 96Wh Lithium-ion prismatic battery that lasts for up to 16.25 hours before recharging is required. Also included are Windows 7 Pro (64-bit) and Windows 10 Pro (64-bit) recovery media. While the installed operating system is Windows 7 Professional (64-bit), a Windows 10 Professional (64-bit) license is included at no additional cost.
Photo is an authorized HP reseller with professional in-house technicians available for upgrades & installations on these workstations and laptops. Built with power and speed in mind, the Z Series is designed to enhance audio and video post-production workflows and more. Each HP Z series workstation or laptop features a range of top-tier processors and large RAM loadouts. The workstations are built with graphics flexibility in mind as well so that the end consumer can configure the graphics options to their needs, and each unit includes a 3/3/3 warranty - 3 years limited warranty for parts, 3 years limited warranty for labor, and 3 years of repairs performed at customer site for those parts not eligible for Customer Self Repair (CSR). For 24/7 customer service, please call 1-866-625-1175. - Thunderbolt 3
- Thunderbolt 3 is a hardware interface that utilizes the reversible USB Type-C connector. Doubling the speed of its predecessor, Thunderbolt 3 features a maximum throughput of 40 Gb/s when used with compatible devices. The connector also transmits data via USB 3.1 at up to 10 Gb/s, and dual-bandwidth DisplayPort 1.2 allows you to connect up to two 4K displays simultaneously. Additionally, you can daisy chain up to six devices from a single Thunderbolt 3 port
- DisplayPort 1.2 Protocol Features Supported via Thunderbolt 3
-
- Legacy displays (HDMI, DVI, VGA) may be attached to the Thunderbolt 3 port with the use of a certified dongle
- DisplayPort monitors capable of supporting DisplayPort 1.2 may be directly attached to the Thunderbolt 3 port to achieve HBR2 with the use a dongle
- Thunderbolt 3 enabled monitors may be directly attached to the Thunderbolt 3 port to achieve HBR2 and MST
- DisplayPort 1.2 MST feature ("daisy-chain" feature) is supported through the Thunderbolt 3 port on Thunderbolt 3 enabled devices or DisplayPort 1.2 monitors (requires monitor with DisplayPort 1.2 MST capability) with the use of a dongle
- Up to 2 streams (eight lanes) of DisplayPort 1.2 are supported over a single Thunderbolt 3 port. Up to two 4K displays with 24/30-bit color depth at 60 Hz or one 5K display supported over a single Thunderbolt 3 port (requires an Intel certified Thunderbolt cable)
- DisplayPort 1.2 w/MST (Multi-stream Transport): Supports resolutions up to Full 4K, 24/30-bit color depth at 60 Hz, and WUXGA (1920 x 1200) monitors, 24/30-bit color depth at 120 Hz
- Multi-Display Support
- The ZBook 17 G3 supports multiple displays in several configurations. Using Thunderbolt 3, hybrid graphics, and the separately sold ZBook Dock, up to six independent displays are supported. If a system uses integrated graphics instead of hybrid, it will support up to three displays. Using Thunderbolt 3, hybrid graphics, and no ZBook Dock, up to four independent displays are supported. Using Thunderbolt 3, integrated graphics, and no ZBook Dock, up to three independent displays are supported. When using hybrid graphics and DisplayPort 1.2 Multi-stream Transport (MST) technology built into a display or hub, the ZBook 17 G3 will support up to six displays without a docking station
- USB 3.0 Ports
- This ZBook 17 G3 features four USB 3.0 ports that will allow you to connect external peripherals such as additional storage, optical drives, printers, memory card readers, and more. One of the USB 3.0 ports also doubles as an always-on charging port for compatible USB devices
- Gigabit Ethernet & 802.11ac Wi-Fi
- The system uses a Gigabit Ethernet controller for Internet access when connected to a router, modem, or network switch. It also features Intel Dual Band Wireless-AC 8260 which is compatible with 802.11a/b/g/n/ac Wi-Fi so that users may access network connectivity using wireless technology
- Bluetooth 4.2
- Additional compatible peripherals, such as mice, keyboards, headsets, and more may be paired using Bluetooth 4.2 technology
- 720p Webcam
- HD format (widescreen)
Supports videoconferencing and still image capture
High quality fixed focus lens
Video capture at various resolutions up to 1280 x 720 resolution (720p) and up to 30 fps
M-JPEG compression supports higher frame rates for video capture and videoconferencing
Improved low light sensitivity
Improved dynamic range - Energy Efficiency Compliance
- ENERGY STAR certified and EPEAT registered configurations available
- Environmental
- Low halogen
- Security
- Integrated smart card reader
One-step logon
Common Criteria EAL4+ Augmented Certified Discrete TPM 1.2/2.0 Embedded Security Chip
Security lock slot
Support for Intel AT
HP FingerPrint Sensor (optional)
Absolute Persistence Module
HP BIOSphere with Sure Start
SATA port disablement (via BIOS)
DriveLock and Automatic DriveLock
RAID (available as a configurable option)
Serial, parallel, USB enable/disable (via BIOS)
Optional USB port disable at factory (user configurable via BIOS)
Removable media write/boot control
Power-on password (via BIOS)
Setup password (via BIOS) - Smart Card Reader
- The integrated smart card reader is compatible with ISO 7816 compliant smart cards with PC/SC interface support
- Windows 7 Professional (64-bit) + Windows 10 Professional (64-bit) License
- While the installed operating system is Windows 7 Pro (64-bit), a license and media for installing Windows 10 Pro (64-bit) is also included. However, please note that you may only use one version of the Windows software at a time. Switching from Windows 7 Pro will require you to uninstall it and install Windows 10 Pro. You must back up all data before uninstalling and installing operating systems to avoid loss of your data
In the Box HP 17.3" ZBook 17 G3 Mobile Workstation 200W Slim Smart AC Adapter 6.0' / 1.8m Power Cord 6-Cell / 96Wh Long Life Lithium-ion Prismatic Battery Windows 10 Pro (64-bit) License Windows 7 Pro (64-bit) & Windows 10 Pro (64-bit) Recovery Media Limited 3-Year Warranty for Parts Limited 3-Year Warranty for Labor Limited 3-Year Battery Warranty 3 Years of Repairs Performed at Customer Site for Those Parts Not Eligible for Customer Self Repair (CSR) For 24/7 Customer Service, Please Call 1-866-625-1175 Table of Contents
|
Upload User Manual
Have you got an user manual for the HP 17.3" ZBook 17 G3 Mobile Workstation in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters | | | Processor | Intel Xeon E3-1535M v5 Quad-Core | | Base Clock Speed | 2.9 GHz | | Maximum Boost Speed | 3.8 GHz | | Total Installed Memory | 64 GB | | Memory Type | DDR4 SDRAM | | Memory Speed | 2133 MHz | | Available Memory Slots | 4 | | ECC Memory | Yes | | Graphics Type | Dedicated | | GPU | NVIDIA Quadro M5000M with 8 GB GDDR5 VRAM | | | | Panel Type | IPS | | Size | 17.3" | | Aspect Ratio | 16:9 | | Native Resolution | 1920 x 1080 | | Finish | Matte | | Maximum Brightness | 300 cd/m2 | | Refresh Rate | 60 Hz | | External Resolution | Up to 5120 x 2880 | | | | Available Slots | 2 x 2.5" (7 mm) | | Total Installed Capacity | 2.024 TB | | Solid State Storage | 2 x 512 GB M.2 PCIe | | Hard Disk Storage | 1 x 2 TB 2.5" SATA (7200 rpm) | | Optical Drive | None | | | | Ports | 2 x Thunderbolt 3 via USB Type-C
4 x USB 3.1 Gen 1 Type-A
1 x Kensington Lock | | Display | 1 x HDMI
1 x VGA | | Audio | 2 x Integrated Speaker
2 x Integrated Microphone
1 x 1/8" (3.5 mm) Headphone/Microphone Combo Jack | | Expansion Slots | 1 x Smart Card | | Media Card Slots | SD/SDHC/SDXC | | | | Network | 1 x 10/100/1000 Mb/s Gigabit Ethernet (RJ45) | | Wi-Fi | Wi-Fi 5 (802.11ac); Dual-Band (2.4 & 5 GHz) | | Bluetooth | Bluetooth 4.2 | | Webcam | User-Facing: 720p | | | | Power Requirements | 100-240 VAC, 47-63 Hz | | Power Supply | x 200 W | | | | Operating System | Windows 7 Professional (64-Bit) | | Security | Power-On Password, Kensington Lock Slot, Accepts 3rd Party Security Lock Devices, Infineon TPM Software Professional Package, Fingerprint Reader | | Keyboard | Full-Size (Backlight, Numeric Keypad) | | Pointing Device | TouchPad | | Dimensions (W x H x D) | 16.5 x 1.2 x 11.0" / 419.1 x 30.5 x 279.4 mm | | Weight | 6.62 lb / 3.00 kg (Weight varies by configuration and components) | | | | Package Weight | 12.65 lb | | Box Dimensions (LxWxH) | 18.5 x 13.7 x 5.1" |
