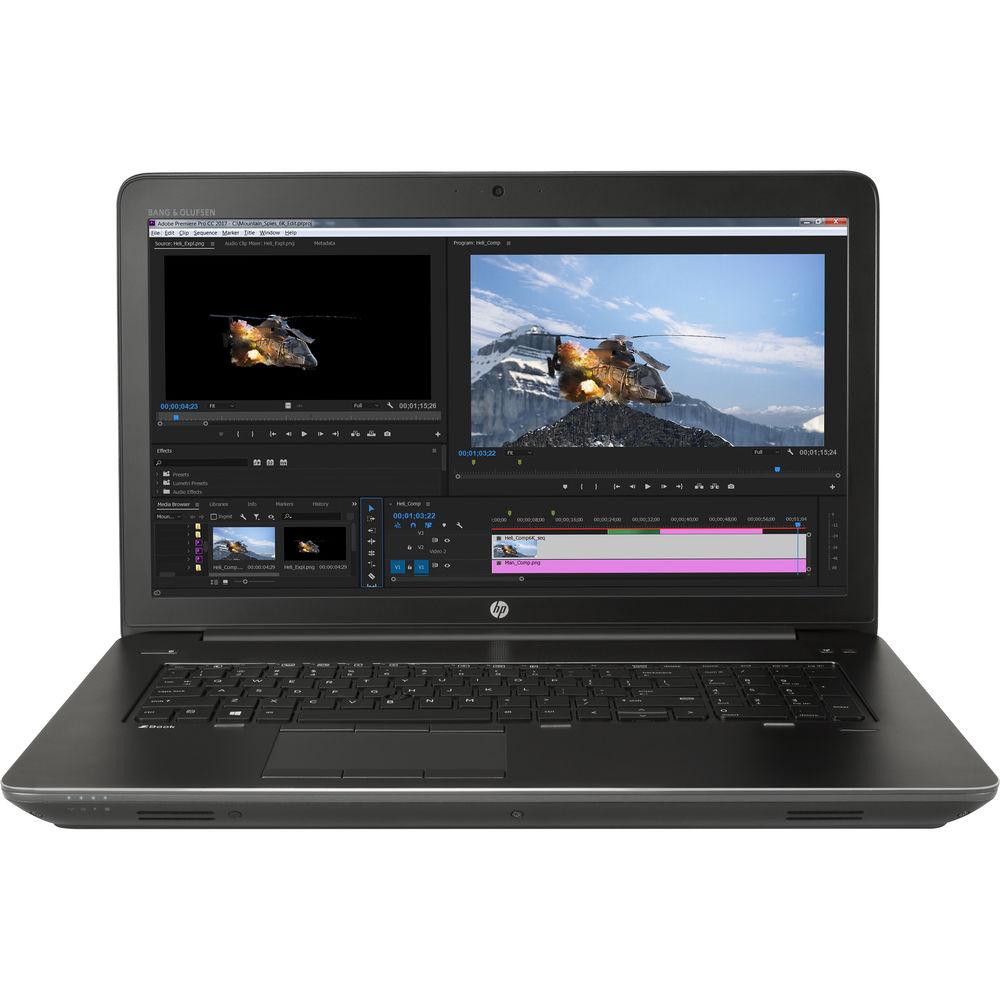

User Manual for HP 17.3" ZBook 17 G4 Mobile Workstation Click to enlarge the picture
Contents of the user manual for the HP 17.3" ZBook 17 G4 Mobile
- Product category: Notebooks HP
- Brand: HP
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for HP Notebooks
 |
User manual for the HP 17.3" ZBook 17 G4 Mobile contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any HP product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official HP user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a HP product will considerably shorten its lifespan!
|
Product description Work Laptops Made for mobile creative and design professionals with demanding projects, the 17.3" ZBook 17 G4 Mobile Workstation from HP provides desktop workstation power, performance, and expandability in a device designed for the road. This system is powered by a 2.5 GHz Intel Core i5-7200U Dual-Core processor, which allows you to run multiple applications simultaneously. If you need more power, the system can be overclocked to 3.1 GHz using Intel Turbo Boost 2.0 technology. The 8GB of 2133 MHz DDR4 RAM helps to ensure smooth multitasking and also allows the computer to quickly access frequently used files and programs.
The SVA anti-glare display features an HD+ 1600 x 900 screen resolution that is equipped with LED-backlighting, a 16:9 aspect ratio, 220 cd/m2 brightness, a 300:1 typical contrast ratio, a refresh rate of 60 Hz, 106 ppi, and viewing angles of 45/45/25/35°. The integrated Intel HD Graphics 620 chipset delivers a sharp, clear picture, and you'll also be able to output video to an external display at resolutions up to 5120 x 2880 using the system's HDMI 1.4 and dual Thunderbolt 3 ports, the latter of which supports DisplayPort 1.2.
For storage of your files, this ZBook 17 G4 is equipped with a 256B Z Turbo Drive G2 NVMe PCIe SSD that uses TLC-type NAND and has an M.2 2280 form factor. While this SSD may not have the larger storage capacity of a traditional spinning hard drive, it contains no moving parts which helps it to be more resistant against bumps, drops, and other kinds of damage. SSDs also receive less wear and tear than traditional hard drives, as they don't have any read and write heads. Additionally, as this SSD connects via PCIe as compared to SATA, it is able to operate with even greater data transfer speeds. It provides sequential reads up to 2260 MB/s and sequential writes up to 1260 MB/s.
If you want to add external storage, optical drives, memory card readers, and more, the ZBook 17 G4 offers two 40 Gb/s Thunderbolt 3 ports that also support 10 Gb/s USB 3.1 Type-C. There are also four 5 Gb/s USB 3.0 ports, with one of these ports doubling as a charging port. Gigabit Ethernet, 802.11ac dual-band Wi-Fi, and NFC are built-in for wired and wireless networking, and Bluetooth 4.2 technology will also allow you to connect additional compatible peripherals. Content from memory cards may be accessed via a built-in SD/SDHC/SDXC card reader that supports UHS-II flash media. Other integrated features include a 720p webcam, dual-array microphones, stereo speakers with Bang & Olufsen HD audio, and a smart card reader.
The ZBook 17 G4 includes a 200W Slim Smart AC adapter that operates using 100-240 VAC at 47-63 Hz and an HP Long Life 6-cell / 96Wh lithium-ion prismatic battery that lasts for around 17 hours before recharging is required, and typically recharges in 3-5 hours. The installed operating system is Windows 10 Pro (64-Bit) and also included is recovery media and an Elite Services card.
Photo is an authorized HP reseller with professional in-house technicians available for upgrades & installations on these workstations and laptops. Built with power and speed in mind, the Z Series is designed to enhance audio and video post-production workflows and more. Each HP Z series workstation or laptop features a range of top-tier processors and large RAM loadouts. The workstations are built with graphics flexibility in mind as well so that the end consumer can configure the graphics options to their needs, and each unit includes a 3/3/3 warranty - 3 years limited warranty for parts, 3 years limited warranty for labor, and 3 years of repairs performed at customer site for those parts not eligible for Customer Self Repair (CSR). For 24/7 customer service, please call 1-866-625-1175. General Features ZBook 17 G4 Mobile Workstation - Thunderbolt 3
- Thunderbolt 3 is a hardware interface that utilizes the reversible USB Type-C connector. Doubling the speed of its predecessor, Thunderbolt 3 features a maximum throughput of 40 Gb/s when used with compatible devices. The connector also transmits data via USB 3.1 at up to 10 Gb/s, and dual-bandwidth DisplayPort 1.2 allows you to connect up to two 4K displays simultaneously. Additionally, you can daisy chain up to six devices from a single Thunderbolt 3 port
- DisplayPort 1.2 Protocol Features Supported via Thunderbolt 3
-
- Legacy displays (HDMI, DVI, VGA) may be attached to the Thunderbolt 3 port with the use of a certified dongle
- DisplayPort monitors capable of supporting DisplayPort 1.2 may be directly attached to the Thunderbolt 3 port to achieve HBR2 with the use a dongle
- Thunderbolt 3 enabled monitors may be directly attached to the Thunderbolt 3 port to achieve HBR2 and MST
- DisplayPort 1.2 MST feature ("daisy-chain" feature) is supported through the Thunderbolt 3 port on Thunderbolt 3 enabled devices or DisplayPort 1.2 monitors (requires monitor with DisplayPort 1.2 MST capability) with the use of a dongle
- Up to 2 streams (eight lanes) of DisplayPort 1.2 are supported over a single Thunderbolt 3 port. Up to two 4K displays with 24/30-bit color depth at 60 Hz or one 5K display supported over a single Thunderbolt 3 port (requires an Intel certified Thunderbolt cable)
- DisplayPort 1.2 w/MST (Multi-stream Transport): Supports resolutions up to Full 4K, 24/30-bit color depth at 60 Hz, and WUXGA (1920 x 1200) monitors, 24/30-bit color depth at 120 Hz
- Multi-Display Support
- The ZBook 17 G4 supports multiple displays in several configurations. Using Thunderbolt 3, hybrid graphics, and the separately sold ZBook Dock, up to six independent displays are supported. If a system uses integrated graphics instead of hybrid, it will support up to three displays. Using Thunderbolt 3, hybrid graphics, and no ZBook Dock, up to four independent displays are supported. Using Thunderbolt 3, integrated graphics, and no ZBook Dock, up to three independent displays are supported. When using hybrid graphics and DisplayPort 1.2 Multi-stream Transport (MST) technology built into a display or hub, the ZBook 17 G4 will support up to six displays without a docking station
- USB 3.0 Type-A Ports
- This ZBook 17 G4 features four USB 3.0 Type-A ports that will allow you to connect external peripherals such as additional storage, optical drives, printers, memory card readers, and more. One of the USB 3.0 ports also doubles as an always-on charging port for compatible USB devices
- Up to 64GB Memory
- While this system natively includes 8GB of RAM in a 1 x 8GB configuration, it can be upgraded to a maximum of 64GB when 16GB memory modules are used in each of the system's four 260-pin SO-DIMM slots
- Drive Bays
- The HP 17.3" ZBook 17 G4 Mobile Workstation supports four internal drives - two 2.5" / 7mm SATA hard drives and two M.2 2280 SSDs. As one of the M.2 slots is used for the 256GB SSD, there is one available M.2 2280 slot and two available 2.5" / 7mm drive bays
- Gigabit Ethernet & 802.11ac Wi-Fi
- The system uses a Gigabit Ethernet controller for Internet access when connected to a router, modem, or network switch. It also features Intel Dual Band Wireless-AC 8260 which is compatible with 802.11a/b/g/n/ac Wi-Fi so that users may access network connectivity using wireless technology
- Bluetooth 4.2
- Additional compatible peripherals, such as mice, keyboards, headsets, and more may be paired using Bluetooth 4.2 technology
- Near-Field Communication (NFC)
- Near-field communication (NFC) is a set of communication protocols that enable two electronic devices, one of which is usually a portable device such as a smartphone, to establish communication by bringing them within 1.6" of each other. NFC devices are used in contactless payment systems, similar to those used in credit cards and electronic ticket smartcards, and allow mobile payment to replace/supplement these systems. NFC is used for social networking, as well as for sharing contacts, photos, videos, or files. NFC-enabled devices can also act as electronic identity documents and keycards. NFC offers a low-speed connection with simple setup that can be used to bootstrap more capable wireless connections
- 720p Webcam
- HD format (widescreen)
Supports videoconferencing and still image capture
High quality fixed focus lens
Video capture at various resolutions up to 1280 x 720 resolution (720p) and up to 30 fps
M-JPEG compression supports higher frame rates for video capture and videoconferencing
Improved low light sensitivity
Improved dynamic range - Energy Efficiency Compliance
- ENERGY STAR certified and EPEAT registered configurations available
- Environmental
- Low halogen
- Security Management
- Absolute Persistence Module
DriveLock and Automatic DriveLock
HP BIOSphere with Sure Start
HP FingerPrint Sensor (optional)
Integrated smart card reader
One-step logon
Optional USB port disable at factory (user configurable via BIOS)
RAID (available as a configurable option)
Removable media write/boot control
SATA port disablement (via BIOS)
Security lock slot
Serial, parallel, and USB enable/disable (via BIOS)
Setup password (via BIOS)
Support for Intel AT
Power-on password (via BIOS)
Common Criteria EAL4+ Augmented Certified Discrete TPM 2.0 Embedded Security Chip - Smart Card Reader
- The integrated smart card reader is compatible with ISO 7816 compliant smart cards with PC/SC interface support
Windows 10 - Start Menu
- After its hiatus in Windows 8, the Start Menu has returned. Utilizing a combination of the traditional menu system and Windows 8's Live Tiles, the improved Start Menu gives you more information at a glance, showing notification information alongside your applications and other pinned items
- Cortana
- Microsoft's digital personal assistant, Cortana can answer your questions with information gleaned from both your device and the internet at large. You can type or even talk with her, if your system has a microphone. Using her Notebook, Cortana keeps track of your needs and wants, and she learns over time to improve her information gathering skills
- Microsoft Edge
- After nearly 20 years, Microsoft has finally replaced its Internet Explorer web browser. With Microsoft Edge, users can write directly on web pages and share notes with friends and colleagues. It also improves the online reading experience by adding a distraction-free mode and read-it-later functionality. Edge also has built-in Cortana integration; you can have her help you find a restaurant, make a reservation, and pull up directions without leaving your browser
- Windows Store
- For Windows 10, Microsoft has unified the Windows Store. Now, apps for PCs, tablets, and phones will all be accessible from one place. And with support for Universal Apps, one version of an app can work across all your compatible devices automatically
- Windows Continuum
- Windows 10 was designed for a variety of screen sizes and input styles, and with its Continuum feature, it automatically adapts to fit your needs. A Windows 10 tablet on its own requires a touch-centric approach, but attaching a mouse and keyboard will shift everything to a more traditional interface. You can even attach an external monitor to your Windows 10 phone for a near-desktop experience. But it's not just the operating system; Windows Universal Apps take advantage of Continuum as well
- Xbox on Windows 10
- Gaming is a big focus of Windows 10. Xbox integration allows for PC players to match up against Xbox One players on supported games, and if you have an Xbox One, you can even stream compatible titles to your PC. Native support for recording with the new Game DVR feature makes it easy to capture and share your gameplay. The new DirectX12 takes better advantage of multi-core processors, giving games a performance boost, even on older hardware. Windows 10 also features native support for virtual reality headsets, such as the Oculus Rift
- Windows 10 Pro
- The Pro version of Windows 10 includes all of the features of Windows 10 Home plus many designed specifically for businesses users, including Hyper-V virtualization, BitLocker disk encryption, and remote desktop access. Devices will also be able to join domains and the Azure Active Directory, and they can even access a specialized version of the Windows Store featuring custom, company-specific applications
In the Box HP 17.3" ZBook 17 G4 Mobile Workstation Elite Services Card 200W Slim Smart AC Adapter Power Cord 6-cell / 96Wh Long Life Lithium-ion Prismatic Battery Recovery Media Limited 3-Year Warranty for Parts Limited 3-Year Warranty for Labor 3 Years of Repairs Performed at Customer Site for Those Parts Not Eligible for Customer Self Repair (CSR) For 24/7 Customer Service, Please Call 1-866-625-1175 More from Manufacturer Table of Contents
|
Upload User Manual
Have you got an user manual for the HP 17.3" ZBook 17 G4 Mobile Workstation in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHP 17 G4 Specs | Operating System | Windows 10 Pro (64-Bit) | | | | Chipset | Intel CM238 | | CPU Socket | BGA 1440 | | CPU | 2.5 GHz Intel Core i5-7200U Dual-Core | | Maximum Boost Speed | 3.1 GHz | | L3 Cache | 6 MB | | Memory Type | 2133 MHz DDR4 | | Total Installed Memory | 8 GB | | Memory Configuration | 1 x 8 GB (User-Replaceable) | | Maximum Memory Capacity | 64 GB | | Memory Slot Type | 260-Pin SO-DIMM | | Available Memory Slots | 3 | | Buffered Memory | No | | ECC Memory | No | | Graphics Type | Integrated | | GPU | Intel HD Graphics 620 | | | | Panel Type | Unspecified LCD | | Size | 17.3" | | Aspect Ratio | 16:9 | | Resolution | 1600 x 900 | | Touchscreen | None | | Finish | Matte | | Maximum Brightness | 220 cd/m2 | | Refresh Rate | 60 Hz | | Adaptive Sync Technology | None | | Viewing Angle (H x V) | 90 x 60° | | | | Total Drive Bays | 2 x 2.5" (Internal) | | 2.5" Slots | 2 x 7 mm (Available) | | SSD Slots | 1 x M.2 2280 SATA / PCIe (Available)
1 x M.2 2280 SATA / PCIe (In Use) | | Total Installed Capacity | 256 GB | | Solid State Storage | 1 x 256 GB M.2 NVMe PCIe | | Expansion Slots | 1 x Smart Card | | Optical Drive | None | | | | Ports | 4 x USB Type-A (USB 3.1 Gen 1) | | USB Type-C Ports | 2 x Thunderbolt 3 (Supports DisplayPort) | | Display | 1 x HDMI 1.4
1 x VGA | | Audio | 1 x 1/8" / 3.5 mm Headphone/Microphone Input/Output | | Built-In Speakers | 2 | | Built-In Microphones | 2 | | Media Card Slots | 1 x SDXC | | | | Ethernet | 1 x RJ45 (Gigabit) | | Wi-Fi | Wi-Fi 5 (802.11ac); Dual-Band (2.4 & 5 GHz) | | Bluetooth | 4.2 | | GPS | None | | NFC | Yes | | Webcam | User-Facing: 720p | | | | Battery Chemistry | Lithium-Ion | | Watt Hours / Type | 96 Wh Removable | | Cells | 6 | | Output Voltage | 19.5 VDC | | Maximum Runtime | 17 Hours | | | | Keyboard | 100-Key Full-Size Keyboard with Backlight and Number Pad | | Pointing Device | TouchPad | | | | Security | Kensington Lock Slot, Accepts 3rd Party Security Lock Devices, Infineon TPM Software Professional Package, Fingerprint Reader | | Power Supply | 200 W | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz at 1.45 to 2.9 A | | Operating Temperature | 32 to 95°F / 0 to 35°C | | Operating Humidity | 10 to 90% | | Dimensions | 16.5 x 1.3 x 11" / 419.1 x 33 x 279.4 mm | | Weight | 6.9 lb / 3.1 kg |
