Product description

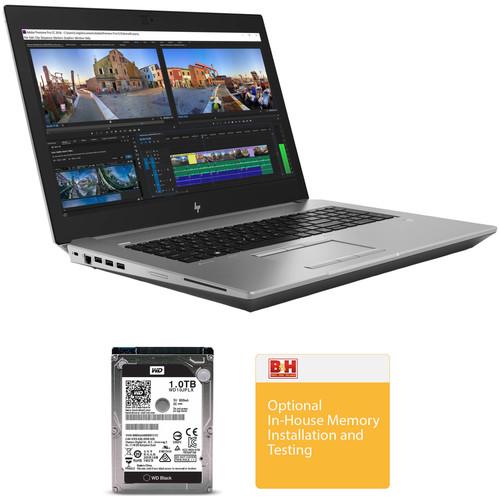

• HP 17.3" ZBook 17 G5 Mobile Workstation Made for mobile creative and design professionals with demanding projects, the HP 17.3" ZBook 17 G5 Mobile Workstation provides desktop workstation power, performance, and expandability in a device designed for the road. This system is powered by a 2.6 GHz Intel Core i7-8850H six-core processor, which allows you to run multiple applications simultaneously. If you need more power, the system can be overclocked to 4.3 GHz using Intel Turbo Boost 2.0 technology. The 16GB of 2666 MHz ECC DDR4 RAM helps to ensure smooth multitasking and also allows the computer to quickly access frequently used files and programs. There is also a 512GB PCIe NVMe SSD. The 17.3" IPS display features a Full HD 1920 x 1080 screen resolution and a 16:9 aspect ratio. The screen is powered by a dedicated NVIDIA Quadro P3200 graphics card with 6GB GDDR5 VRAM. You can also output video to an external display via Mini DisplayPort 1.3 or HDMI 2.0. Windows 10 Pro (64-bit) includes all of the features of Windows 10 Home plus many designed specifically for business users, including Hyper-V virtualization, BitLocker disk encryption, and remote desktop access. Devices will also be able to join domains and the Azure Active Directory, and they can even access a specialized version of the Windows Store featuring custom, company-specific applications.

  HP ZBook 17 G5

  Thunderbolt 3
  • Thunderbolt 3 is a hardware interface that utilizes the reversible USB Type-C connector. Doubling the speed of its predecessor, Thunderbolt 3 features a maximum throughput of 40 Gb/s when used with compatible devices. The connector also transmits data via USB 3.1 at up to 10 Gb/s, and dual-bandwidth DisplayPort 1.2 allows you to connect up to two 4K displays simultaneously. Additionally, you can daisy chain up to six devices from a single Thunderbolt 3 port.
  Gigabit Ethernet & 802.11ac Wi-Fi
  • The system uses a Gigabit Ethernet controller for internet access when connected to a router, modem, or network switch. It also features dual-band 802.11ac Wi-Fi so that users may access network connectivity using wireless technology.
  Bluetooth 5.0
  • Additional compatible peripherals, such as mice, keyboards, headsets, and more may be paired using Bluetooth 5.0 technology.

  Windows 10

  Start Menu
  • After its hiatus in Windows 8, the Start Menu has returned. Utilizing a combination of the traditional menu system and Windows 8's Live Tiles, the improved Start Menu gives you more information at a glance, showing notification information alongside your applications and other pinned items.
  Cortana
  • Microsoft's digital personal assistant, Cortana can answer your questions with information gleaned from both your device and the internet at large. You can type or even talk with her, if your system has a microphone. Using her Notebook, Cortana keeps track of your needs and wants, and she learns over time to improve her information gathering skills.
  Microsoft Edge
  • After nearly 20 years, Microsoft has finally replaced its Internet Explorer web browser. With Microsoft Edge, users can write directly on web pages and share notes with friends and colleagues. It also improves the online reading experience by adding a distraction-free mode and read-it-later functionality. Edge also has built-in Cortana integration; you can have her help you find a restaurant, make a reservation, and pull up directions without leaving your browser.
  Windows Store
  • For Windows 10, Microsoft has unified the Windows Store. Now, apps for PCs, tablets, and phones will all be accessible from one place. And with support for Universal Apps, one version of an app can work across all your compatible devices automatically.
  Windows Continuum
  • Windows 10 was designed for a variety of screen sizes and input styles, and with its Continuum feature, it automatically adapts to fit your needs. A Windows 10 tablet on its own requires a touch-centric approach, but attaching a mouse and keyboard will shift everything to a more traditional interface. You can even attach an external monitor to your Windows 10 phone for a near-desktop experience. But it's not just the operating system; Windows Universal Apps take advantage of Continuum as well.
  UPC: 192545950053
• WD 1TB WD Black Mobile OEM Hard Drive (WD10JPLX) With a 2.5" form factor, the 1TB WD Black Mobile OEM Hard Drive from WD is designed to suit the needs of both creative professionals and gamers. Whether this drive is used in an all-in-one computer or a notebook users benefit from a SATA 6 Gb/s interface along with a 7200 rpm rotational speed for optimal performance. The WD Black mobile hard drive is designed for a variety of high performance applications from photo and video editing to gaming as it comes equipped with 32MB cache memory for faster load and data access times.
  Maximum Performance
  • Performance enhancing features deliver the speed you need for demanding applications such as photo and video editing and Internet gaming.
  No Compromises
  • High performance, high capacity, and high reliability
  Dual Processor and Rock-Solid Mechanical Architecture
  • Twice the processing power to maximize performance
  Dynamic Cache
  • WD's dynamic caching algorithm improves performance in real time by optimizing cache allocation between reads and writes. For example, if there is an overwhelming percentage of read traffic as opposed to write traffic, the drive automatically allocates more cache for read data, which reduces congestion and improves overall drive performance.
  Available SATA 6 Gb/s Interface
  • The SATA 6 Gb/s interface provides backwards compatibility to legacy systems with SATA 3 Gb/s requirements.
  NoTouch Ramp Load Technology
  • The recording head never touches the disk media ensuring significantly less wear to the recording head and media as well as better drive protection in transit.
  Tested for Compatibility
  • Tests are performed on hundreds of systems and platforms in the FIT Lab to check that this drive will work in any system.
  UPC: 718037846729
• Photo Video In-house Memory Installation & Testing Service Select In-house Additional Computer Memory Installation and Testing when you want B&H to do the installation of additional memory - when purchased on the same order of the computer. The Additional Memory Installation and Testing is done by a certified technician in our Computer Service Center, so that it is assured that the original manufacturer's warranty on the computer continues on throughout the warranty period.This item doesn't include software installation. If you also need software installation use B&H item code # BHWEBPCC. Note: The only warranty on the additional memory is the warranty provided by the manufacturer of the additional memory.
  Certified Technician
  • The install is done by a certified technician who knows the do's and don'ts of installation, so that the manufacturer's original warranty on the computer continues on and doesn't get voided by unwanted moves.
  Expert Testing
  • Testing is done on the computer to check if the system recognizes and allocates the additional memory.
  Get to Work Immediately
  • The Installation and Testing will allow you to start working on your new computer as soon as you get it.

• 17.3" ZBook 17 G5 Mobile Workstation
• Power Cord
• Limited 1-Year Warranty

• WD - 1TB WD Black Mobile OEM Hard Drive (WD10JPLX)

• B&H Photo Video - In-house Memory Installation & Testing Service wwetwvcdqvuvrsarzcvbq

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• HP 17.3" ZBook 17 G5 Mobile Workstation

  Operating System

  Windows 10 Pro (64-Bit)

  CPU	2.6 GHz Intel Core i7-8850H 6-Core
  Maximum Boost Speed	4.3 GHz
  Memory Type	2666 MHz DDR4
  Total Installed Memory	16 GB
  Memory Configuration	1 x 16 GB (User-Replaceable)
  Maximum Memory Capacity	64 GB
  Memory Slot Type	260-Pin SO-DIMM
  Available Memory Slots	3
  Buffered Memory	Yes
  ECC Memory	Yes
  Graphics Type	Dedicated
  GPU	NVIDIA Quadro P3200 with 6 GB GDDR5 VRAM

  Panel Type	IPS
  Size	17.3"
  Aspect Ratio	16:9
  Resolution	1920 x 1080
  Touchscreen	None
  Finish	Matte
  Maximum Brightness	300 cd/m2
  Refresh Rate	60 Hz
  Adaptive Sync Technology	None

  Total Installed Capacity	512 GB
  Solid State Storage	1 x 512 GB M.2 NVMe PCIe

  Ports	3 x USB Type-A (USB 3.1 Gen 1)
  USB Type-C Ports	2 x Thunderbolt 3 (Supports DisplayPort)
  Display	1 x Mini DisplayPort 1.3 1 x HDMI 2.0
  Audio	1 x 1/8" / 3.5 mm Headphone/Microphone Input/Output
  Media Card Slots	1 x SDXC

  Ethernet	1 x RJ45 (Gigabit)
  Wi-Fi	Wi-Fi 5 (802.11ac); Dual-Band (2.4 & 5 GHz)
  MU-MIMO Support	2 x 2
  Bluetooth	5.0
  GPS	None
  NFC	No
  Webcam	User-Facing: 720p

  Battery Chemistry	Lithium-Ion Polymer (LiPo)
  Watt Hours / Type	96 Wh
  Cells	6

  Keyboard	Full-Size Keyboard with Number Pad
  Pointing Device	TouchPad

  Security	Kensington Lock Slot
  Power Supply	200 W
  Dimensions	16.4 x 11.3 x 1.3" / 41.7 x 28.7 x 3.3 cm
  Weight	7 lb / 3.2 kg

  Box Dimensions (LxWxH)	18.5 x 13.75 x 4.75"

• WD 1TB WD Black Mobile OEM Hard Drive (WD10JPLX)

  Drive Capacity	1.0 TB
  Cache Memory	32 MB

  Interface	SATA III (6 Gb/s)
  Maximum Read Speed	115 MB/s
  Maximum Write Speed	115 MB/s

  Drive Type	HDD
  Form Factor	2.5"
  Noise Level	27.0 dB (Active) 25.0 dB (Idle)

  Spindle Speed (RPM)	7200 RPM

  Load/Unload Cycles	600,000
  Non-Recoverable Read Errors per Bits Read	< 1 in 10

  Power Draw	1.8 W (Active) 0.8 W (Idle) 0.2 W (Standby)
  Current	1.1 A at 5 VDC

  Operating Shock	400 G / 2.0 ms
  Storage Shock	1000 G / 2.0 ms
  Operating Temperature	32 to 140°F / 0 to 60°C
  Storage Temperature	-40 to 158°F / -40 to 70°C

  Dimensions (W x H x D)	0.4 x 3.9 x 2.8" / 9.5 x 100.2 x 69.8 mm
  Weight	0.2 lb / 0.1 kg

  Box Dimensions (LxWxH)	8.74 x 6.142 x 2.913"

• Photo Video In-house Memory Installation & Testing Service

  Box Dimensions (LxWxH)	1.0 x 1.0 x 1.0"
