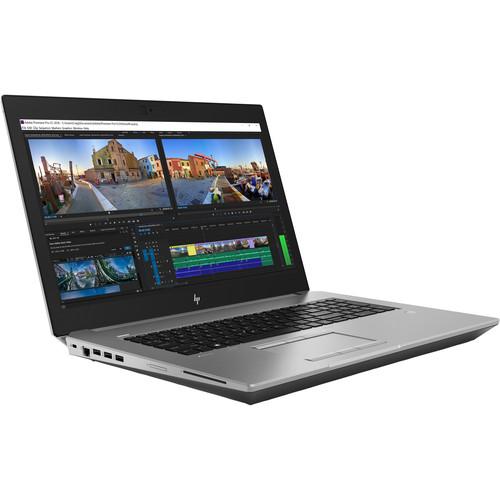

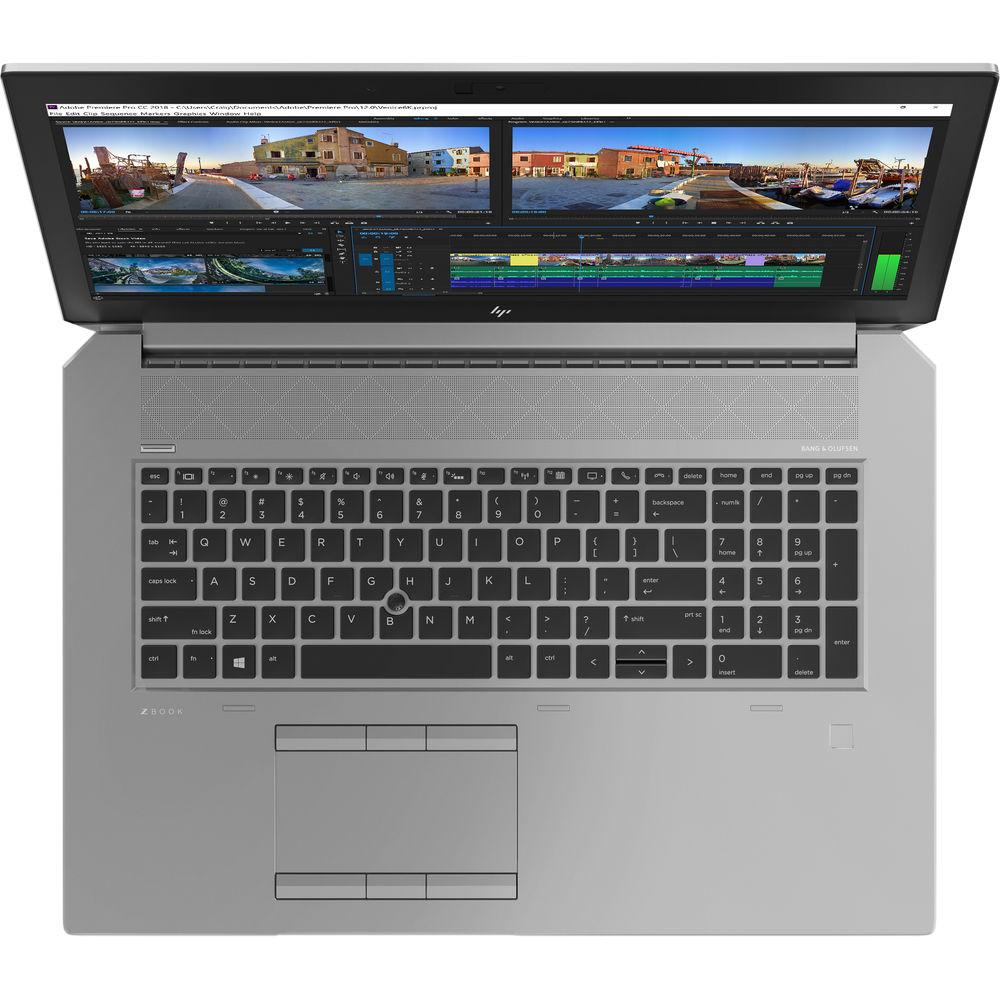

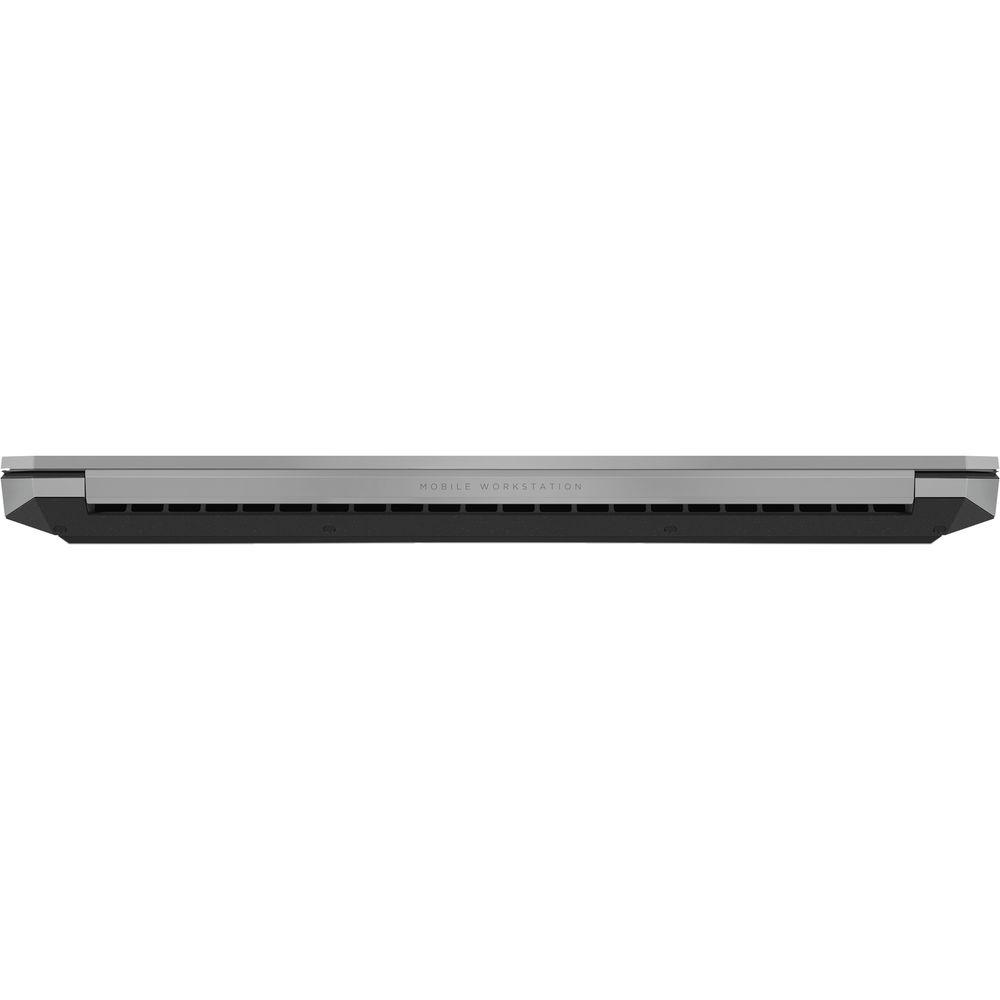

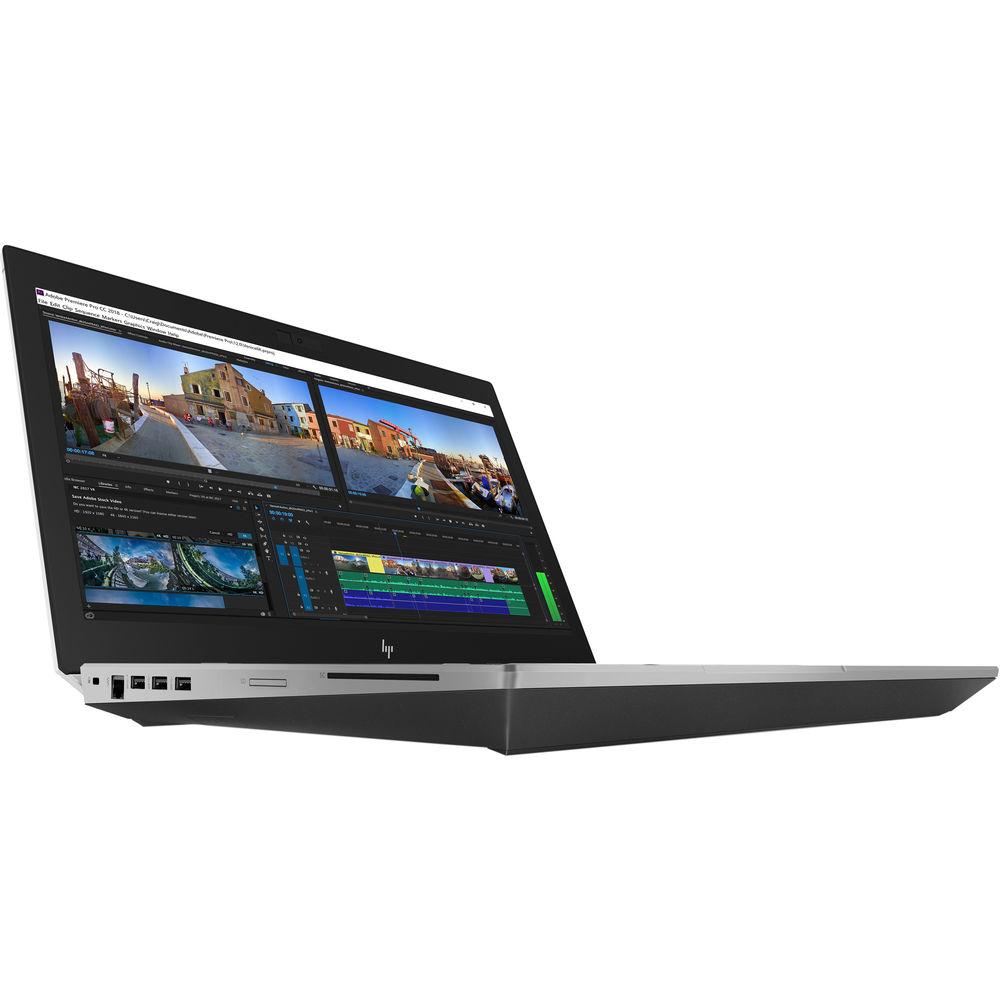

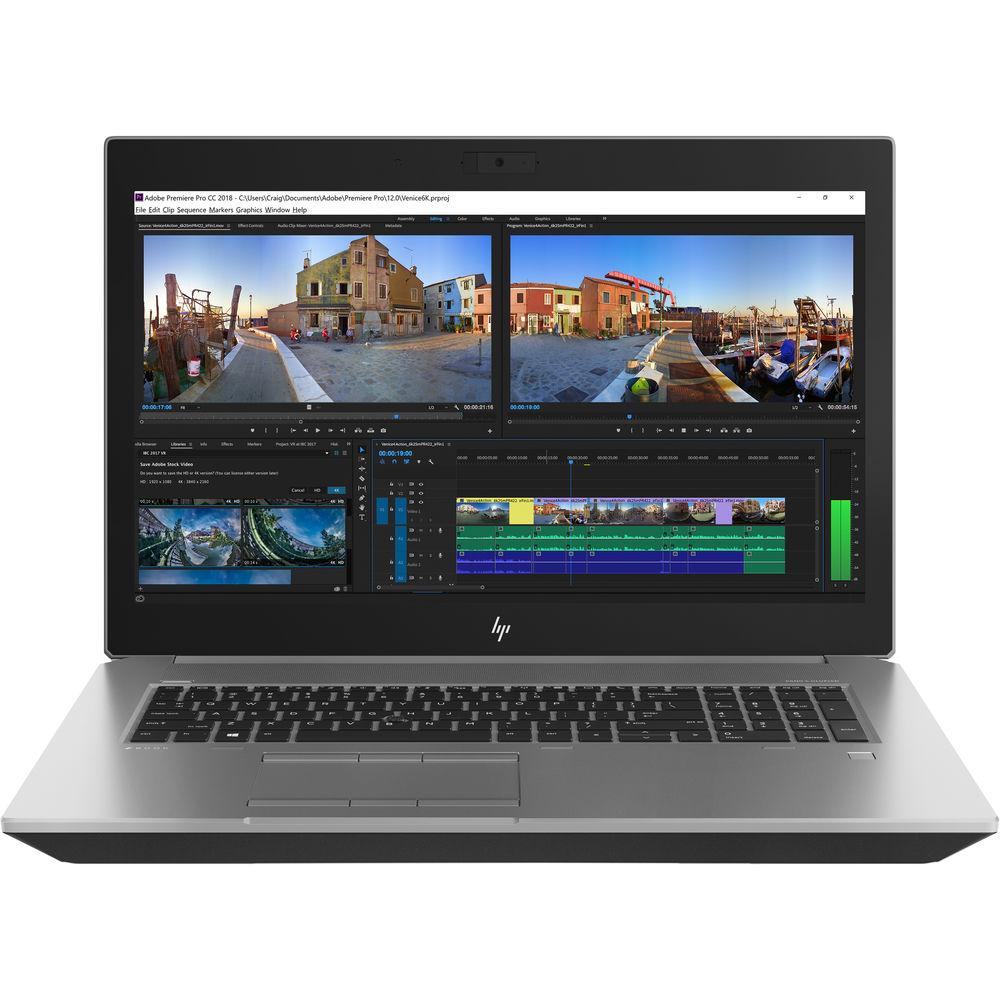

User Manual for HP 17.3" ZBook 17 G5 Mobile Workstation Click to enlarge the picture
Contents of the user manual for the HP 17.3" ZBook 17 G5 Mobile
- Product category: Mobile Workstations HP
- Brand: HP
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for HP Mobile Workstations
 |
User manual for the HP 17.3" ZBook 17 G5 Mobile contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any HP product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official HP user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a HP product will considerably shorten its lifespan!
|
Product description Work Laptopswwrrswyx New Mobile Workstations from HP Read More wwrrswyx Made for mobile creative and design professionals with demanding projects, the HP 17.3" ZBook 17 G5 Mobile Workstation provides desktop workstation power, performance, and expandability in a device designed for the road. This system is powered by a 2.7 GHz Intel Xeon E-2176M six-core processor, which allows you to run multiple applications simultaneously. If you need more power, the system can be overclocked to 4.4 GHz using Intel Turbo Boost 2.0 technology. The 16GB of 2666 MHz ECC DDR4 RAM helps to ensure smooth multitasking and also allows the computer to quickly access frequently used files and programs. The 17.3" IPS display features a Full HD 1920 x 1080 screen resolution and a 16:9 aspect ratio. Powered by a dedicated NVIDIA Quadro P4000 graphics card with 6GB of GDDR5 VRAM. You can also output video to an external display via Mini DisplayPort 1.3 or HDMI 2.0. Windows 10 Pro (64-bit) includes all of the features of Windows 10 Home plus many designed specifically for business users, including Hyper-V virtualization, BitLocker disk encryption, and remote desktop access. Devices will also be able to join domains and the Azure Active Directory, and they can even access a specialized version of the Windows Store featuring custom, company-specific applications. HP ZBook 17 G5 - Thunderbolt 3
- Thunderbolt 3 is a hardware interface that utilizes the reversible USB Type-C connector. Doubling the speed of its predecessor, Thunderbolt 3 features a maximum throughput of 40 Gb/s when used with compatible devices. The connector also transmits data via USB 3.1 at up to 10 Gb/s, and dual-bandwidth DisplayPort 1.2 allows you to connect up to two 4K displays simultaneously. Additionally, you can daisy chain up to six devices from a single Thunderbolt 3 port
- Gigabit Ethernet & 802.11ac Wi-Fi
- The system uses a Gigabit Ethernet controller for internet access when connected to a router, modem, or network switch. It also features dual-band 802.11ac Wi-Fi so that users may access network connectivity using wireless technology.
- Bluetooth 5.0
- Additional compatible peripherals, such as mice, keyboards, headsets, and more may be paired using Bluetooth 5.0 technology.
Windows 10 - Start Menu
- After its hiatus in Windows 8, the Start Menu has returned. Utilizing a combination of the traditional menu system and Windows 8's Live Tiles, the improved Start Menu gives you more information at a glance, showing notification information alongside your applications and other pinned items.
- Cortana
- Microsoft's digital personal assistant, Cortana can answer your questions with information gleaned from both your device and the internet at large. You can type or even talk with her, if your system has a microphone. Using her Notebook, Cortana keeps track of your needs and wants, and she learns over time to improve her information gathering skills.
- Microsoft Edge
- After nearly 20 years, Microsoft has finally replaced its Internet Explorer web browser. With Microsoft Edge, users can write directly on web pages and share notes with friends and colleagues. It also improves the online reading experience by adding a distraction-free mode and read-it-later functionality. Edge also has built-in Cortana integration; you can have her help you find a restaurant, make a reservation, and pull up directions without leaving your browser.
- Windows Store
- For Windows 10, Microsoft has unified the Windows Store. Now, apps for PCs, tablets, and phones will all be accessible from one place. And with support for Universal Apps, one version of an app can work across all your compatible devices automatically.
- Windows Continuum
- Windows 10 was designed for a variety of screen sizes and input styles, and with its Continuum feature, it automatically adapts to fit your needs. A Windows 10 tablet on its own requires a touch-centric approach, but attaching a mouse and keyboard will shift everything to a more traditional interface. You can even attach an external monitor to your Windows 10 phone for a near-desktop experience. But it's not just the operating system; Windows Universal Apps take advantage of Continuum as well.
UPC: 192545947756 In the Box HP 17.3" ZBook 17 G5 Mobile Workstation Power Cord Limited 3-Year Warranty Guides & Manuals Table of Contents
|
Upload User Manual
Have you got an user manual for the HP 17.3" ZBook 17 G5 Mobile Workstation in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

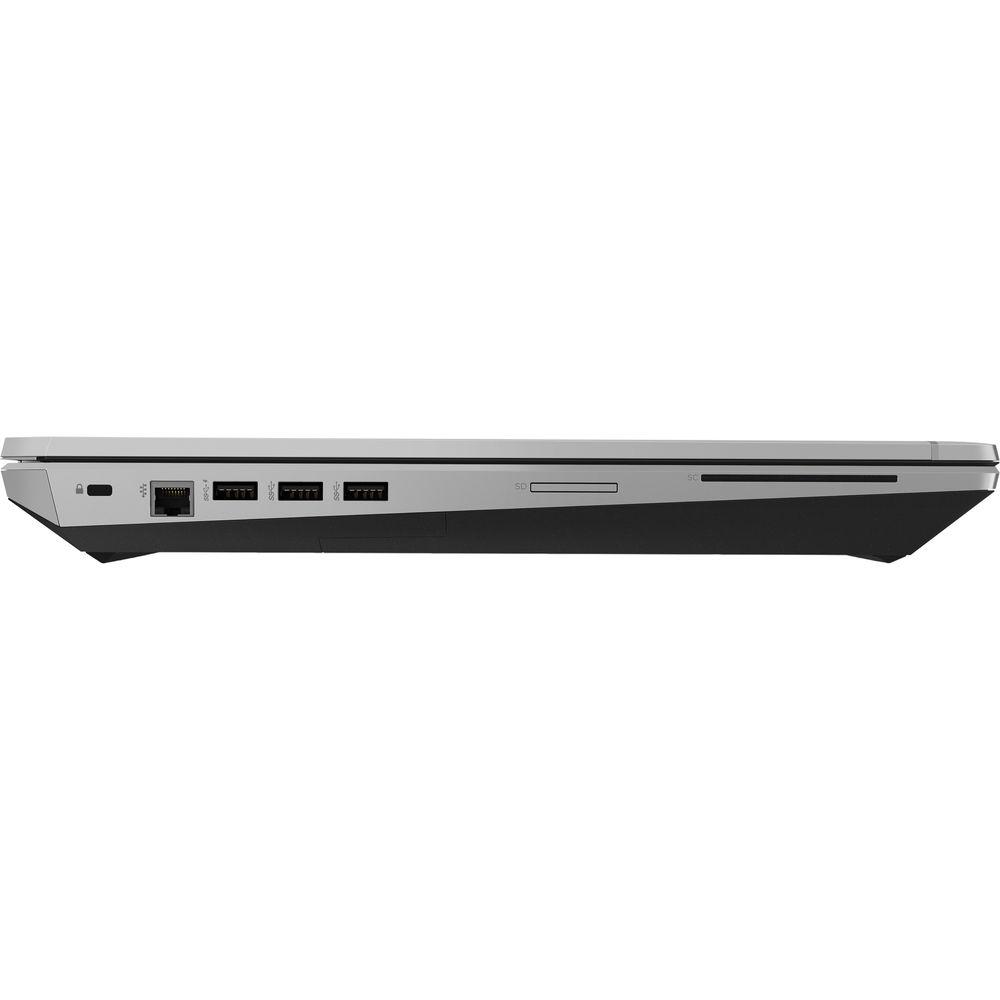

Technical parametersHP ZBook 17 G5 Specs | Operating System | Windows 10 Pro (64-Bit) | | | | CPU | 2.7 GHz Intel Xeon E-2176M 6-Core | | Maximum Boost Speed | 4.4 GHz | | Memory Type | 2666 MHz DDR4 | | Total Installed Memory | 16 GB | | Memory Configuration | 1 x 16 GB (User-Replaceable) | | Maximum Memory Capacity | 64 GB | | Memory Slot Type | 260-Pin SO-DIMM | | Available Memory Slots | 3 | | Buffered Memory | Yes | | ECC Memory | Yes | | Graphics Type | Dedicated | | GPU | NVIDIA Quadro P4000 with 6 GB GDDR5 VRAM | | | | Panel Type | IPS | | Size | 17.3" | | Aspect Ratio | 16:9 | | Resolution | 1920 x 1080 | | Touchscreen | None | | Finish | Matte | | Maximum Brightness | 300 cd/m2 | | Refresh Rate | 60 Hz | | Adaptive Sync Technology | None | | | | Total Installed Capacity | 512 GB | | Solid State Storage | 1 x 512 GB M.2 NVMe PCIe | | Optical Drive | None | | | | Ports | 3 x USB Type-A (USB 3.1 Gen 1) | | USB Type-C Ports | 2 x Thunderbolt 3 (Supports DisplayPort) | | Display | 1 x Mini DisplayPort 1.3
1 x HDMI 2.0 | | Audio | 1 x 1/8" / 3.5 mm Headphone/Microphone Input/Output | | Built-In Speakers | Yes | | Built-In Microphones | Yes | | Media Card Slots | 1 x SDXC | | | | Ethernet | 1 x RJ45 (Gigabit) | | Wi-Fi | Wi-Fi 5 (802.11ac); Dual-Band (2.4 & 5 GHz) | | MU-MIMO Support | 2 x 2 | | Bluetooth | 5.0 | | GPS | None | | NFC | None | | Webcam | User-Facing: 720p | | | | Battery Chemistry | Lithium-Ion Polymer (LiPo) | | Watt Hours / Type | 96 Wh | | Cells | 6 | | | | Keyboard | Full-Size Keyboard with Number Pad | | Pointing Device | TouchPad | | | | Security | Kensington Lock Slot | | Power Supply | 200 W | | Dimensions | 16.4 x 11.3 x 1.3" / 41.7 x 28.7 x 3.3 cm | | Weight | 7 lb / 3.2 kg | | | | Package Weight | 10.5 lb | | Box Dimensions (LxWxH) | 18.4 x 13.6 x 4.7" |
