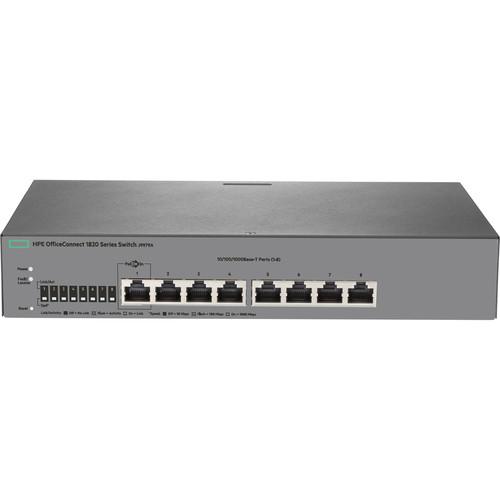

User Manual for HP 1820-8G 8-Port Layer 2 Rack-Mountable Managed Switch Click to enlarge the picture
Contents of the user manual for the HP 1820-8G 8-Port Layer 2 Rack-Mountable
- Product category: Network Switches, Bridges & Hubs HP
- Brand: HP
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for HP Network Switches, Bridges & Hubs
|
User manual for the HP 1820-8G 8-Port Layer 2 Rack-Mountable contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any HP product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official HP user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a HP product will considerably shorten its lifespan!
|
Product description Provided by third party: The HPE 1820 Switch Series offers more choice and flexibility for smaller organizations that require ease of use and lower Total Cost of Ownership (TCO), while delivering better network performance. They are smart-managed, fixed configuration, Gigabit Ethernet Layer 2 switches in an easy-to-administer solution that have the latest energy-saving capabilities. These switches are plug-and-play out of the box, where network operation can be fine-tuned through features available from a simple Web browser-based GUI, when needed.
- Key Features
-
- The HPE 1820 Switch Series features an intuitive Web management interface with an enhanced navigation pane for easy management of devices by non-technical users. The HPE 1820 Switch Series is ideal for organizations that require simplicity.
- The HPE 1820 Switch Series include the latest energy-savings capabilities, including Energy Efficient Ethernet (IEEE), idle-port power down and PoE Port Scheduler.
- The HPE 1820 Switch Series traffic prioritization provides time sensitive packets (like VoIP and video) with priority over other traffic based on DSCP or IEEE 802.1p classification. Packets are mapped to eight hardware queues for more effective throughput.
- Easy-to-Use, Simple to Deploy and Manage
- The HPE 1820 Switch Series features an intuitive Web management interface with an enhanced navigation pane for easy management of devices by non-technical users. The HPE 1820 Switch Series is ideal for organizations that require simplicity.
The series gives you flexibility and choice with a complete portfolio. You get six rack-mountable models including three non-Power over Ethernet (PoE) models. Some models include SFP ports for fiber connectivity.
Customizable features include VLANs, Spanning Tree, Link aggregation trunking, and IGMP Snooping. All models include Rapid Spanning Tree Protocol (RSTP) and DSCP QoS policies.
These switches support flexible installation options, including mounting on walls, under tables or on desk tops.
Some models are of a fan-less design, making them quiet for office deployments. - Energy Efficiency and Lower TCO
- The HPE 1820 Switch Series include the latest energy-savings capabilities, including Energy Efficient Ethernet (IEEE), idle-port power down and PoE Port Scheduler.
The 8-port Gigabit Ethernet model can be powered by an upstream PoE switch for environments where no line power is available.
All switches are covered by a Limited Lifetime Warranty. - Quality of Service (QoS)
- The HPE 1820 Switch Series traffic prioritization provides time sensitive packets (like VoIP and video) with priority over other traffic based on DSCP or IEEE 802.1p classification. Packets are mapped to eight hardware queues for more effective throughput.
Broadcast control allows limiting of broadcast traffic rate, to reduce unwanted network broadcast traffic.
IEEE 802.11p/Q delivers data to devices based on the priority and type of traffic. UPC: 888182298787 In the Box HP 1820-8G 8-Port Layer 2 Rack-Mountable Managed Switch (1) HPE OfficeConnect 1820-8G Switch Table of Contents
|
Upload User Manual
Have you got an user manual for the HP 1820-8G 8-Port Layer 2 Rack-Mountable Managed Switch in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHP 1820-8G Specs | | | Device Type | Switch - 8 ports - managed | | Enclosure Type | Desktop, rack-mountable, wall-mountable 1U | | Subtype | Gigabit Ethernet | | Ports | 8 x 10/100/1000 | | Performance | Throughput: up to 11.9 Mpps
Switching capacity: 16 Gbps | | MAC Address Table Size | 8000 entries | | Jumbo Frame Support | Yes | | Remote Management Protocol | SNMP 1, SNMP 2c, HTTPS | | Encryption Algorithm | SSL | | Features | Flow control, full duplex capability, layer 2 switching, DHCP support, BOOTP support, VLAN support, auto-uplink (auto MDI/MDI-X), DoS attack prevention, port mirroring, SNTP support, Quality of Service (QoS), Jumbo Frames support, LLDP support | | Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1ab (LLDP) | | Processor | : 400 MHz | | RAM | 128 MB SDRAM | | Flash Memory | 16 MB | | | | Interfaces | 8 x 1000Base-T RJ-45 | | | | Power Device | Internal power supply | | Voltage Required | AC 120/230 V (50/60 Hz) | | | | Rack Mounting Kit | Included | | Compliant Standards | FCC Class A certified, VCCI, EN 60950, EN 61000-3-2, EN55022, ICES-003, IEC 60950, EN 61000-3-3, EN55024, UL 60950, CSA 22.2 No. 60950, FCC Part 15 B, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, EN 61000-4-5, EN 61000-4-11, EN 61000-4-8 | | Localization | English / United States | | | | Width | 10 in | | Depth | 6.3 in | | Height | 1.7 in | | Weight | 1.81 lbs | | | | Min Operating Temperature | 32
Rating70% users recommend this product to others. And what about you?
This product has already been rated by 98 owners. Add your rating and experience with the product.
