User manual

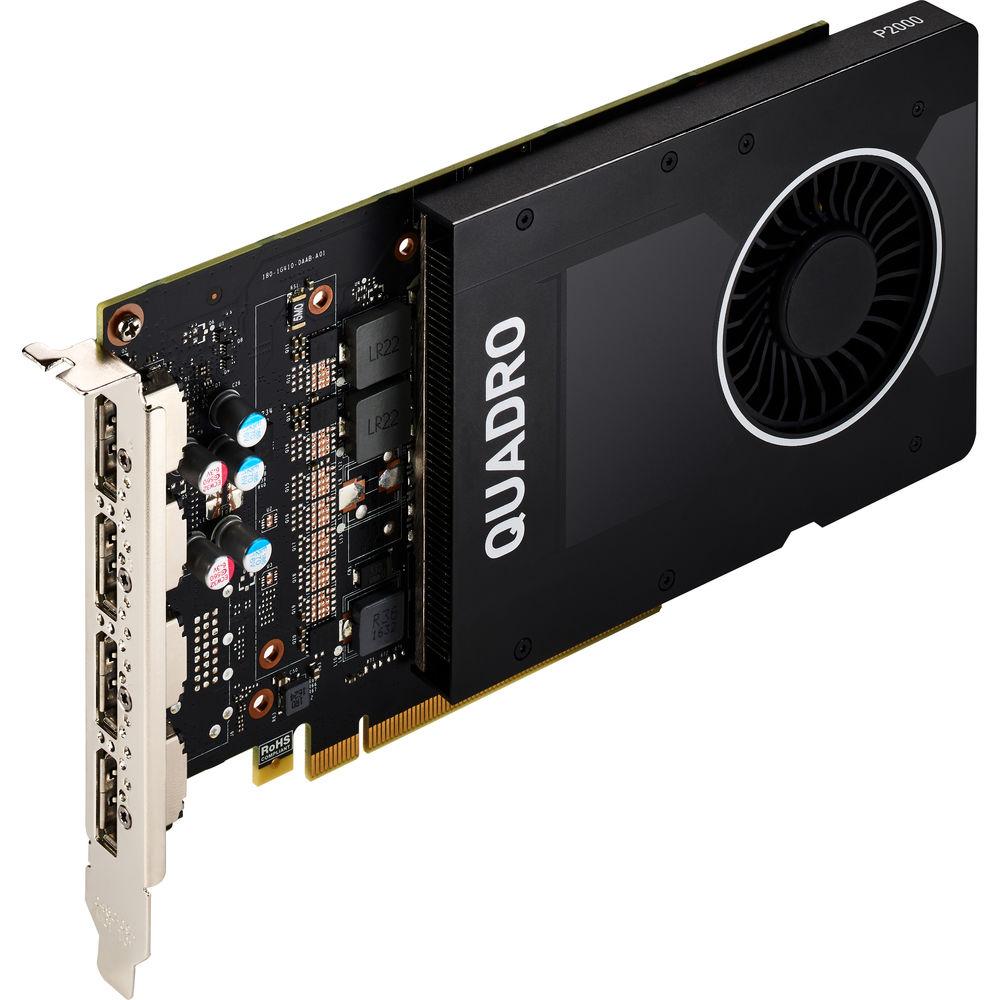

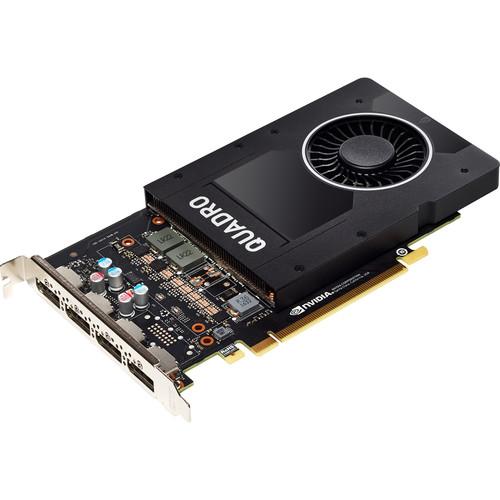

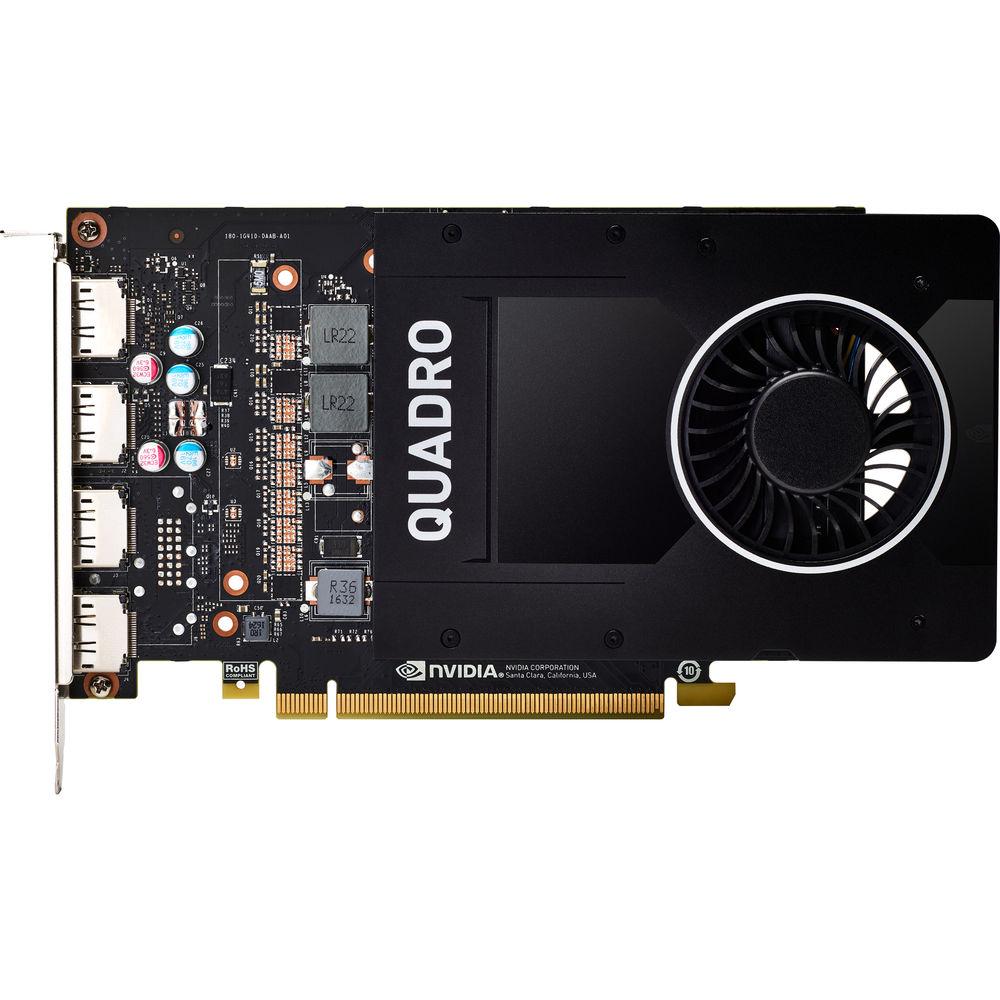

HP 1ME41AT Quadro P2000 Graphics Card

User Manual for HP 1ME41AT Quadro P2000 Graphics Card

• Product category: Graphic Display Cards HP
• Brand: HP
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for HP Graphic Display Cards

Product description

General Features

3D Graphics Architecture
• • Scalable geometry architecture
  • Hardware tessellation engine
  • NVIDIA GigaThread with dual copy engines
  • Up to 32K x 32K texture and render processing
  • Transparent multisampling and super sampling
  • 16x angle independent anisotropic filtering
  • 32-bit per-component floating point texture filtering and blending
  • 64x full scene antialiasing (FSAA)
  • Decode acceleration for MPEG-2, MPEG-4 Part 2 Advanced Simple Profile, H.264, HEVC, MVC, VC1, DivX (version 3.11 and later), and Flash (10.1 and later)
  • Dedicated H.264 and HEVC encoder
  • Blu-ray dual-stream hardware acceleration (supporting HD picture-in-picture playback)

Advanced Display Features
• • Supports any combination of four compatible connected displays
  • HDCP 2.2 support over DisplayPort, DVI, and HDMI connectors
  • 12-bit internal display pipeline (hardware support for 12-bit scanout on supported panels, applications, and connection)
  • NVIDIA 3D Vision technology, 3D DLP, Interleaved, and other 3D stereo format support
  • Underscan/overscan compensation and hardware scaling

DisplayPort and HDMI Digital Audio Support
• Codecs: Dolby Digital (AC3), DTS 5.1, Multi-channel (7.1) LPCM, Dolby Digital Plus (DD+), MPEG-2/MPEG-4 AAC
  Data Rate: 44.1/48/88.2/96/176/192 kHz
  Word Size: 16/20/24-bit

GPU Performance Features

Pascal Microarchitecture
• Based on 16nm FinFET process technology with 1024 CUDA cores, the Quadro P2000 provides performance and efficiency for CAD, DCC and visualization professionals in small and power efficient form factor.

Dynamic Load Balancing
• Dynamically allocate GPU resources for graphics and compute tasks as needed to maximize resource utilization.

Frame Buffer and Memory Bandwidth
• 5GB GDDR5 memory with up to 140 GB/s memory bandwidth delivers the performance and responsiveness demanded by entry level graphics applications.

H.264 and HEVC Encode/Decode Engines
• Deliver faster than real-time performance for transcoding, video editing, and other encoding applications with a dedicated H.264 and HEVC encode engine and a dedicated decode engine that are independent of 3D/compute pipeline.

NVIDIA GPU Boost 3.0
• Boosts the card's clock speed in real time based on the target temperature. If the card is running below the set target temperature, GPU Boost will increase the clock speed to improve performance. GPU Boost 3.0 adds granular control over the clock speed and voltage adjustments for performance increases.

Image Quality Features

NVIDIA Quadro MOSAIC Technology
• Transparently scale the desktop and applications across up to 4 GPUs and 16 displays from a single workstation while delivering full performance and image quality.

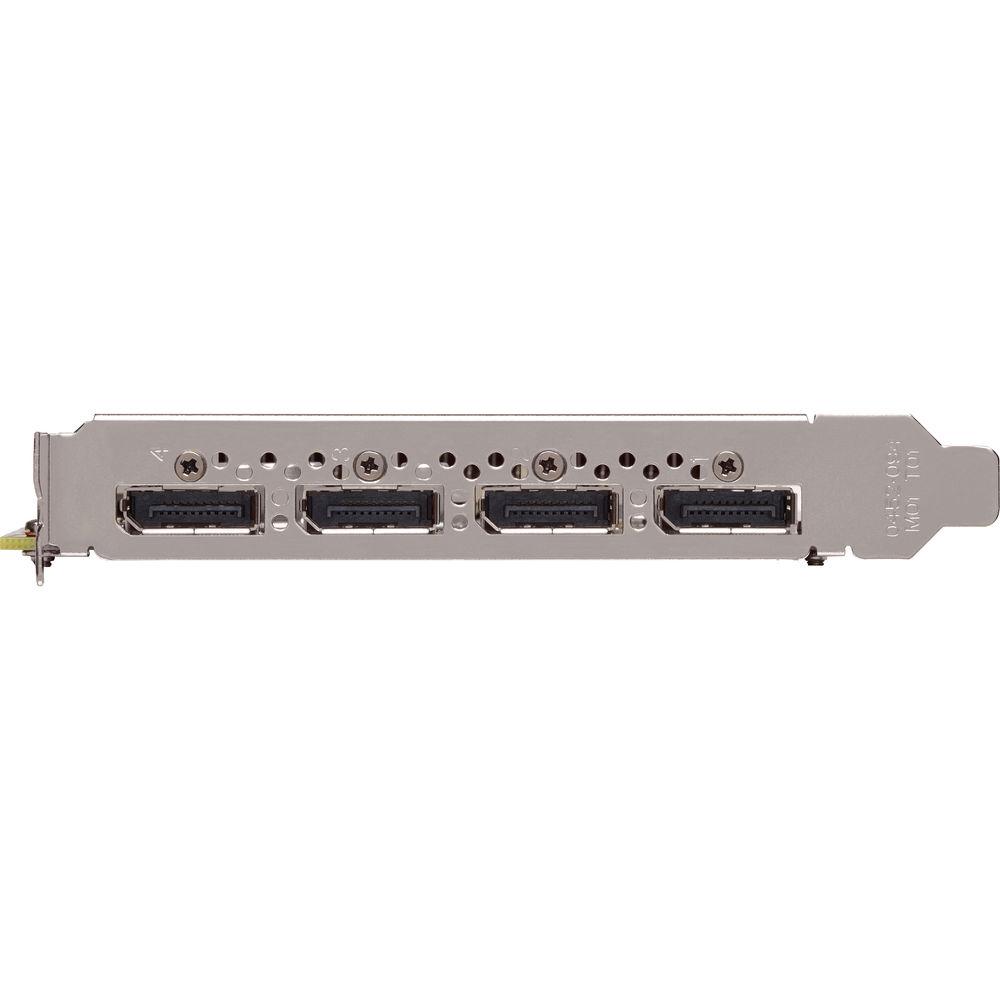

DisplayPort 1.4 Support
• Support up to four 5K monitors at 60 Hz, or dual 8K displays per card. The P2000 supports HDR color for 4K at 60 Hz for 10/12-bit HEVC decode and up to 4K at 60 Hz for 10-bit HEVC encode. Each DisplayPort connector is capable of driving DCI 4K displays at 120 Hz with 30-bit color.

NVIDIA NVIEW Advanced Desktop Software
• Configure single or multi-display environments for increased desktop workspace and productivity.

OpenGL Quad Buffered Stereo Support
• Provide a smooth and immersive 3D Stereo experience for professional applications.

Software Support

NVIDIA CUDA Parallel Computing Platform
• Natively execute standard programming languages like C/C++ and Fortran, and APIs such as OpenCL, OpenACC and Direct Compute to accelerate techniques such as ray tracing, video and image processing, and computation fluid dynamics. Dynamic Parallelism allows the GPU to dynamically spawn new processing threads without going back to the CPU, lowering processing latency.

NVIDIA Enterprise-Management Tools
• Maximize system uptime, seamlessly manage wide-scale deployments and remotely control graphics and display settings for efficient operations. Multi-GPU Technology.

NVIDIA Multi-GPU Technology
• Combine the visualization and interactive design capability of multiple GPUs by leveraging a mix of Quadro GPUs to dramatically improve the production workflow.
