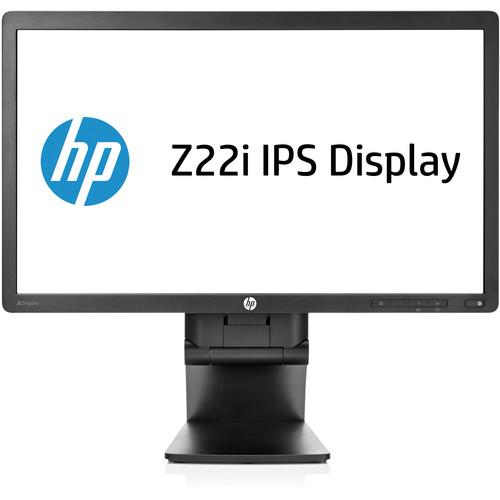

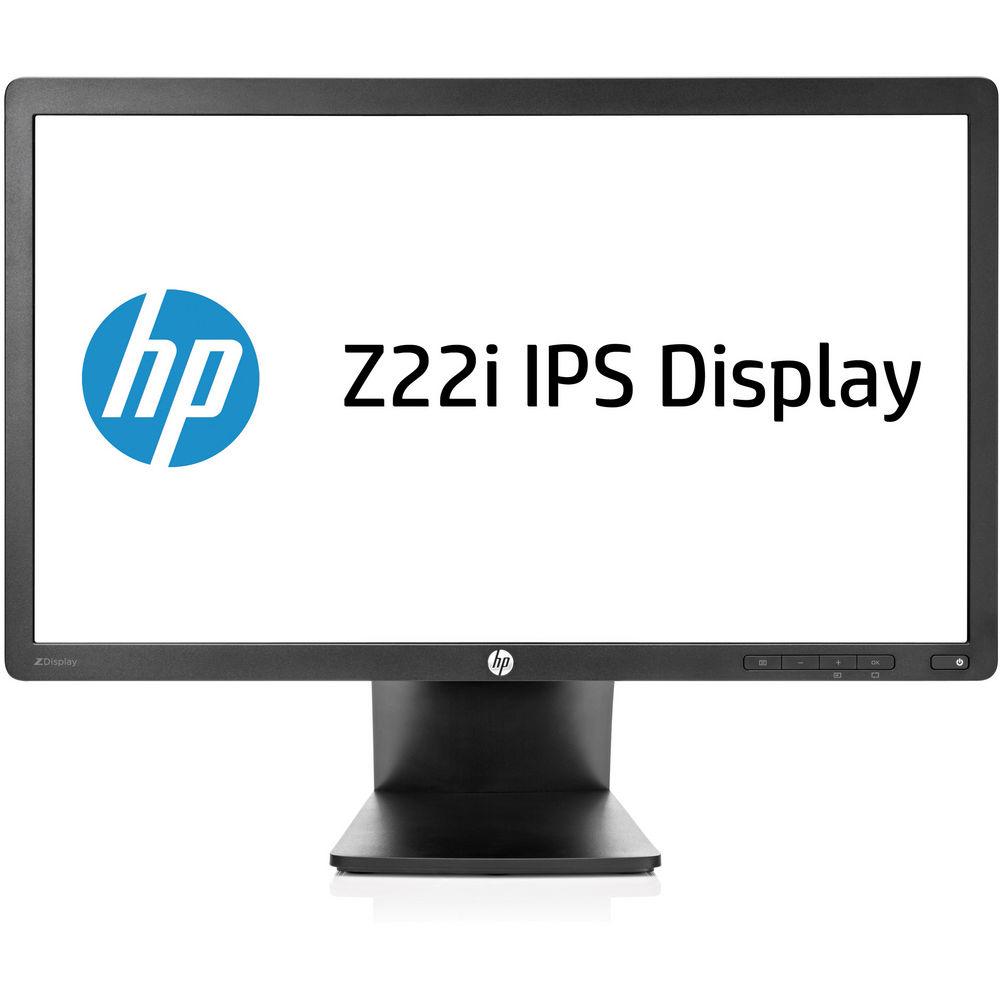

User Manual for HP 21.5" Z Display Promo Z22i 16:9 IPS Monitor Click to enlarge the picture
Contents of the user manual for the HP 21.5" Z Display Promo Z22i
- Product category: Computer Monitors HP
- Brand: HP
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for HP Computer Monitors
 |
User manual for the HP 21.5" Z Display Promo Z22i contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any HP product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official HP user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a HP product will considerably shorten its lifespan!
|

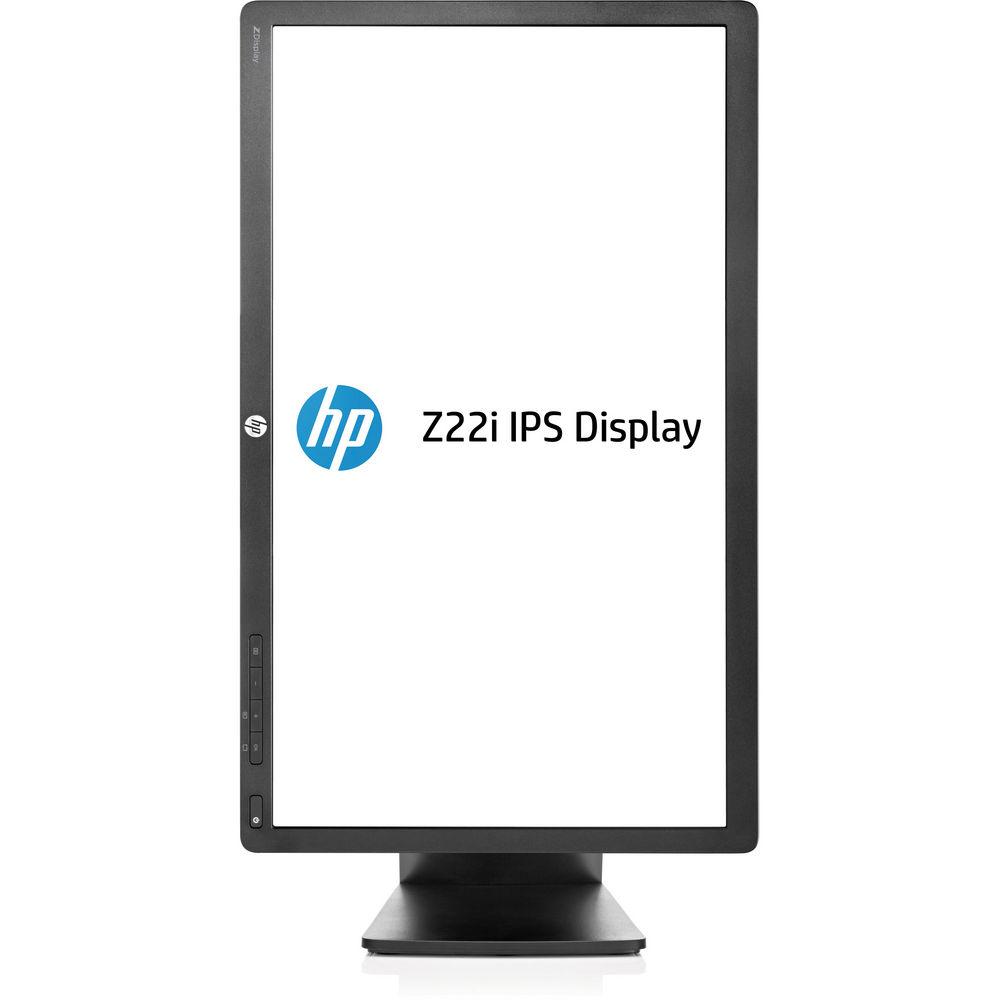

Product description 10 Factors to Consider When Selecting A Monitor for Video Editing Read More The 21.5" Z Display Promo Z22i 16:9 IPS Monitor from HP provides image accuracy, adjustability, and reliability optimized for commercial environments. It's built with an In-Plane Switching (IPS) Gen 2 panel that provides you with 178° wide viewing angles and vivid colors. Furthermore, it has a 1000:1 static contrast ratio, 250 cd/m² brightness rating, and supports 16.7 million colors. Connect this display to your system via VGA, DVI, or DisplayPort, and USB devices using the integrated USB hub. It also reduces power consumption and helps lower costs with an intelligent, energy-efficient design that is ENERGY STAR qualified and EPEAT Gold registered. - Power-Smart IPS Gen 2 Team Player
- You can lower your power consumption and get 97% coverage of sRGB color spaces from IPS Gen 2 panels. The monitor facilitates speed team reviews and collaborative decision-making with extra-wide viewing angles that give everyone the same view. You can view the details on a narrow-bezel 21.5" diagonal display with 1920 x 1080 Full HD resolution. Experience clear presentation with a 250 cd/m2 brightness, 1000:1 contrast ratio, 5,000,000:1 dynamic contrast ratio and an 8 ms response time. Enhance the dark regions of your onscreen images and see the smallest details with integrated Black Stretch technology.
- Designed for Comfort

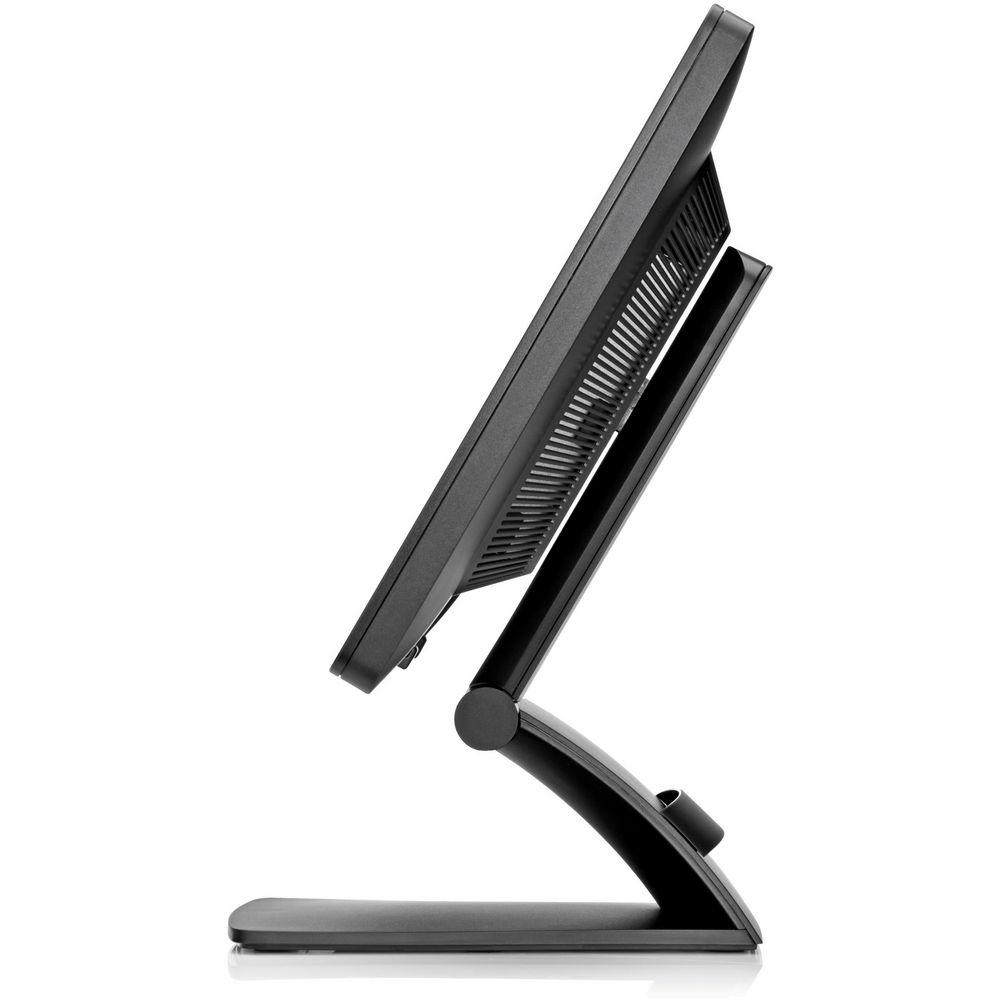

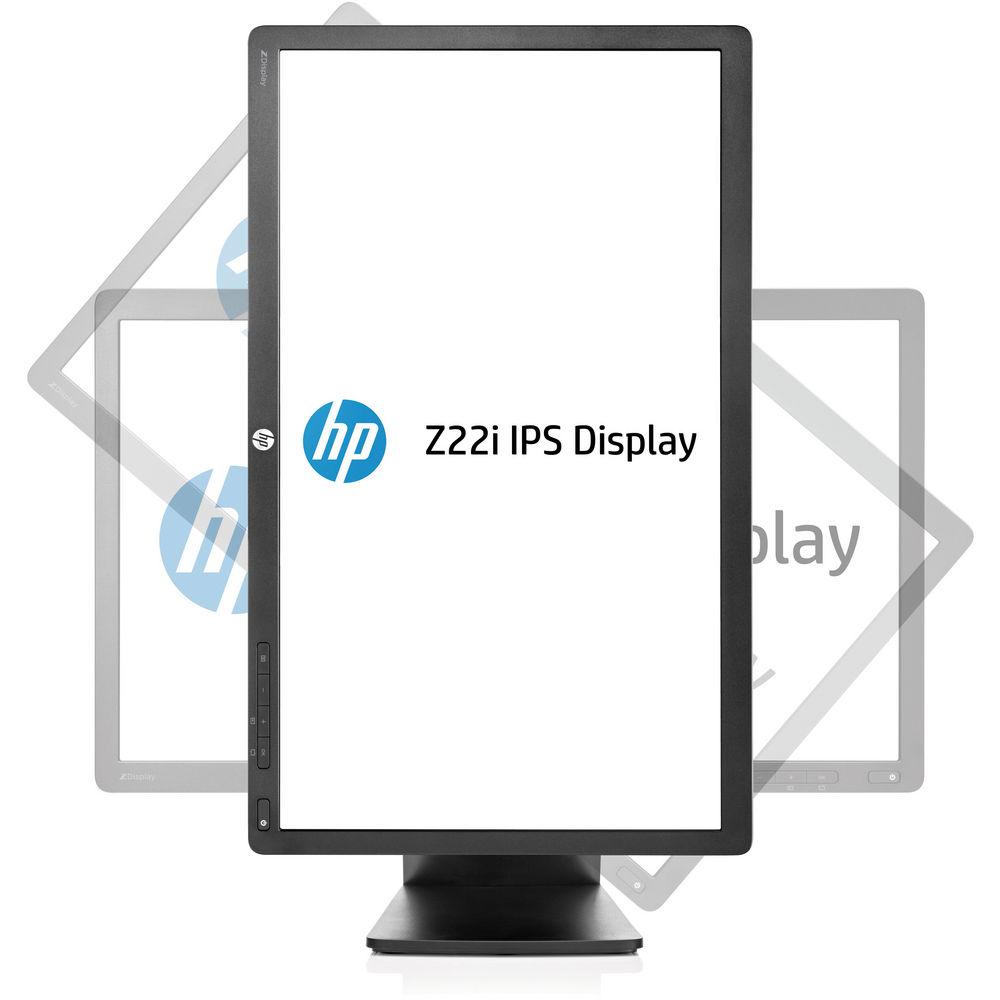

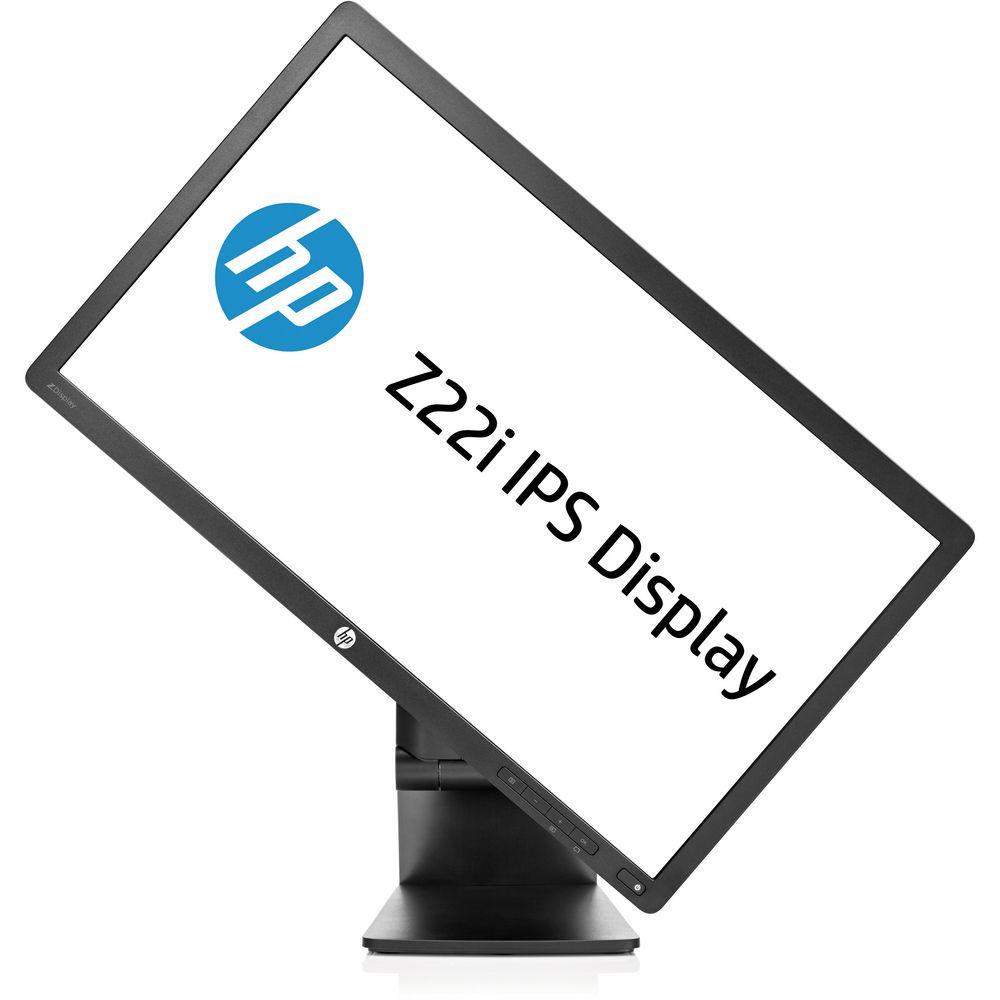

- Find comfortable position with an HP 4-way adjustable stand that meets the TCO Certified Edge designation for innovative products at the forefront of environmental and ergonomic stand design.
- Easy-Access Connectivity
- Enjoy connectivity from a range of inputs that include DisplayPort 1.2, DVI, VGA and an integrated USB hub.
- Control Your Environmental Impact
- Reduce the power consumption and lower your costs with an intelligent, energy-efficient design that goes beyond IPS Gen 2 technology with ENERGY STAR and EPEAT Gold qualifications. This display also includes mercury-free display backlights, a low halogen design and arsenic-free display glass.
- HP Display Assistant Software
- You can personalize your workspace with resizable screen partitions and work in documents and spreadsheets as well as e-mail in separate regions of the screen at the same time with HP Display Assistant software. View open applications on all your connected displays with the expanded toolbar. The display help deter theft with a user-designated PIN that deactivates the monitor if it's disconnected from a PC without approval.
In the Box HP 21.5" Z Display Promo Z22i 16:9 IPS Monitor (Black, Promotional) AC Power Cord USB Cable DVI-D Cable DisplayPort Cable Documentation CD HP Display Assistant Software Limited 3-Year Warranty User Manual PDF 1.8mb More from Manufacturer Table of Contents
|
Upload User Manual
Have you got an user manual for the HP 21.5" Z Display Promo Z22i 16:9 IPS Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHP Z22i Specs | | | Size | 21.5" | | Screen Area | 18.8 x 10.6" / 47.7 x 26.8 cm | | Panel Type | IPS-Type LCD | | Touchscreen | No | | Resolution | 1920 x 1080 | | Aspect Ratio | 16:9 | | Finish | Matte | | Maximum Brightness | 250 cd/m2 | | Contrast Ratio | 1000:1 | | Dynamic Contrast Ratio | 5,000,000:1 | | Refresh Rate | 60 Hz | | Adaptive Sync Technology | None | | Horizontal Frequency | 24 to 94 kHz | | Vertical Frequency | 50 to 76 Hz | | Bit Depth / Color Support | 6-Bit+FRC (16.7 Million Colors) | | Response Time | 8 ms (GtG) | | Viewing Angle | Horizontal: 178°
Vertical: 178° | | Dot Pitch | 0.248 x 0.248 mm | | Backlight Lifespan | 30,000 Hours | | | | Connectivity | 1 x USB Type-B 2.0 Input
2 x USB Type-A 2.0 Output
1 x DVI-D
1 x DisplayPort 1.2 Input
1 x VGA | | HDCP Support | Yes | | Supported Languages | Portuguese
Dutch
English
Spanish
Simplified Chinese
German
Japanese
Italian
Traditional Chinese
French | | | | Power Consumption | 31 W (Maximum)
21.1 W (Eco)
0.5 W (Standby)
26 W (Typical) | | AC Input Power | 90 to 265 VAC, 50 / 60 Hz | | Power Adapter Type | Internal | | | | Operating Temperature | 41 to 95°F / 5 to 35°C | | Storage Temperature | -4 to 140°F / -20 to 60°C | | Operating Humidity | 20 to 80% | | Storage Humidity | 5 to 95% | | Certifications | ENERGY STAR, EPEAT GOLD, TCO Certified, as per Manufacturer | | | | Height Adjustment | 5.9" / 15 cm | | Swivel Adjustment | 360° | | Tilt Adjustment | -5 to 30° | | Mounting-Hole Pattern | 100 x 100 mm | | Lock Slot | Yes | | Dimensions (W x H x D) | 20.1 x 18.1 x 9.3" / 50.9 x 46.0 x 23.7 mm (With Stand)
20.1 x 12.2 x 2.0" / 50.9 x 30.9 x 5.1 mm (Without Stand) | | Weight | 12.8 lb / 5.8 kg (With Stand)
8.2 lb / 3.7 kg (Without Stand) | | | | Package Weight | 15.2 lb | | Box Dimensions (LxWxH) | 22.0 x 19.0 x 7.0" |
