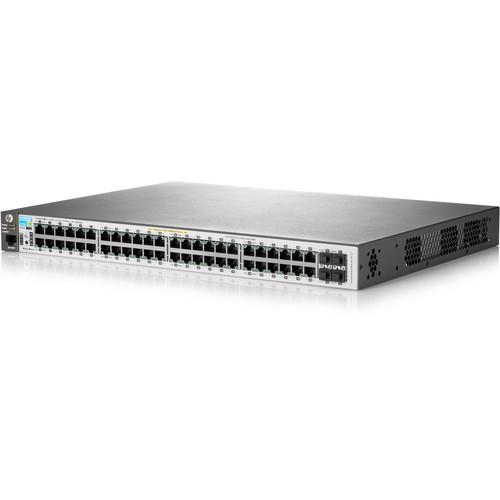

User Manual for HP 2530-48G-PoE 48-Port Layer 2 Ethernet Switch with Four SFP Slots Click to enlarge the picture
Contents of the user manual for the HP 2530-48G-PoE 48-Port Layer 2 Ethernet
- Product category: Network Switches, Bridges & Hubs HP
- Brand: HP
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for HP Network Switches, Bridges & Hubs
|
User manual for the HP 2530-48G-PoE 48-Port Layer 2 Ethernet contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any HP product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official HP user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a HP product will considerably shorten its lifespan!
|
Product description Provided by third party: The HP 2530 Switch Series consists of four fully managed Layer 2 edge switches, delivering cost-effective, reliable, and secure connectivity for business networks. Designed for entry-level to midsize enterprise networks, these Gigabit Ethernet switches deliver full Layer 2 capabilities with enhanced access security, traffic prioritization, IPv6 host support, and optional PoE+, and include a product lifetime warranty.Each 2530 switch has 24 or 48 RJ-45 10/100/1000 ports and four small form-factor pluggable (SFP) slots for fiber connectivity. For customers implementing Power over Ethernet for voice, video, or wireless deployments, the HP 2530-24G-PoE+ and the HP 2530-48G-PoE+ Switches are IEEE 802.3af and IEEE 802.3at compliant with up to 30 W per port. UPC: 886112457570 In the Box HP 2530-48G-PoE+ 48-Port Layer 2 Ethernet Switch with Four SFP Slots (1 RU) 2530-48G-PoE+ Switch Rack-Mounting Kit Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the HP 2530-48G-PoE 48-Port Layer 2 Ethernet Switch with Four SFP Slots in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHP J9772A#ABA Specs | | | Total Number of Network Ports | 48 | | Token Ring Port | No | | LRE Port | No | | Bypass | No | | Modular | No | | Management Port | Yes | | USB | Yes | | Number of PoE+ (RJ-45) Ports | 48 | | | | Media Type Supported | Twisted Pair | | Ethernet Technology | Gigabit Ethernet | | Network Technology | 10/100/1000Base-T | | | | Number of Total Expansion Slots | 4 | | Expansion Slot Type | SFP | | Shared SFP Slot | No | | Number of SFP Slots | 4 | | | | Manageable | Yes | | Management | - MIB II
- CLI
- SNMP v1/v2c/v3
- QoS
- VLAN
- GUI
- DHCP
- TELNET
- RMON 1,2,3,9
- Intelligent Management Center
| | | | Standard Memory | 128 MB | | Memory Technology | DDR3 SDRAM | | Flash Memory | 128 MB | | | | PoE (RJ-45) Port | Yes | | Input Voltage | 110 V AC
220 V AC | | Power Source | Power Supply | | Redundant Power Supply Supported | No | | | | Compatible Rack Unit | 1U | | Form Factor | Desktop
Rack-mountable
Wall Mountable | | Height | 1.8" | | Width | 17.4" | | Depth | 12.7" | | Weight (Approximate) | 10.41 lb | | | | Certifications & Standards | Emissions:- FCC Class A
- EN 55022/CISPR-22 Class A
- VCCI Class A
IEEE Protocols:- 802.1D
- 802.1p
- 802.1Q
- 802.1s
- 802.1w
- 802.3
- 802.3ab
- 802.3ad
- 802.3af
- 802.3at
- 802.3az
- 802.3x
Safety:- UL 60950-1
- CAN/CSA 22.2 No. 60950-1
- EN 60825
- IEC 60950-1
- EN 60950-1
| | | | Package Weight | 16.2 lb | | Box Dimensions (LxWxH) | 22.2 x 18.3 x 4.8" |
