User Manual for HP 260 G3 Mini Desktop Computer Click to enlarge the picture
Contents of the user manual for the HP 260 G3 Mini Desktop Computer
- Product category: Desktop Computers HP
- Brand: HP
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for HP Desktop Computers
 |
User manual for the HP 260 G3 Mini Desktop Computer contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any HP product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official HP user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a HP product will considerably shorten its lifespan!
|

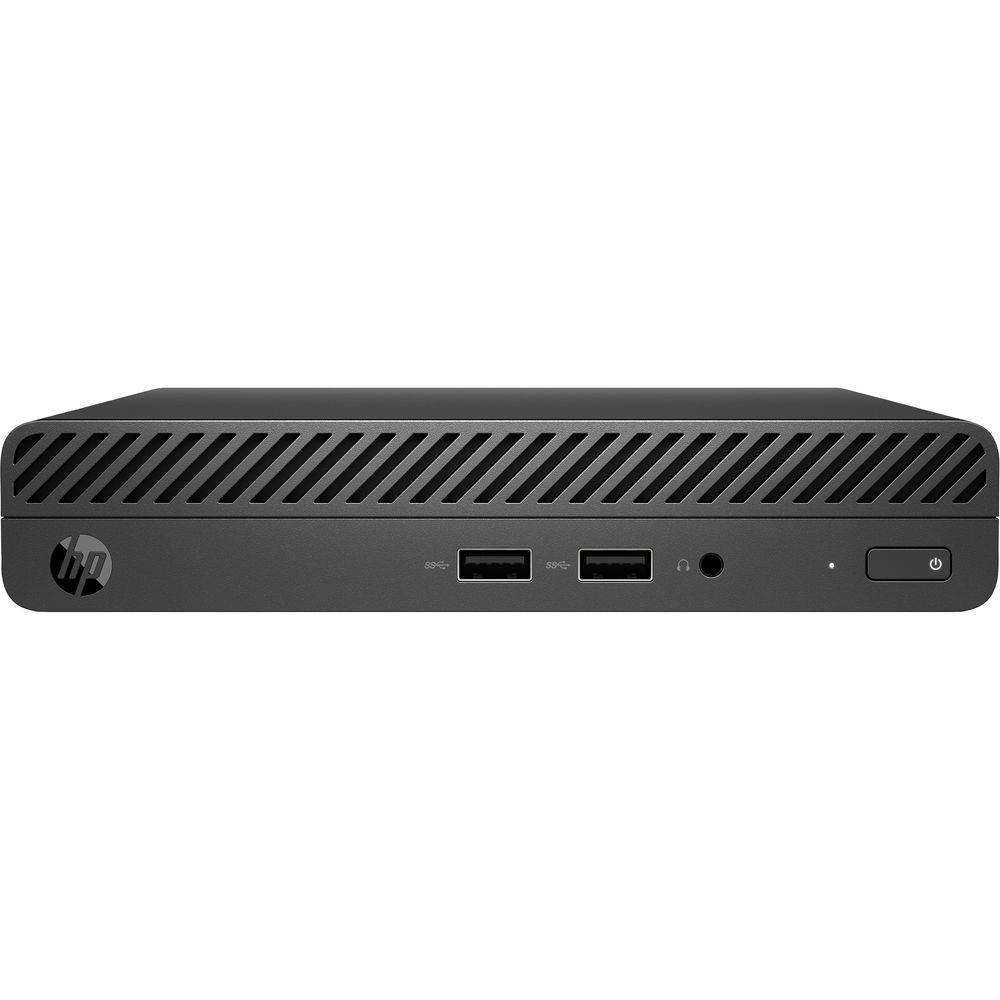

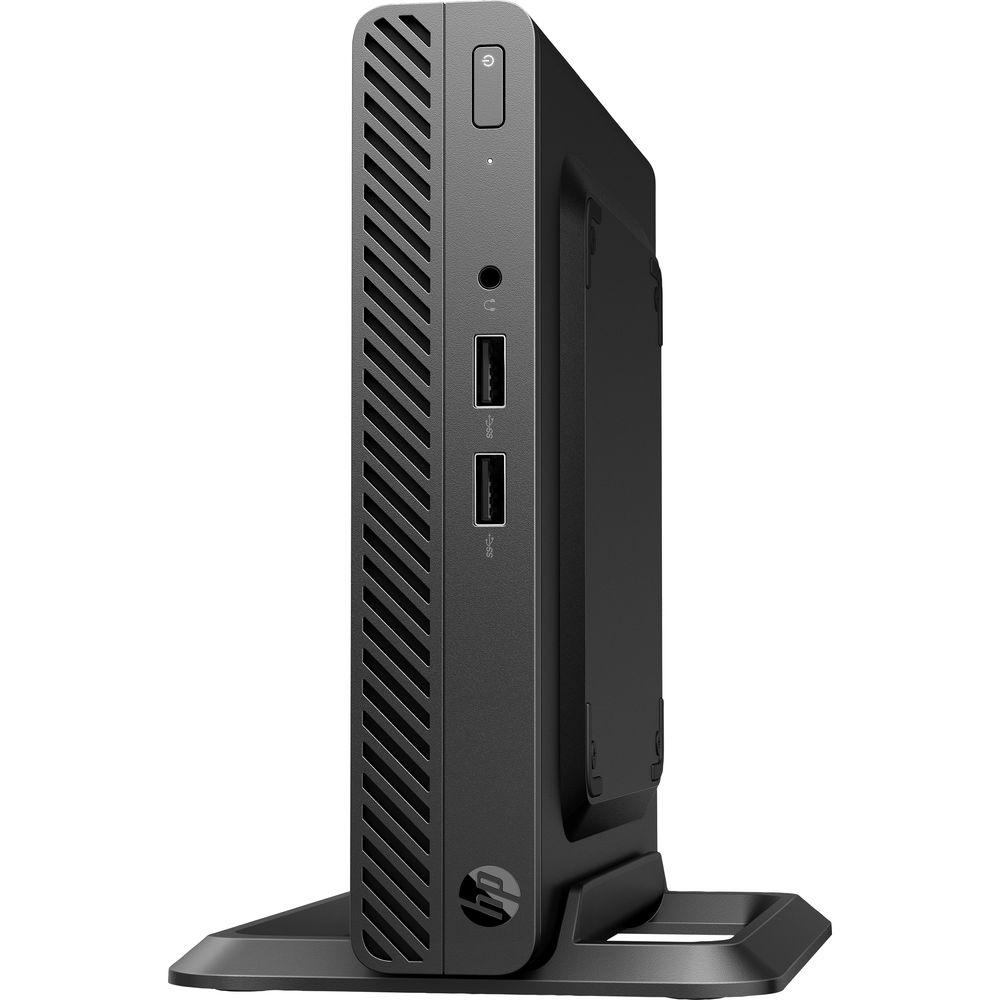

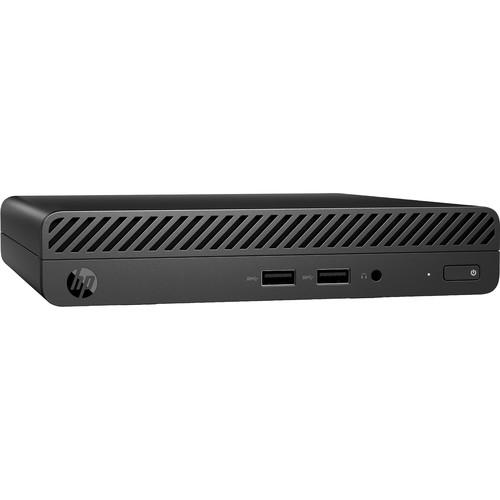

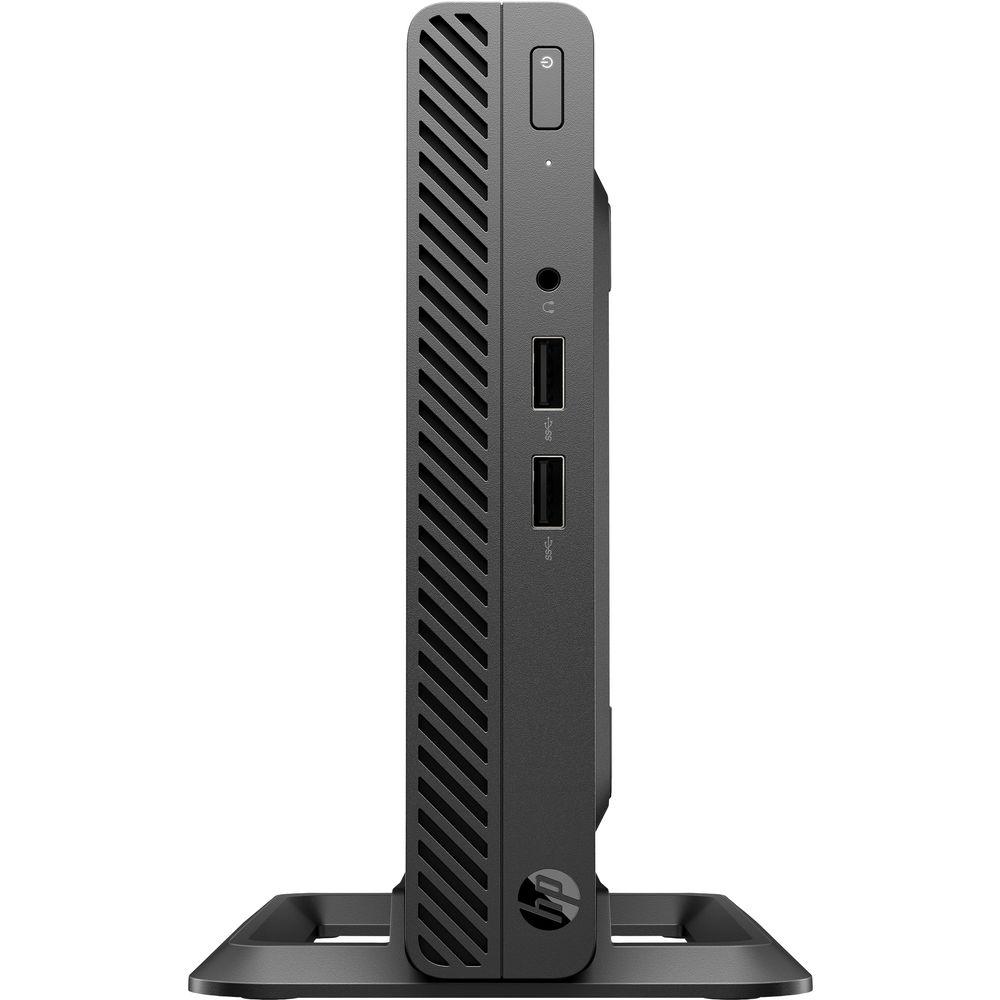

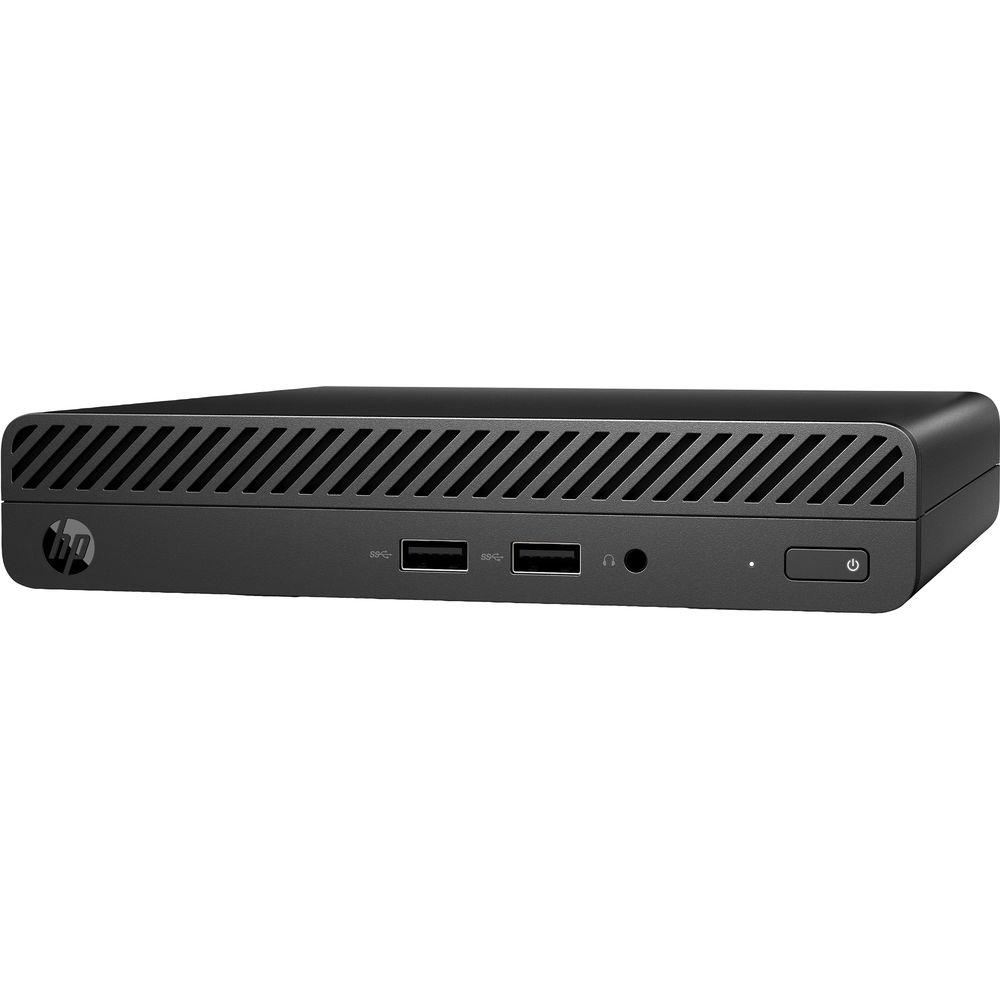

Product description Designed to fit in modern workspaces, the small 260 G3 Mini Desktop Computer from HP delivers a space-saving design with essential tools needed for growing businesses. It is powered by a 2.7 GHz Intel Core i3-7130U Dual-Core processor that will allow you to run multiple applications simultaneously. The 4GB of 2133 MHz DDR4 RAM also helps the computer to run multiple applications simultaneously, as well as access frequently used files and programs. The current memory configuration is one 4GB module with an additional slot available for memory upgrades, making for a total of two 260-pin SO-DIMM slots. With both slots in use, this system supports 32GB of RAM.
For long-term storage of your files, the 260 G3 is equipped with a 500GB 7200 rpm SATA III 2.5" HDD. If you want to connect with external storage drives or other peripherals, there are four 5 Gb/s USB 3.1 Gen 1 Type-A ports, two 480 Mb/s USB 2.0 Type-A ports, and one serial port. The integrated Intel HD Graphics 620 chipset delivers a sharp, clear picture while allowing for a wide range of monitors to be used via HDMI 1.4 and VGA video outputs. Whether you are listening to music, watching a movie, or playing a game, the Conexant CX20632 codec outputs high-definition audio and delivers higher fidelity than standard audio controllers.
The ProDesk 400 G3 Mini Desktop Computer includes a universal USB wired keyboard, an HP USB optical mouse, a 65W external power supply that is 89% efficient, and a 6' power cord. The installed operating system is FreeDOS 2.0.
Photo is an authorized HP reseller with professional in-house technicians available for upgrades & installations on these workstations and laptops. Each HP ProDesk includes a 1/1/1 warranty—1-year limited warranty for parts, 1-year limited warranty for labor, and 1-year of repairs performed at customer site for those parts not eligible for Customer Self Repair (CSR). For 24/7 customer service, please call 1-866-625-1175. General Features - Small Design, Big Versatility
- The compact design of the desktop mini, flexible mounting options, and optional accessories help support a versatile range of use cases from desktop to public computing to digital signage.
- Work Confidently Without the Cost
- Get the affordably priced business-ready desktop mini with the accessories you need plus a power-saving processor that helps consume less energy.
- Legacy Compatibility
- Help control costs and continue to use your existing compatible equipment with standard support of VGA and serial ports.
- Gigabit Ethernet & Wi-Fi 5 (802.11ac)
- The system uses an integrated Realtek RTL8111HSH-CG GbE controller for network access when connected to a router, modem, or network switch. For those who prefer to connect wirelessly, there is also integrated Wi-Fi 5 (802.11ac), which is installed using an M.2 2230 PCIe slot.
- Bluetooth 4.2
- Compatible wireless peripherals, such as keyboards, mice, and headsets can be paired with this system using Bluetooth 4.2 technology.
- USB 3.1 Gen 1 Type-A | USB 2.0 Type-A | Serial

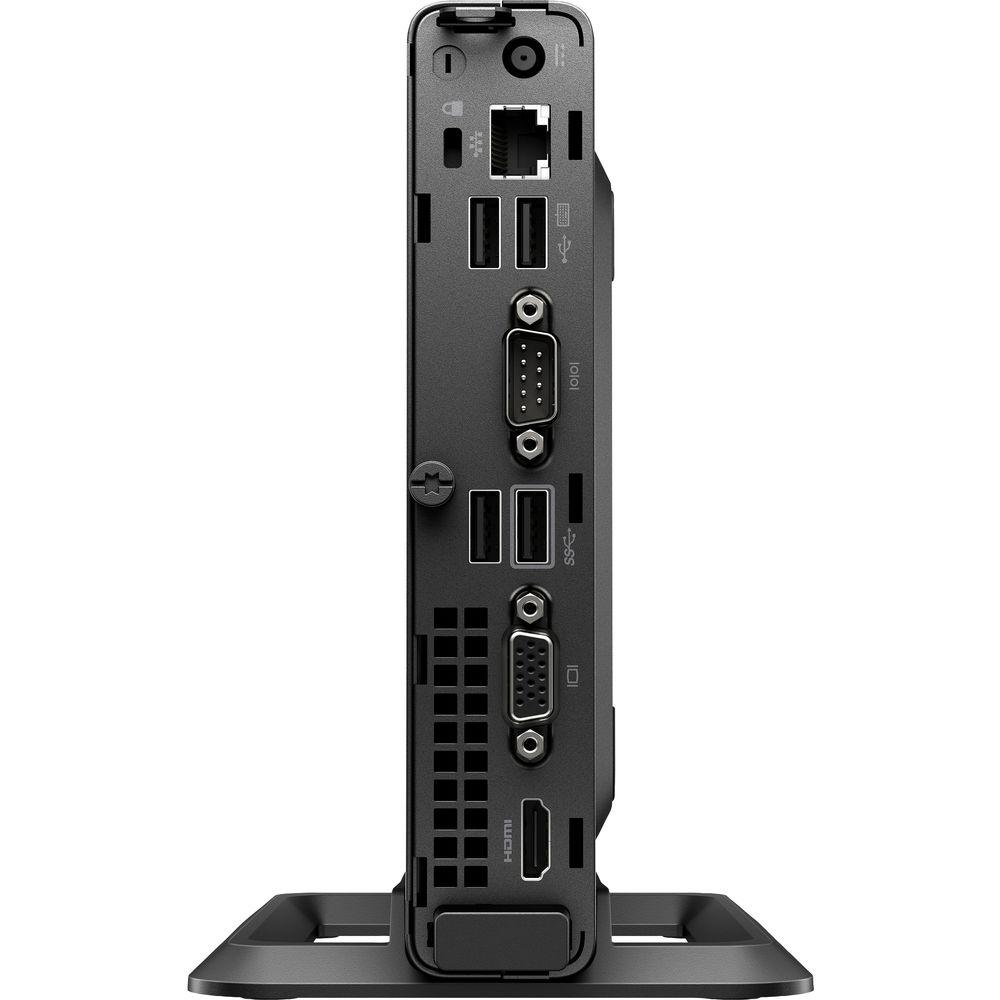

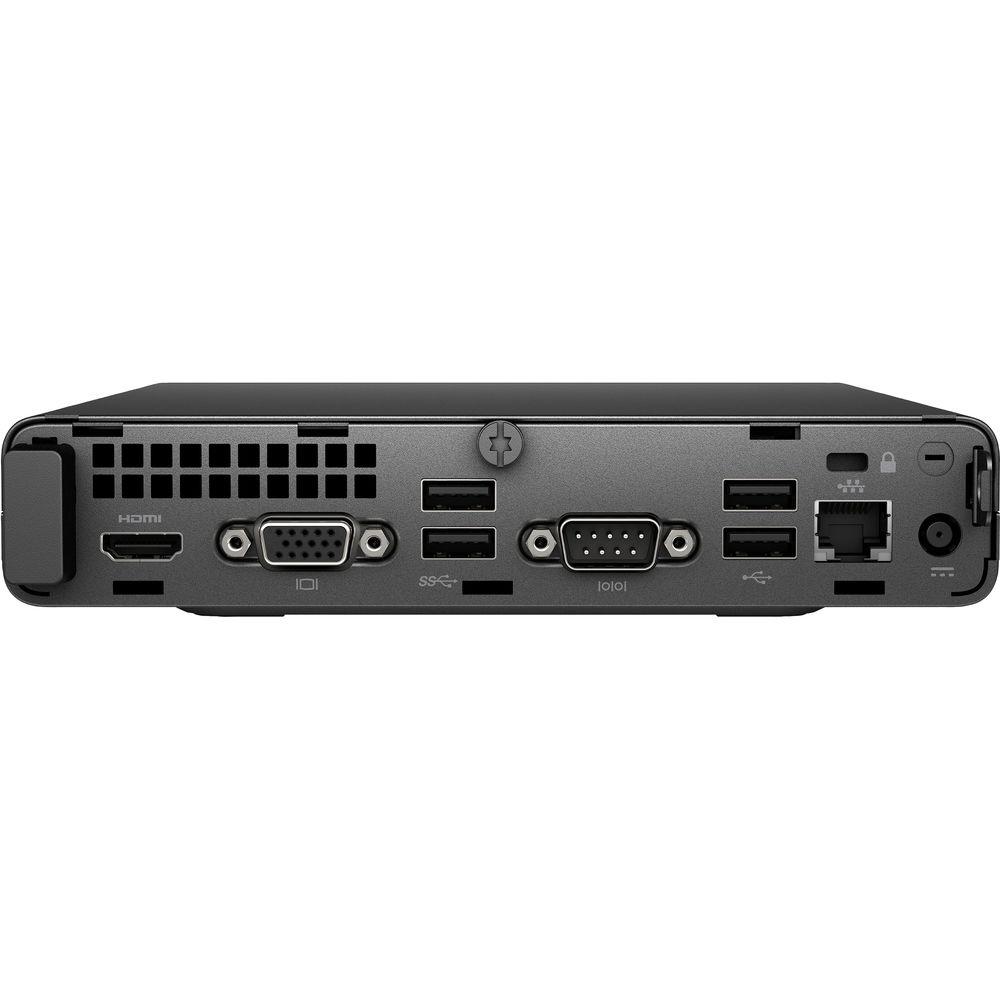

- On the front of the chassis, there are two 5 Gb/s USB 3.1 Gen 1 Type-A ports. On the back, there are two more USB 3.1 Gen 1 Type-A ports, plus two 480 Mb/s USB 2.0 Type-A ports and one serial port.
- Audio Output
- The front of the chassis has one 3.5mm combo microphone/headphone jack.
- Drive Bays
- Users can upgrade the storage in the system's 2.5" drive bay with 7mm and 9.5mm drives, as well as add additional internal storage using the M.2 slot, which supports M.2 PCIe drives with a 2230 or 2280 form factor.
- Power Supply
- The 65W power supply is up to 89% efficient.
- Trusted Platform Module
- The embedded Trusted Platform Module (TPM) provides hardware-based encryption to help secure your data and deter attacks from viruses and malware.
- FreeDOS 2.0 Operating System
- The installed operating system is FreeDOS 2.0.
UPC: 193015495227 In the Box HP 260 G3 Mini Desktop Computer Universal USB Wired Keyboard HP USB Optical Mouse 65W Power Supply Power Cord (6.0' / 1.8m) Limited 1-Year Warranty for Parts Limited 1-Year Warranty for Labor 1 Year of Repairs Performed at Customer Site for Those Parts Not Eligible for Customer Self Repair (CSR) For 24/7 Customer Service, Please Call 1-866-625-1175 Guides & Manuals Table of Contents
|
Upload User Manual
Have you got an user manual for the HP 260 G3 Mini Desktop Computer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHP 5CM16UT#ABA Specs | Operating System | FreeDOS 2.0 | | | | CPU Socket | LGA 1356 | | CPU | 2.7 GHz Intel Core i3-7130U Dual-Core | | L3 Cache | 3 MB | | Memory Type | 2133 MHz DDR4 | | Total Installed Memory | 4 GB | | Memory Configuration | 1 x 4 GB (User-Replaceable) | | Maximum Memory Capacity | 32 GB | | Memory Slot Type | 260-Pin SO-DIMM | | Available Memory Slots | 1 | | Graphics Type | Integrated | | GPU | Intel HD Graphics 620 | | | | SSD Slots | 1 x M.2 | | Hard Disk Storage | 1 x 500 GB 2.5" SATA (7200 rpm) | | Optical Drive | None | | | | Ports | 4 x USB Type-A (USB 3.1 Gen 1)
2 x USB Type-A (USB 2.0)
1 x DE-9 (Serial) | | Display | 1 x HDMI 1.4
1 x VGA | | Audio | 1 x 1/8" / 3.5 mm Headphone/Microphone Input/Output | | Media Card Slots | None | | | | Ethernet | 1 x RJ45 (Gigabit) | | Wi-Fi | Wi-Fi 5 (802.11ac) | | Bluetooth | 4.2 | | | | Keyboard | Full-Size Keyboard with Number Pad | | Pointing Device | USB Mouse | | | | Power Supply | 65 W | | Mounting-Hole Pattern | 100 x 100 mm | | Dimensions | 7 x 1.3 x 6.9" / 17.8 x 3.3 x 17.5 cm | | Weight | 2.7 lb / 1.2 kg | | | | Package Weight | 5.74 lb | | Box Dimensions (LxWxH) | 19.65 x 9.2 x 5.85" |
