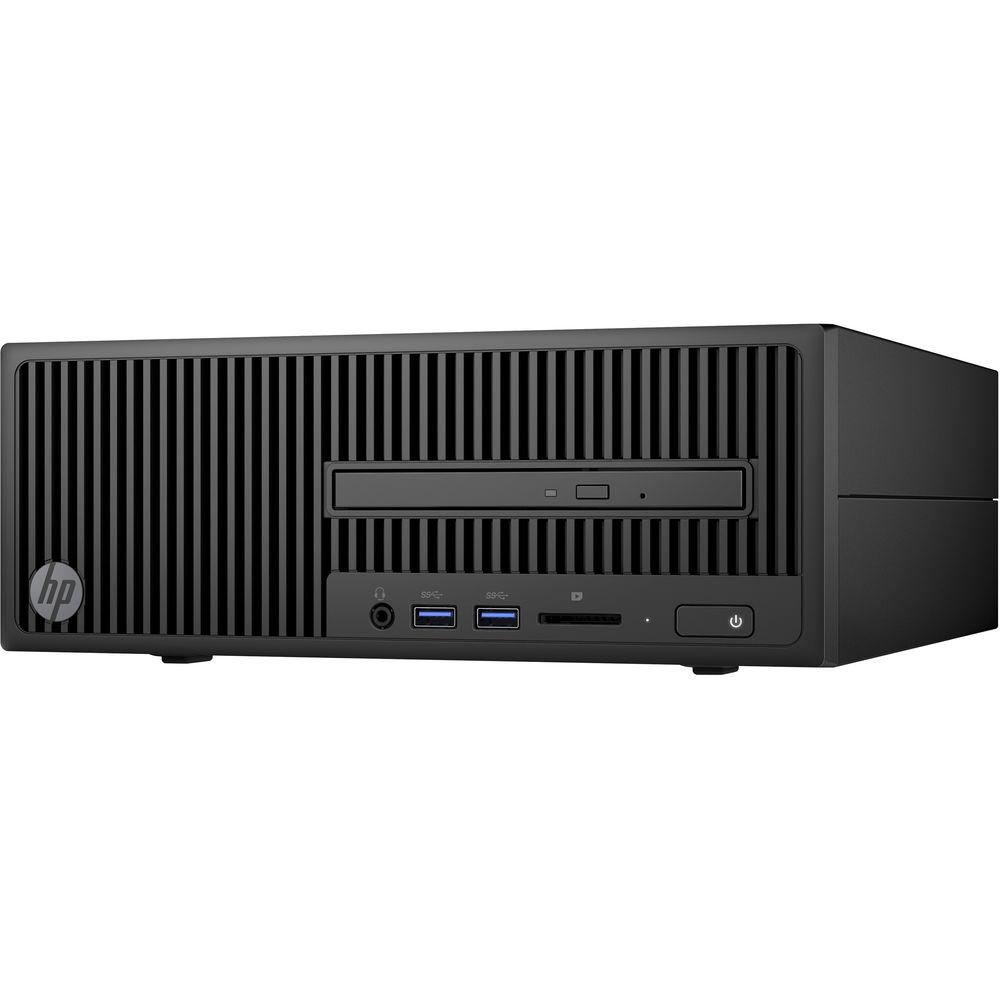

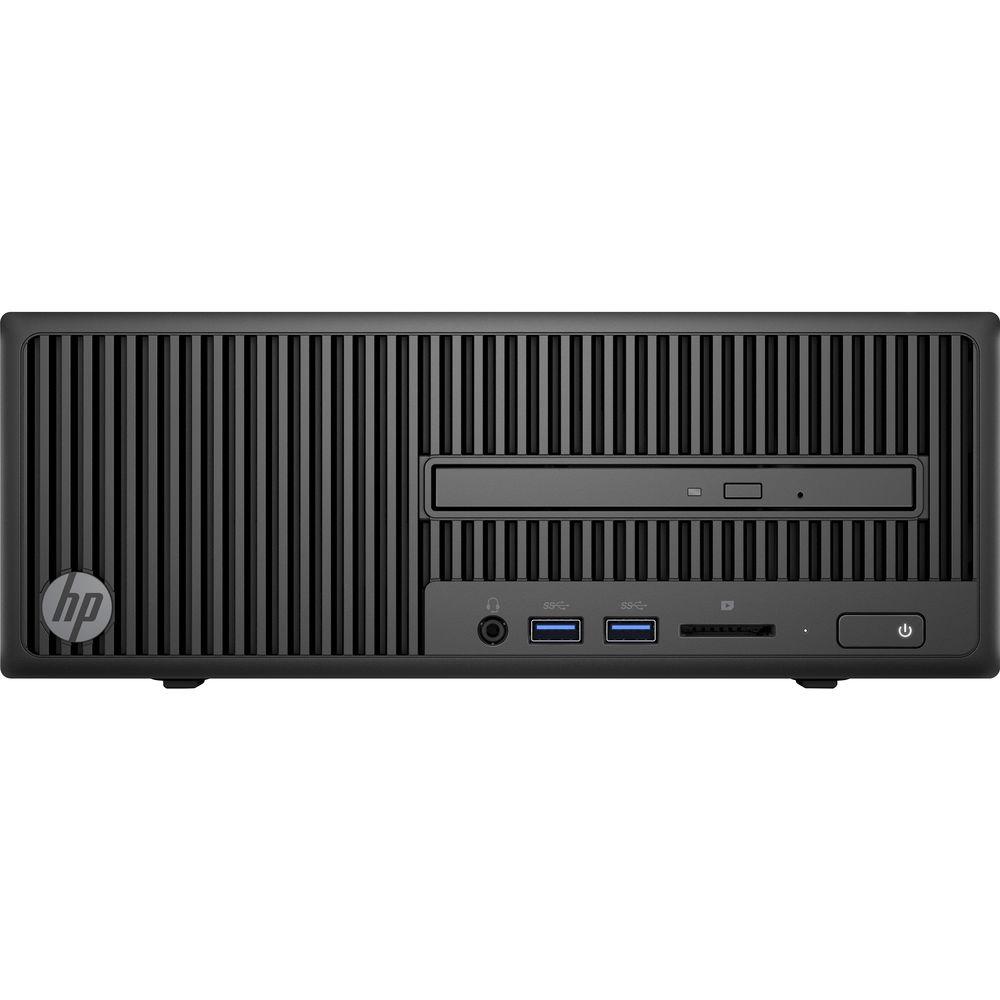

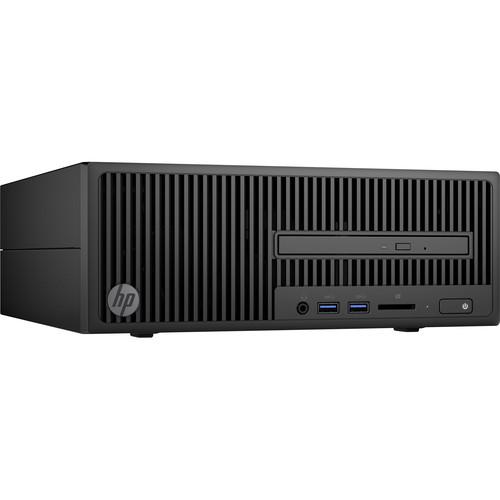

User Manual for HP 280 G2 Small Form Factor Desktop Computer Click to enlarge the picture
Contents of the user manual for the HP 280 G2 Small Form Factor
- Product category: Desktop Computers HP
- Brand: HP
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for HP Desktop Computers
 |
User manual for the HP 280 G2 Small Form Factor contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any HP product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official HP user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a HP product will considerably shorten its lifespan!
|
Product description Tackle your daily tasks with the computing power you need while also minimizing your PC's footprint using the 280 G2 Small Form Factor Desktop Computer from HP. The system is powered by a 3.7 GHz Intel Core i3-6100 Dual-Core processor and 4GB of 2133 MHz DDR4 RAM, allowing you to run multiple programs simultaneously and quickly access frequently used files and programs.
For storage of your files, this system comes with a 500GB 7200 rpm SATA III 3.5" hard drive. If you want to add external storage, optical drives, mice, keyboards, printers, memory card readers, and more, the 280 G2 offers two USB 3.0 Type-A ports and six USB 2.0 Type-A ports. The integrated Intel HD Graphics 530 chipset delivers a sharp, clear picture while allowing for a wide range of monitors to be used via its HDMI and VGA outputs at resolutions up to 1920 x 1080 @ 60 Hz. Whether you are listening to music, watching a movie, or playing a game, the Realtek ALC3252 codec outputs high definition audio and delivers higher fidelity than standard audio controllers.
The HP 280 G2 Small Form Factor Desktop Computer includes a USB keyboard and mouse and a power cord. While the installed operating system is Windows 7 Pro (64-bit), a Windows 10 Pro (64-bit) license is included at no additional cost. Also included is Windows 7 Pro (64-bit) and Windows 10 Pro (64-bit) recovery media.
Photo is an authorized HP reseller with professional in-house technicians available for upgrades & installations on these workstations and laptops. Each HP 280 G2 includes a 1/1/1 warranty - 1-year limited warranty for parts, 1-year limited warranty for labor, and 1-year of repairs performed at customer site for those parts not eligible for Customer Self Repair (CSR). For 24/7 customer service, please call 1-866-625-1175. General Features - Up to 32GB RAM
- The current memory configuration is one 4GB module, with an additional 288-pin DIMM slot available for upgrades. With both slots in use, this system supports 32GB of RAM, or 16GB per slot.
- SuperMulti DVD Burner
- A SuperMulti DVD Burner is included for reading from and writing to a variety of CD and DVD media.
- Gigabit Ethernet
- The system uses an integrated Realtek RTL8111HSH-CG GbE controller for Internet access when connected to a router, modem, or network switch.
- 3-in-1 SD Media Card Reader
- The 3-in-1 SD Media Card Reader supports SD, SDHC, and SDXC media. microSD cards are also supported using an adapter.
- PCIe Expansion
- A PCIe 3.0 x16 slot will allow you to install a dedicated graphics card, while a PCIe 2.0 x1 slot is available for other accessories.
- 2 x USB 3.0 Type-A & 6 x USB 2.0 Type-A
- The HP 280 G2 has two USB 3.0 Type-A ports and six USB 2.0 Type-A ports that will allow you to connect peripherals such as hard drives, printers, and memory card readers. At 5 Gb/s, USB 3.0 transfers data up to 10 times faster than USB 2.0, which operates at 480 Mb/s. USB 3.0's high-speed transfer rate helps to significantly reduce data transfer times, meaning you spend less time waiting and more time focusing on the task at hand.
- HDMI & VGA Video Outputs
- Using the HDMI and VGA video outputs, users will be able to connect their system to an external display at resolutions up to 1920 x 1080 @ 60 Hz. The HDMI port is also multimode capable, supports HDCP, two audio streams, HBR2 link rates, and Multi-Stream Technology for a maximum of three displays.
- 180W Power Supply
- The 180W power supply is up to 85% efficient.
- Windows 7 Pro (64-bit) + Windows 10 Pro (64-bit) License
- This system is pre-installed with Windows 7 Professional software and also comes with a license and media for Windows 10 Pro software. You may only use one version of the Windows software at a time. Switching between versions will require you to uninstall one version and install the other version. You must back up all data (files, photos, etc.) before uninstalling and installing operating systems to avoid loss of your data.
UPC: 190781329992 In the Box HP 280 G2 Small Form Factor Desktop Computer USB Keyboard & Mouse Power Cord Windows 10 Pro (64-bit) License Windows 10 Pro (64-bit) Recovery Media Windows 7 Pro (64-bit) Recovery Media Limited 1-Year Warranty for Parts Limited 1-Year Warranty for Labor 1 Year of Repairs Performed at Customer Site for Those Parts Not Eligible for Customer Self Repair (CSR) For 24/7 Customer Service, Please Call 1-800-334-5144 More from Manufacturer webavabvryxdxwzqerxeyf Table of Contents
|
Upload User Manual
Have you got an user manual for the HP 280 G2 Small Form Factor Desktop Computer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHP Z2H39UT#ABA Specs | Operating System | Windows 7 Professional (64-Bit) | | | | Chipset | Intel H110 | | CPU | 3.7 GHz Intel Core i3-6100 Dual-Core | | L3 Cache | 3 MB | | Memory Type | 2133 MHz DDR4 | | Total Installed Memory | 4 GB | | Memory Configuration | 1 x 4 GB (User-Replaceable) | | Maximum Memory Capacity | 32 GB | | Memory Slot Type | 288-Pin DIMM | | Available Memory Slots | 1 | | Graphics Type | Integrated | | GPU | Intel HD Graphics 530 | | | | Total Drive Bays | None | | Hard Disk Storage | 1 x 500 GB 3.5" SATA (7200 rpm) | | PCI Expansion | 1 x PCIe Gen 3 x16
1 x PCIe Gen 2 x1 | | Optical Drive | Tray-Load SuperMulti DVD Burner with Dual Layer Support | | | | Ports | 2 x USB Type-A (USB 3.1 Gen 1)
6 x USB Type-A (USB 2.0) | | Display | 1 x HDMI
1 x VGA | | Audio | 1 x 1/8" / 3.5 mm Headphone/Microphone Input/Output
1 x 1/8" / 3.5 mm Line Input
1 x 1/8" / 3.5 mm Line Output | | Media Card Slots | 1 x SDXC | | | | Ethernet | 1 x RJ45 (Gigabit) | | Wi-Fi | None | | Bluetooth | None | | | | Keyboard | Full-Size Keyboard with Number Pad | | Pointing Device | USB Mouse | | | | Power Supply | 180 W | | Dimensions | 10.6 x 3.9 x 11.4" / 26.9 x 9.9 x 29 cm | | Weight | 8.1 lb / 3.7 kg | | | | Package Weight | 13.75 lb | | Box Dimensions (LxWxH) | 19.3 x 15.6 x 8.7" |
