User Manual for HP 280 G3 Microtower Desktop Computer Click to enlarge the picture
Contents of the user manual for the HP 280 G3 Microtower Desktop Computer
- Product category: Desktop Computers HP
- Brand: HP
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for HP Desktop Computers
 |
User manual for the HP 280 G3 Microtower Desktop Computer contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any HP product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official HP user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a HP product will considerably shorten its lifespan!
|

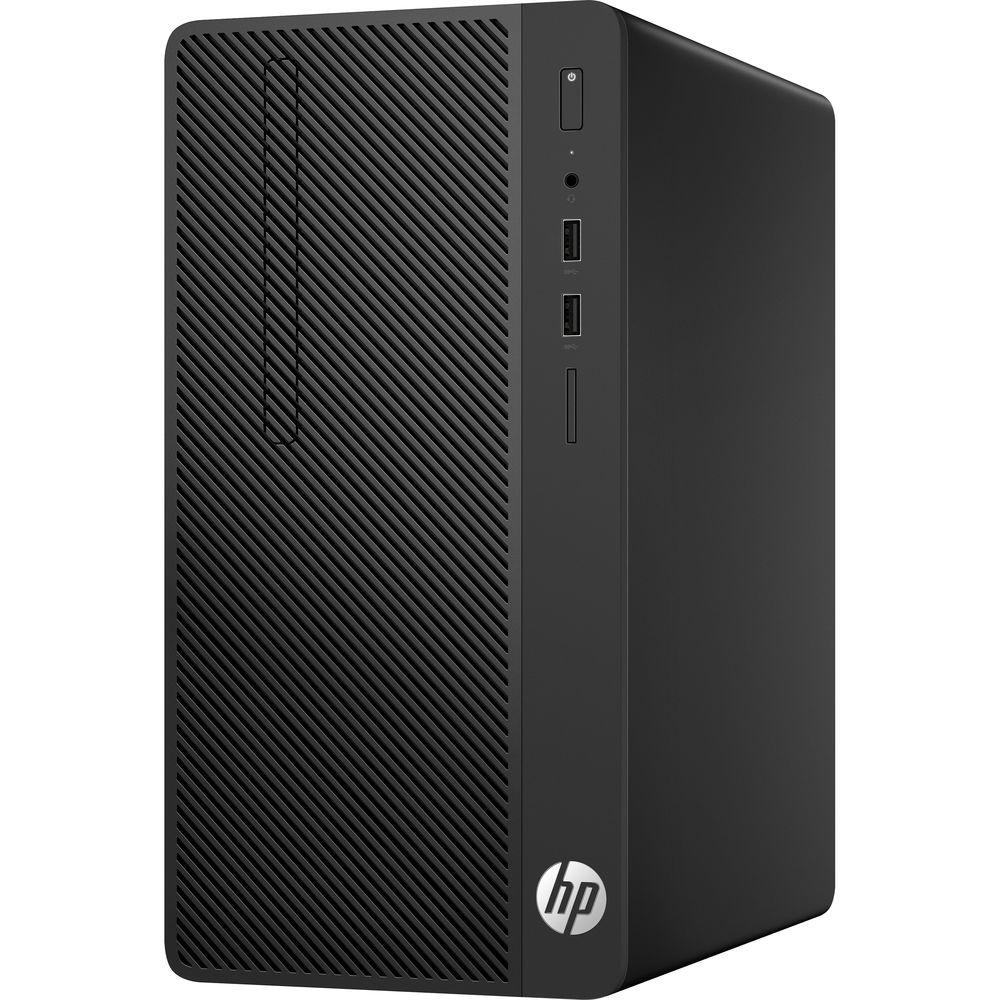

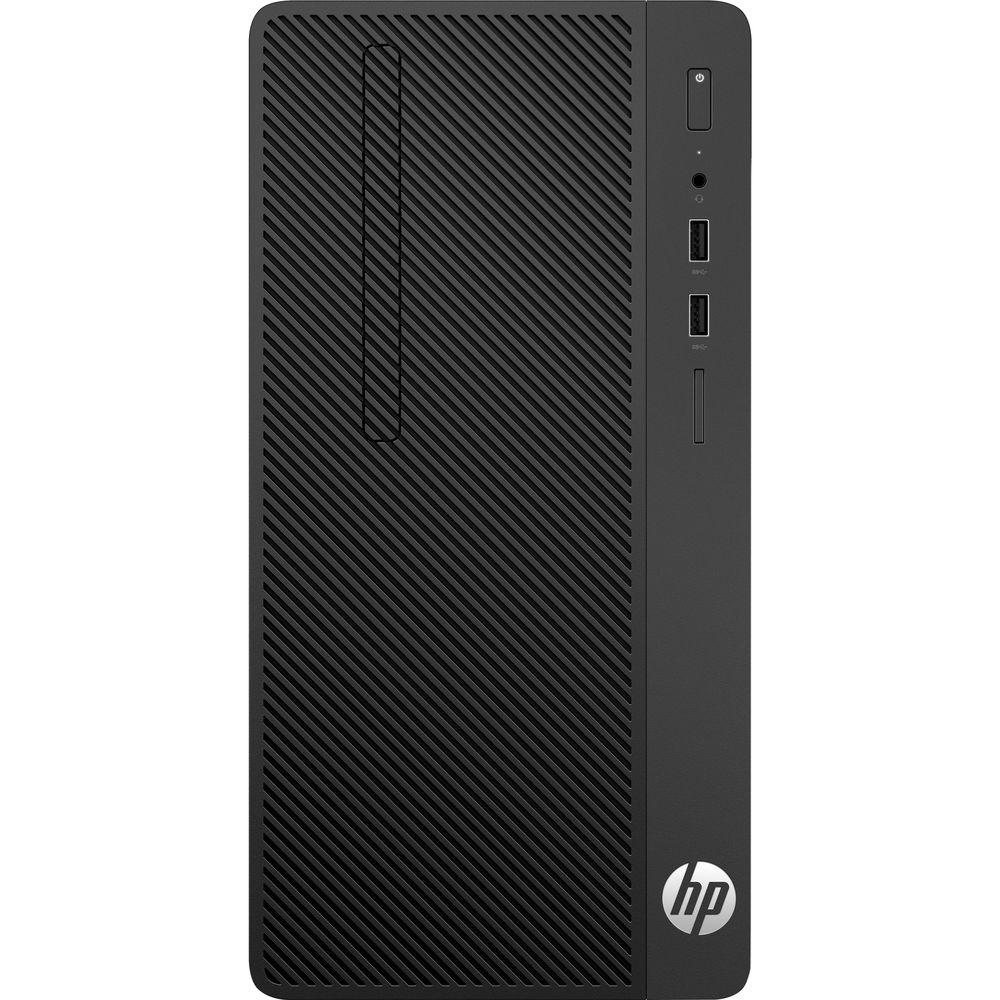

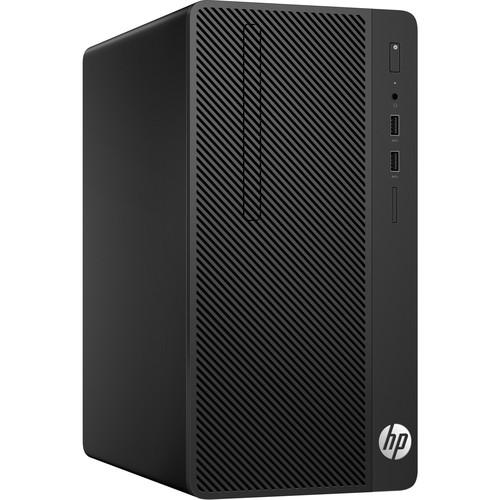

Product description The 280 G3 Microtower Desktop Computer from HP delivers the computing power needed for business while helping to minimize the total cost of ownership. The 280 G3 Microtower is powered by a 3.7 GHz Intel Core i3-6100 Dual-Core processor which will allow users to run multiple applications simultaneously. The 4GB of 2400 MHz DDR4 SDRAM also helps the computer to run multiple applications simultaneously, as well as access frequently used files and programs. The current memory configuration is one 4GB module with an additional slot available for memory upgrades, making for a total of two 288-pin DIMM slots. With both DIMM slots in use, this system supports 32GB of RAM, or 16GB per slot.

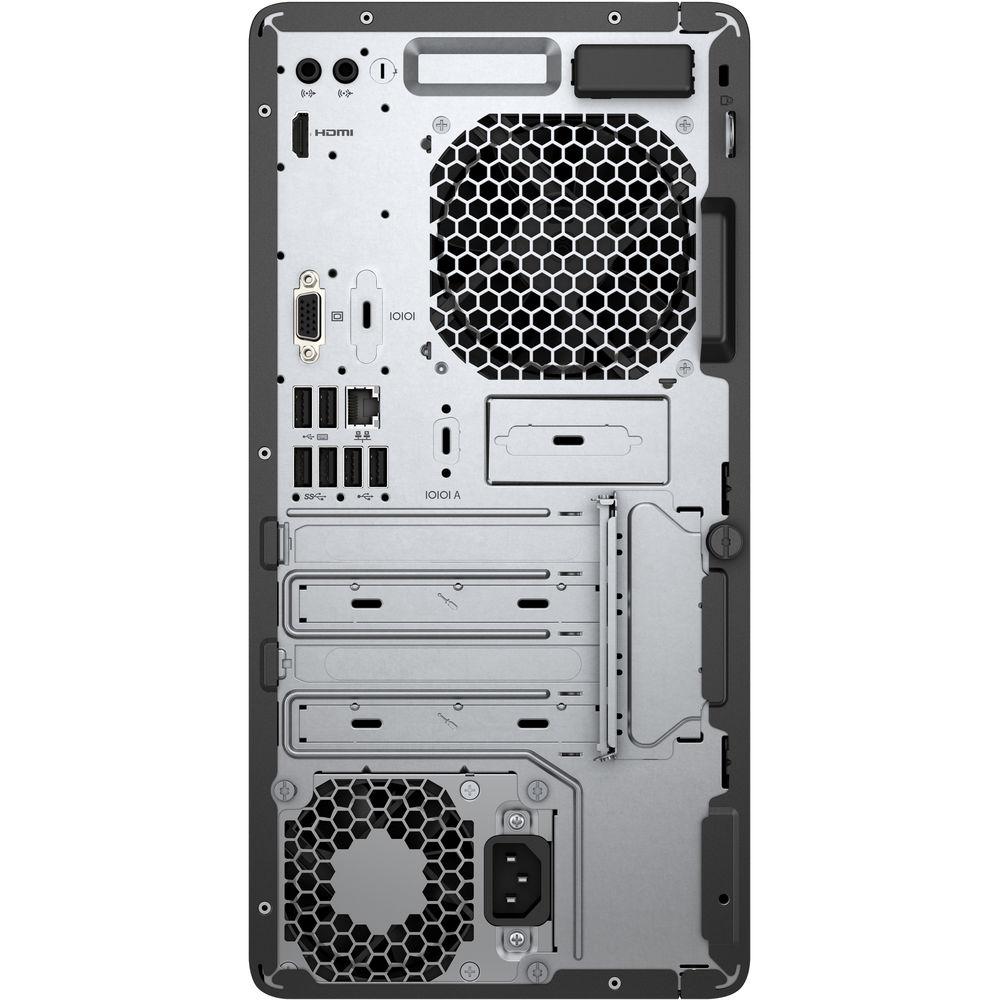

For long-term storage of your files, a 500GB 7200 rpm SATA 3.5" hard drive offers quick access to your data. If you want to add external storage drives or other peripherals, the 280 G3 Microtower features four USB 3.0 Type-A ports and four USB 2.0 Type-A ports. The integrated Intel HD Graphics 530 chipset delivers a sharp, clear picture while allowing for a wide range of monitors to be used via its HDMI and VGA port outputs at resolutions up to 4096 x 2160 @ 60 Hz. Whether you are listening to music, watching a movie, or playing a game, the integrated Conexant CX20632 codec outputs high definition audio and delivers higher fidelity than standard audio controllers.
The HP 280 G3 Microtower Desktop Computer includes a USB keyboard, a USB mouse, and a 180W power supply. While the installed operating system is Windows 7 Pro (64-bit), a Windows 10 Pro (64-bit) license is included at no additional cost. Also included is recovery media. General Features - Slim SATA SuperMulti DVD Burner
- A Slim SATA SuperMulti DVD Burner is included for reading and writing to a variety of CD and DVD media.
- Gigabit Ethernet
- The system uses an integrated Realtek RTL8111HSH-CG Gigabit Ethernet controller for Internet access when connected to a router, modem, or network switch.
- 4 x USB 3.0 Type-A Ports & 4 x USB 2.0 Type-A Ports
- The system features four USB 3.0 Type-A ports and four USB 2.0 Type-A ports that will allow you to connect peripherals such as hard drives, printers, and memory card readers. At 5 Gb/s, USB 3.0 transfers data up to 10 times faster than USB 2.0, which operates at 480 Mb/s. USB 3.0's high-speed transfer rate helps to significantly reduce data transfer times, meaning you spend less time waiting and more time focusing on the task at hand. One of the USB 2.0 ports also doubles as a fast charging port.
- Microphone/Headphone Combo Jack (CTIA)
- The headset connector supports a CTIA-style headset and is re-taskable as a line-in, line-out, microphone-in, or headphone-out port
- Expansion Slots
- 1 x PCIe 3.0 x16
1 x PCIe 2.0 x1
1 x M.2 - Windows 7 Pro (64-bit) + Windows 10 Pro (64-bit) License
- This system is pre-installed with Windows 7 Professional software and also comes with a license and media for Windows 10 Pro software. You may use only one version of the Windows software at a time. Switching between versions will require you to uninstall one version and install the other version. You must back up all data (files, photos, etc.) before uninstalling and installing operating systems to avoid loss of your data.)
UPC: 190781745730 In the Box HP 280 G3 Microtower Desktop Computer USB Keyboard & Mouse 180W AC Adapter Windows 10 Pro (64-bit) License Recovery Media Limited 1-Year Warranty for Parts Limited 1-Year Warranty for Labor 1 Year of Repairs Performed at Customer Site for Those Parts Not Eligible for Customer Self Repair (CSR) For 24/7 Customer Service, Please Call 1-800-334-5144 More from Manufacturer Table of Contents
|
Upload User Manual
Have you got an user manual for the HP 280 G3 Microtower Desktop Computer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHP 280 G3 Specs | | | L3 Cache | 3 MB | | Total Installed Memory | 4 GB | | Maximum Memory Capacity | 32 GB | | Available Memory Slots | 1 | | Memory Slot Type | 288-Pin DIMM | | Graphics Type | Integrated | | | | Optical Drive | Tray-Load SuperMulti DVD Burner with Dual Layer Support | | PCI Expansion | 1 x PCIe Gen 3 x16
1 x PCIe Gen 2 x1
1 x M.2 2230 (E-Key) | | | | Wi-Fi | None | | Bluetooth | None | | | | Operating System | Windows 7 Professional (64-Bit) | | | | Package Weight | 16.35 lb | | Box Dimensions (LxWxH) | 19.5 x 15.2 x 11.6" |
